Accessories for DEHNgate

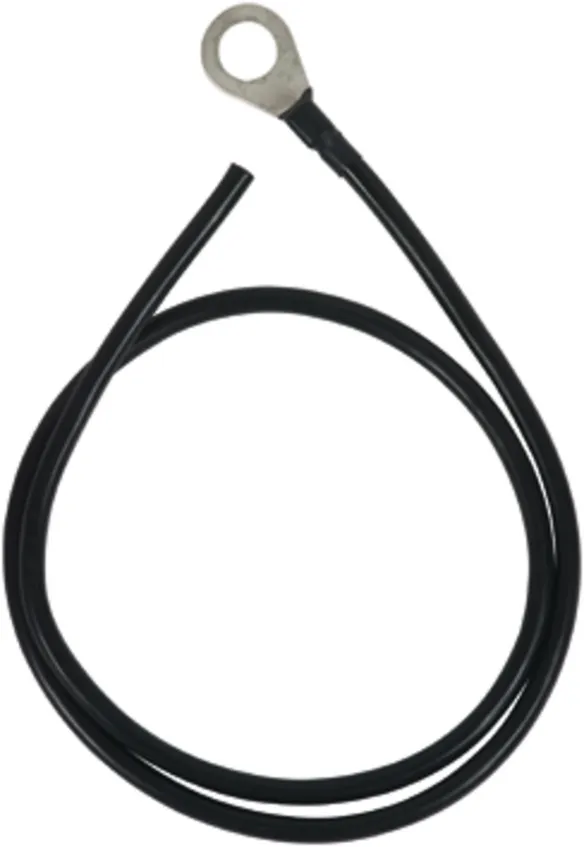

Cable Lug with Earthing Cable

Cable lug with highly flexible black copper earthing cable for earthing DEHNgate arresters (Part No. 929 043, 929 044 or 929 045).

1 ??store.product_de??

??store.product.number.short_de?? 929096 EL 16 B17

??store.product.gtin_de?? 4013364107212, ??store.product.customsTariffNumber_de??: 85444991, ??store.product.grossWeight_de??: 202.70 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

Cable lug with earthing cable for earthing DEHNgate EL 16 B17
Cable lug with hole diameter 17 mm2 and black
highly flexible copper earthing conductor 1 m long
for earthing DEHNgate


Brand: DEHN
Type: EL 16 B17
Part No.: 929096
or equivalent.



??store.product.data_de??

Colour black ●
Length 1000 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

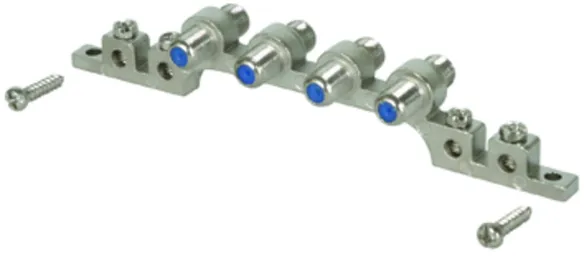

Earthing Block 4xF

Four-pole earthing block with F sockets for equipotential bonding of satellite cable shields or DGA GF TV lightning current arresters.

1 ??store.product_de??

??store.product.number.short_de?? 929095 EB 4 F

??store.product.gtin_de?? 4013364113398, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 90.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

EB 4 F earthing block 4xF
Four-pole earthing block with F-sockets at the input and output, for equipotential bonding of up to 4 satellite cable shields or DGA GF TV lightning current arresters.
Shielding: class A, 75 ohms
Max. continuous operating voltage (d.c.): 65 V
D1 Lightning impulse current (10/350 µs): 10 kA
Frequency range: 0-2400 MHz

Brand: DEHN
Type: EB 4 F
Part No.: 929095
or equivalent.

??store.product.certs_de??



??store.product.data_de??

D1 Lightning impulse current (10/350 µs) 10 kA
Colour bare surface

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

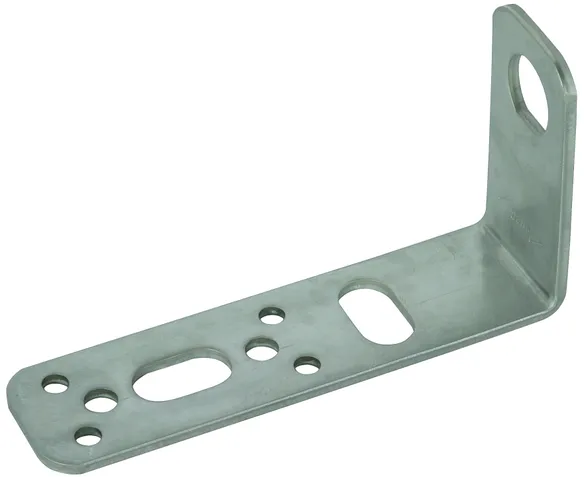

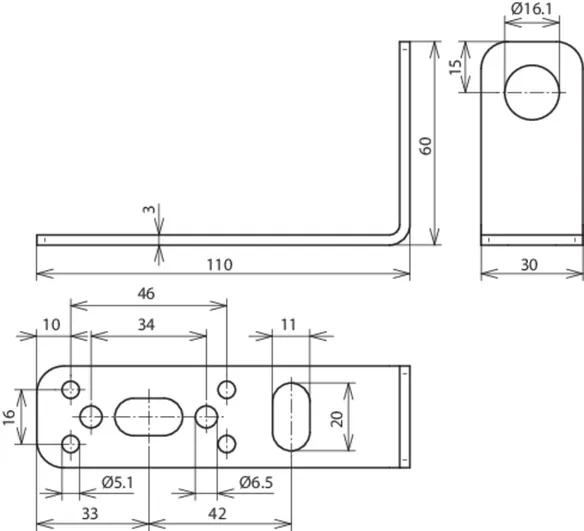

Fixing bracket for HF Arresters

With three mounting boreholes for three different sizes of DEHNgate arresters, e.g. 1x 929 042 + 1x 929 057 + 1x (929 043, 929 044, 929 045 or 929 059).

1 ??store.product_de??

??store.product.number.short_de?? 106329 BW90 B17 21 16 V2A

??store.product.gtin_de?? 4013364107182, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 152.63 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??
