BLITZDUCTOR XTU – Protection modules with RFID LifeCheck

Combined lightning current and surge arrester

Max. discharge capacity for balanced data interfaces
Capable of carrying lightning currents up to 10 kA (10/350 µs)
For installation in conformity with the lightning protection zone concept at the boundaries from 0_A – 2 and higher

With actiVsense technology

Automatically detects the signal voltage ranging from 0 to 180 V
Optimally adapts the voltage protection level to the currently applied signal
Capable of protecting terminal equipment due to adapted voltage protection level
One arrester type for two different data interfaces

Integrated RFID LifeCheck monitoring function

Arresters can be tested without downtime
Detection of pre-damaged arresters
High signal availability due to preventive replacement of arresters

Arrester consists of a protection module and a base part

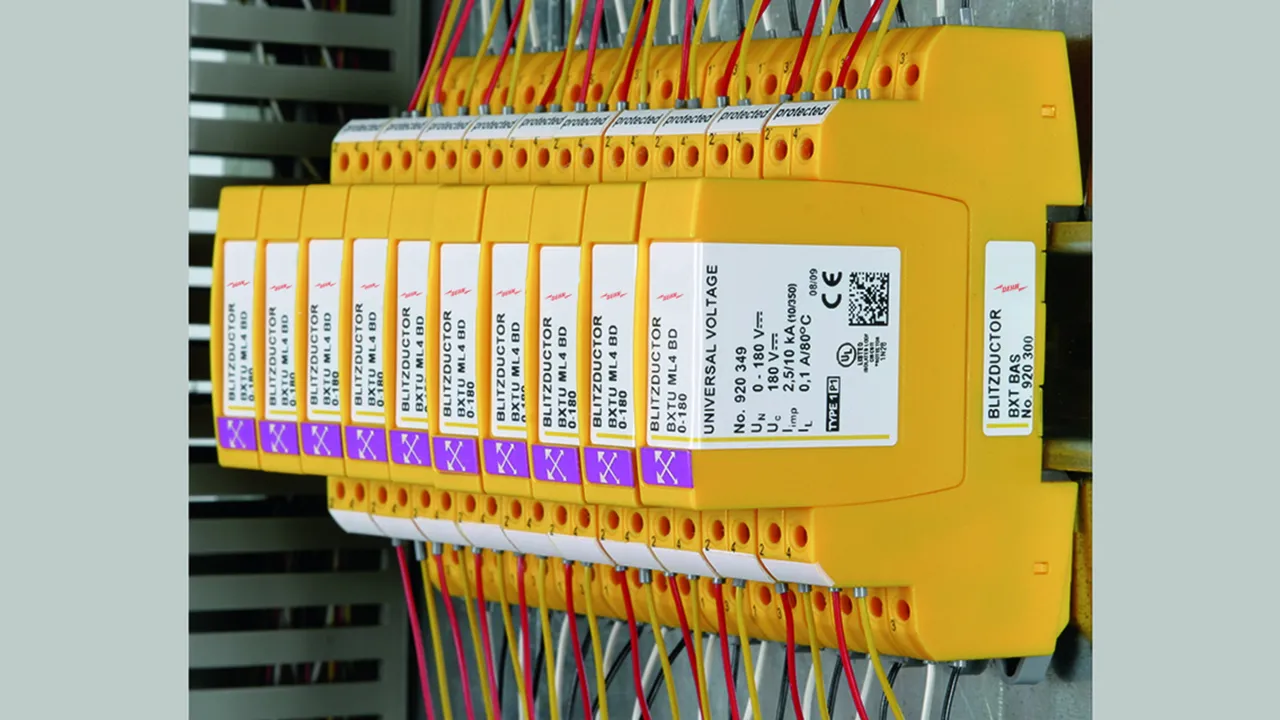

For DIN rail mounting with a standard base part
Easy replacement of protection modules
Vibration and shock-tested for safe operation
Two universal base parts with / without signal disconnection

Details

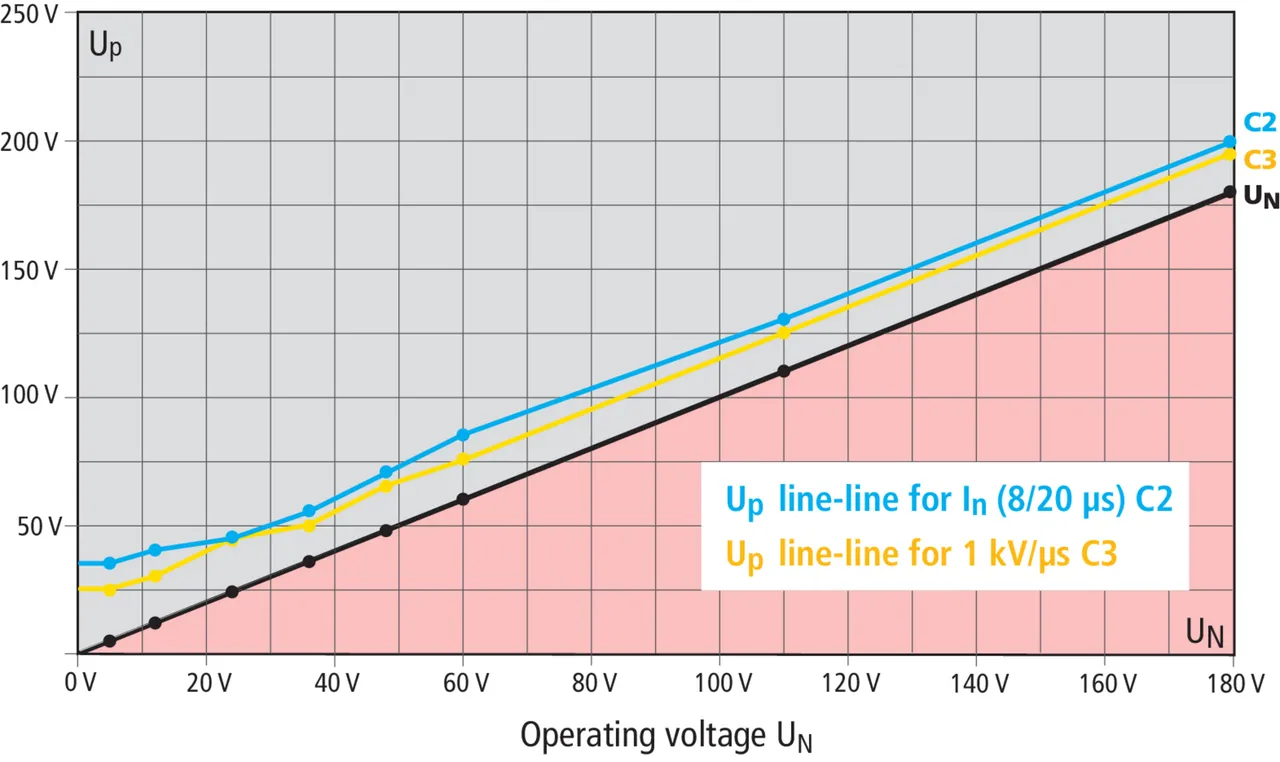

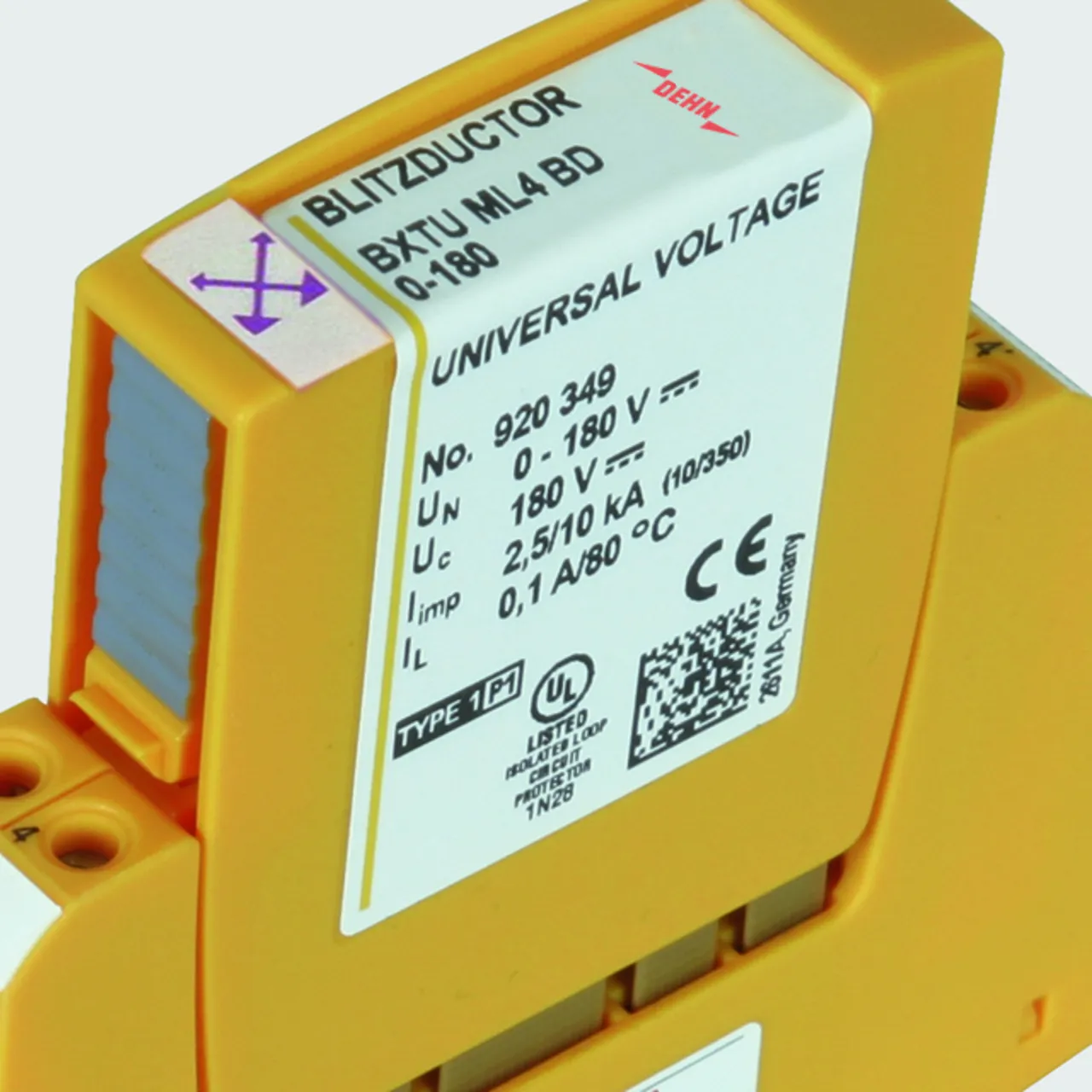

Optimally adapted voltage protection level with integrated actiVsense technology ensures protection of terminal equipment.

lorem ipsum — Optimally adapted voltage protection level with integrated actiVsense technology ensures protection of terminal equipment.

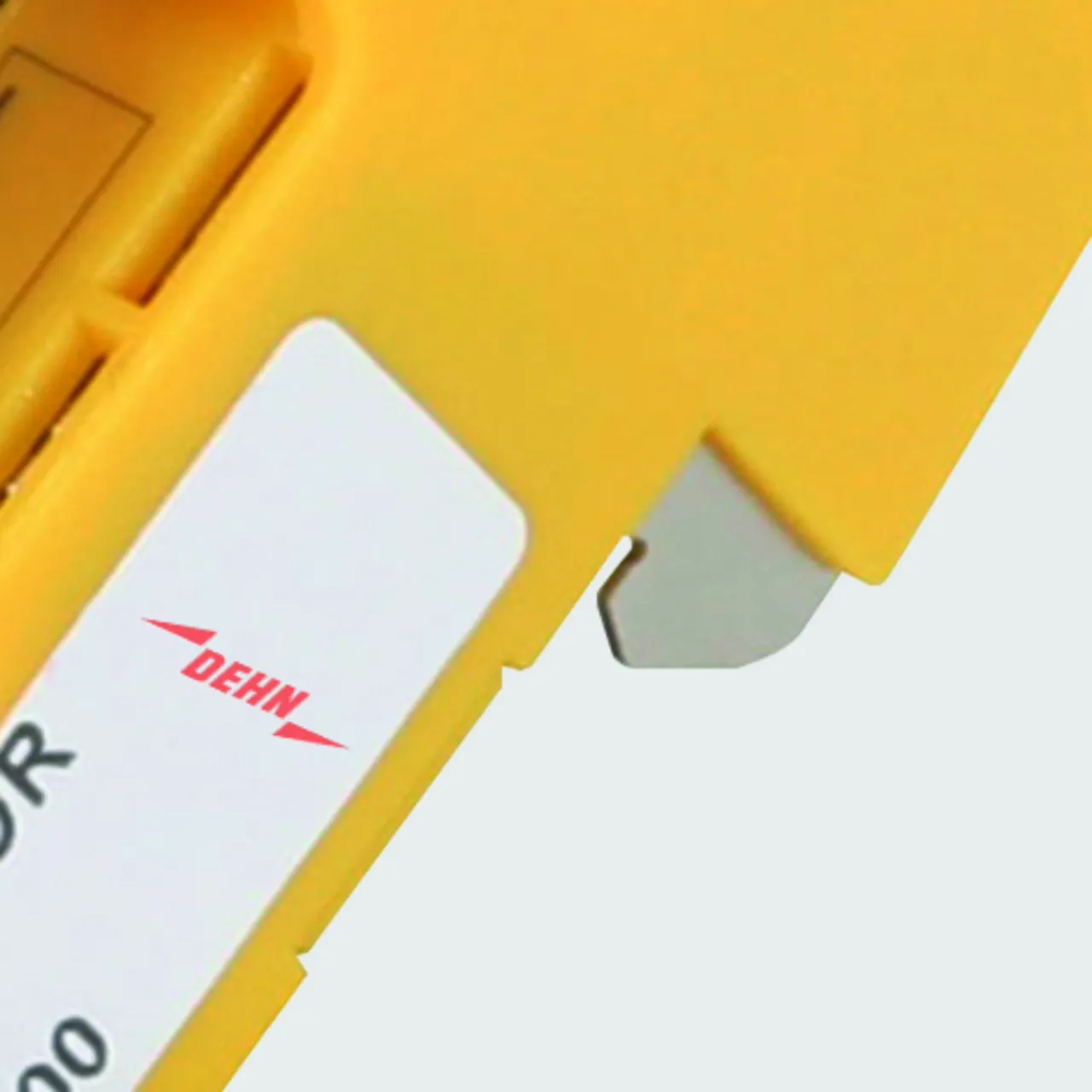

DIN rail mounting by means of integrated earthing contact.

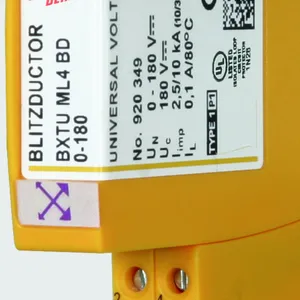

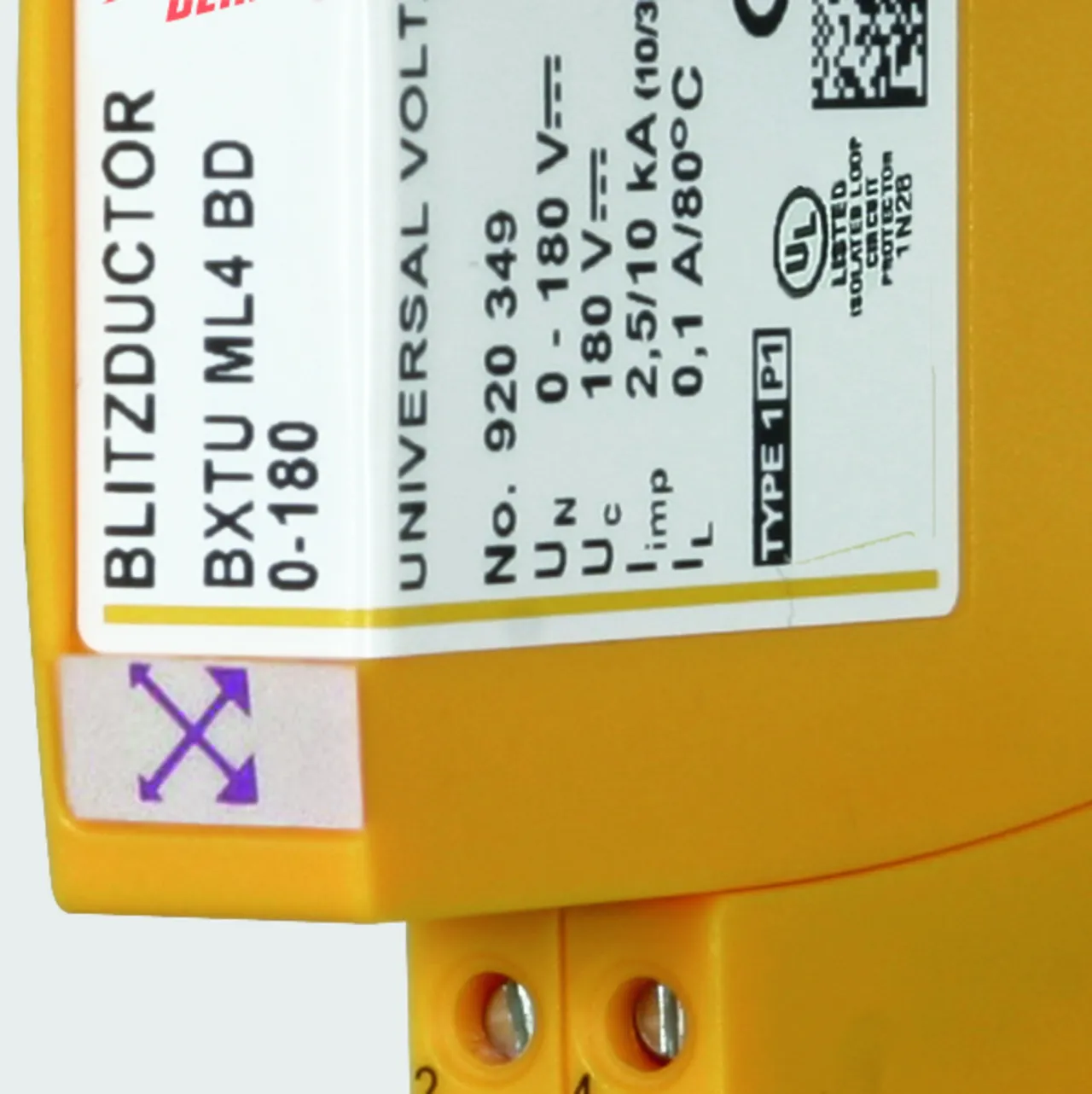

To ensure high availability of the signal circuits, the integrated LifeCheck feature allows a quick check of whether the arrester is pre-damaged.

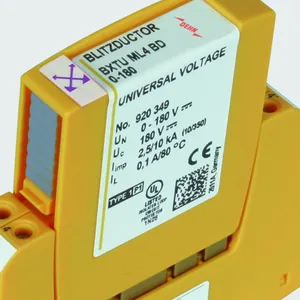

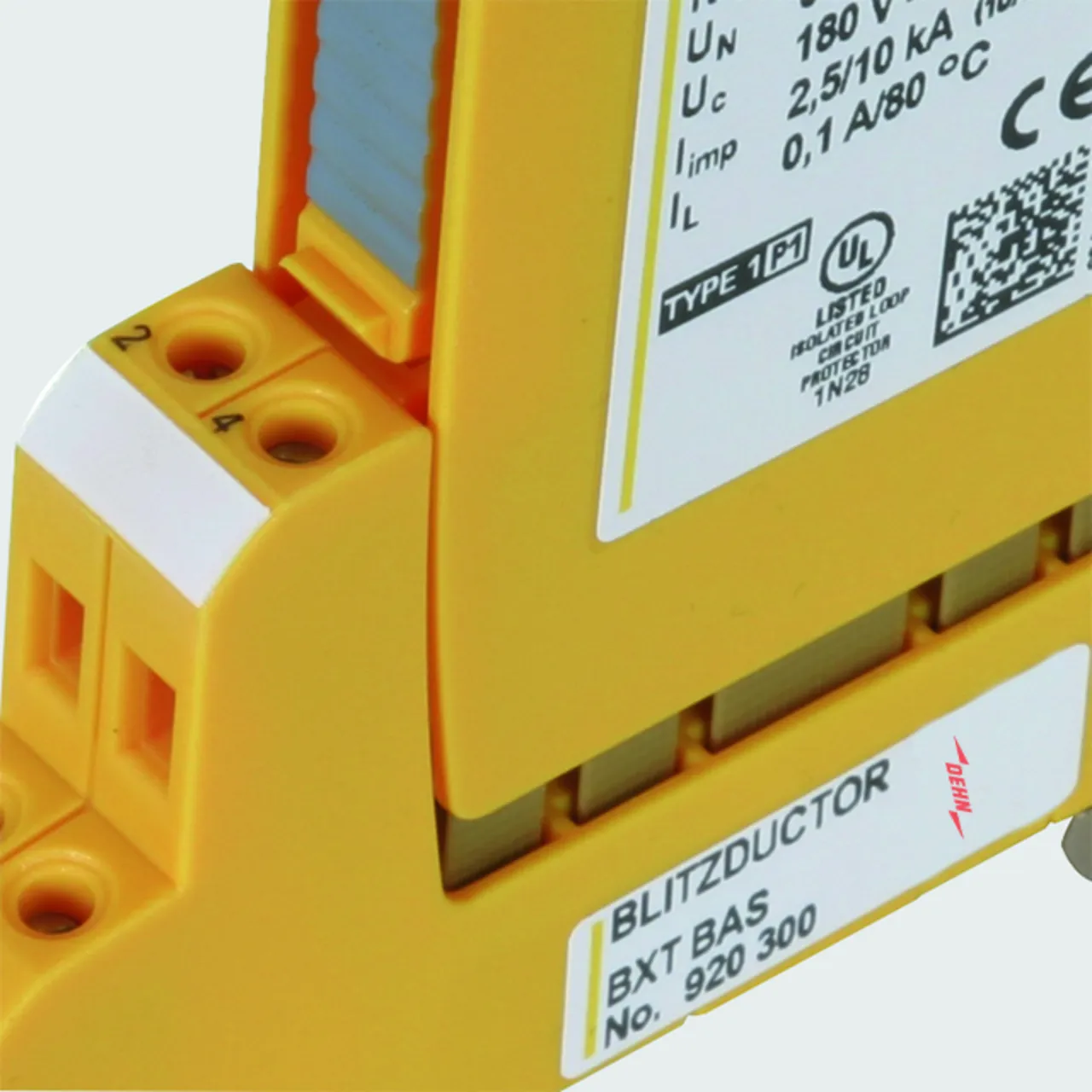

The protection module of the pluggable arrester safely snaps into the base part, thus ensuring vibration and shock resistance.

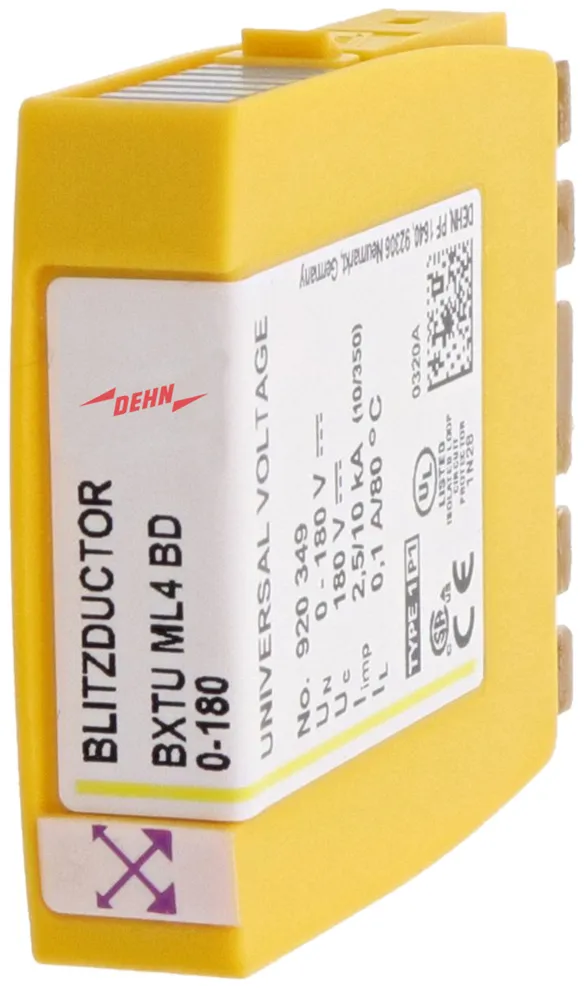

BXTU ML4 BD 0-180

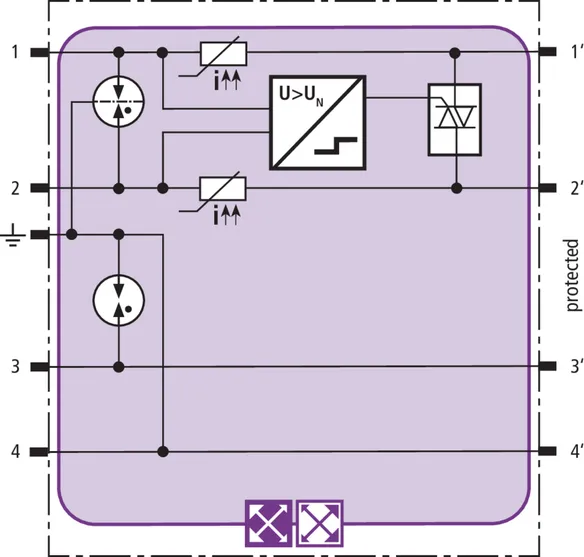

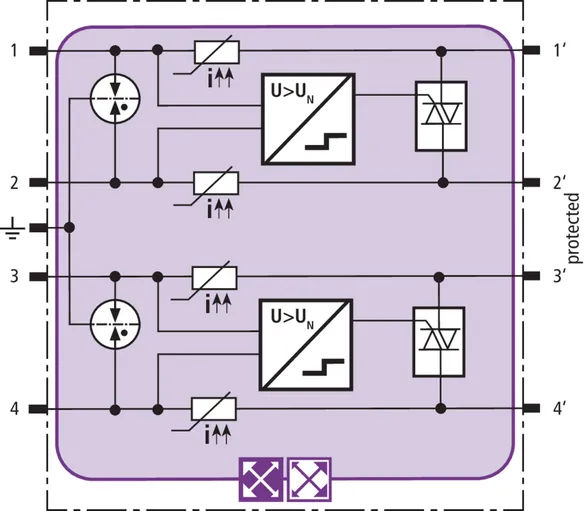

Space-saving combined lightning current and surge arrester module with actiVsense technology and RFID LifeCheck for protecting two pairs (same or different operating voltage) of balanced interfaces with galvanic isolation. Automatically detects the operating voltage of the useful signal and optimally adapts the voltage protection level to it.

1 ??store.product_de??

??store.product.number.short_de?? 920349 BXTU ML4 BD 0-180

??store.product.gtin_de?? 4013364126404, ??store.product.customsTariffNumber_de??: 85363010, ??store.product.grossWeight_de??: 32.30 g, ??store.product.packaging_de??: 1.00 pc(s)
