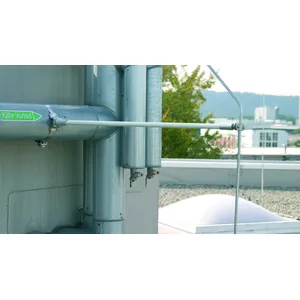

DEHNiso Spacers

Variable holder range for conductors and air-termination rods for maintaining the separation distance according to DIN EN 62305-3 (VDE 0185-305-3).

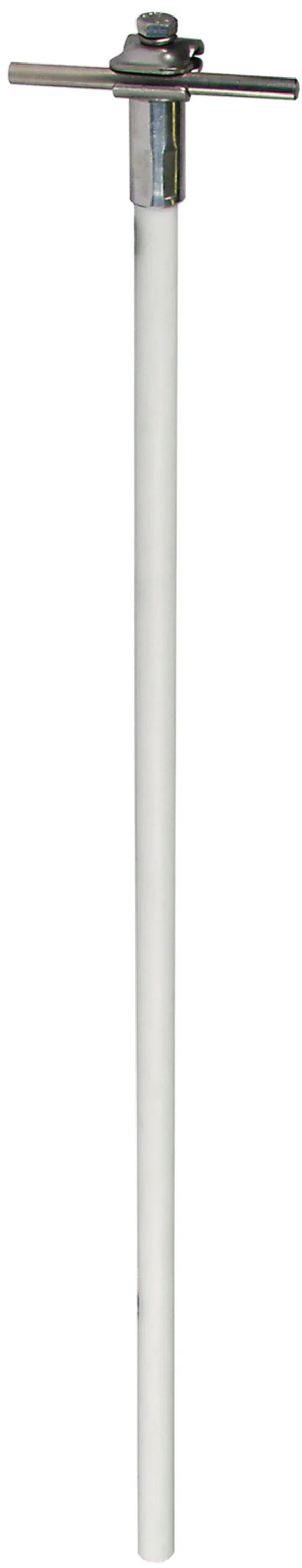

Spacer bar made of glass-fibre reinforced plastic (GRP), Ø16 mm, UV stabilised, light grey colour, permanent temperature range -50 to +100 °C.

The material factor k_m = 0.7 is used to determine the separation distance (length of spacer bar).
1 m of spacer bar is equivalent to a clearance in air of 0.7 m.

The DEHNiso spacers meet the requirements of DIN/IEC TS 62561-8.

Details

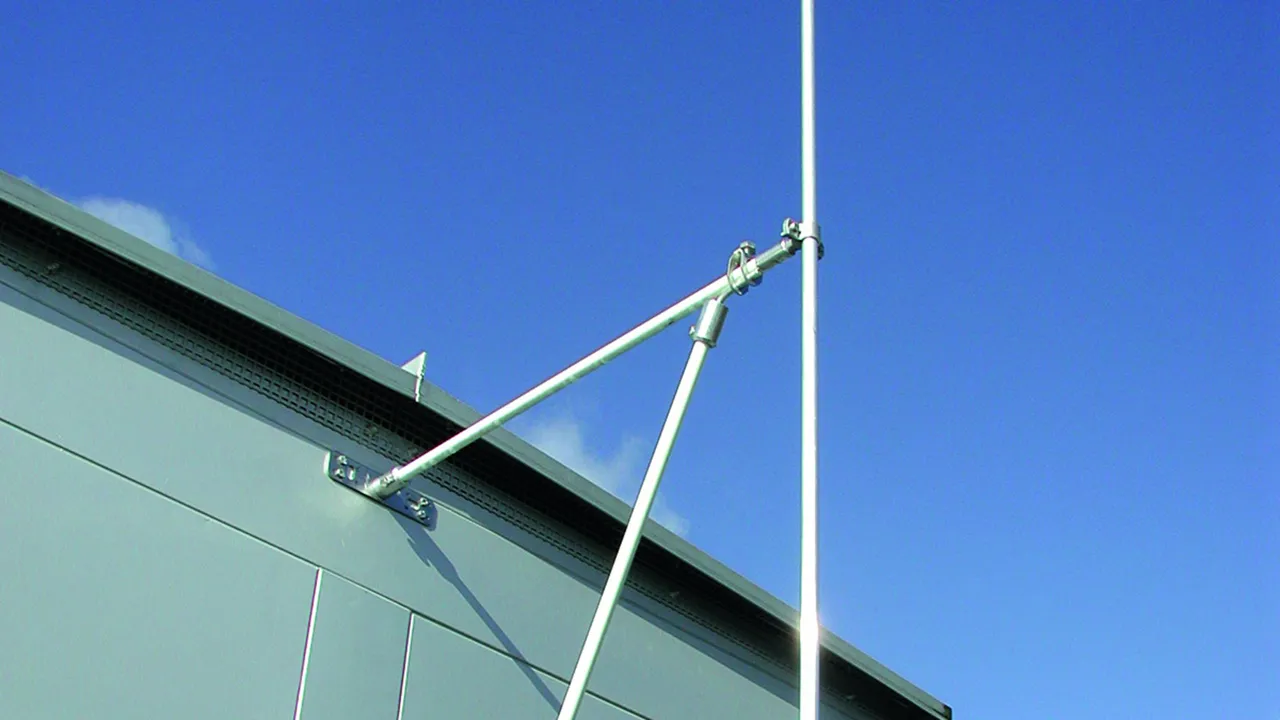

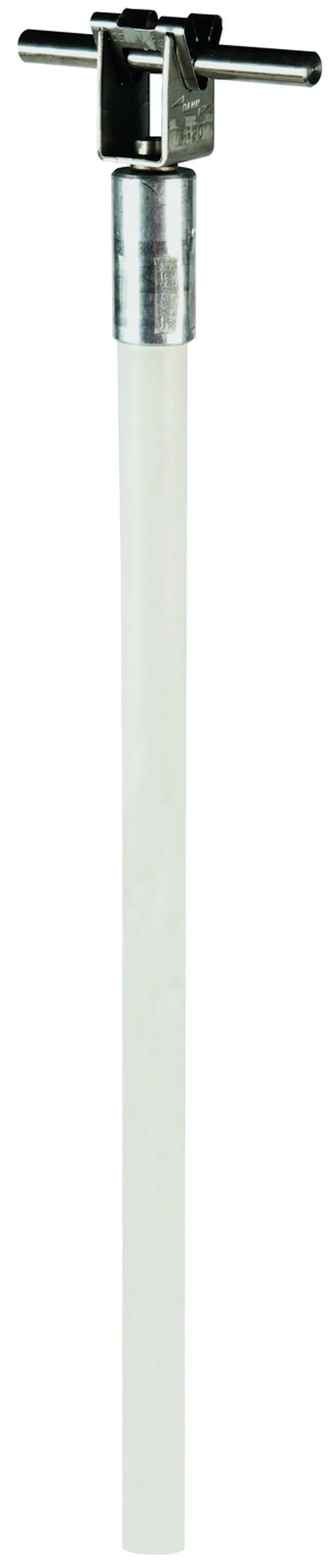

lorem ipsum — Angled support with saddle clamp

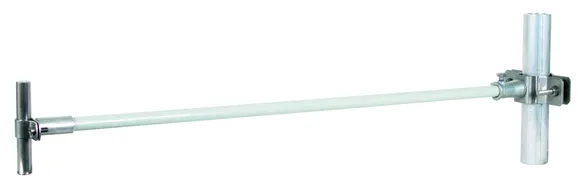

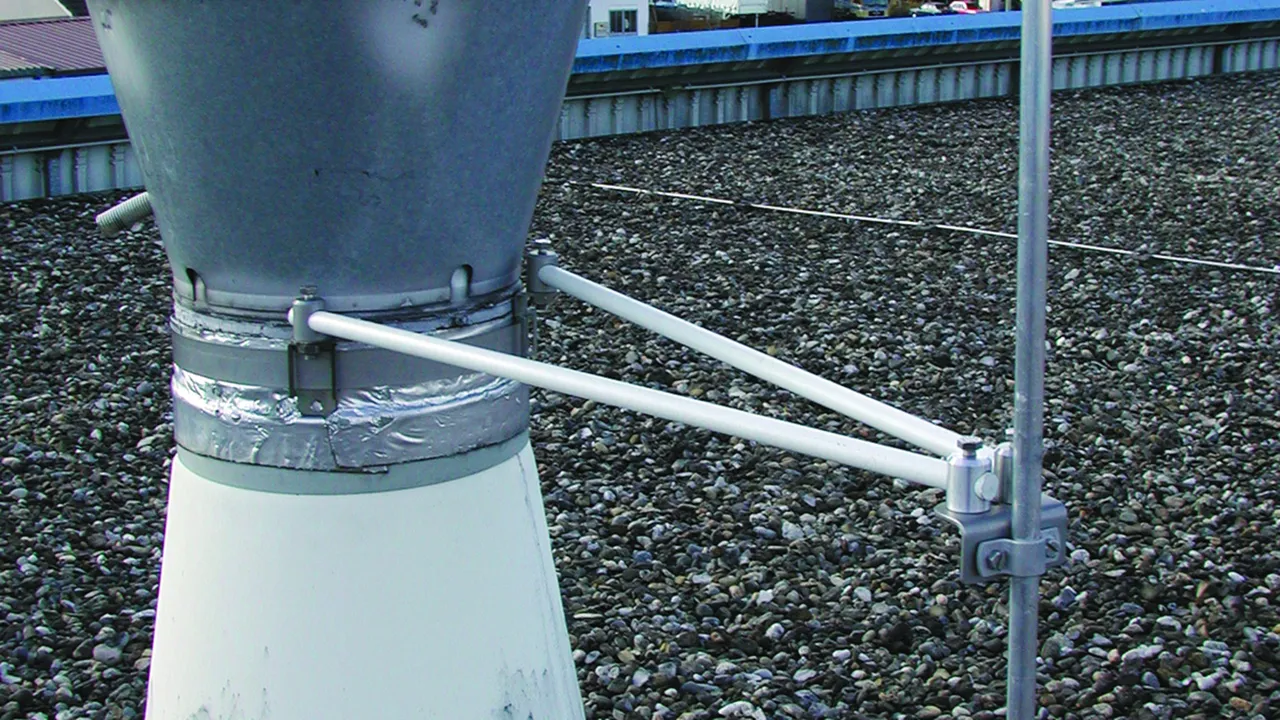

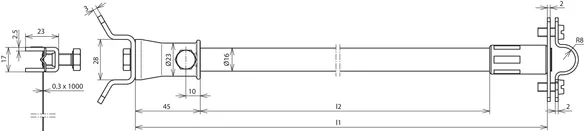

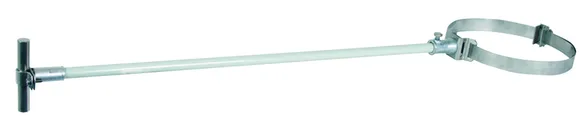

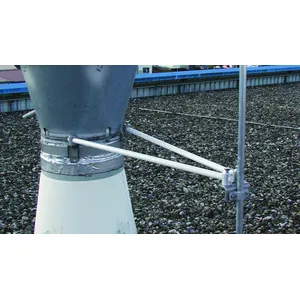

Spacer with attachment, fixing bush and tensioning strap

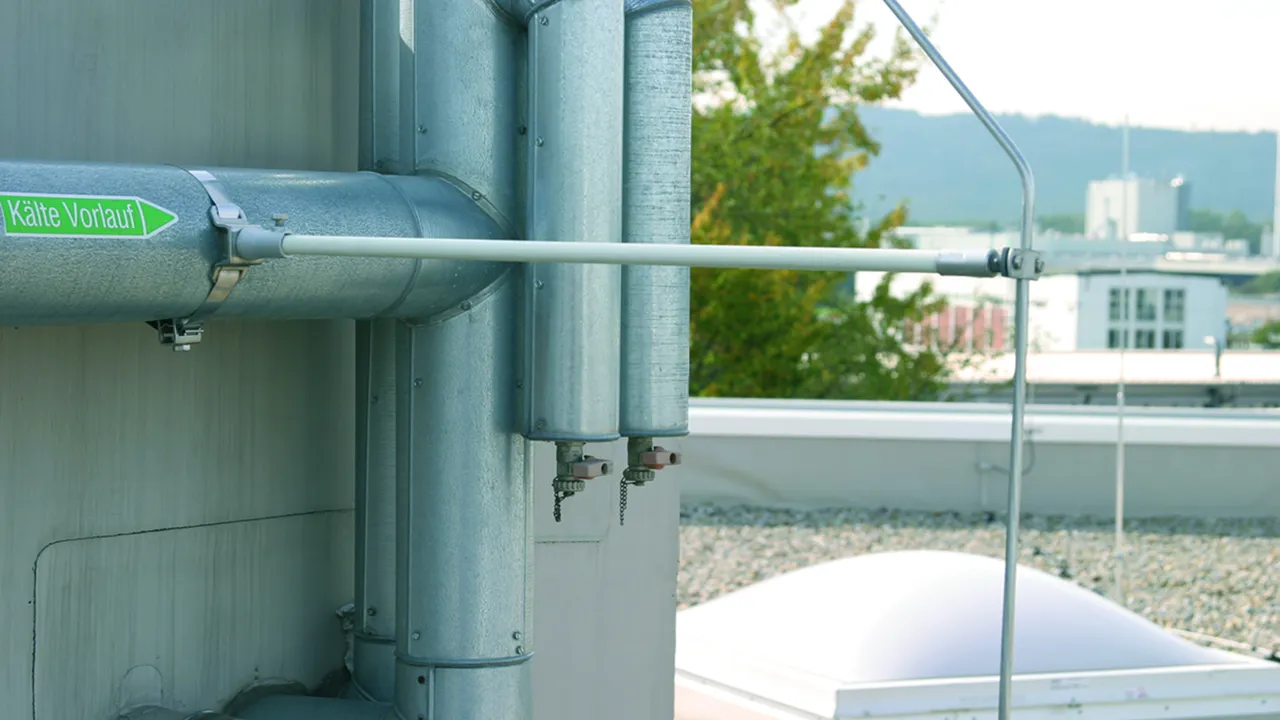

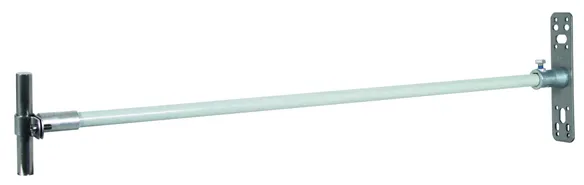

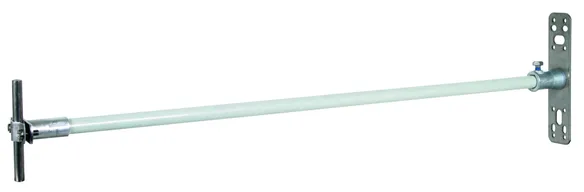

With rod holder and fixing plate

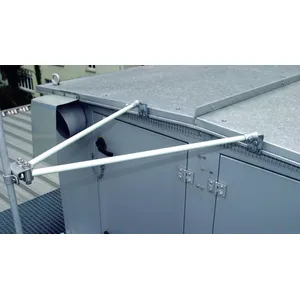

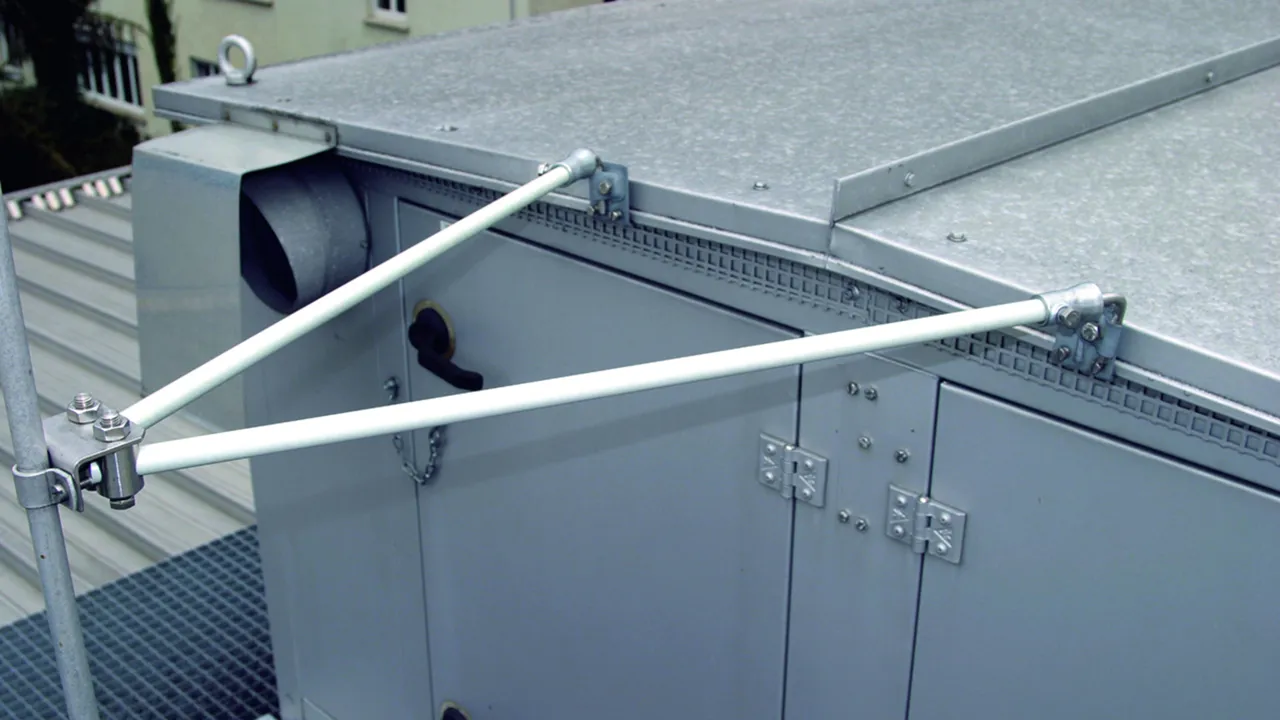

Fixed conductor routing.

3 ??store.products_de??

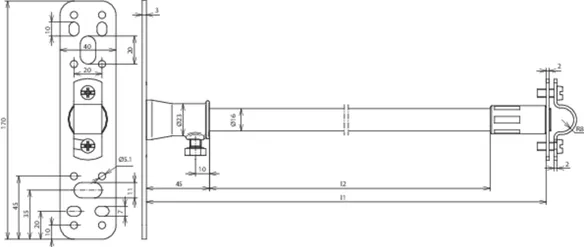

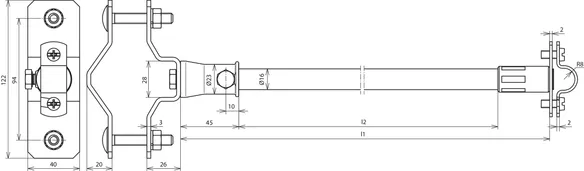

??store.product.number.short_de?? 106115 DIDH 16 530 BP V2A GFK

??store.product.gtin_de?? 4013364100213, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 488.00 g, ??store.product.packaging_de??: 1.00 pc(s)
