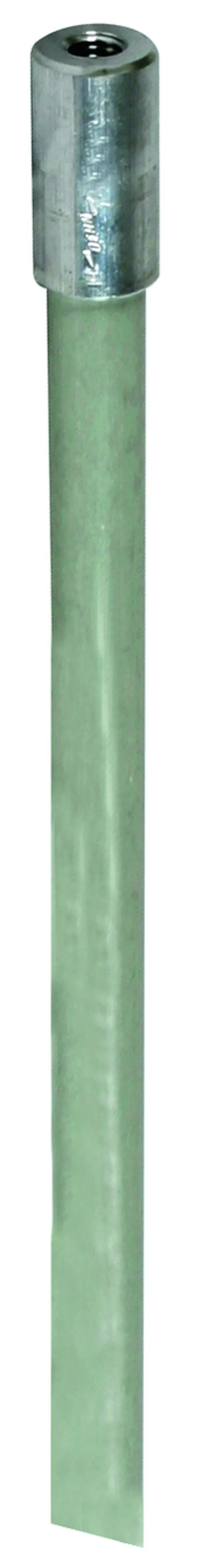

Air-Termination Rods GRP/Al

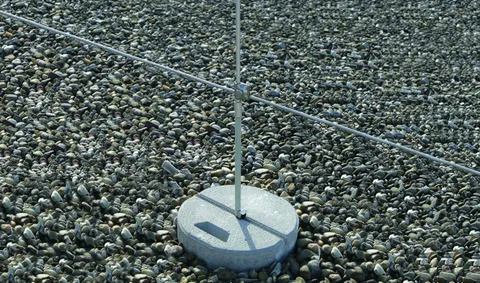

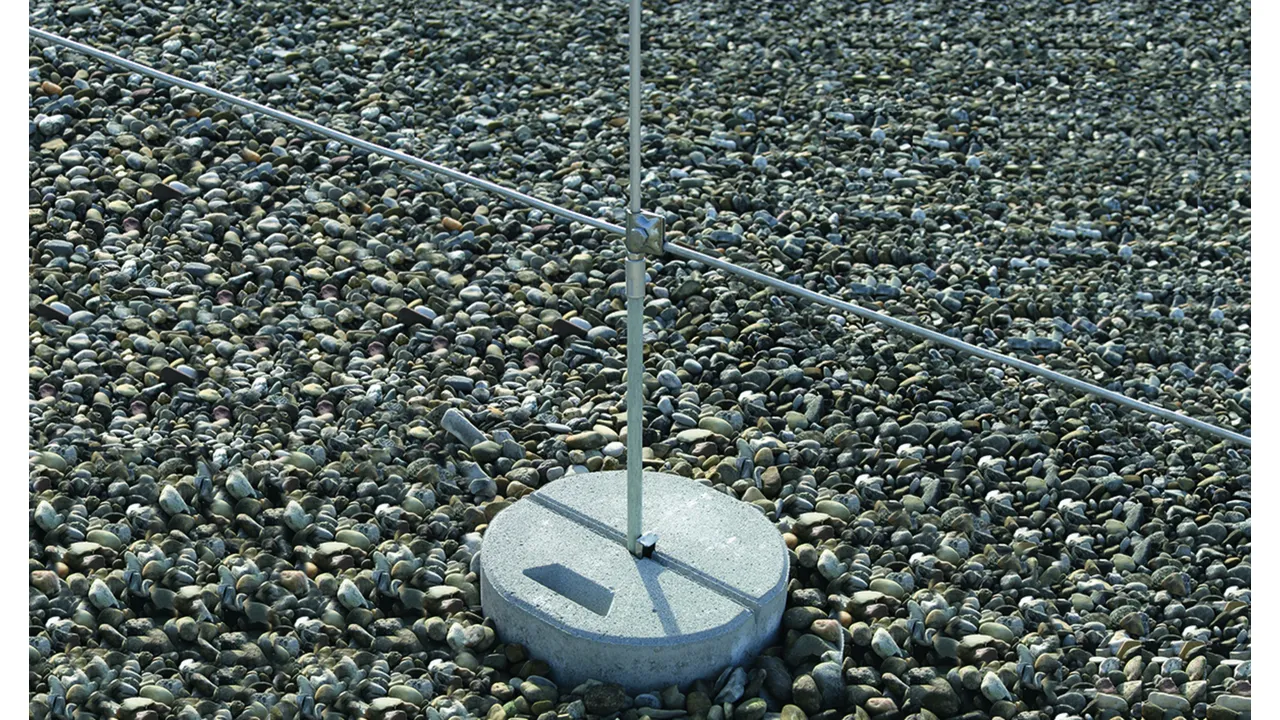

Air-termination rods for erecting isolated air-termination systems, e.g. on flat roofs, installed in a concrete base with fixing wedge.

The material factor k_m = 0.7 is used to determine the separation distance (length of spacer bar).

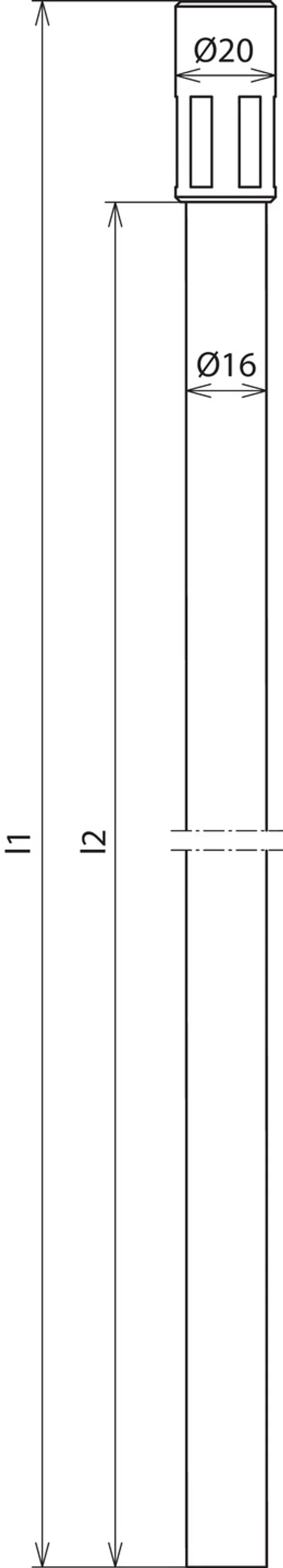

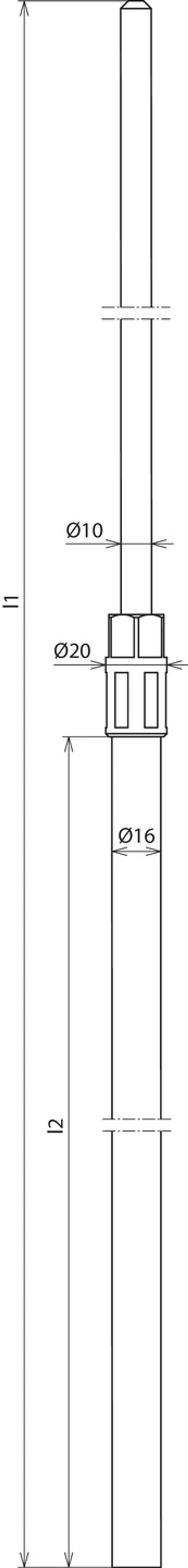

Diameter 16 mm, UV-stabilised, light grey colour, permanent temperature range -50 to +100 °C.

The air-termination rods are dimensioned with 2x concrete base (weight 17 kg) as per Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) .
The stackable concrete block (part no. 102 010) and the plastic base plate (part no. 102 050) have to be ordered separately.

The GRP/Al air-termination rods meet the requirements of DIN/IEC TS 62561-8.

Crimped

2 ??store.products_de??

??store.product.number.short_de?? 106207 FS 16 10 1660 GFK AL

??store.product.gtin_de?? 4013364127623, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 493.00 g, ??store.product.packaging_de??: 10.00 pc(s)
