Supporting Tube with HVI power Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance to electrically conductive parts according to IEC/EN 62305-3.

Applicable up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).

Optically optimised installation of the HVI power Conductor inside the supporting tube creates reduced area exposed to wind.

Minimum order length 6 m. The conductor cannot be returned as it is made to order.

The conductor length has to be stated when ordering (in steps of 0.5 m).

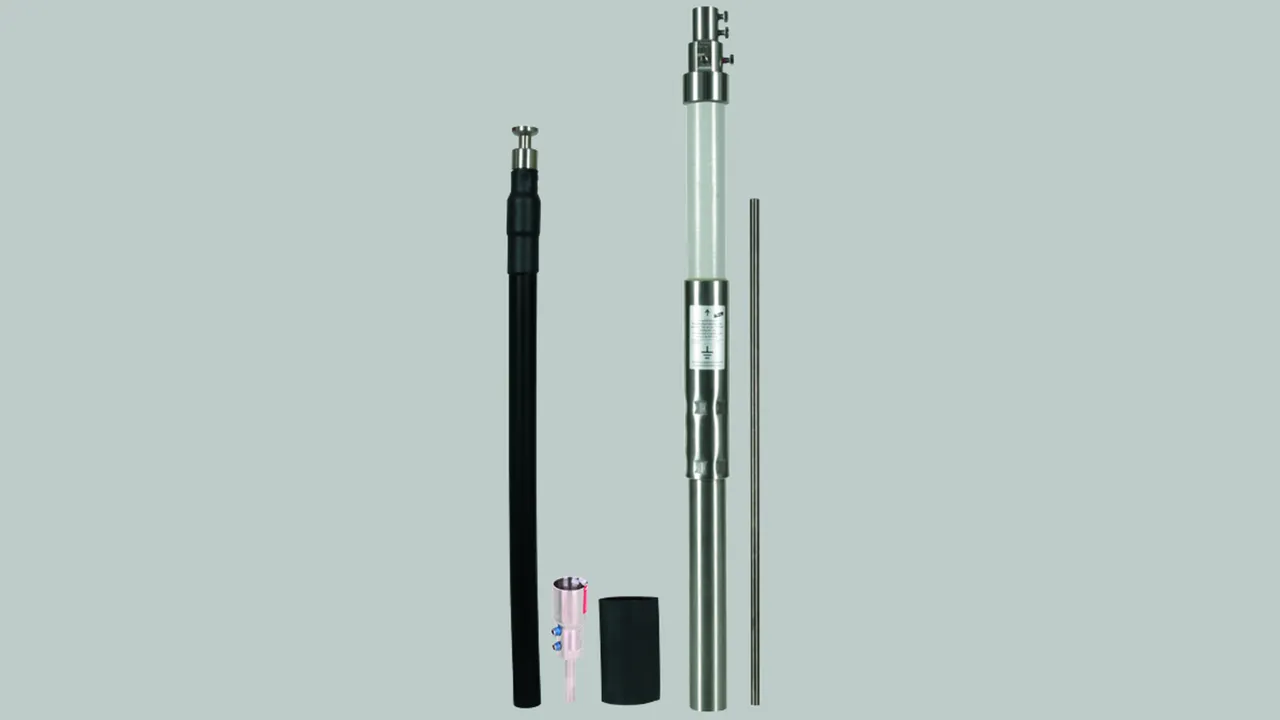

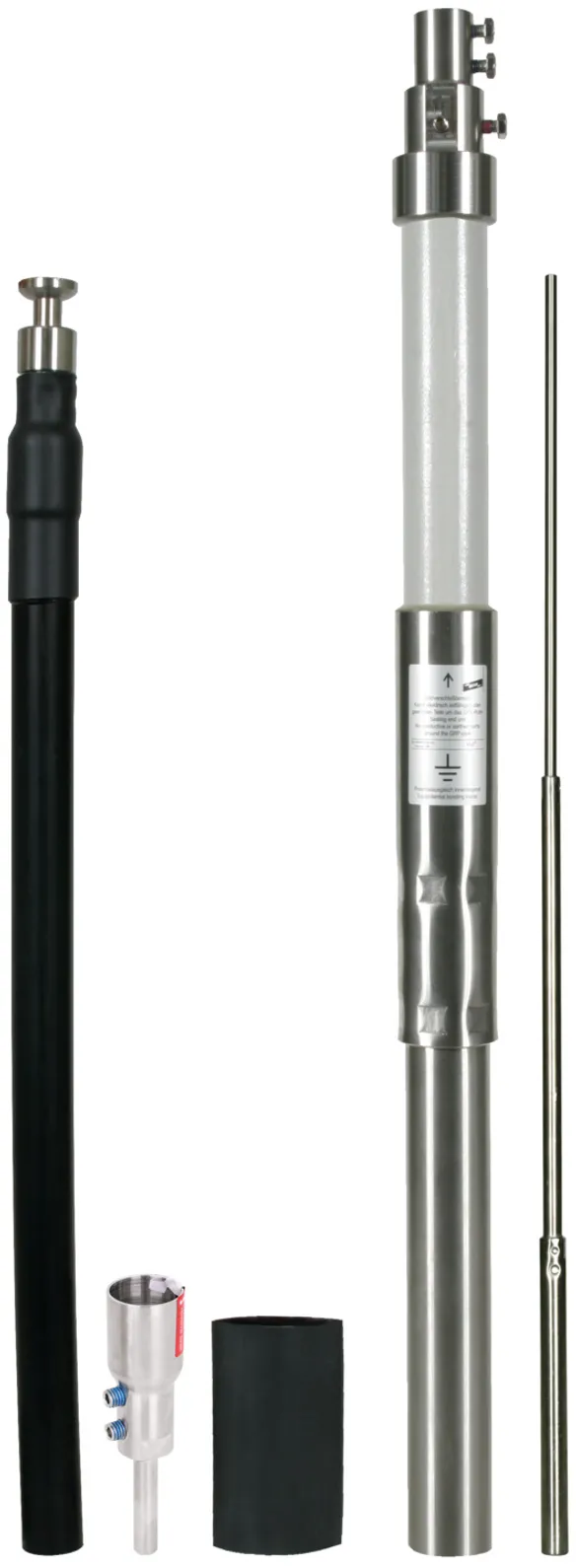

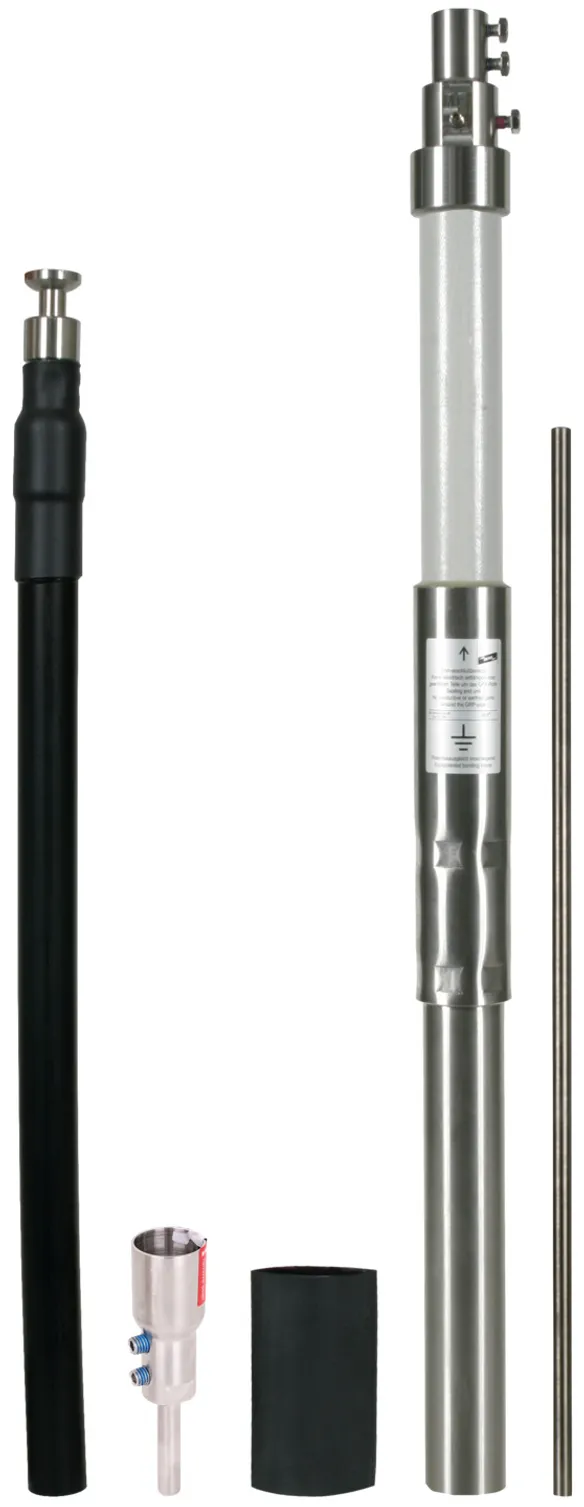

HVI power Conductor inside the supporting tube with air-termination tip

Supporting tube with internal sealing end and EB spring element.
Air-termination tip, StSt, Ø10 mm, length 1000 mm.

1 ??store.product_de??

??store.product.number.short_de?? 819430 HVI P 27 L6M SR3500 FSP1000 GFK V2A

??store.product.gtin_de?? 4013364152236, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 16.00 kg, ??store.product.packaging_de??: 1.00 pc(s)
