PHE III Voltage Detector

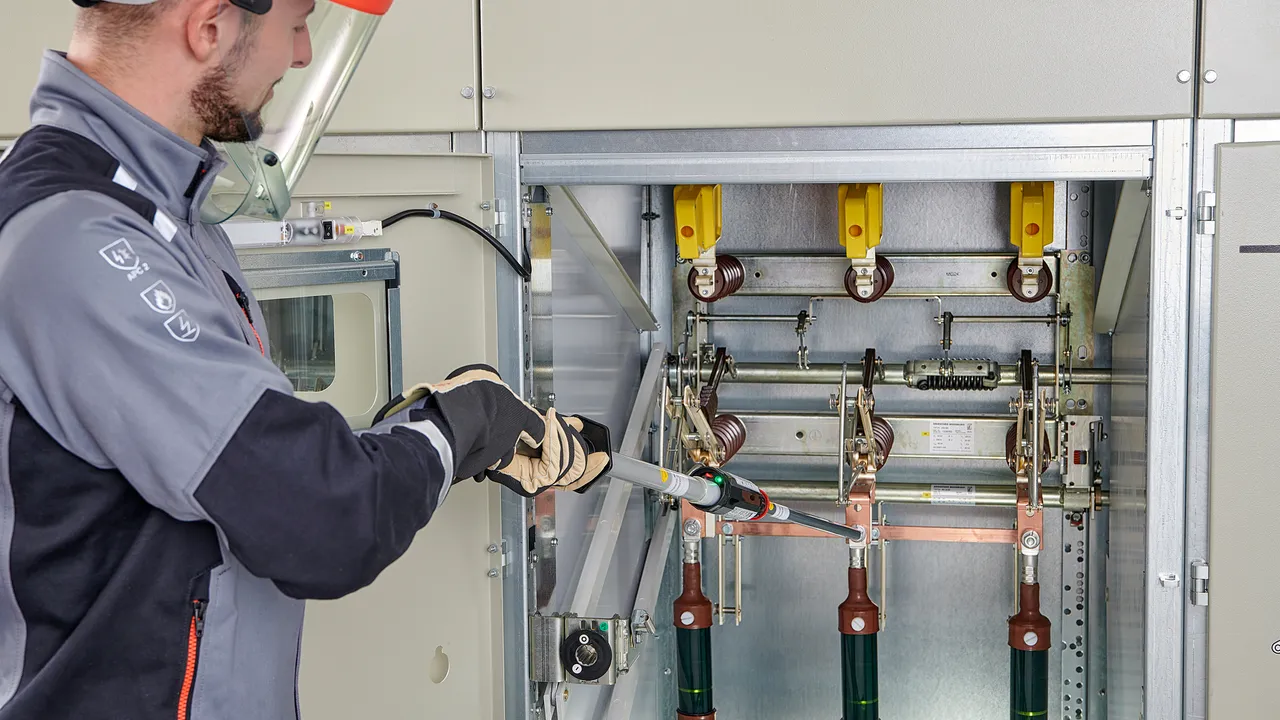

Safe verification of isolation from supply voltage
  • Reliable indication
  • Easy to use
  • Cost-effective / space-saving transport

Details

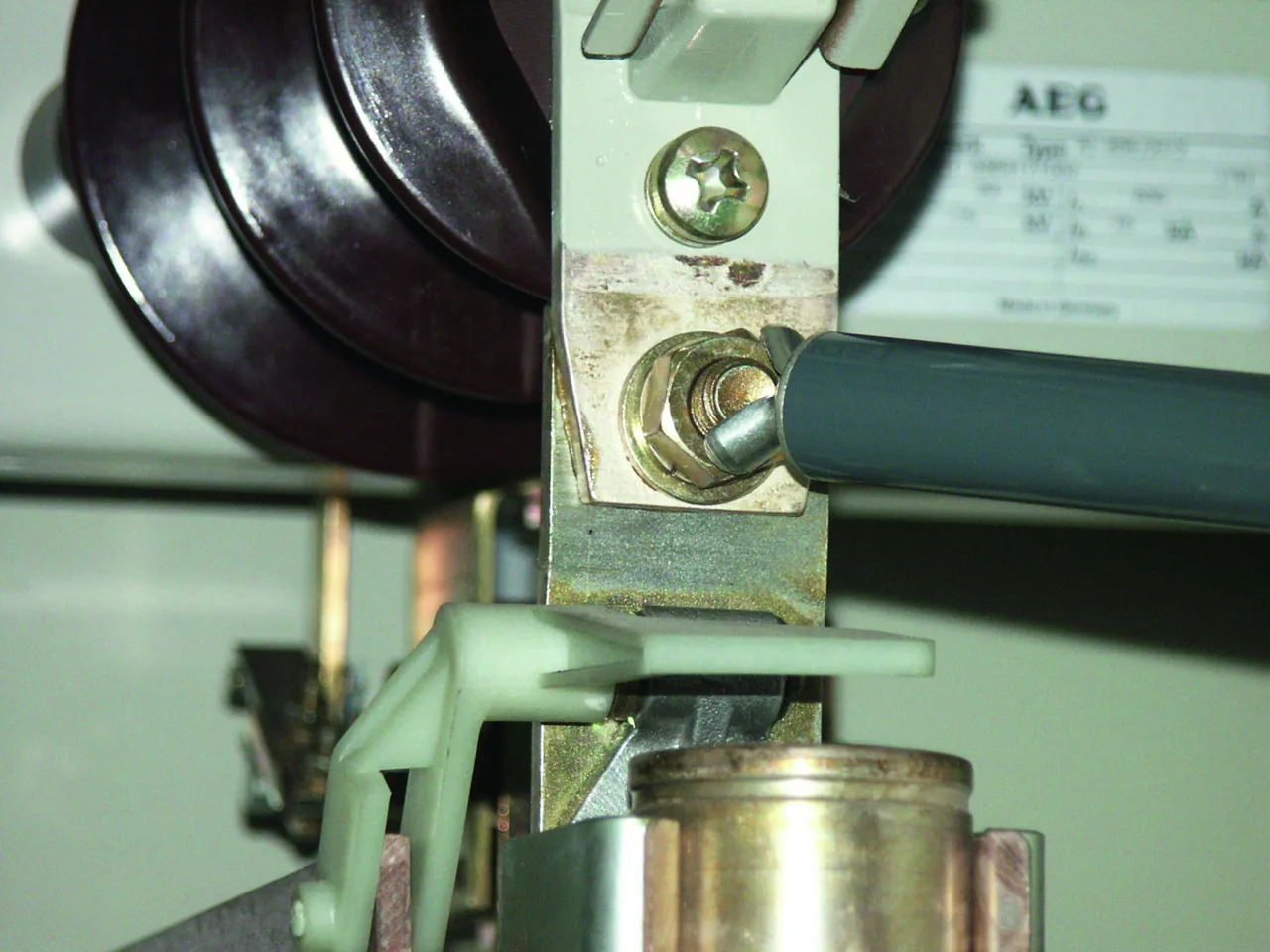

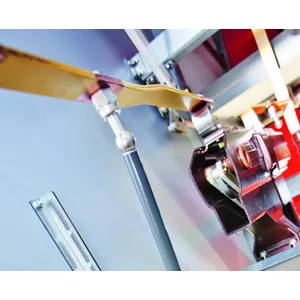

Testing with screwed-on V-shaped electrode
lorem ipsum
lorem ipsum

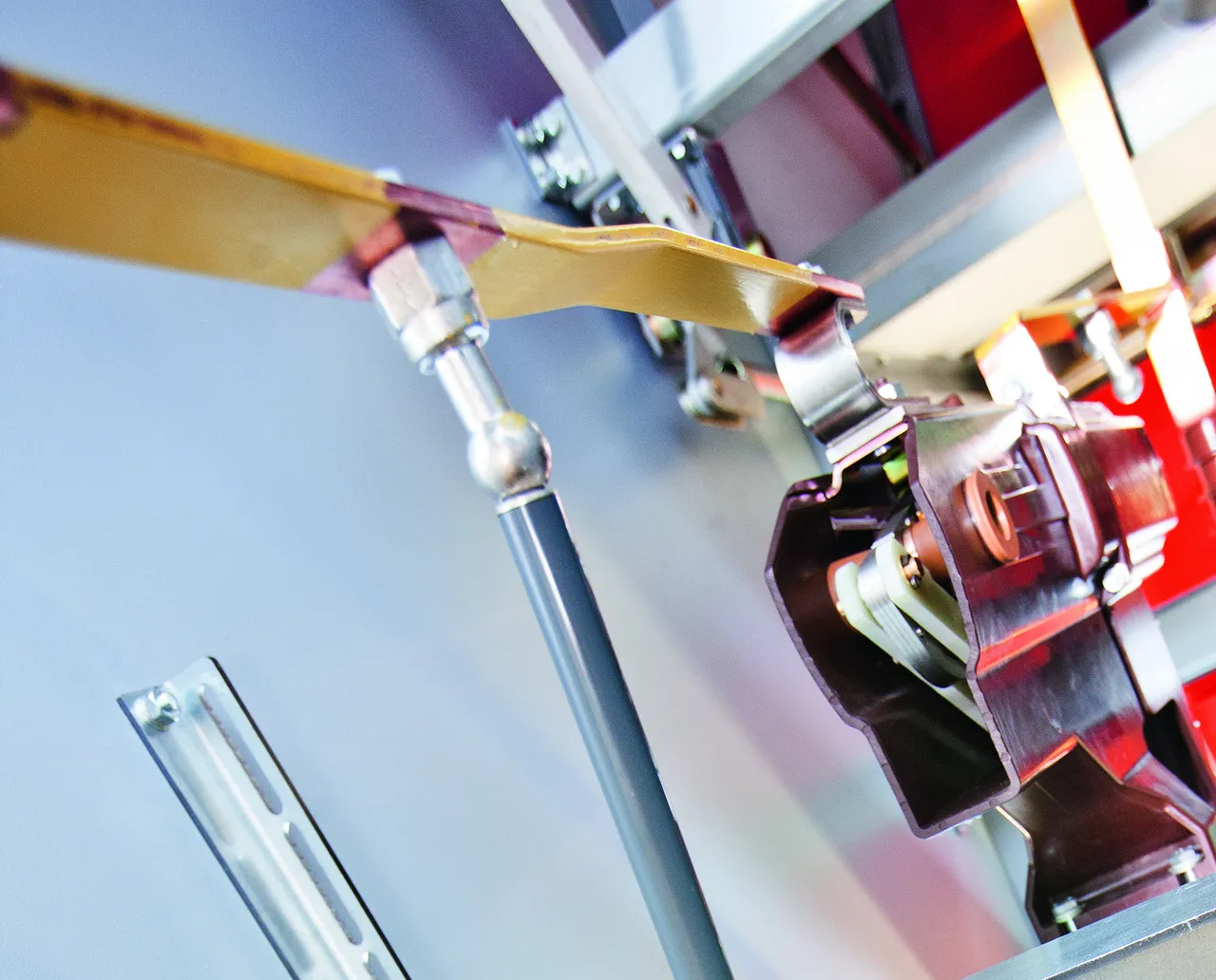

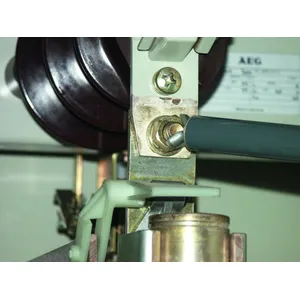

Testing with integrated electrode
lorem ipsum

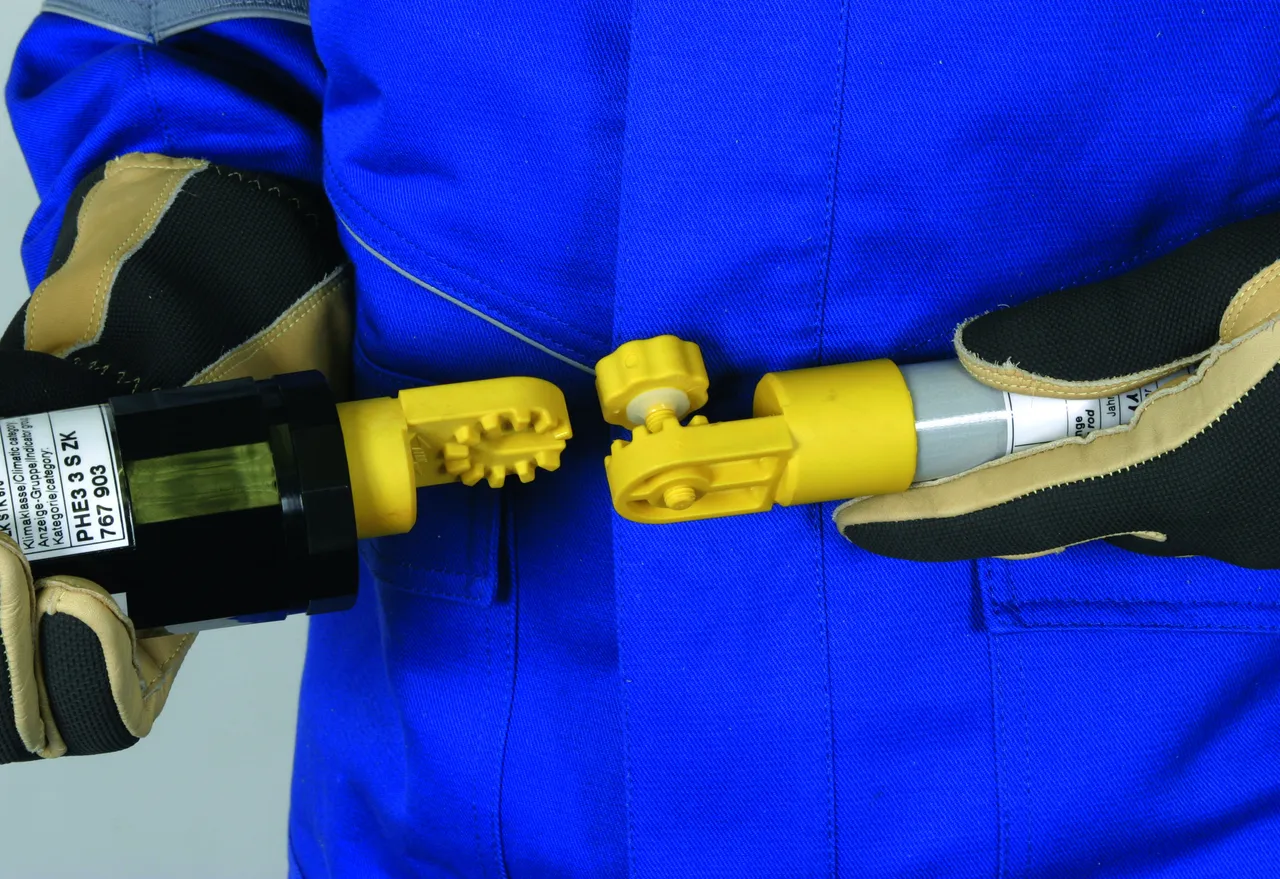

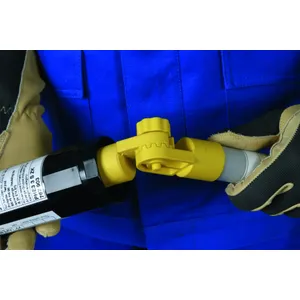

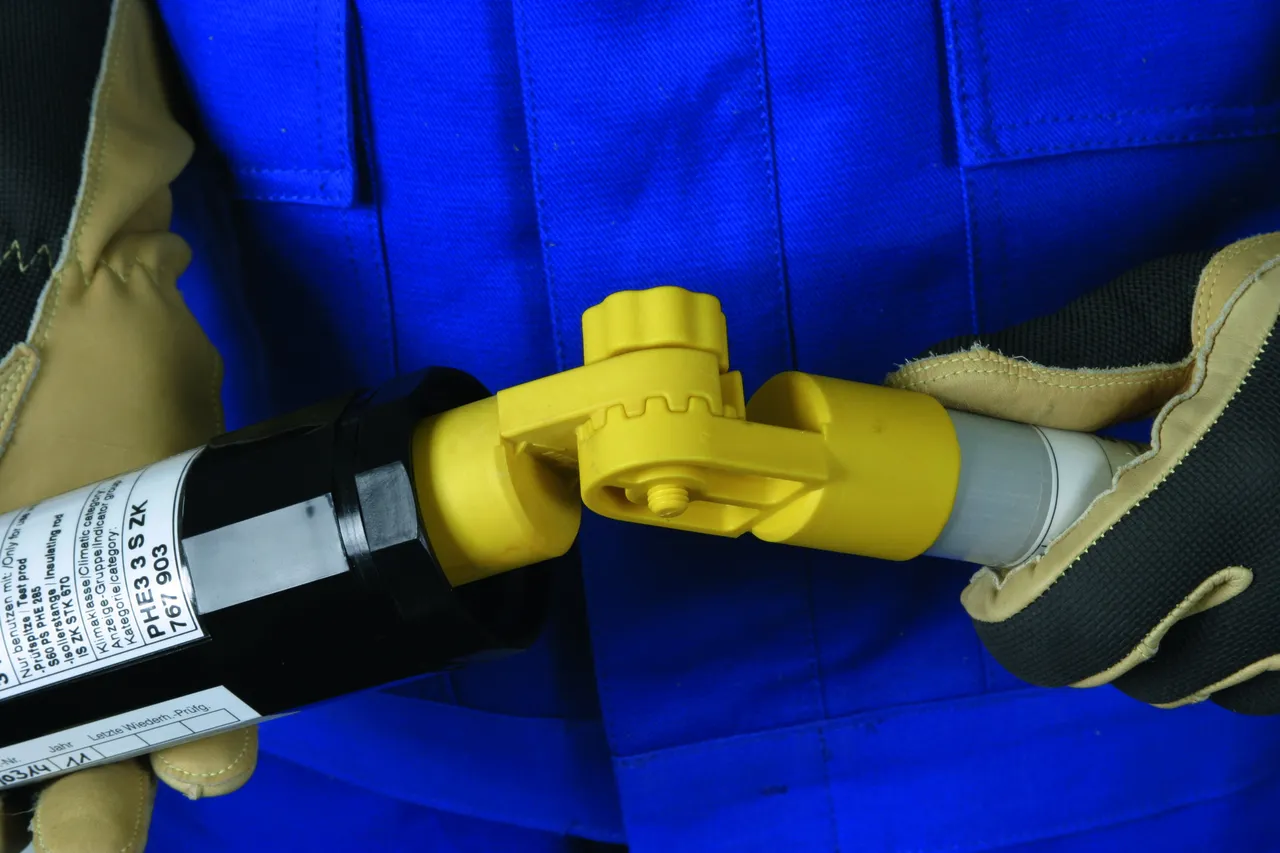

Universal gear coupling allows to adjust the angle of the voltage detector
lorem ipsum

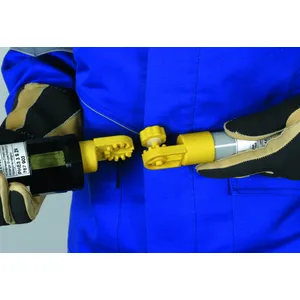

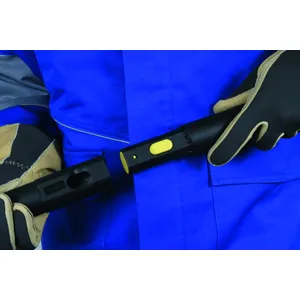

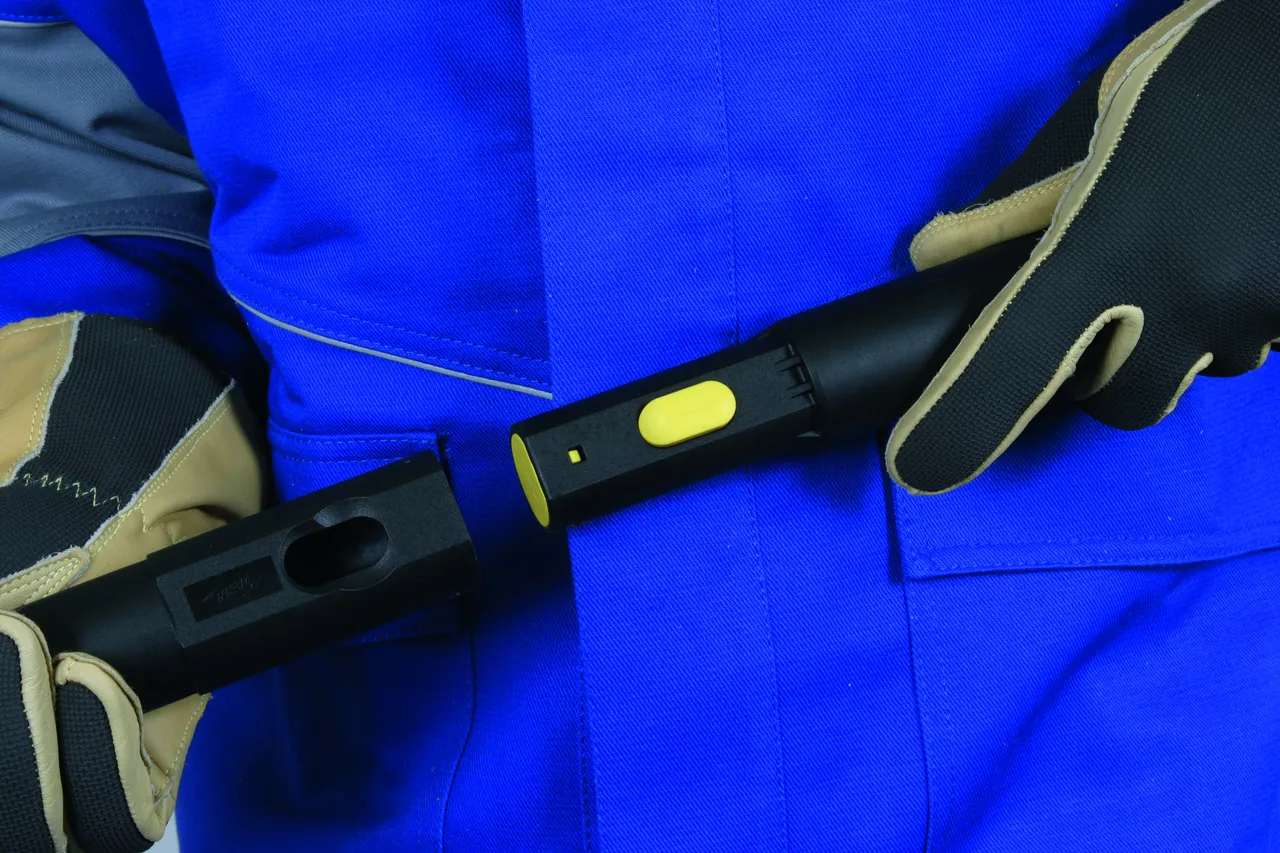

Plugging a HV STK extension handle into an IS PHE STK insulating stick
lorem ipsum

Nominal Voltages up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 ??store.products_de??

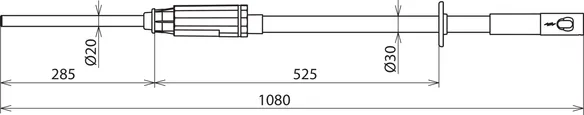

??store.product.number.short_de?? 767703 PHE3 3 S

??store.product.gtin_de?? 4013364070899, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.71 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

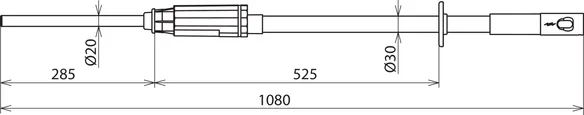

Nominal voltage (UN ) 3 kV
Total length (lG ) 1080 mm
Insertion depth (IO ) 285 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767706 PHE3 6 S

??store.product.gtin_de?? 4013364070837, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.71 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 kV
Total length (lG ) 1080 mm
Insertion depth (IO ) 285 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767710 PHE3 10 S

??store.product.gtin_de?? 4013364070851, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.71 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 kV
Total length (lG ) 1080 mm
Insertion depth (IO ) 285 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

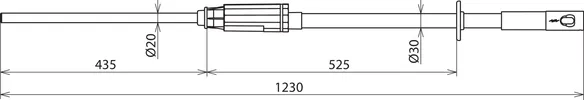

??store.product.number.short_de?? 767720 PHE3 20 S

??store.product.gtin_de?? 4013364070844, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.89 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 20 kV
Total length (lG ) 1230 mm
Insertion depth (IO ) 435 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767730 PHE3 30 S

??store.product.gtin_de?? 4013364070813, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.83 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 30 kV
Total length (lG ) 1415 mm
Insertion depth (IO ) 620 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 ??store.products_de??

??store.product.number.short_de?? 767711 PHE3 3 10 S

??store.product.gtin_de?? 4013364070820, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.86 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 kV
Total length (lG ) 1415 mm
Insertion depth (IO ) 620 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767721 PHE3 6 20 S

??store.product.gtin_de?? 4013364070868, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.93 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1575 mm
Insertion depth (IO ) 780 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767731 PHE3 10 30 S

??store.product.gtin_de?? 4013364070875, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.99 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1675 mm
Insertion depth (IO ) 880 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread, switchable

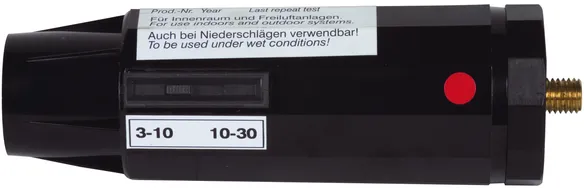

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3 kV to 10 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 ??store.product_de??

??store.product.number.short_de?? 767733 PHE3 U 3 30 S

??store.product.gtin_de?? 4013364070882, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.99 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 / 10 ... 30 kV
Total length (lG ) 1675 mm
Insertion depth (IO ) 880 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltages up to 25 kV / 50 Hz

For the overhead contact lines of electric railways.
Category "S" for single-ended monophase systems.

1 ??store.product_de??

??store.product.number.short_de?? 767125 PHE3 25 S 50 1P

??store.product.gtin_de?? 4013364130319, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.96 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 25 kV
Total length (lG ) 1680 mm
Insertion depth (IO ) 880 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltages up to 30 kV / 50 kV, Gear Coupling

Category "S" for switchgear installations and overhead lines.

5 ??store.products_de??

??store.product.number.short_de?? 767903 PHE3 3 S ZK

??store.product.gtin_de?? 4013364134737, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1692.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

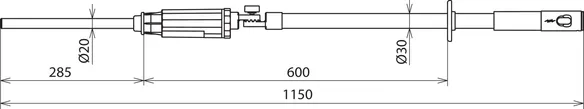

Nominal voltage (UN ) 3 kV
Total length (lG ) 1150 mm
Insertion depth (IO ) 285 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767906 PHE3 6 S ZK

??store.product.gtin_de?? 4013364134744, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1692.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 kV
Total length (lG ) 1150 mm
Insertion depth (IO ) 285 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767910 PHE3 10 S ZK

??store.product.gtin_de?? 4013364134751, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1692.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 kV
Total length (lG ) 1150 mm
Insertion depth (IO ) 285 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767920 PHE3 20 S ZK

??store.product.gtin_de?? 4013364134768, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.80 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 20 kV
Total length (lG ) 1300 mm
Insertion depth (IO ) 435 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767930 PHE3 30 S ZK

??store.product.gtin_de?? 4013364134775, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.87 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 30 kV
Total length (lG ) 1485 mm
Insertion depth (IO ) 620 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

3 ??store.products_de??

??store.product.number.short_de?? 767941 PHE3 3 10 S ZK

??store.product.gtin_de?? 4013364134782, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.87 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 kV
Total length (lG ) 1485 mm
Insertion depth (IO ) 620 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767951 PHE3 6 20 S ZK

??store.product.gtin_de?? 4013364134799, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.96 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1645 mm
Insertion depth (IO ) 780 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767961 PHE3 10 30 S ZK

??store.product.gtin_de?? 4013364134805, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.02 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1745 mm
Insertion depth (IO ) 880 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 36 kV / 50 Hz, Gear Coupling, switchable

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of (3 kV to 10 kV or 6 kV to 20 kV). The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

2 ??store.products_de??

??store.product.number.short_de?? 767960 PHE3 U 3 30 S ZK

??store.product.gtin_de?? 4013364134812, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.02 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 3 ... 10 / 10 ... 30 kV
Total length (lG ) 1745 mm
Insertion depth (IO ) 880 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767944 PHE3 U 6 36 S SN7728

??store.product.gtin_de?? 4013364277731, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.16 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 / 20 ... 36 kV
Total length (lG ) 1745 mm
Insertion depth (IO ) 880 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

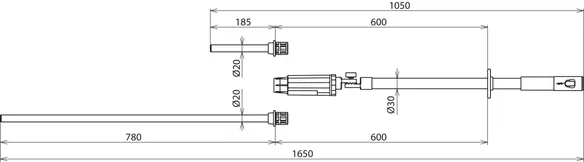

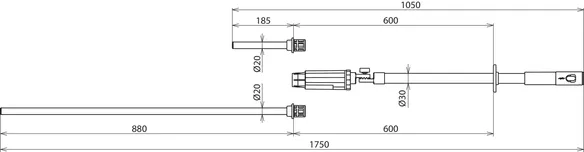

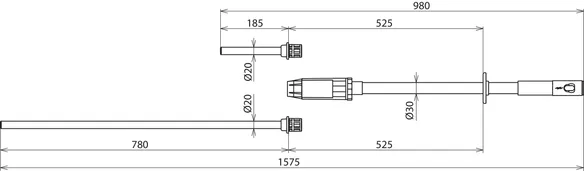

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Thread M12

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 ??store.products_de??

??store.product.number.short_de?? 767740 PHE3 6 20 SL

??store.product.gtin_de?? 4013364071063, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.15 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1575 / 980 mm
Insertion depth (IO ) 780 / 185 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767750 PHE3 10 30 SL

??store.product.gtin_de?? 4013364071070, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.21 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1675 / 980 mm
Insertion depth (IO ) 880 / 185 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Gear Coupling

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 ??store.products_de??

??store.product.number.short_de?? 767940 PHE3 6 20 SL ZK

??store.product.gtin_de?? 4013364134829, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.09 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1650 / 1050 mm
Insertion depth (IO ) 780 / 185 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767950 PHE3 10 30 SL ZK

??store.product.gtin_de?? 4013364134836, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.14 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1750 / 1050 mm
Insertion depth (IO ) 880 / 185 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
