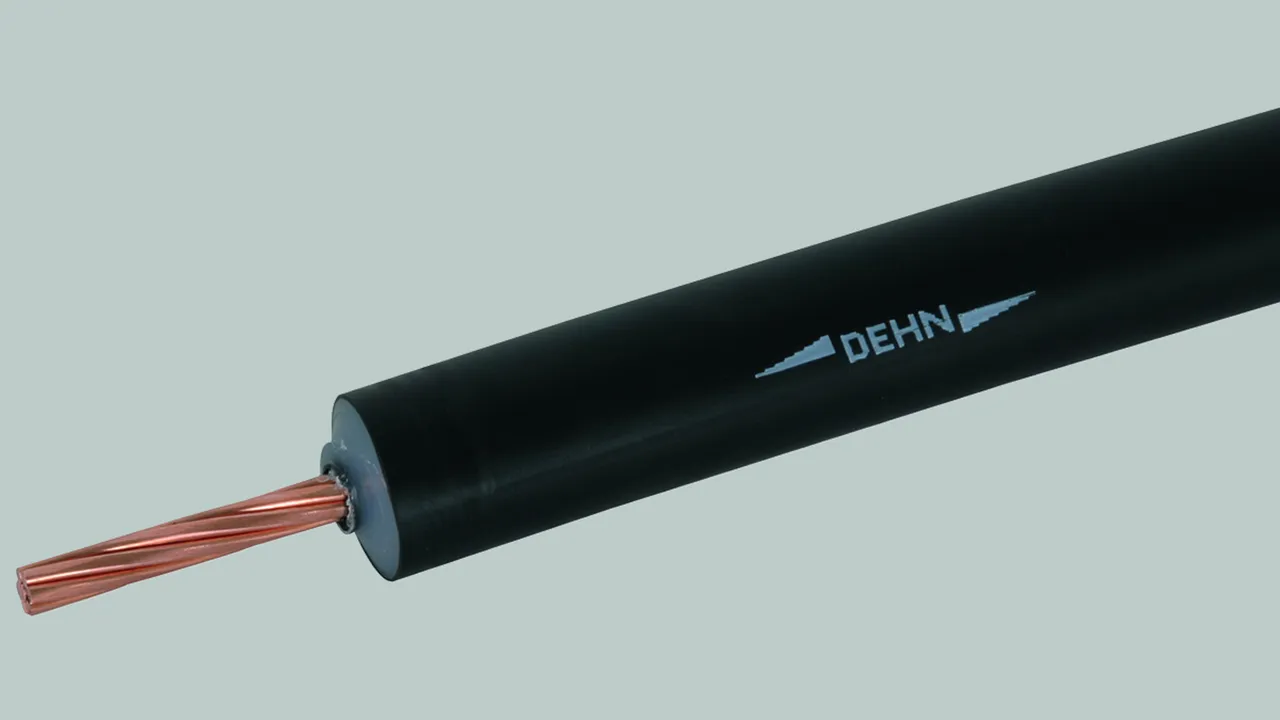

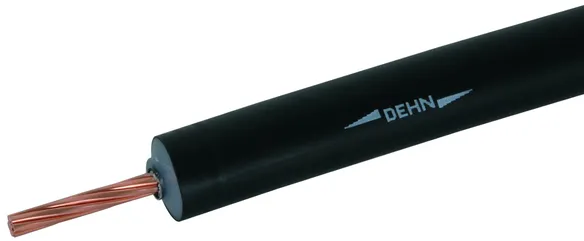

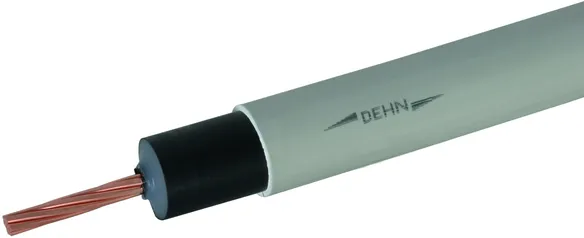

HVI Conductor / HVI long Conductor

HVI Conductor / HVI long Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to IEC 62305-3.

For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material).
The HVI long Conductor meets the requirements of DIN IEC/TS 62561-8 (VDE V 0185-561-8).
Processing temperature -5 to +40 °C and permanent temperature range (in case of fixed installation) of -30 to +70 °C to be observed.

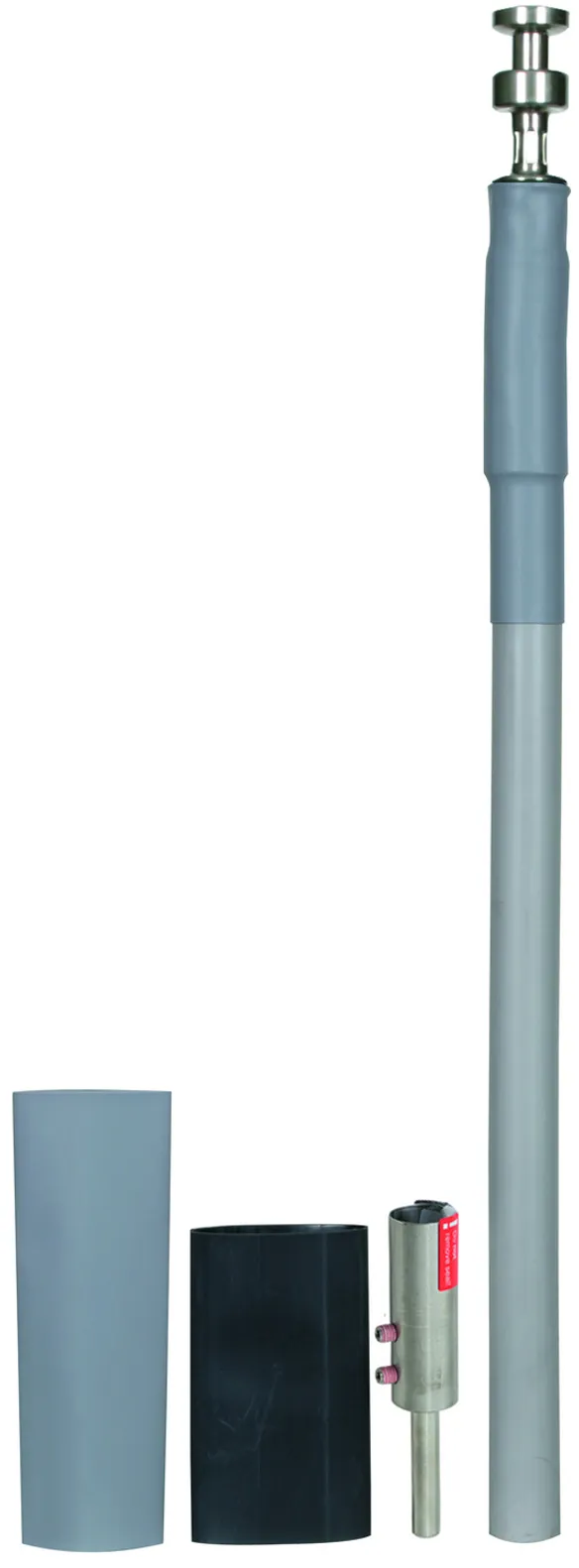

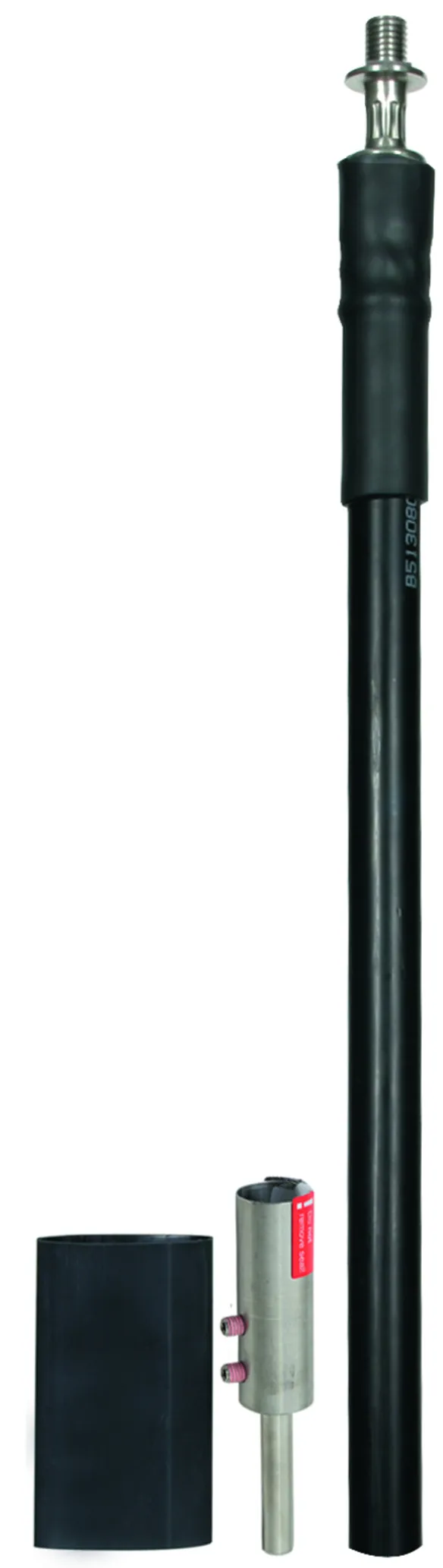

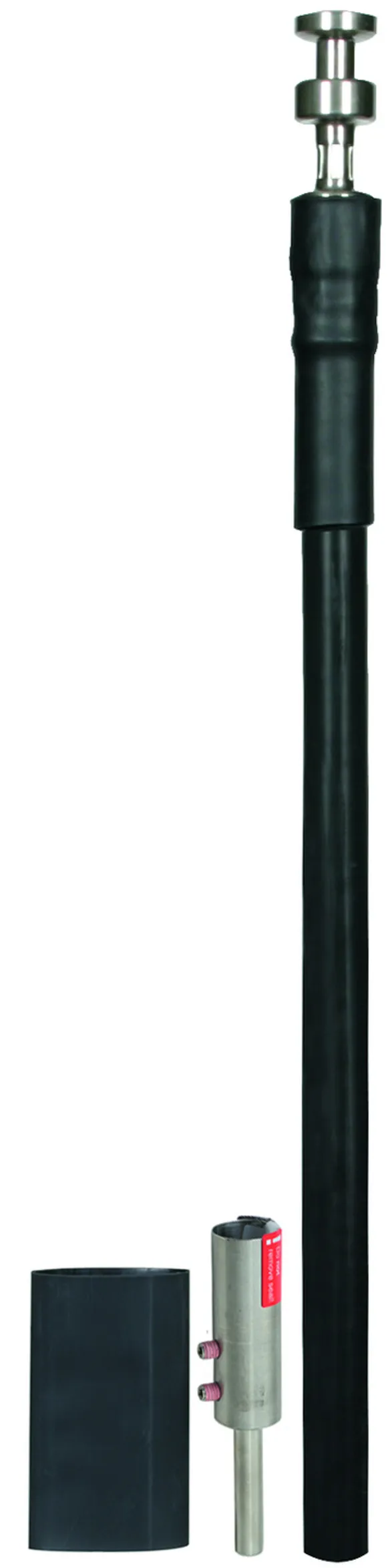

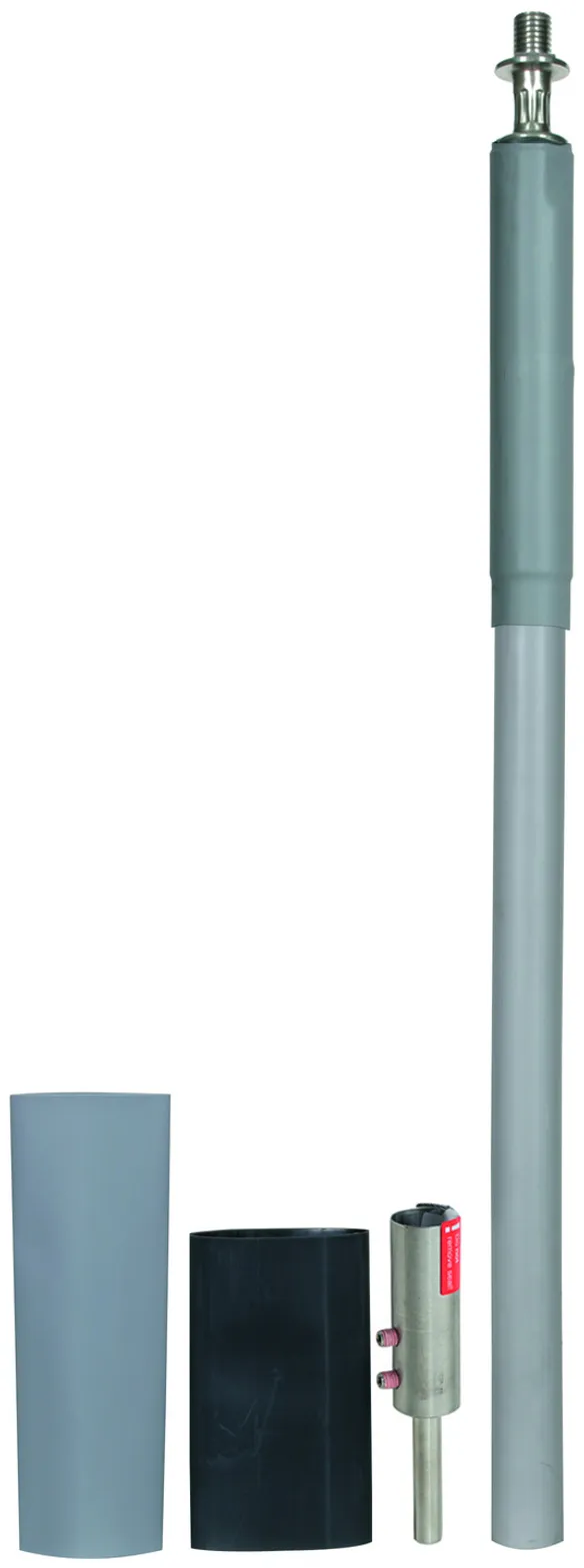

HVI Conductor (pre-assembled, installation inside the supporting tube)

With one head piece and one connection element (enclosed loose).
Minimum order length 6 m, conductor length has to be stated when ordering (in steps of 0.5 m).

2 ??store.products_de??

??store.product.number.short_de?? 819220 HVI RIV 75 20 L6M SW M

??store.product.gtin_de?? 4013364244238, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 3.10 kg, ??store.product.packaging_de??: 1.00 pc(s)
