PHE III ZK Indicator with Test Prod

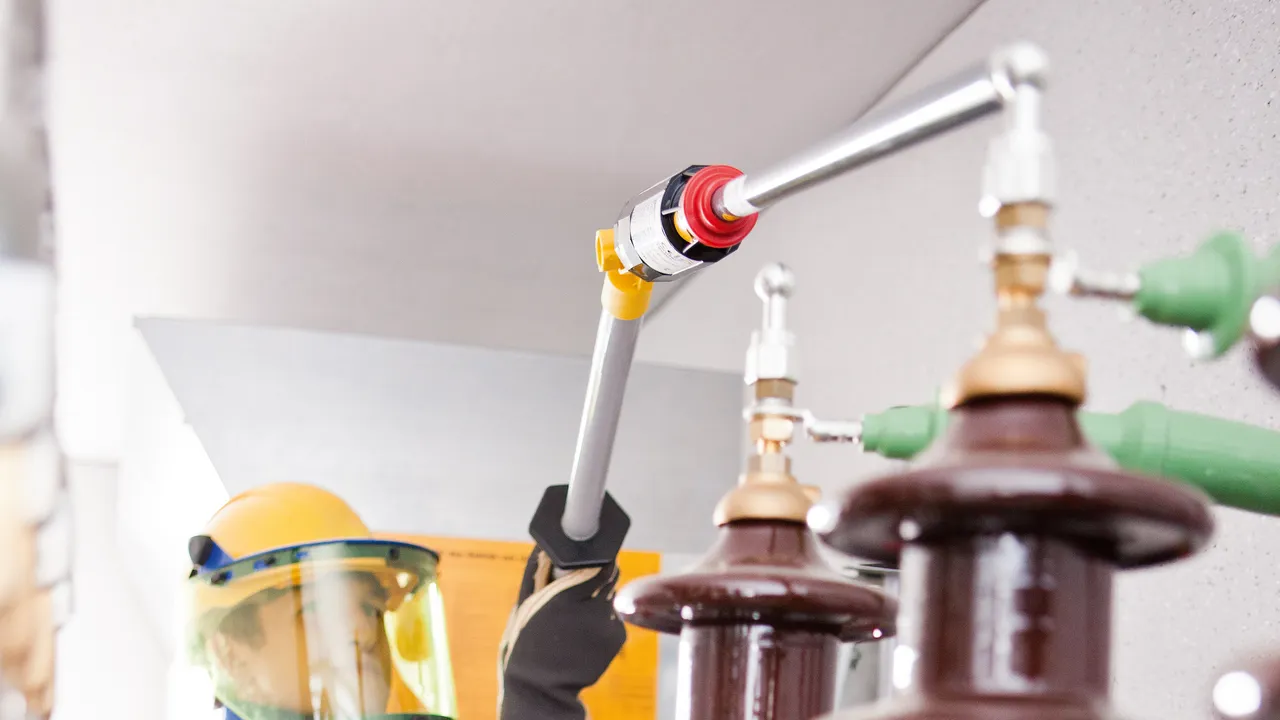

Safe verification of isolation from supply voltage
  • Reliable indication with standby function
  • Easy to use
  • Cost-effective / space-saving transport

Details

lorem ipsum

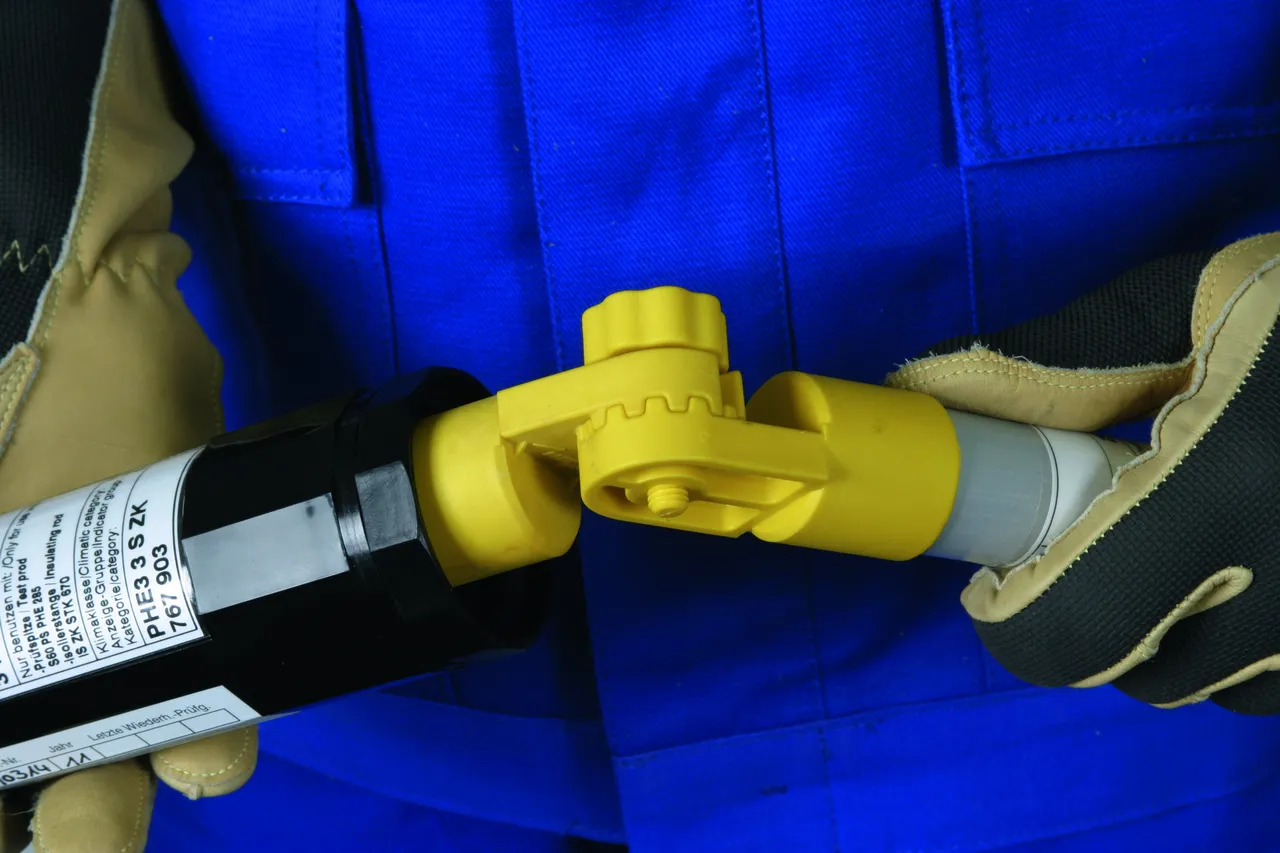

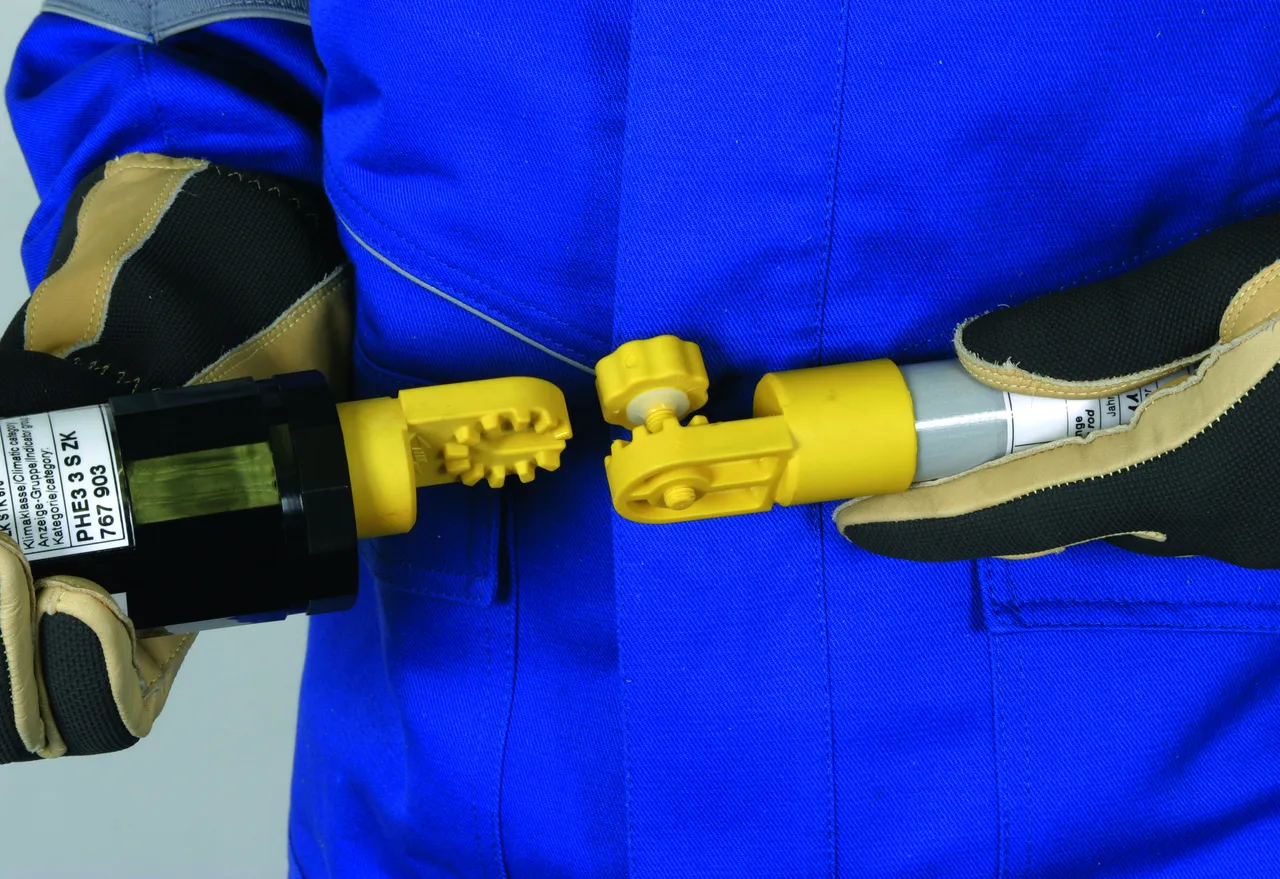

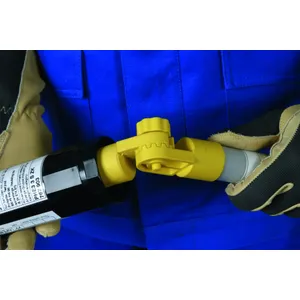

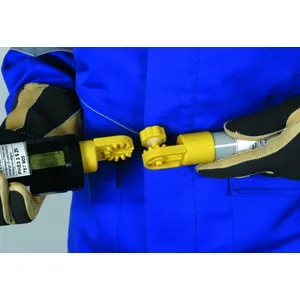

Universal gear coupling allows to adjust the angle of the voltage detector
lorem ipsum

Nominal Voltage Ranges up to 30 kV / 50 Hz, Category "S"

Category "S" for switchgear installations and overhead lines.

2 ??store.products_de??

??store.product.number.short_de?? 767921 PHE3 PK6 20 S SB ZK

??store.product.gtin_de?? 4013364097360, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.15 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

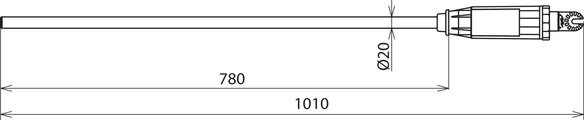

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 1010 mm
Insertion depth (IO ) 780 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767931 PHE3 PK10 30 S SB ZK

??store.product.gtin_de?? 4013364097377, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.68 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

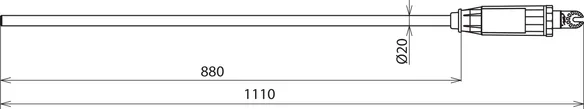

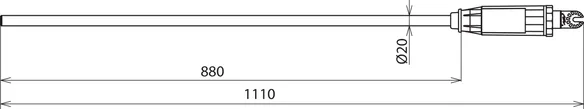

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 1110 mm
Insertion depth (IO ) 880 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Ranges up to 30 kV / 50 Hz, Category "L"

Category "L" for overhead lines.

2 ??store.products_de??

??store.product.number.short_de?? 767922 PHE3 PK6 20 L SB ZK

??store.product.gtin_de?? 4013364097384, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.45 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

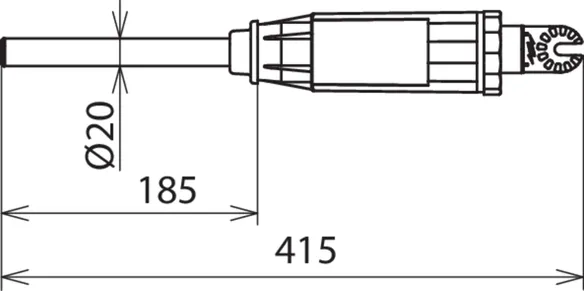

Nominal voltage (UN ) 6 ... 20 kV
Total length (lG ) 415 mm
Insertion depth (IO ) 185 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767932 PHE3 PK10 30 L SB ZK

??store.product.gtin_de?? 4013364097391, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.45 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 10 ... 30 kV
Total length (lG ) 415 mm
Insertion depth (IO ) 185 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
