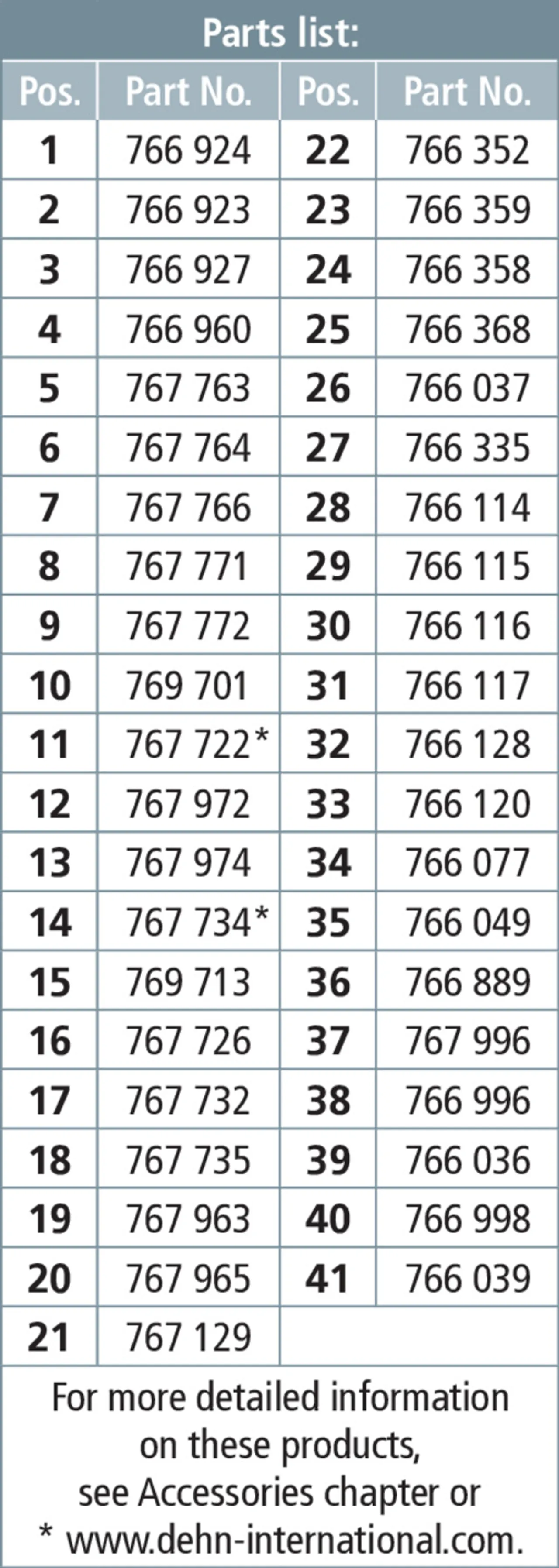

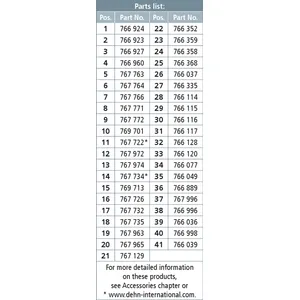

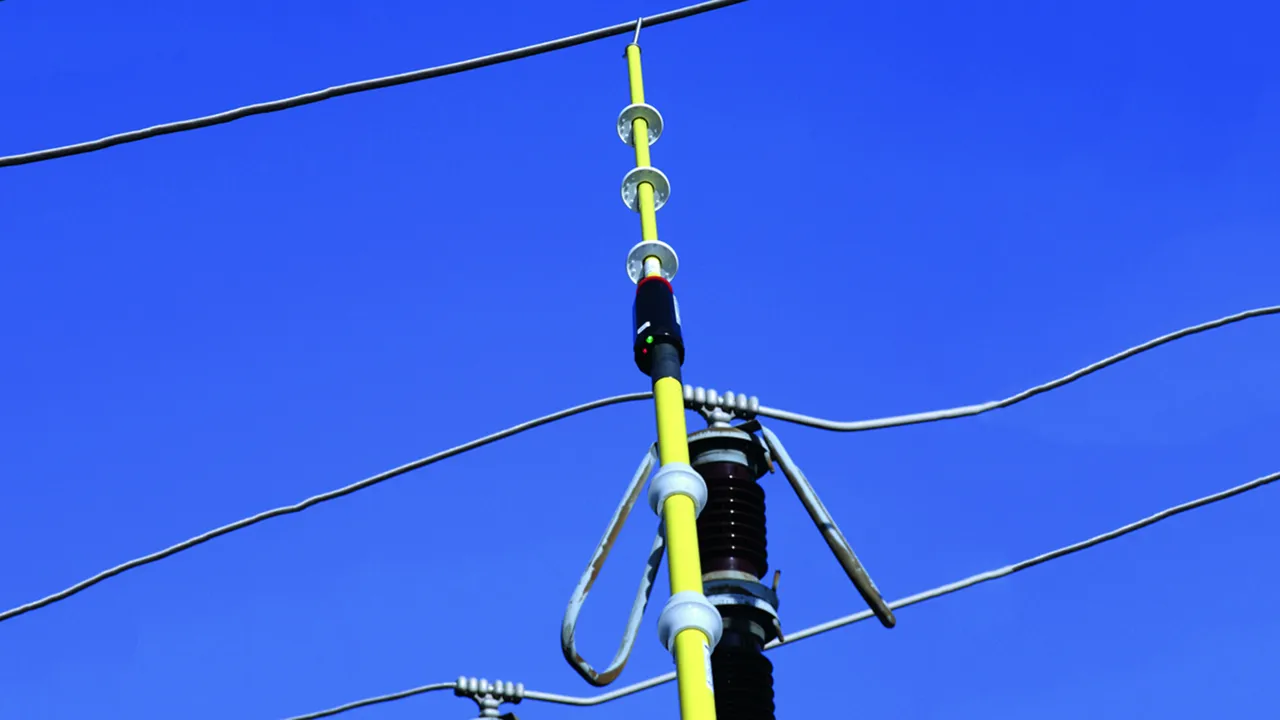

PHE III Voltage Detector Kit

Safe verification of isolation from supply voltage

Reliable indication
Easy to use
Multi-purpose kit
Cost-effective / space-saving transport

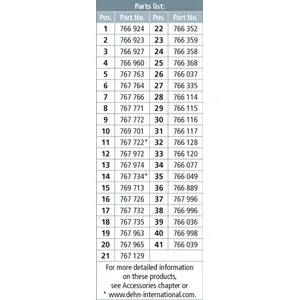

Details

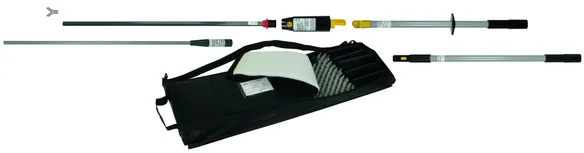

Nominal Voltage 20 kV / 50 Hz

Category "S" for switchgear installations and overhead lines.

1 ??store.product_de??

??store.product.number.short_de?? 767724 PHE3S 20 S ZK

??store.product.gtin_de?? 4013364125902, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 4.22 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??

??store.product.data_de??

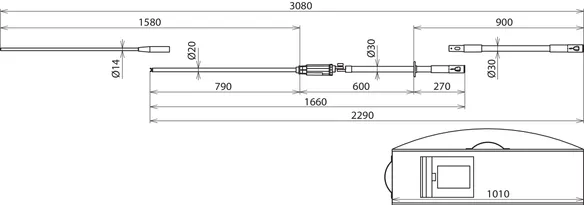

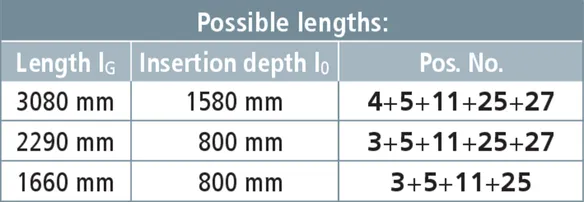

Nominal voltage (U_N )	20 kV

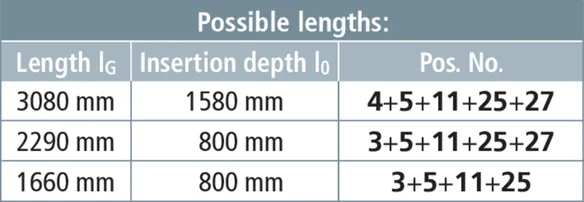

Total length (l_{G max} )	3080 mm
Insertion depth (I_{O max} )	1580 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_{G max} )	3080 mm
Insertion depth (I_{O max} )	1580 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

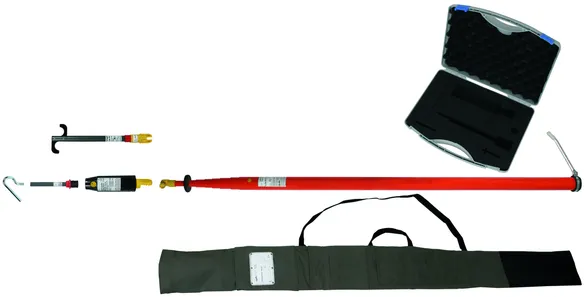

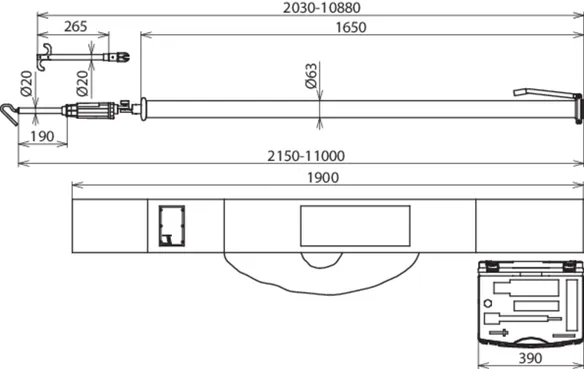

Nominal Voltage 20 kV / 50 Hz

Category "L" for overhead lines.

1 ??store.product_de??

??store.product.number.short_de?? 767725 PHE3S 20 L ZK

??store.product.gtin_de?? 4013364125919, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 9.10 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.certs_de??

??store.product.data_de??

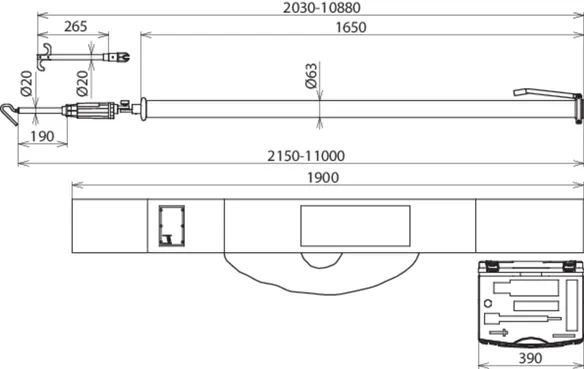

Nominal voltage (U_N )	20 kV
Total length (l_{G max}/ I_{G min} )	11000 / 2150 mm
Insertion depth (I_O )	190 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	L
Total length (l_{G max}/ I_{G min} )	11000 / 2150 mm
Insertion depth (I_O )	190 mm
Standard (indicator with test prod)	EN/IEC 61243-1 (DIN VDE 0682-411)
Standard (universal gear coupling)	EN/IEC 60832 (DIN VDE 0682-211)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

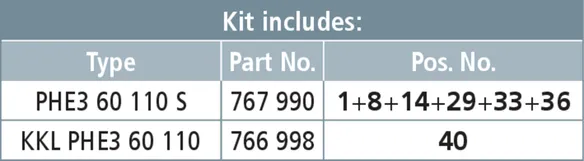

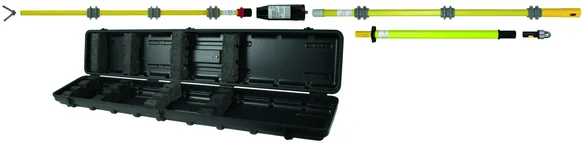

Nominal Voltage Range 60 ... 110 kV / 50 Hz

Category "S" for switchgear installations and overhead lines.

2 ??store.products_de??

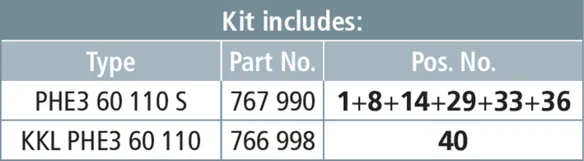

??store.product.number.short_de?? 767980 PHE3S2 60 110 S

??store.product.gtin_de?? 4013364125926, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 6.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??

??store.product.data_de??

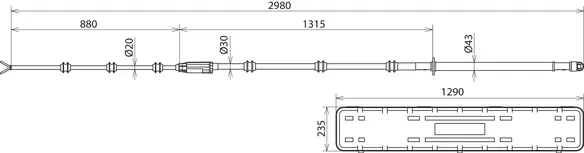

Nominal voltage (U_N )	60 ... 110 kV
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	60 ... 110 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767990 PHE3 60 110 S

??store.product.gtin_de?? 4013364135956, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 3.48 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.certs_de??

??store.product.data_de??

Nominal voltage (U_N )	60 ... 110 kV
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	60 ... 110 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

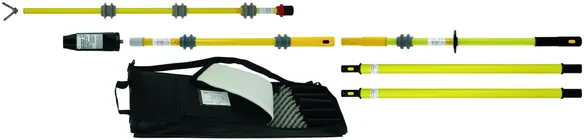

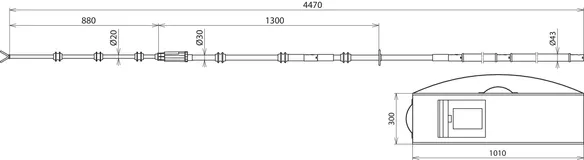

Nominal Voltage Range 60 ... 110 kV / 50 Hz CODED

Special test prod and indicator are mutually coded, i.e. no other test prod fits mechanically for the used indicator. Thus confusion of test prods is avoided.

Category "S" for switchgear installations and overhead lines as coded type.

1 ??store.product_de??

??store.product.number.short_de?? 769712 PHE3S60 110S CSN7774

??store.product.gtin_de?? 4013364242517, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 7.23 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.certs_de??

??store.product.data_de??

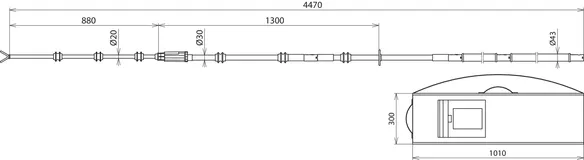

Nominal voltage (U_N )	60 ... 110 kV
Total length (l_{G max}/ I_{G min} )	4470 / 2840 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	60 ... 110 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_{G max}/ I_{G min} )	4470 / 2840 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	complete
For use at	_
For	indoor and outdoor installations
Application	switchgear installations and overhead lines
Design	single-pole
Indication	acoustic and visual
Self-testing element	yes
Material (test electrode)	copper alloy/gal Sn
Material (test prod)	glass-fibre reinforced epoxy resin tube
Material (indicator)	plastic, fully insulated
Material (insulating stick)	glass-fibre reinforced polyester tube

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

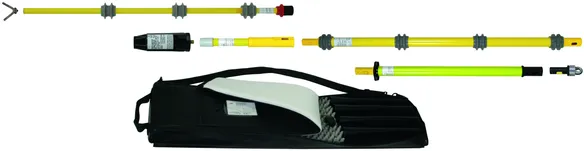

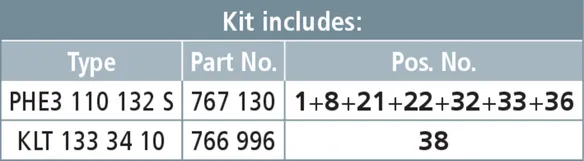

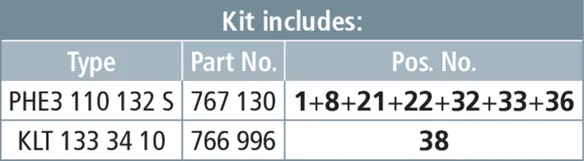

Nominal Voltage Range 110 ... 132 kV / 50 and 16.7 Hz

For 50 Hz three-phase systems and 16.7 Hz centre-earthed monophase traction power lines.
Range does not have to be switched.

Category "S"

1 ??store.product_de??

??store.product.number.short_de?? 767131 PHE3S 110 132 S

??store.product.gtin_de?? 4013364139411, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 6.20 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??

??store.product.data_de??

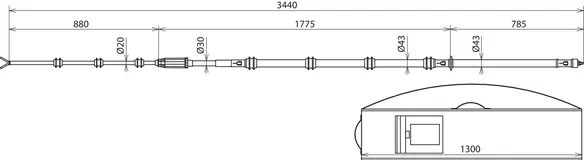

Nominal voltage (U_N )	110 ... 132 kV
Total length (I_G )	3440 mm
Insertion depth (I_O )	880 mm
DB drawing No.	3 Eku 710 001
DB material No.	01 101 358

Nominal voltage (U_N )	110 ... 132 kV
Type of voltage	a.c.
Frequency	50 and 16.7 Hz
Category	S
Total length (I_G )	3440 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	For indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
DB drawing No.	3 Eku 710 001
DB material No.	01 101 358

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage 66 kV / 16.7 Hz

Category "S" for single-ended monophase systems

1 ??store.product_de??

??store.product.number.short_de?? 769714 PHE3 66 16.7S SN7705

??store.product.gtin_de?? 4013364246768, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 3.76 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.certs_de??

??store.product.data_de??

Nominal voltage (U_N )	66 kV
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	66 kV
Type of voltage	a.c.
Frequency	16.7 Hz
Category	S
Total length (I_G )	2980 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric railways
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
