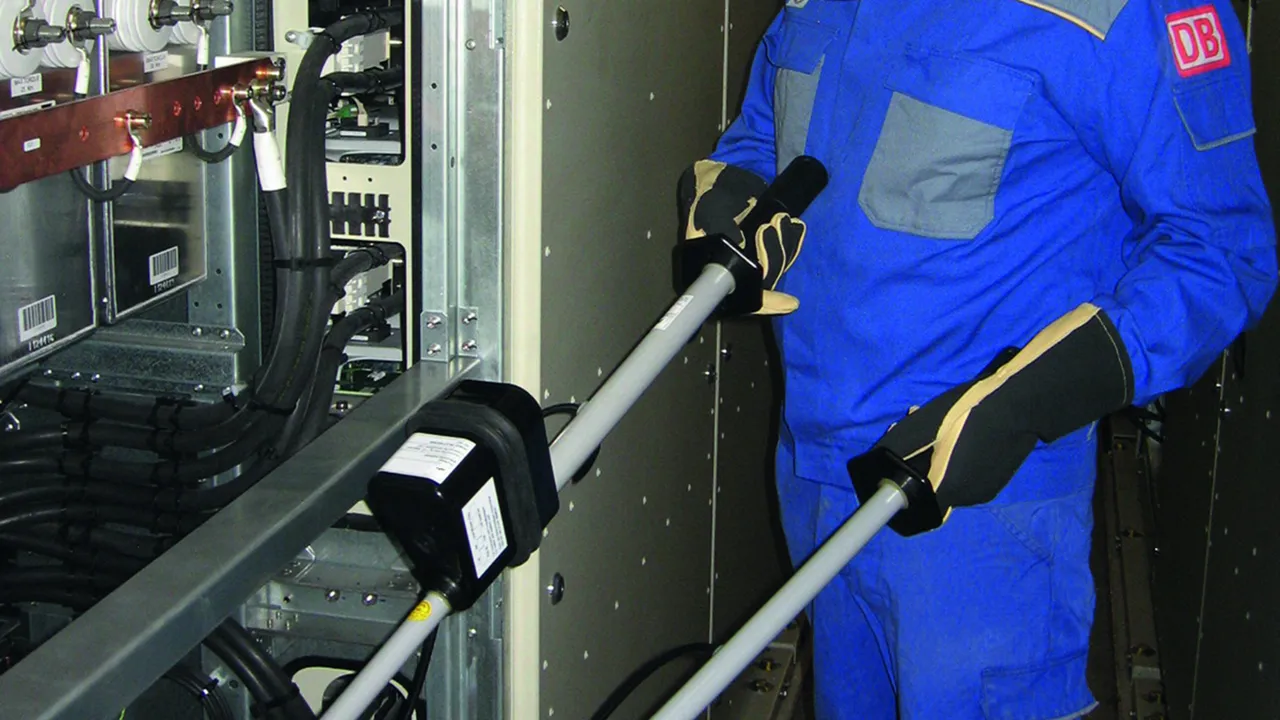

PHE/G d.c. Voltage Detector

Safe verification of isolation from supply voltage
  • For use in direct voltage systems (electrified rail networks, d.c. links)
  • Reliable indication
  • Easy to use due to compact design
  • User-friendly

Details

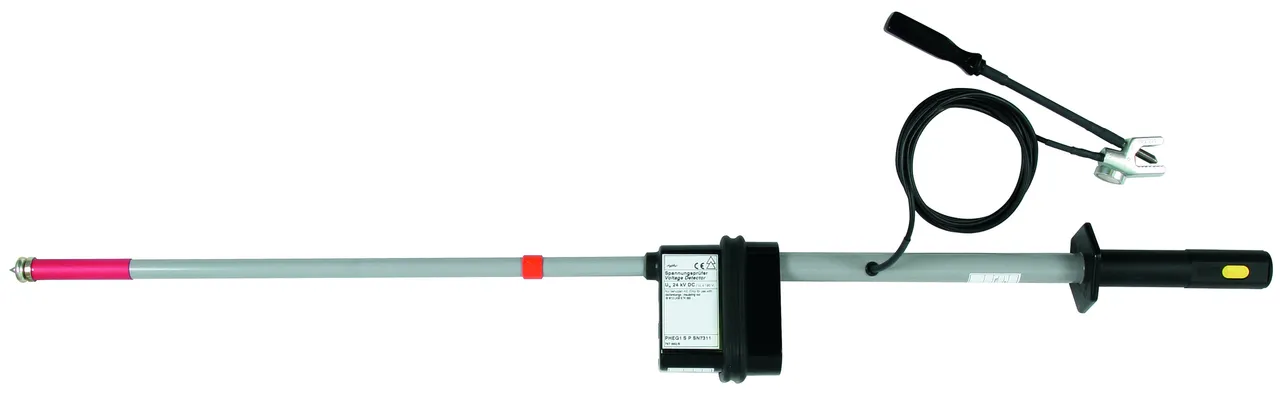

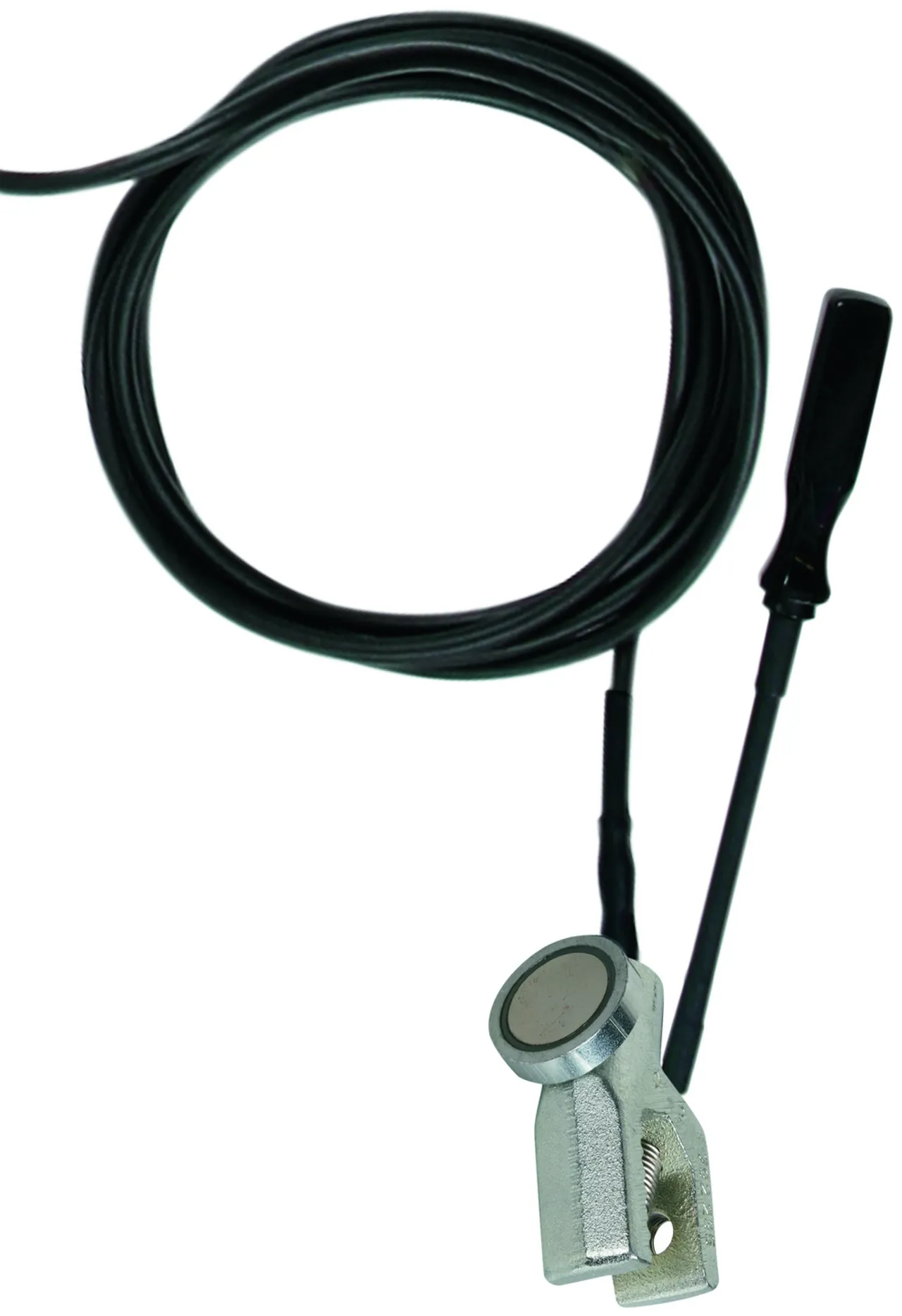

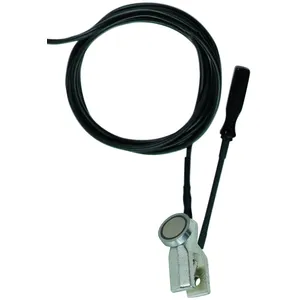

Earth clamp with adjustable handle and magnet
lorem ipsum
lorem ipsum

PHE/G I for Overhead Contact Lines, positive pole on indicator with test prod

One stick (three elements)

  • For direct voltage systems with earthed negative pole
  • Positive pole: Indicator with test prod
  • Negative pole: Earth clamp

1 ??store.product_de??

??store.product.number.short_de?? 767610 PHEG1 FD P 3

??store.product.gtin_de?? 4013364135208, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 5.10 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 1.1 kV
Nominal voltage (UN ) 3.0 kV
Length (earthing cable) 6000 mm
Total length (lG ) 4125 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

PHE/G I for Overhead Contact Lines, nagative pole on indicator with test prod

One stick (four elements)

  • For d.c. voltage systems with earthed positive pole
  • Negative pole: Indicator with test prod
  • Positive pole: Earth clamp

1 ??store.product_de??

??store.product.number.short_de?? 767614 PHEG1 FD M SN7223

??store.product.gtin_de?? 4013364135307, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 7.55 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 0.825 kV
Nominal voltage (UN ) 1.65 kV
Length (earthing cable) 8000 mm
Total length (lG ) 4060 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

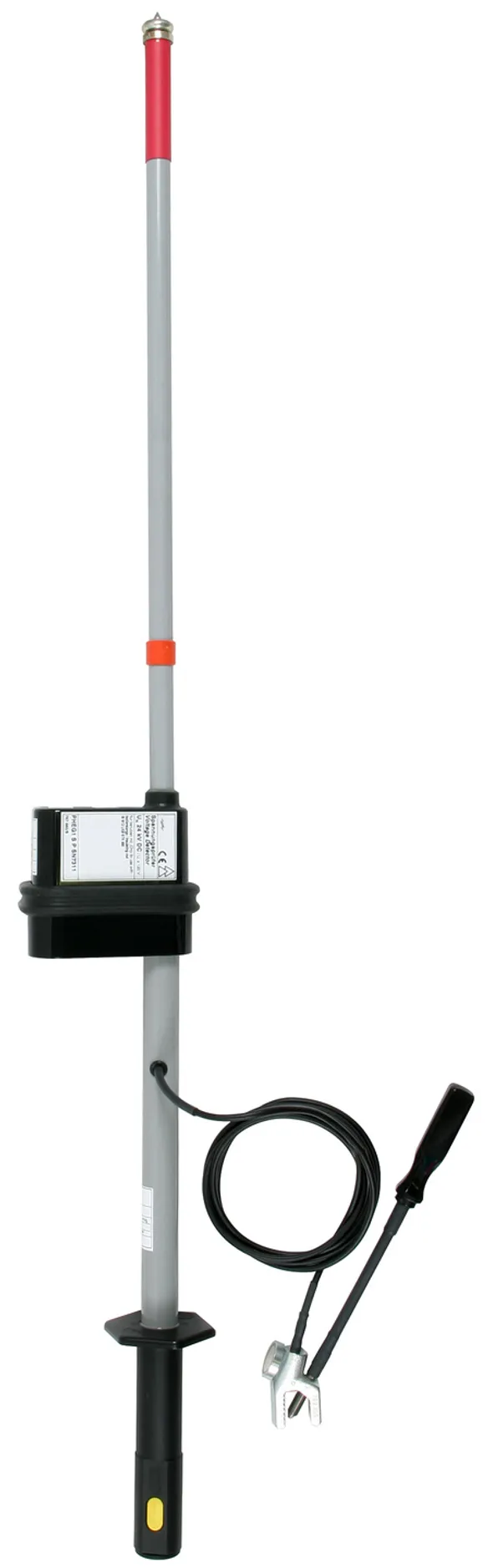

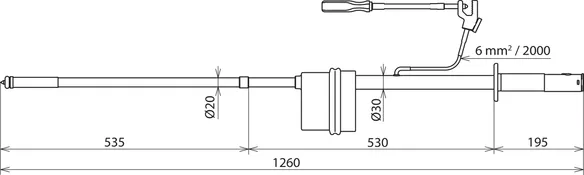

PHE/G I for Switchgear Installations, positive pole on indicator with test prod

One stick

  • For direct voltage systems with earthed negative pole
  • Positive pole: indicator with test prod
  • Negative pole: earth clamp with magnet

1 ??store.product_de??

??store.product.number.short_de?? 767666 PHEG1.S P SN7401

??store.product.gtin_de?? 4013364157071, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.90 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 120 V
Nominal voltage (UN ) 1 ... 24 kV
Length (earthing cable) 2000 mm
Total length (lG ) 1260 mm
Insertion depth (IO ) 535 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

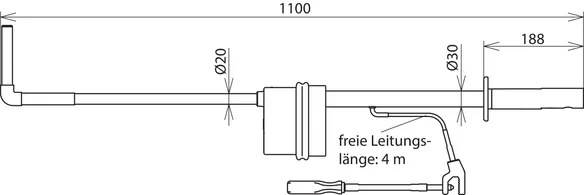

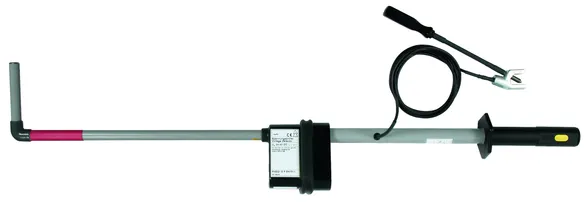

PHE/G I for Switchgear Installations, positive pole on indicator with test prod, angled

One stick

  • For direct voltage systems with earthed negative pole
  • Positive pole: Indicator with test prod
  • Negative pole: Earth clamp

1 ??store.product_de??

??store.product.number.short_de?? 767636 PHEG1 S P SN7240

??store.product.gtin_de?? 4013364155886, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 3.01 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 60 V
Nominal voltage (UN ) 3.8 kV
Length (earthing cable) 4000 mm
Total length (lG ) 1100 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

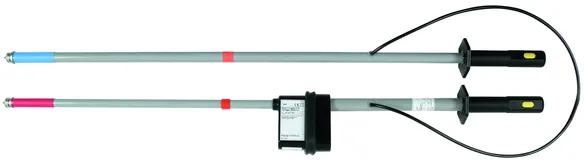

PHE/G II for Switchgear Installations

Two sticks

  • For unearthed direct voltage installations
  • For d.c. links
  • Positive pole: Indicator with test prod
  • Negative pole: Insulating stick

2 ??store.products_de??

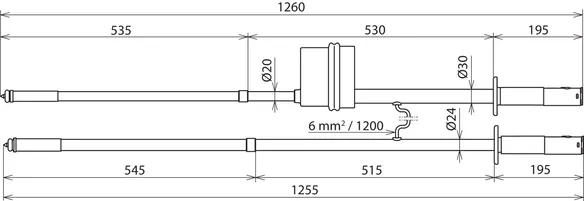

??store.product.number.short_de?? 767671 PHEG2.P SN7517

??store.product.gtin_de?? 4013364156807, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 3.30 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 90 V
Nominal voltage (UN ) 1 ... 24 kV
Length (connecting cable) 1200 mm
Total length (lG ) 1260 mm
Insertion depth (IO ) 545 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

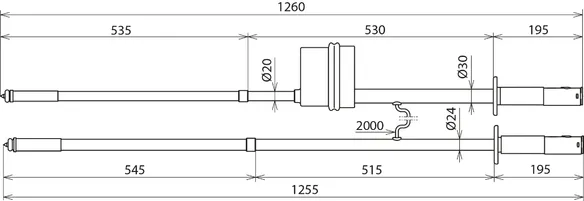

??store.product.number.short_de?? 767681 PHEG2.P SN7629

??store.product.gtin_de?? 4013364153165, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.60 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 120 V
Nominal voltage (UN ) 1 ... 24 kV
Length (connecting cable) 2000 mm
Total length (lG ) 1260 mm
Insertion depth (IO ) 545 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

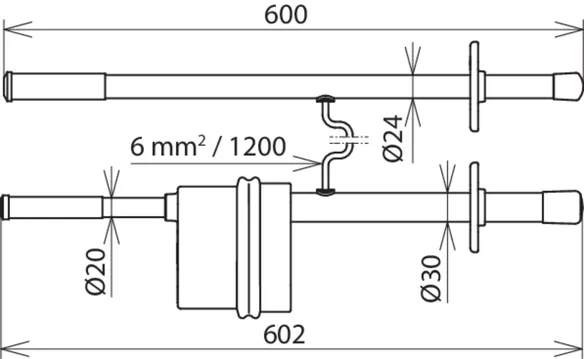

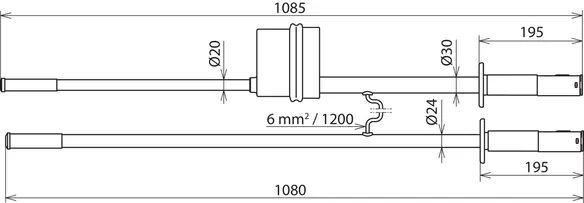

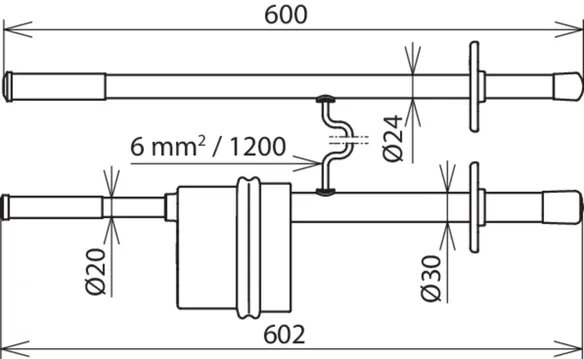

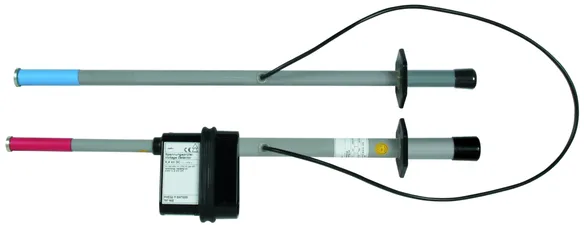

PHE/G II for Switchgear Installations and DC Links

Two sticks

  • For unearthed direct voltage installations
  • For d.c. links (e.g. electric locomotives; Part No. 767 647)
  • Positive pole: Indicator with test prod
  • Negative pole: Insulating stick

4 ??store.products_de??

??store.product.number.short_de?? 767647 PHEG2 P SN7552

??store.product.gtin_de?? 4013364156081, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.80 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 90 V
Nominal voltage (UN ) 1 ... 4.2 kV
Length (connecting cable) 1200 mm
Total length (lG ) 600 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767645 PHEG2 P SN7259

??store.product.gtin_de?? 4013364156067, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 3.30 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 120 V
Nominal voltage (UN ) 1 ... 12 kV
Length (connecting cable) 1200 mm
Total length (lG ) 1085 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

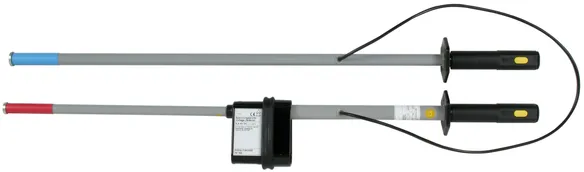

??store.product.number.short_de?? 767640 PHEG2 P SN7407

??store.product.gtin_de?? 4013364155978, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.88 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 350 V
Nominal voltage (UN ) 600 ... 750 V
Length (connecting cable) 1200 mm
Total length (lG ) 1085 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767637 PHEG2 P SN7194

??store.product.gtin_de?? 4013364155879, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 2.80 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 750 V
Nominal voltage (UN ) 1.5 kV
Length (connecting cable) 1200 mm
Total length (lG ) 1085 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

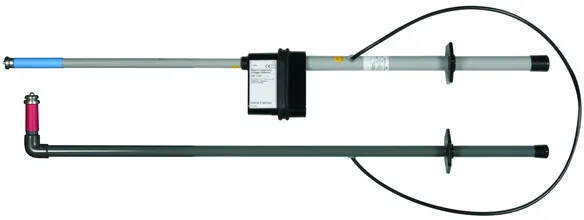

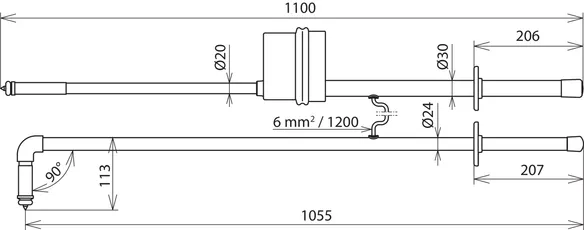

PHE/G II, angled positive pole

Two sticks

  • For unearthed direct voltage installations
  • For d.c. links
  • Positive pole: Insulating stick
  • Negative pole: Test prod

1 ??store.product_de??

??store.product.number.short_de?? 767639 PHEG2 P SN7346

??store.product.gtin_de?? 4013364155817, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 3.10 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Threshold voltage (Ut ) 150 V
Nominal voltage (UN ) 750 V
Length (connecting cable) 1200 mm
Total length (lG ) 1100 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
