Bridging Braids

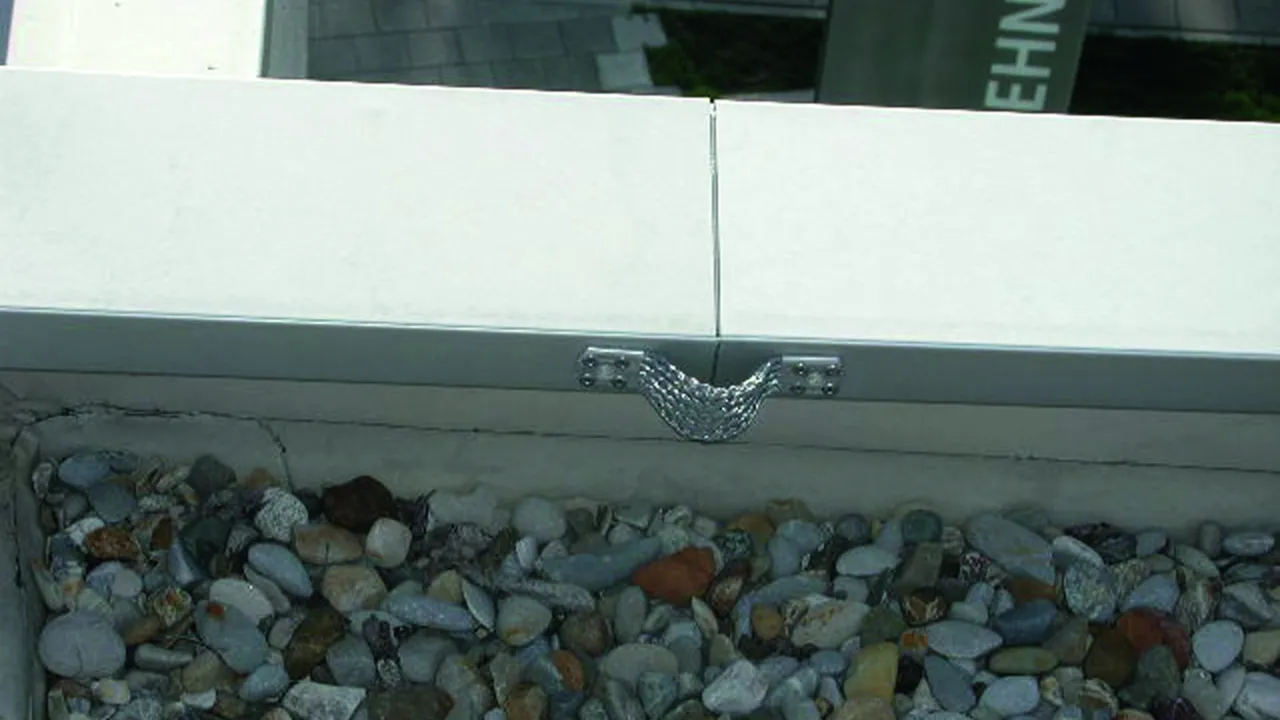

Suitable for connecting metal claddings (riveting or screwing) as an expansion compensation piece for round wires; or as compensation for certain temperature-related changes in length for round wires; Connection e.g. with KS connector part no. 301 019

Application note:
According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.

Short design

2 ??store.products_de??

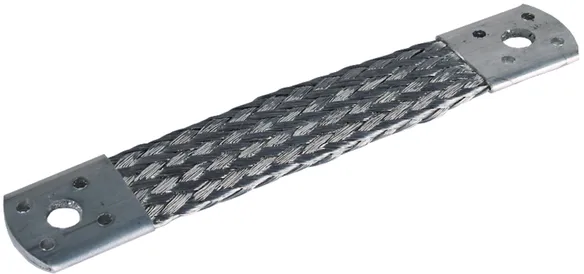

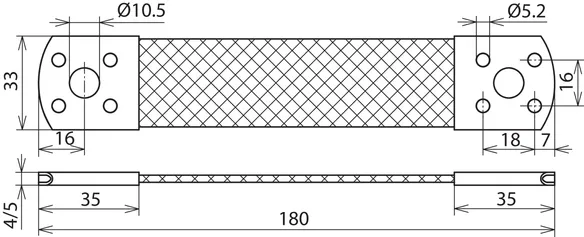

??store.product.number.short_de?? 377015 UEBB L180 B10.5 B5.2 AL

??store.product.gtin_de?? 4013364092693, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 36.00 g, ??store.product.packaging_de??: 10.00 pc(s)
