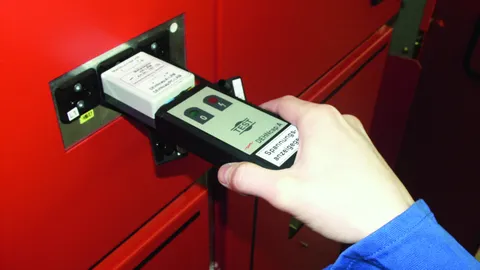

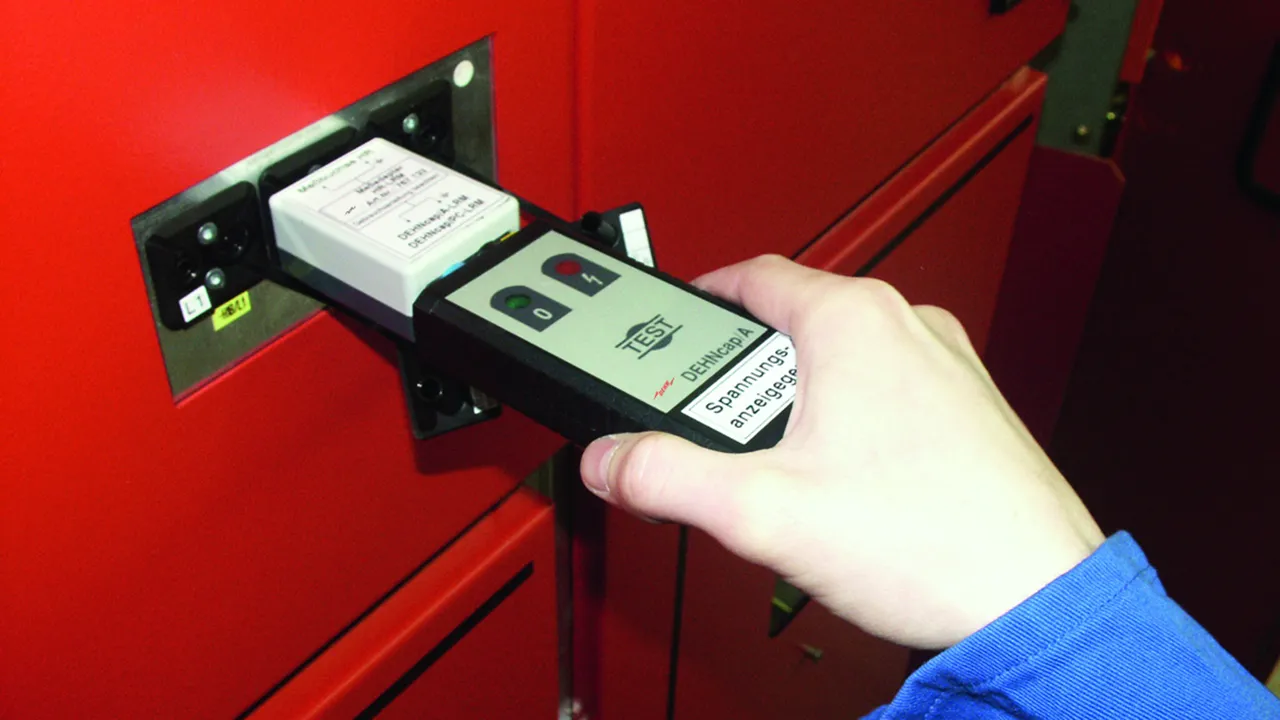

DEHNcap Test Adapter

Easy and safe testing
  • Easy mechanical and electrical adaptation to HR, LR test sockets
  • Measuring impedance for maintenance tests on coupling systems with suitable µA meter
  • 4 mm safety plugs or sockets
  • Energised HR plug, insulated

HR-LRM Test Adapter

For electrical and mechanical adaptation of HR (HO) to LRM systems.
Used as a measuring impedance with XC = 36 MOhms for maintenance tests on HR coupling systems (with suitable µA meter).

1 ??store.product_de??

??store.product.number.short_de?? 767133 MA DCA HR LRM

??store.product.gtin_de?? 4013364073494, ??store.product.customsTariffNumber_de??: 90309000, ??store.product.grossWeight_de??: 97.50 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Dimensions 90 x 50 x 30 mm
Plug spacing 19 mm
Socket spacing 14 mm
Type of plug 2 multilam plugs (Ø4 mm)
Type of test socket 2 sockets (Ø4 mm)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

LR-LRM Test Adapter

For mechanical adaptation of LR (NO) to LRM systems.

1 ??store.product_de??

??store.product.number.short_de?? 767136 MA DCA LR LRM

??store.product.gtin_de?? 4013364081109, ??store.product.customsTariffNumber_de??: 90309000, ??store.product.grossWeight_de??: 65.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Dimensions 100 x 50 x 30 mm
Plug spacing jack, 6.3 mm
Socket spacing 14 mm
Type of plug 1 jack
Type of test socket 2 sockets (Ø4 mm)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
