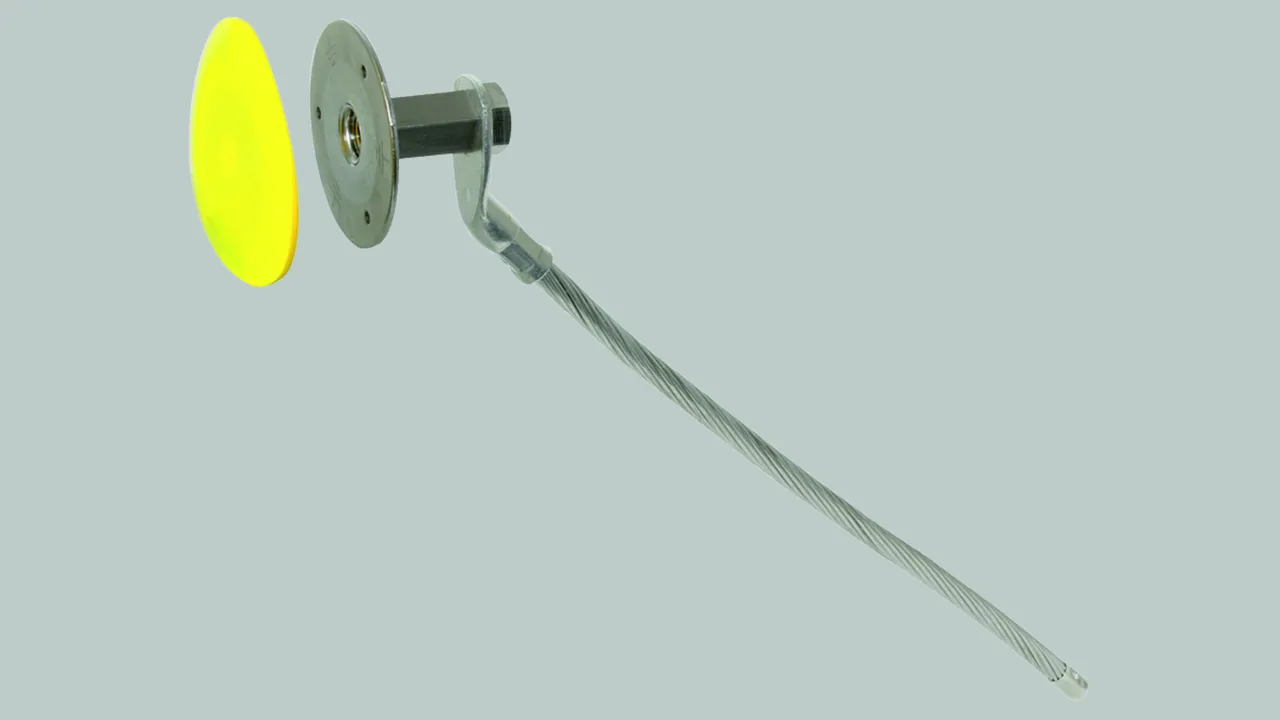

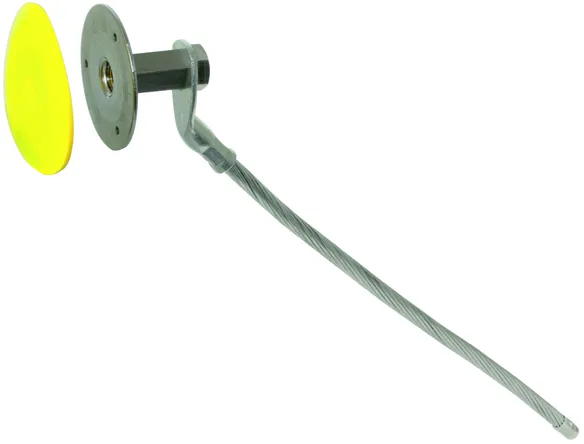

Fixed Earthing Terminal M16

With M16 connection thread for higher current loads (50 Hz), e.g. for connecting the ring equipotential bonding system with the earth-termination systems of power installations with nominal AC voltages over 1 kV (transformer earthing).

The connection cable may be connected to other components of the earth-termination system using, e.g. a cross unit (Part No. 318 207/318 209), or to the reinforcement using the corresponding clamps.

For formwork installation, with snap-on plastic cover (yellow) and sealing around the connection thread.

1 Product

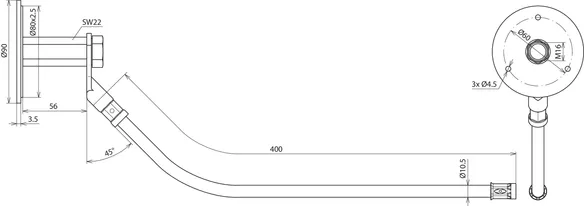

Part No. 478027 EFP M16 V4A SL400

GTIN 4013364125995, Customs tariff No. (EU): 85359000, Gross weight: 603.40 g, PU: 10.00 pc(s)
