SZ Fuse Tongs

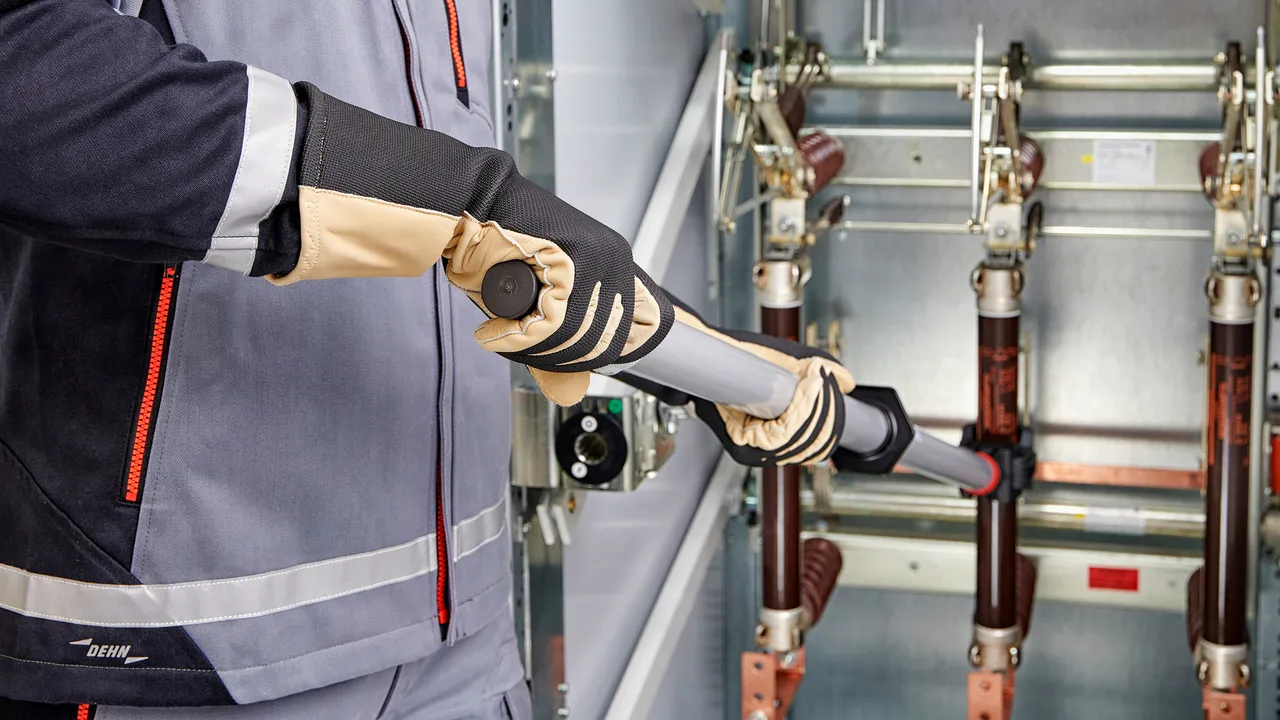

Easy and safe workingUser-friendly

Details

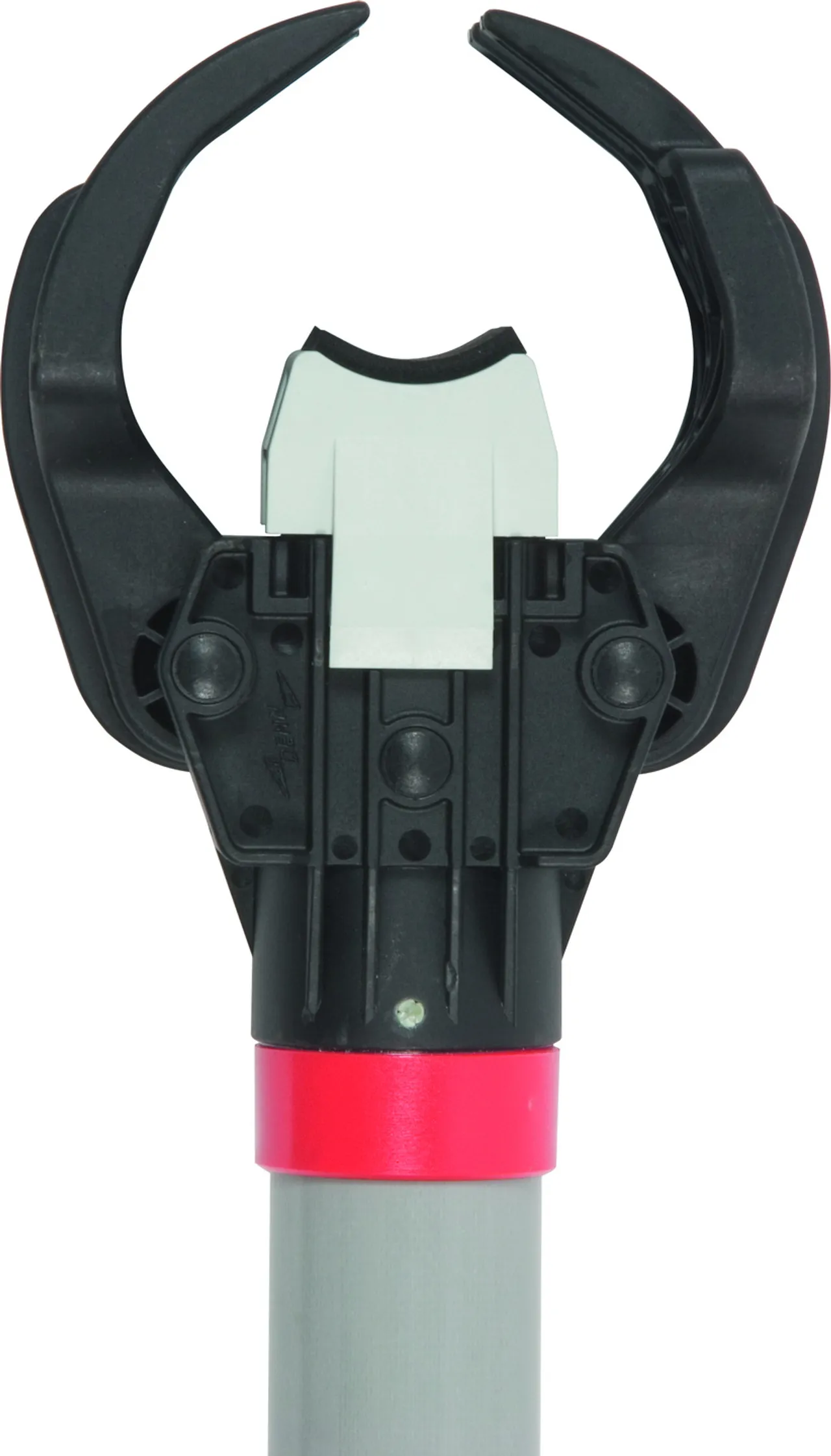

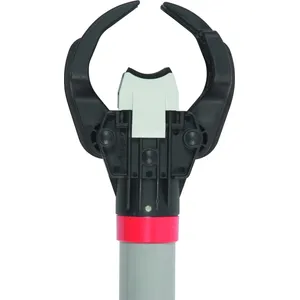

The reducing insert delivered with the SZ fuse tong allows low clamping ranges from Ø30 to 50 mm.
Without reducing insert, HV HBC fuses from Ø50 to 90 mm can be actuated.
lorem ipsum

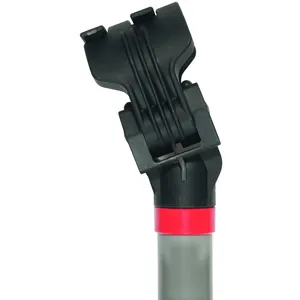

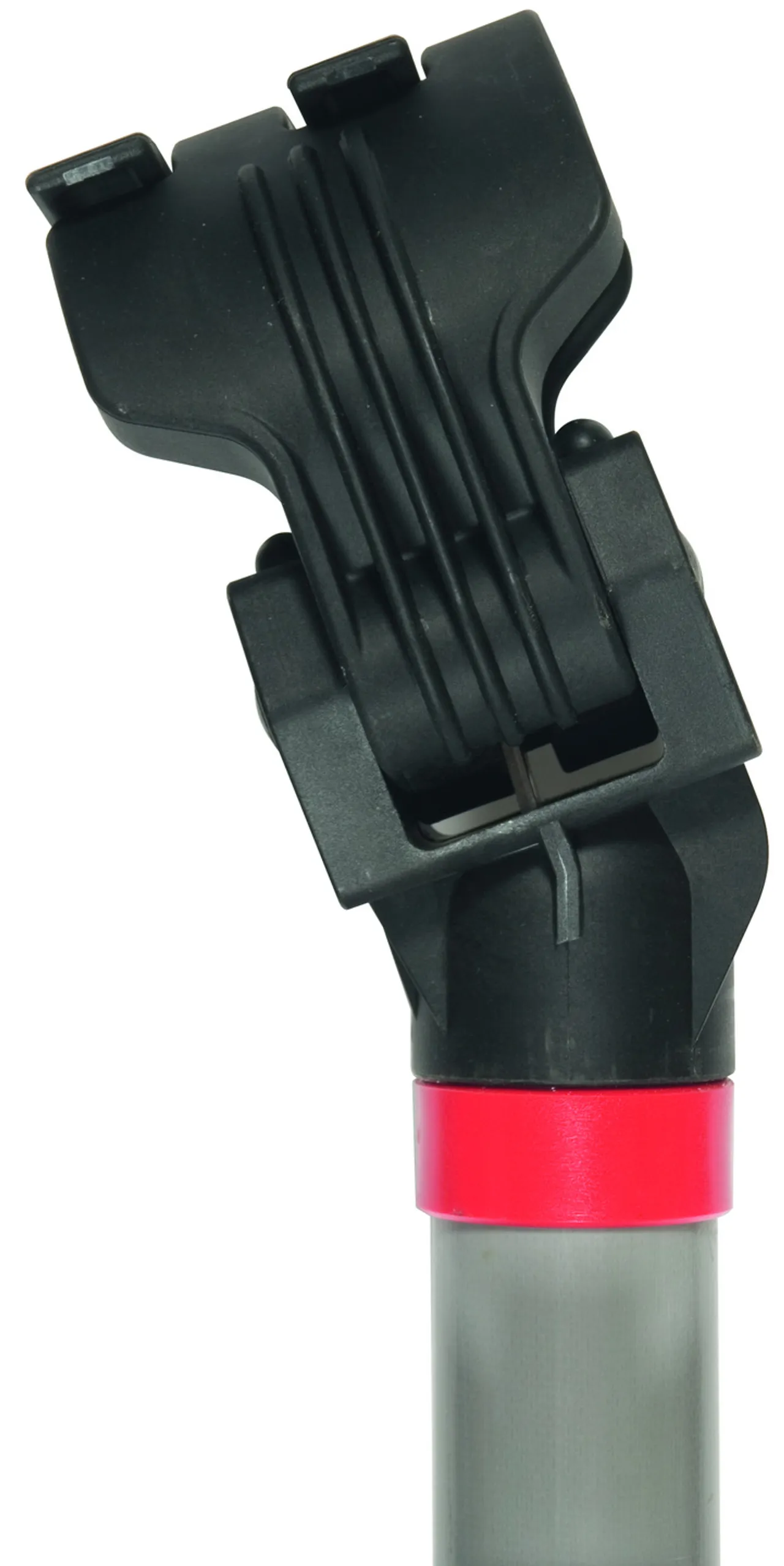

In practice, the 20° angled operating head allows safe and easy actuation of HH fuses that are not easily accessible.
lorem ipsum

Straight version

3 ??store.products_de??

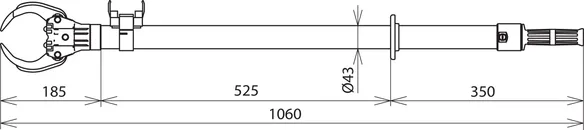

??store.product.number.short_de?? 765040 SZ HH 1060

??store.product.gtin_de?? 4013364093751, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 2.63 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage (UN ) 1 ... 36 kV
Clamping range 30 ... 50*) / 50 ... 90 mm
Total length (lG ) 1060 mm
Length (handle) (IH ) 350 mm
Insertion depth (IO ) 185 mm
*) Only if used with reducing insert

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

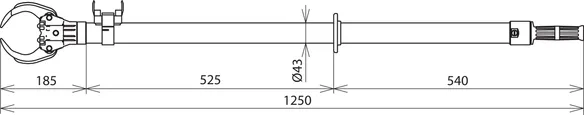

??store.product.number.short_de?? 765041 SZ HH 1250

??store.product.gtin_de?? 4013364093768, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 2.88 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage (UN ) 1 ... 36 kV
Clamping range 30 ... 50*) / 50 ... 90 mm
Total length (lG ) 1250 mm
Length (handle) (IH ) 540 mm
Insertion depth (IO ) 185 mm
*) Only if used with reducing insert

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 765042 SZ HH 1500

??store.product.gtin_de?? 4013364093775, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 3.39 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage (UN ) 1 ... 36 kV
Clamping range 30 ... 50*) / 50 ... 90 mm
Total length (lG ) 1500 mm
Length (handle) (IH ) 790 mm
Insertion depth (IO ) 185 mm
*) Only if used with reducing insert

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

20° angled version

3 ??store.products_de??

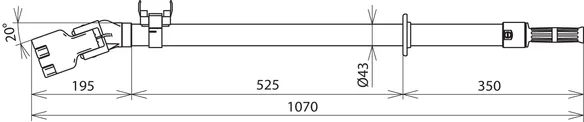

??store.product.number.short_de?? 765050 SZ HH W20 1070

??store.product.gtin_de?? 4013364093782, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 2.65 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage (UN ) 1 ... 36 kV
Clamping range 30 ... 50*) / 50 ... 90 mm
Total length (lG ) 1070 mm
Length (handle) (IH ) 350 mm
Insertion depth (IO ) 195 mm
*) Only if used with reducing insert

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

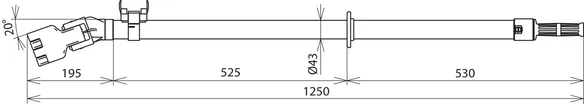

??store.product.number.short_de?? 765051 SZ HH W20 1250

??store.product.gtin_de?? 4013364093799, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 2.89 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage (UN ) 1 ... 36 kV
Clamping range 30 ... 50*) / 50 ... 90 mm
Total length (lG ) 1250 mm
Length (handle) (IH ) 530 mm
Insertion depth (IO ) 195 mm
*) Only if used with reducing insert

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 765052 SZ HH W20 1500

??store.product.gtin_de?? 4013364093805, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 3.39 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage (UN ) 1 ... 36 kV
Clamping range 30 ... 50*) / 50 ... 90 mm
Total length (lG ) 1500 mm
Length (handle) (IH ) 780 mm
Insertion depth (IO ) 195 mm
*) Only if used with reducing insert

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
