Fixed Earthing Points

For connecting earth bushings or earth connecting plates in accordance with DIN 48088-2
Welding-type or bolted-type connector for connecting earth connectors with wing nut or wing bolt on the earth cable end
Connectors with M12 or M16 threaded pin
M12 or M16 female thread

Details

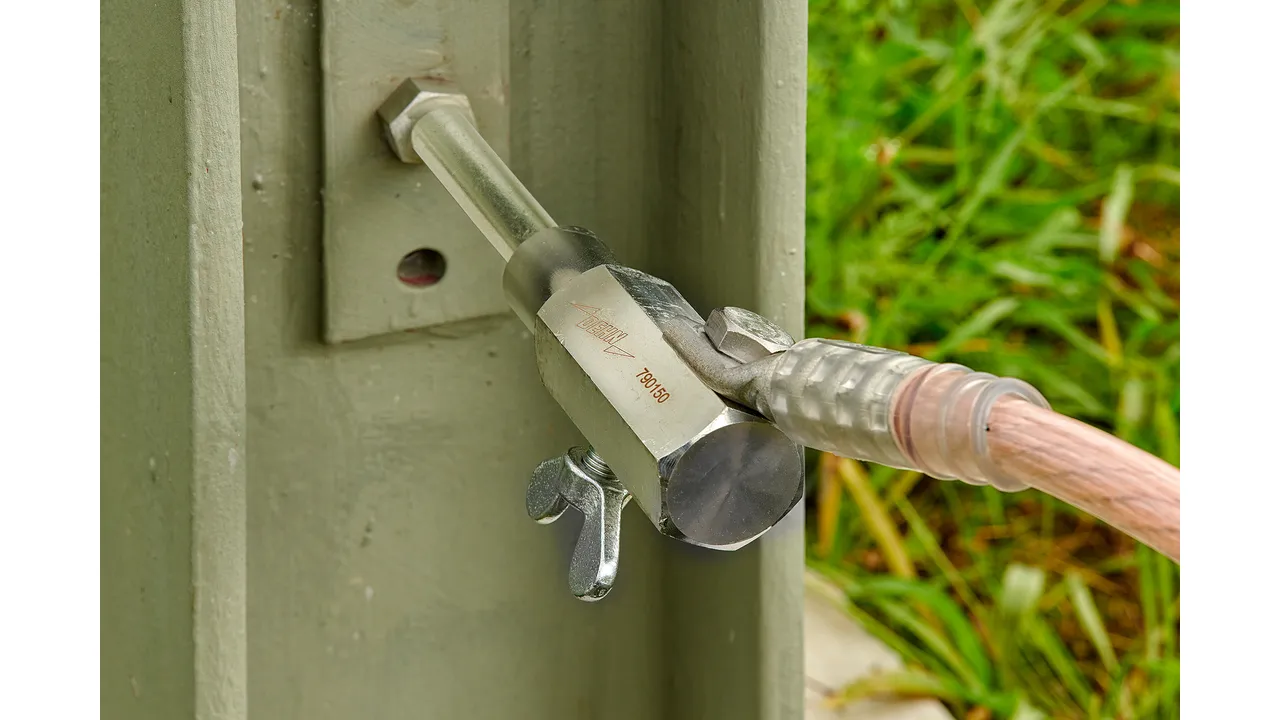

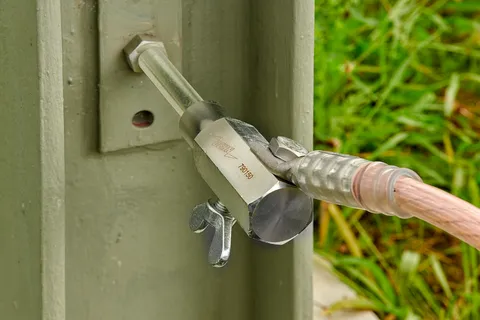

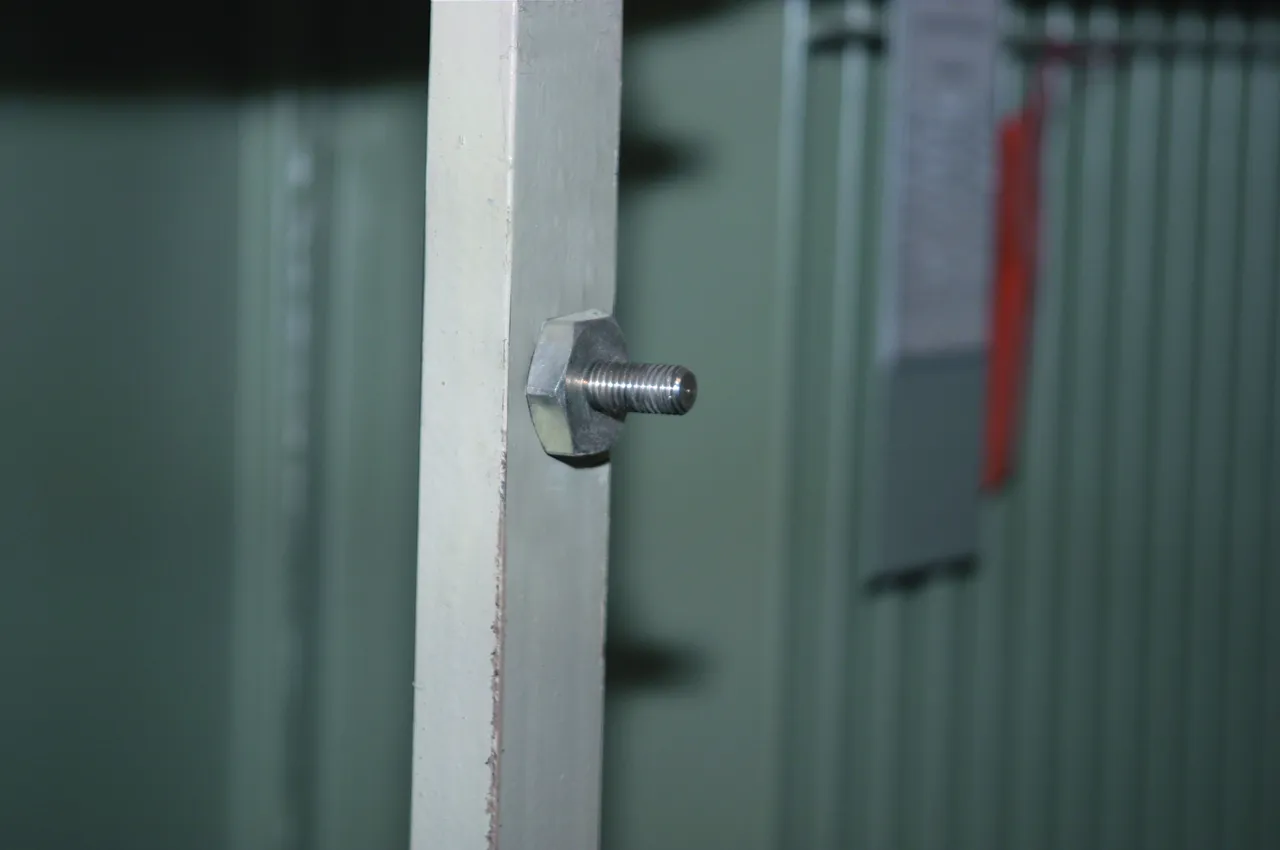

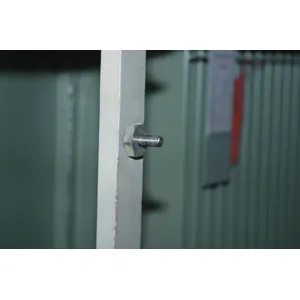

Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

lorem ipsum — Bolted-type earth connector with M12 threaded pin on an earthed part of an installation.

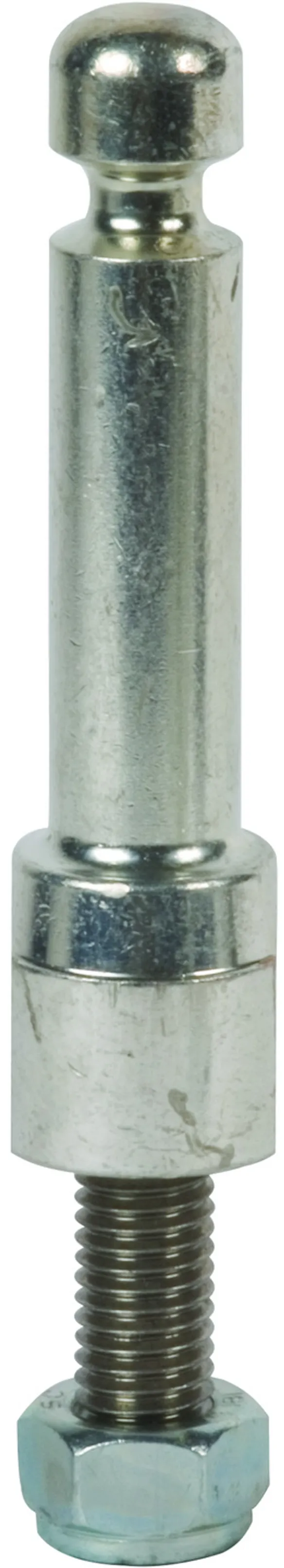

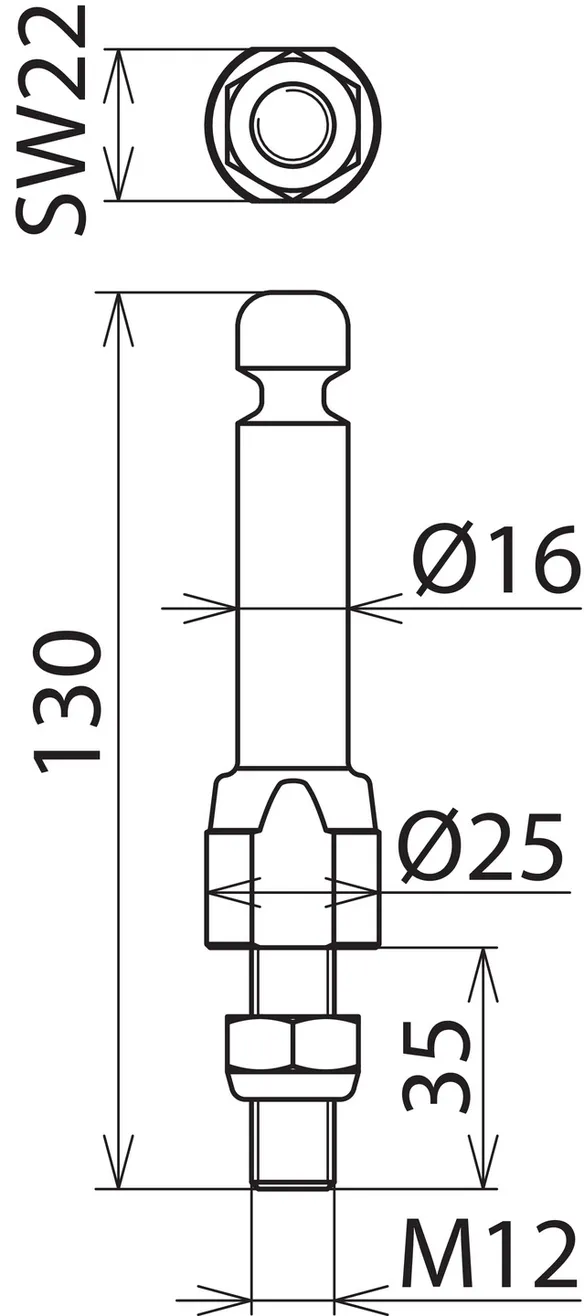

Ring Groove Fixed Point with Threaded Pin and Nut

2 ??store.products_de??

??store.product.number.short_de?? 790251 EFP 16 RN M12 35 SSM

??store.product.gtin_de?? 4013364089501, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 248.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12 x 35 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M12-8 / gal Zn
Tightening torque	50 ... 65 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

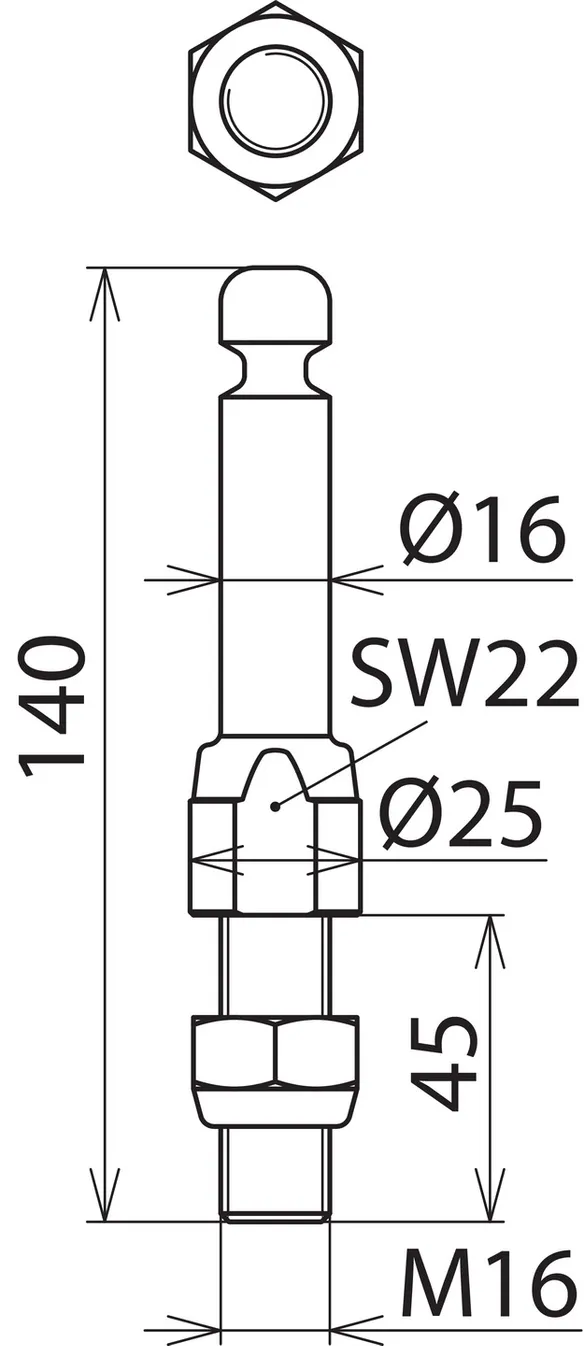

??store.product.number.short_de?? 790261 EFP 16 RN M16 45 SSM

??store.product.gtin_de?? 4013364089525, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 277.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16 x 45 mm
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
Material (threaded pin)	StSt A2-70
Material (nut)	DIN 985-M16-8 / gal Zn
Tightening torque	100 ... 110 Nm
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Ring Groove Fixed Point with Female Thread

2 ??store.products_de??

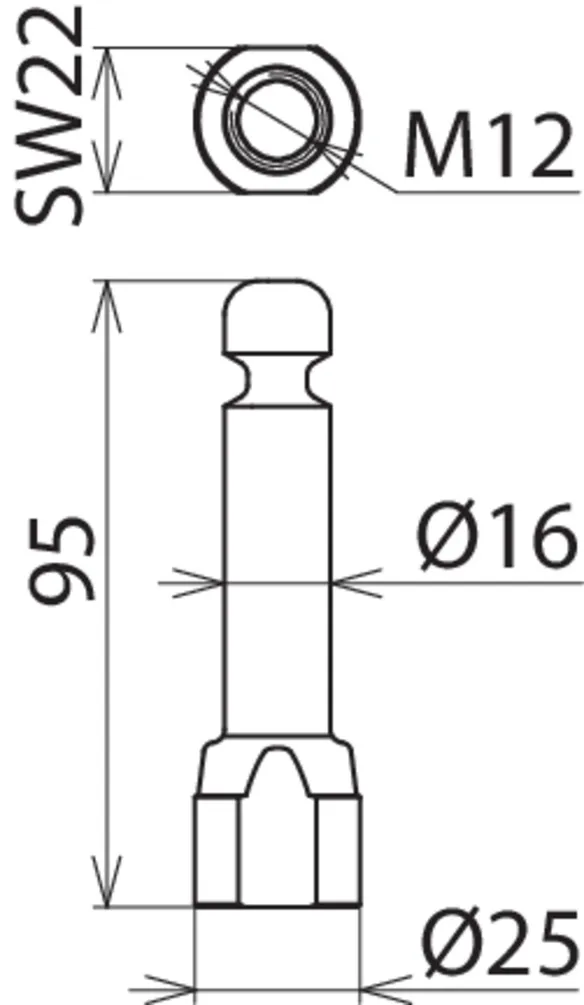

??store.product.number.short_de?? 790250 EFP 16 RN M12

??store.product.gtin_de?? 4013364089495, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 193.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M12
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

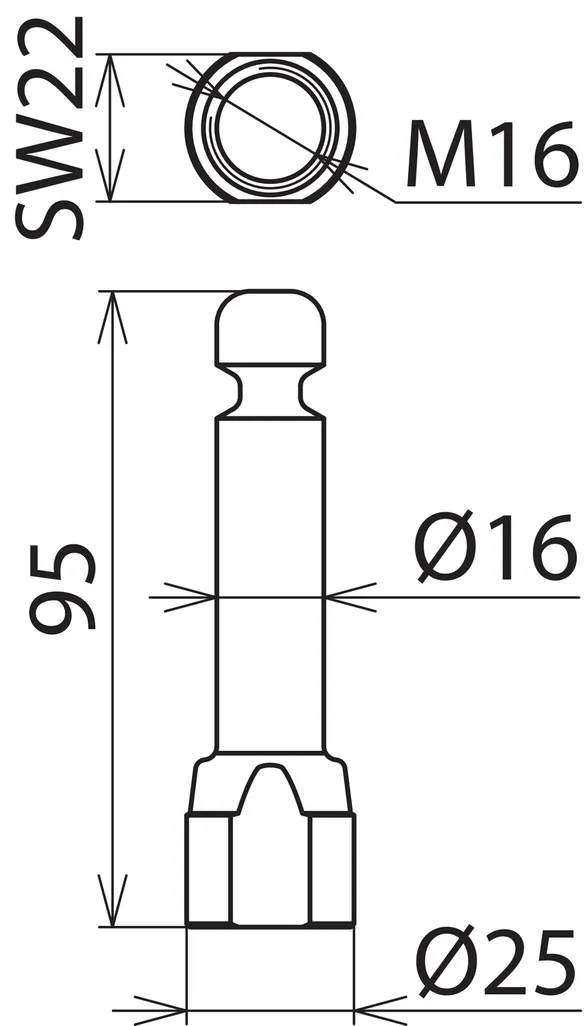

??store.product.number.short_de?? 790260 EFP 16 RN M16

??store.product.gtin_de?? 4013364089518, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 180.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

Dimensions	M16
Diameter	16 mm
Wrench size	22 mm
Max. cable cross-section Cu	150 mm²
Max. short-circuit current I_k0.5 s	42.0^*) kA
Max. short-circuit current I_k1 s	29.6^*) kA
Standard	EN/IEC 61230 (DIN VDE 0683-100) and DIN 48088-2
Material	Brass (CuNi2Si) / gal Sn
^*)For earthing and short-circuiting devices with cable lengths > 4000 mm: 26.5 kA / 0.5 s (18.7 kA / 1 s)

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

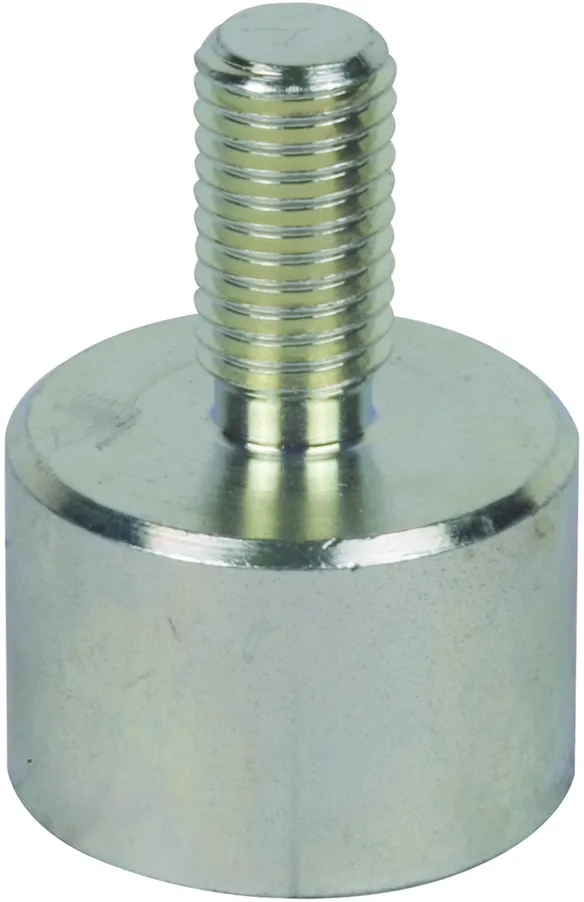

Weld-on Connector with Threaded Pin

2 ??store.products_de??

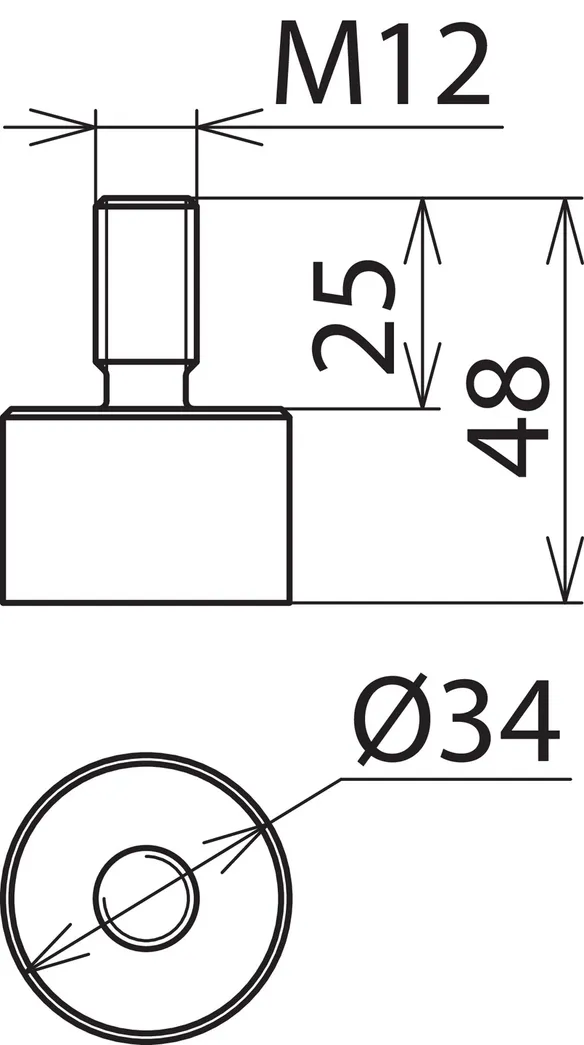

??store.product.number.short_de?? 705501 AS SCHW M12 25

??store.product.gtin_de?? 4013364003927, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 157.20 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M12 x 25 mm
Material	St/gal Zn

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

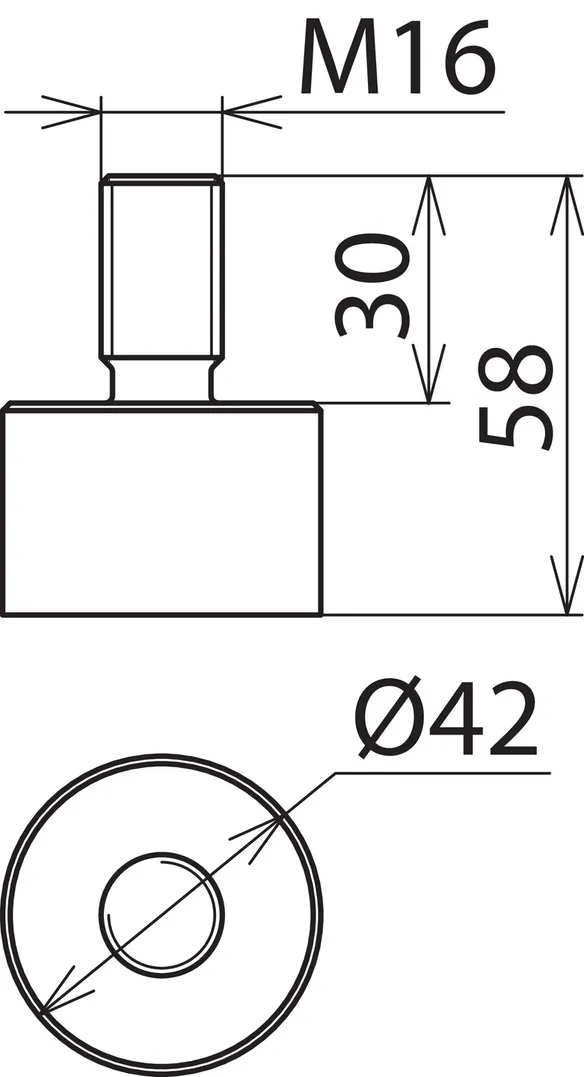

??store.product.number.short_de?? 755501 AS SCHW M16 30

??store.product.gtin_de?? 4013364003934, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 303.20 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M16 x 30 mm
Material	St/gal Zn

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

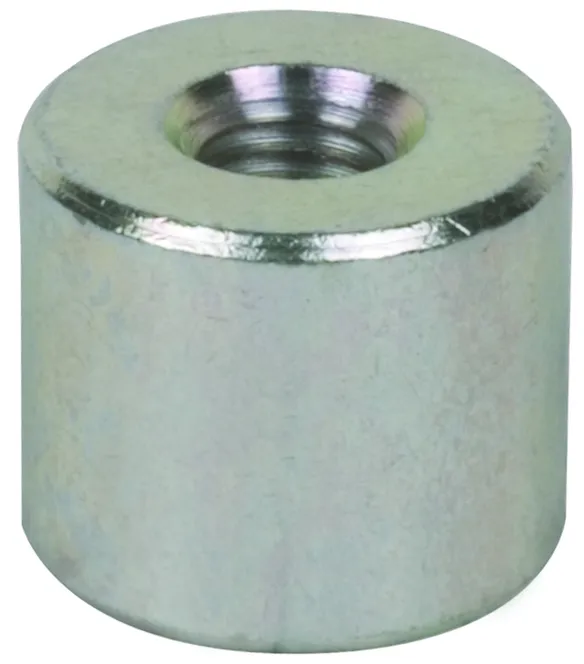

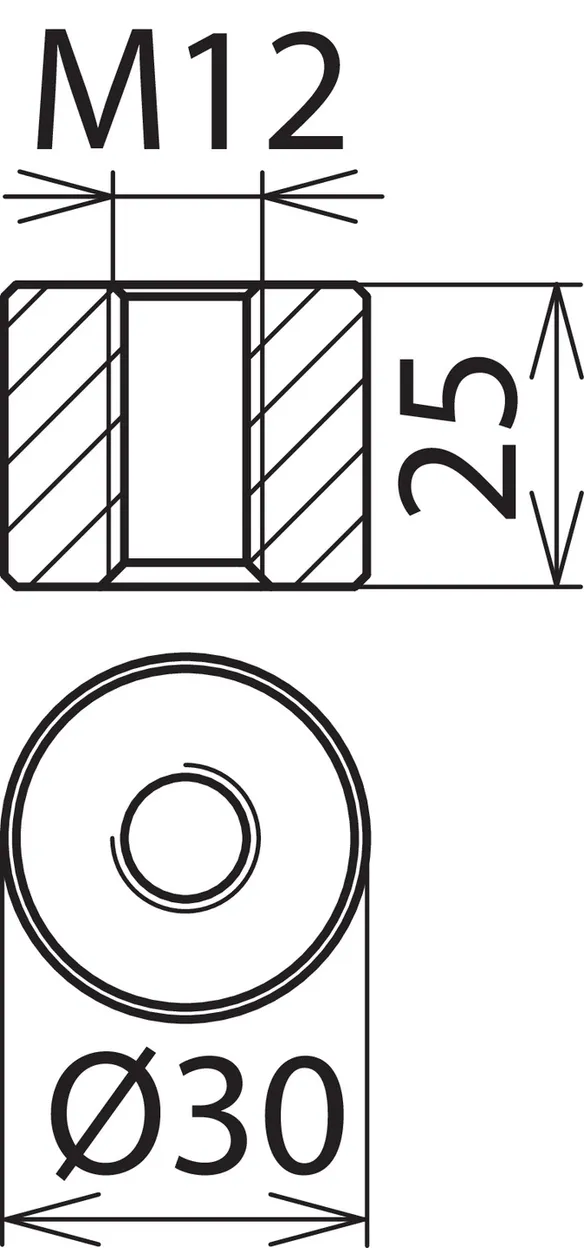

Weld-on Connector with Female Thread

2 ??store.products_de??

??store.product.number.short_de?? 336020 AS SCHW M12

??store.product.gtin_de?? 4013364003941, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 123.10 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M12
Material	St/gal Zn

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

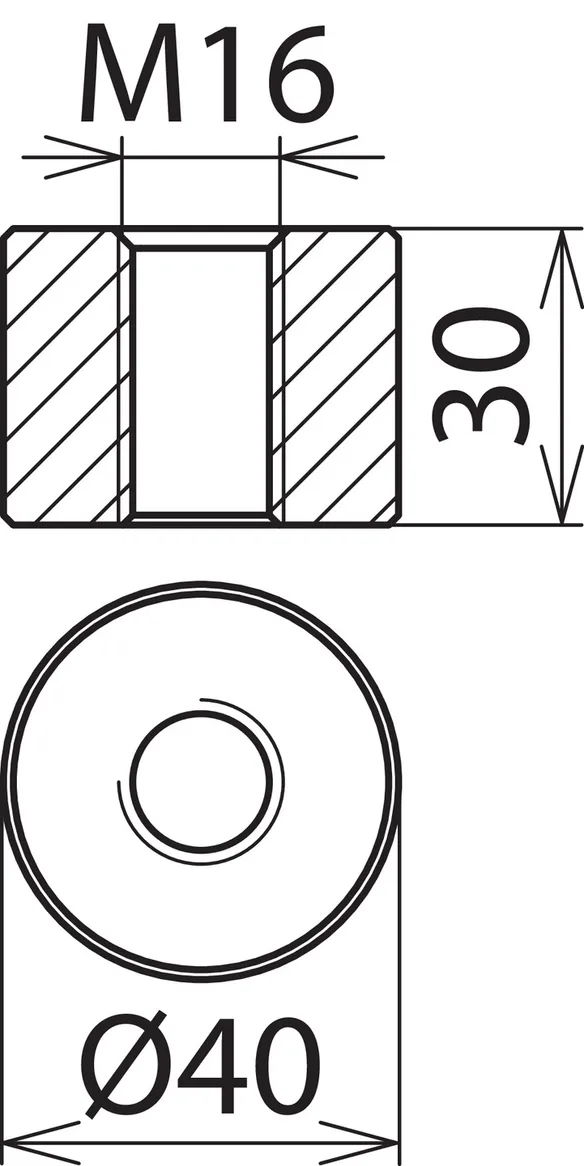

??store.product.number.short_de?? 336025 AS SCHW M16

??store.product.gtin_de?? 4013364003958, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 257.10 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M16
Material	St/gal Zn

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

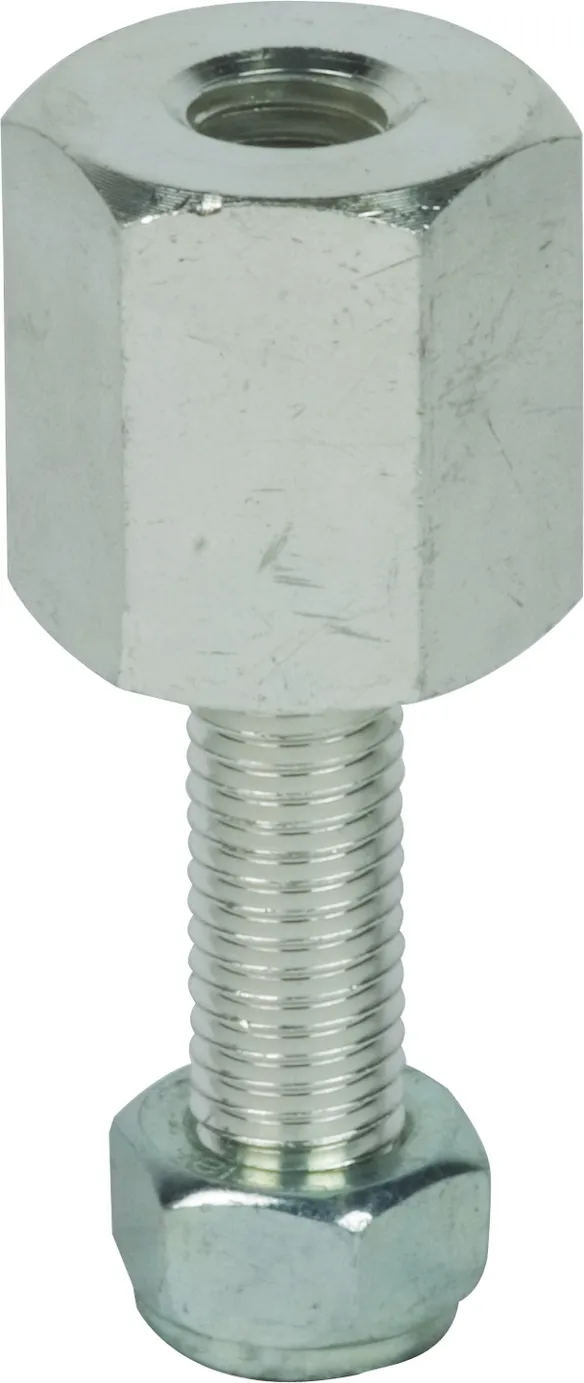

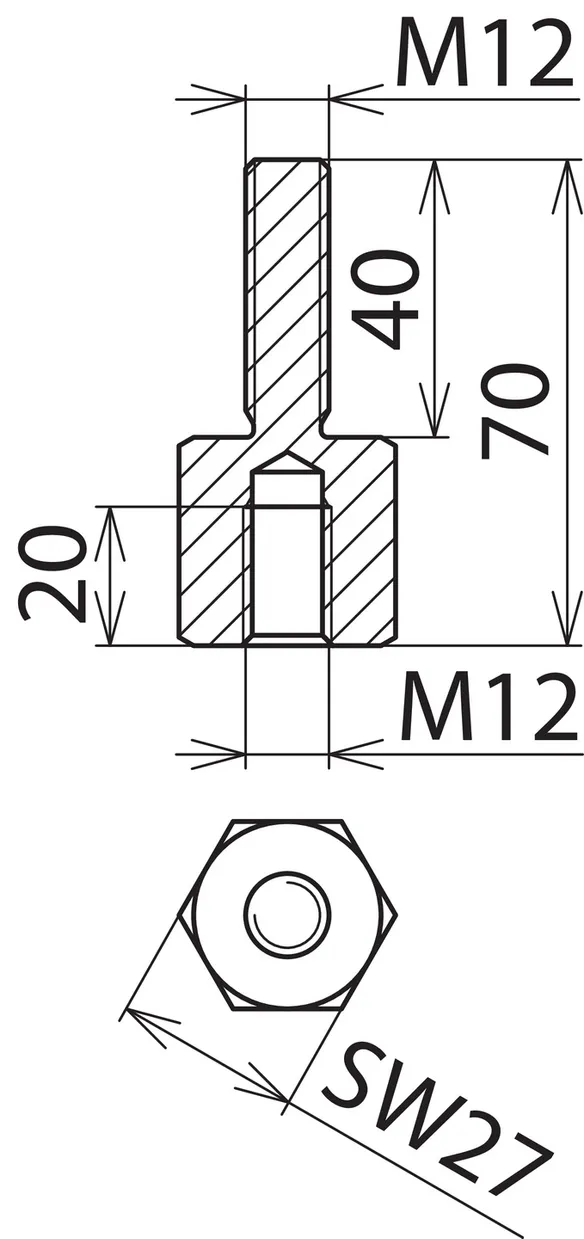

Bolted-type Connector with Female Thread

1 ??store.product_de??

??store.product.number.short_de?? 705504 AS SCHR M12 M12 40

??store.product.gtin_de?? 4013364008021, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 183.20 g, ??store.product.packaging_de??: 5.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

??store.product.data_de??

Dimensions	M12 / M12 x 40 mm
Wrench size	27 mm
Material	Copper alloy/gal Sn

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

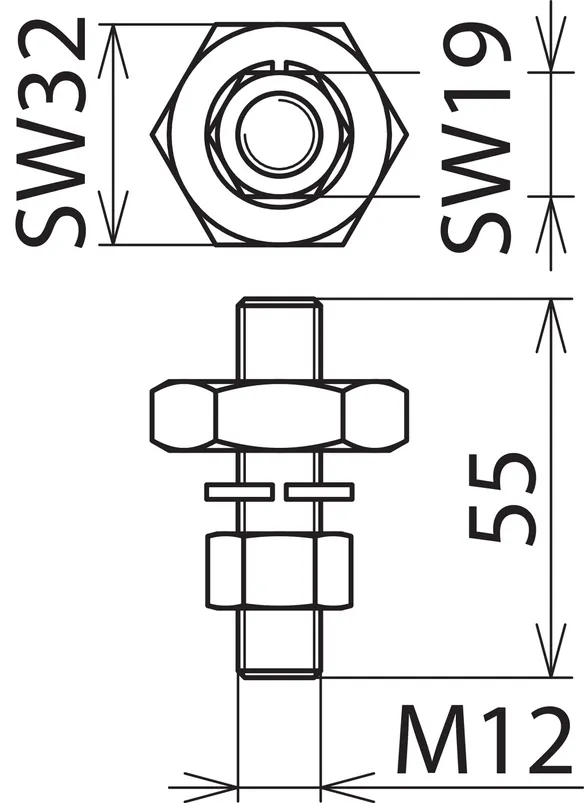

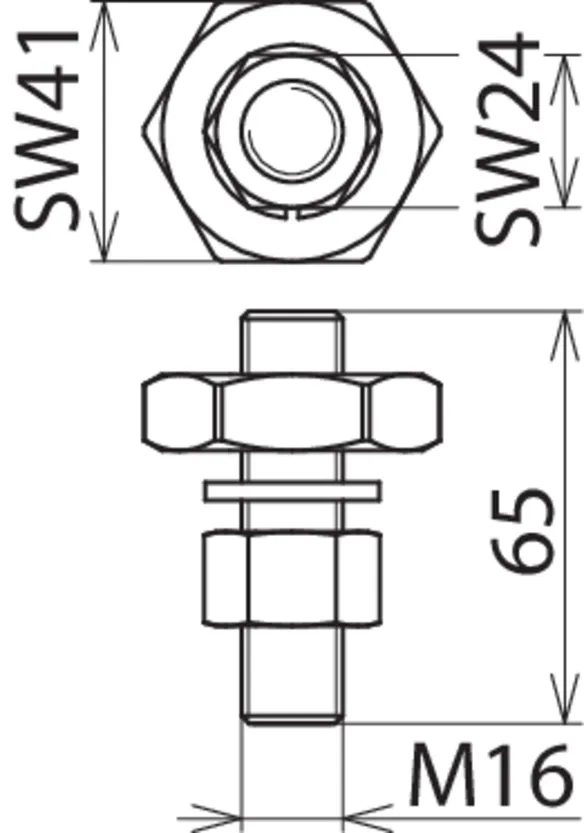

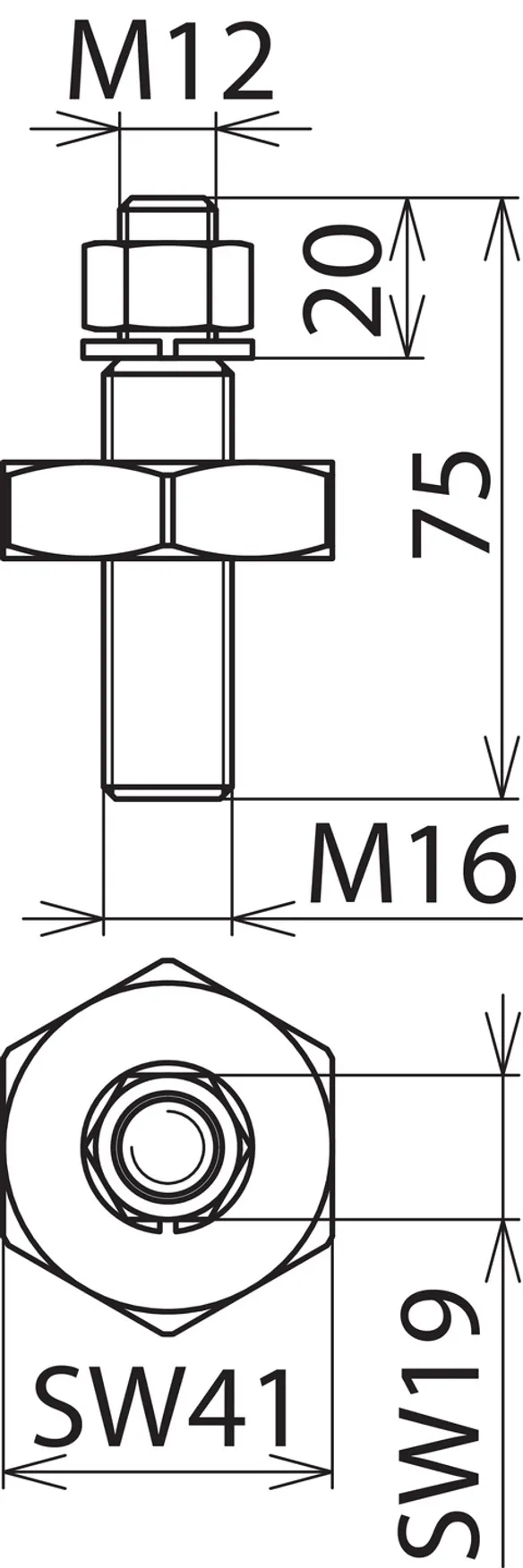

Bolted-type Connector with Threaded Pin and Separate Hexagon Nut

2 ??store.products_de??

??store.product.number.short_de?? 705500 AS SCHR M12 55

??store.product.gtin_de?? 4013364000025, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 122.40 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??
