Phase Connecting Elements for Overhead Lines

  • For connecting the phase cables of single-pole and three-pole earthing and short-circuiting devices to overhead lines
  • With coupling aid for safe attachment on conductor cables
  • Easy coupling due to spring-loaded clamp
  • Anti-rotation protection type PK1 or PK2 and long threaded T pin shaft
  • Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Details

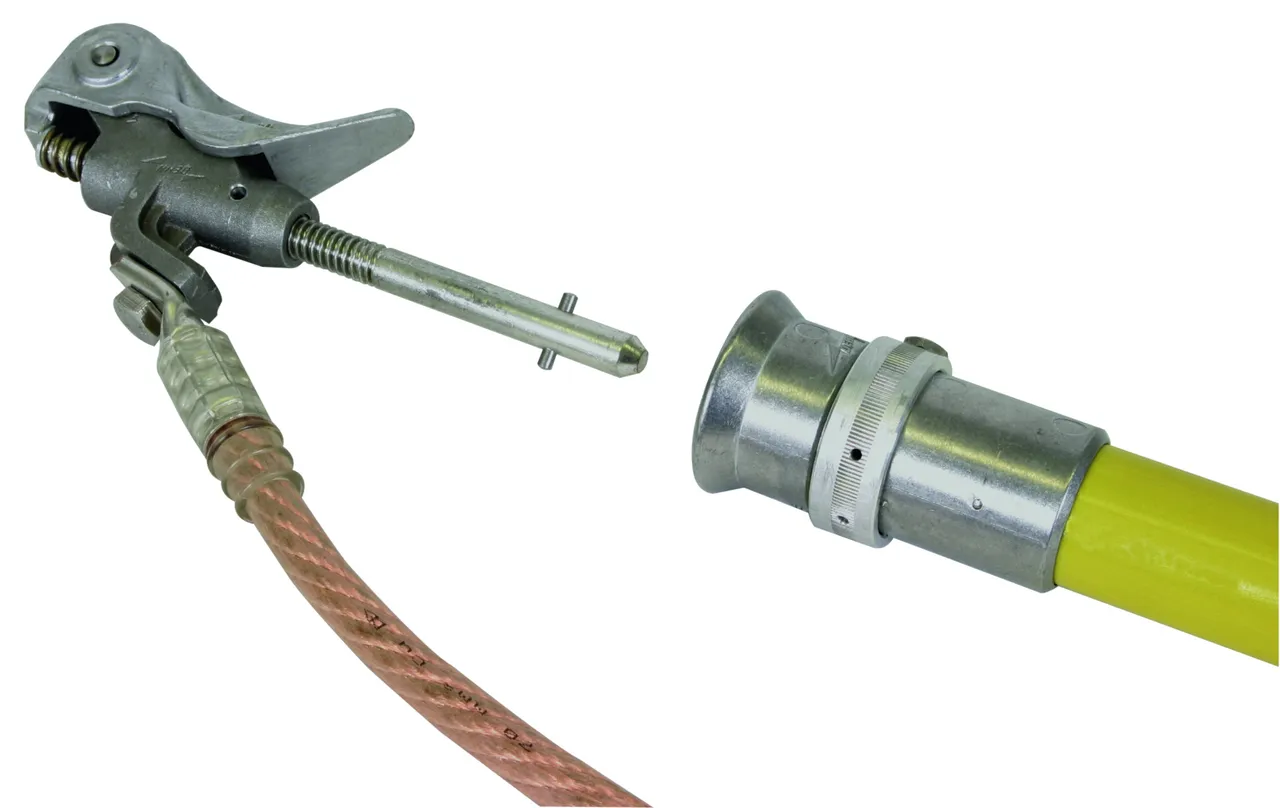

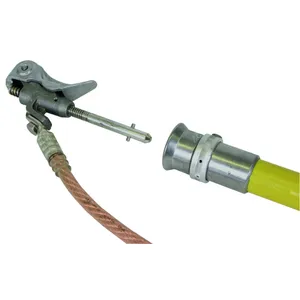

Clamp with long shaft and earthing stick with aluminium cone coupling.
lorem ipsum

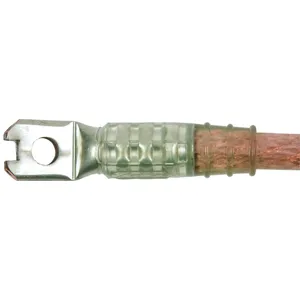

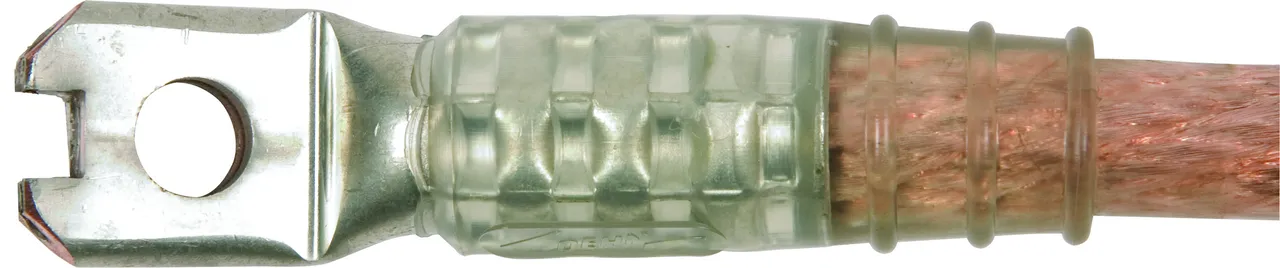

Crimped cable lug, type PK1:
Standard anti-rotation cable lug with cut-out.
lorem ipsum

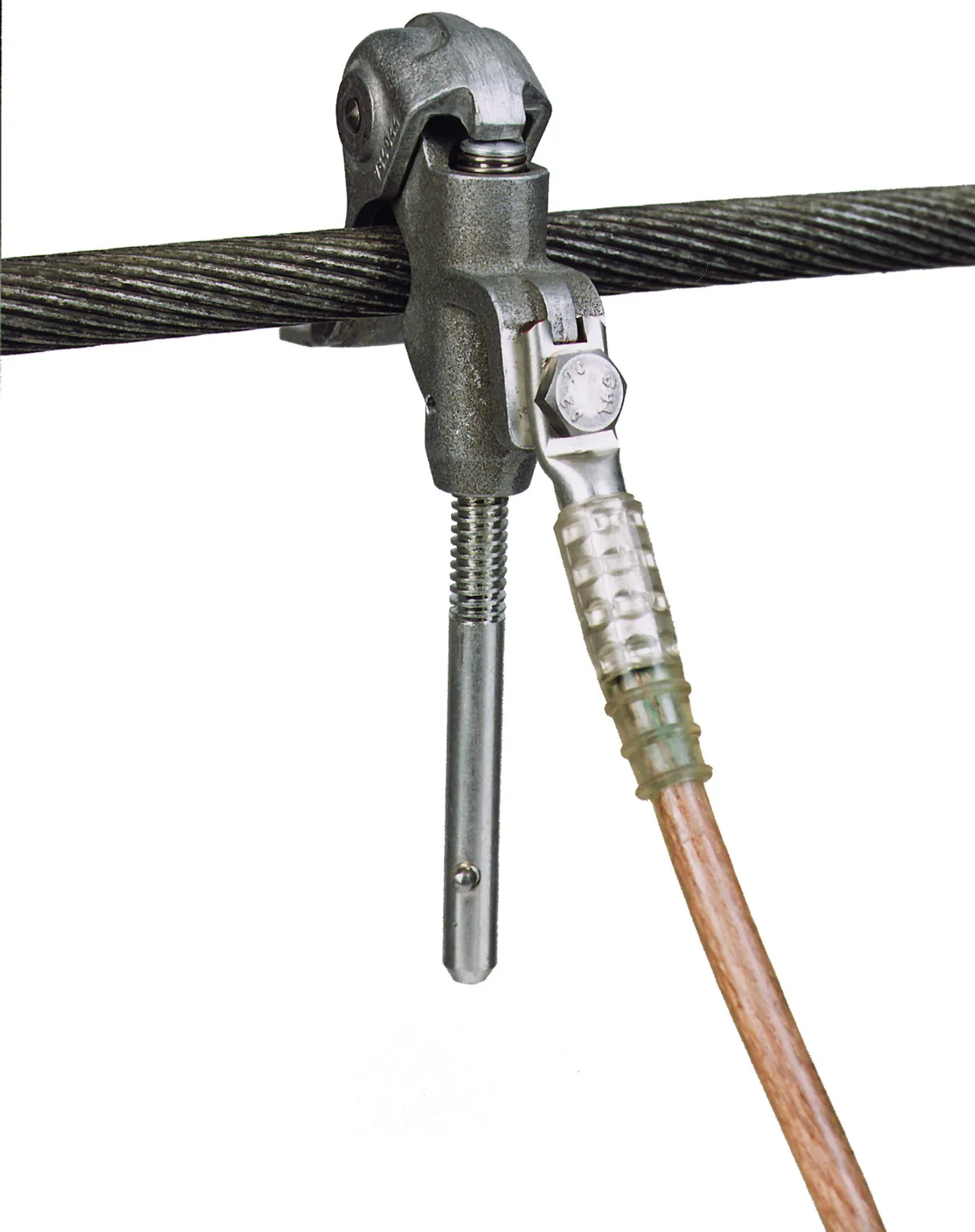

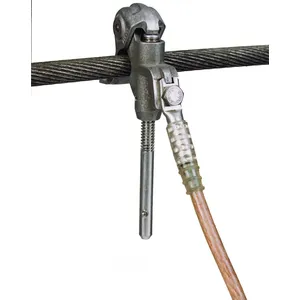

Spring-loaded phase screw clamp.
lorem ipsum
lorem ipsum

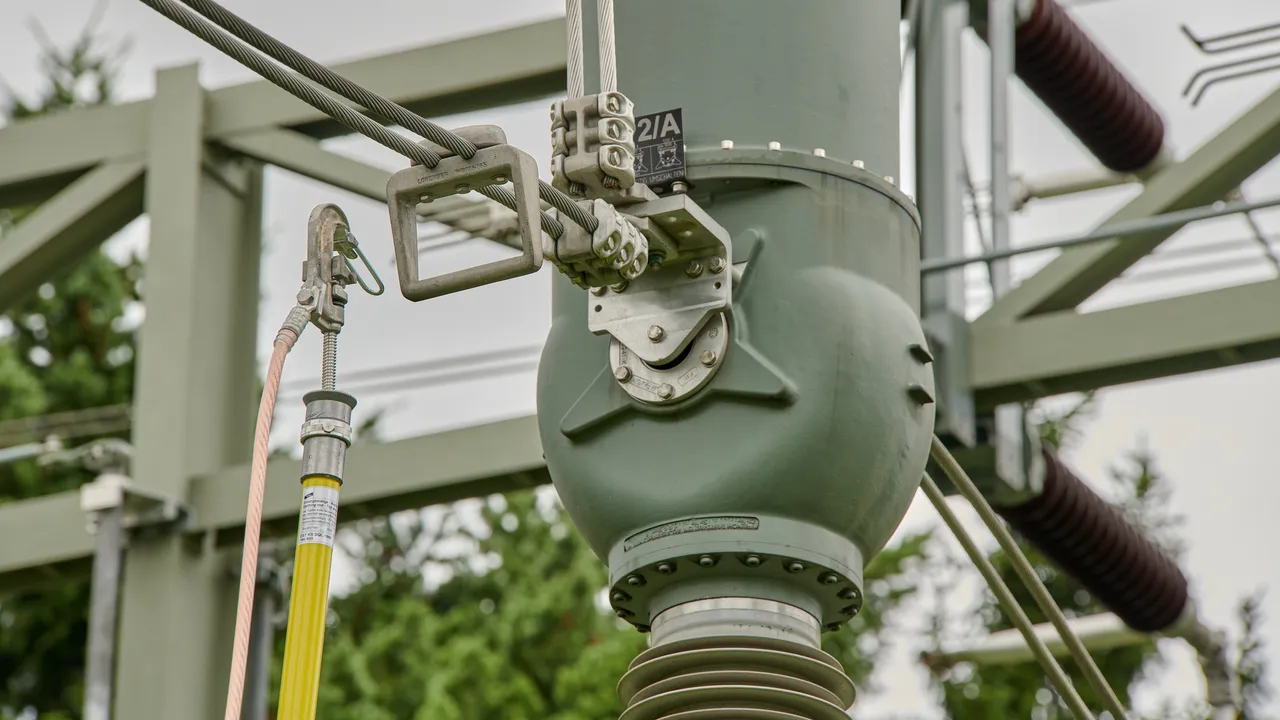

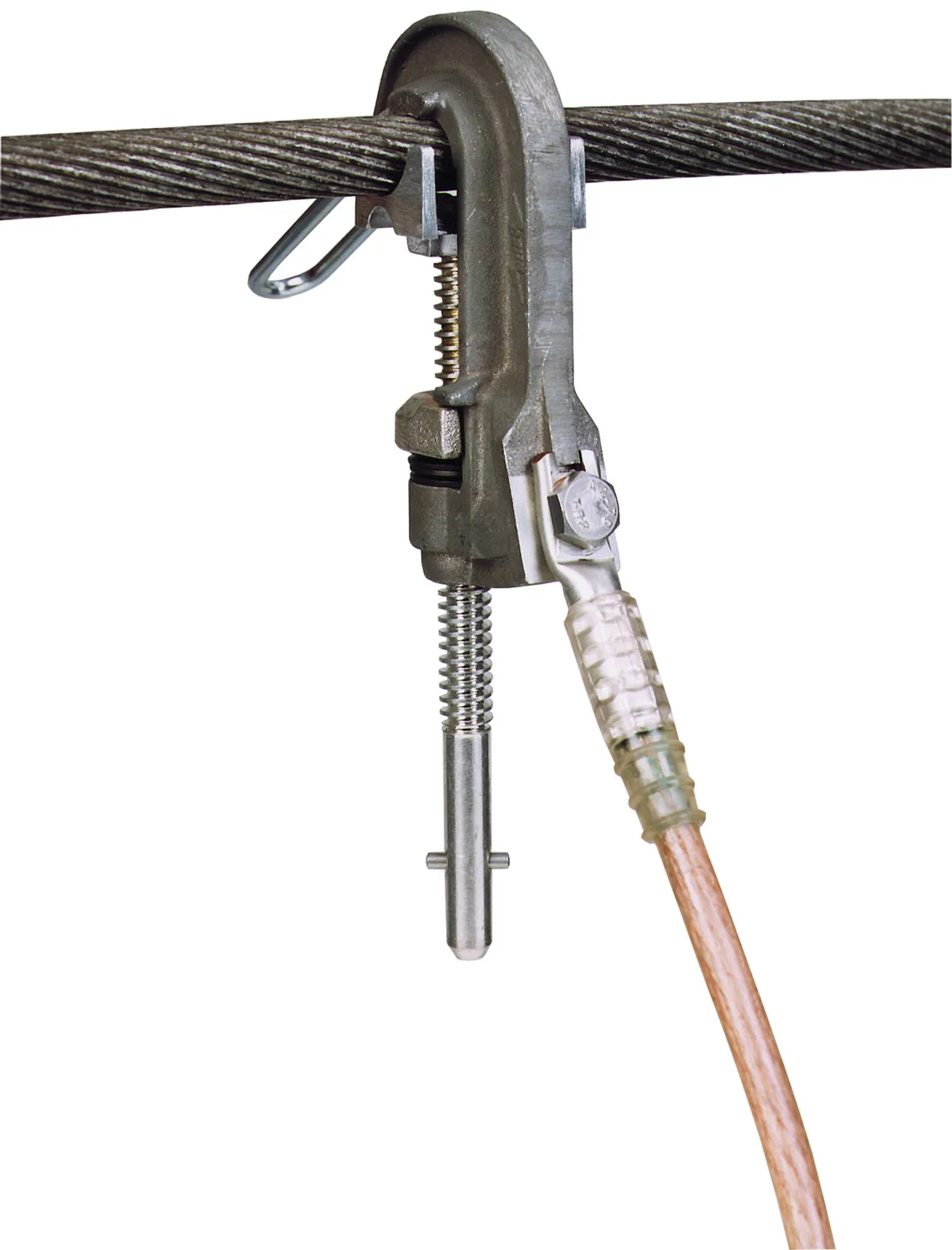

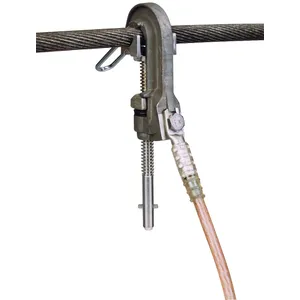

Phase screw clamp fitted with fixed coupling aid allows safe coupling.
lorem ipsum

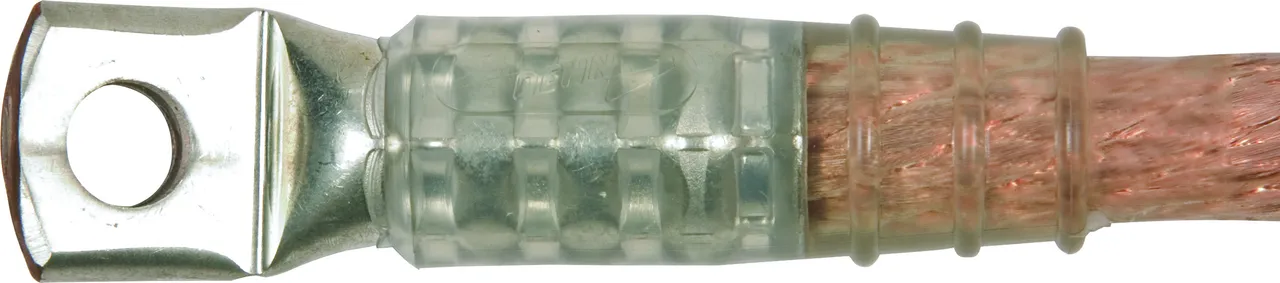

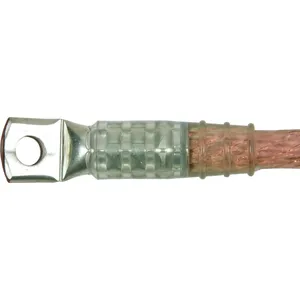

Crimped cable lug, type PK2:
Cable lugs without cut-out for connecting parts from other manufacturers are available on request.
lorem ipsum

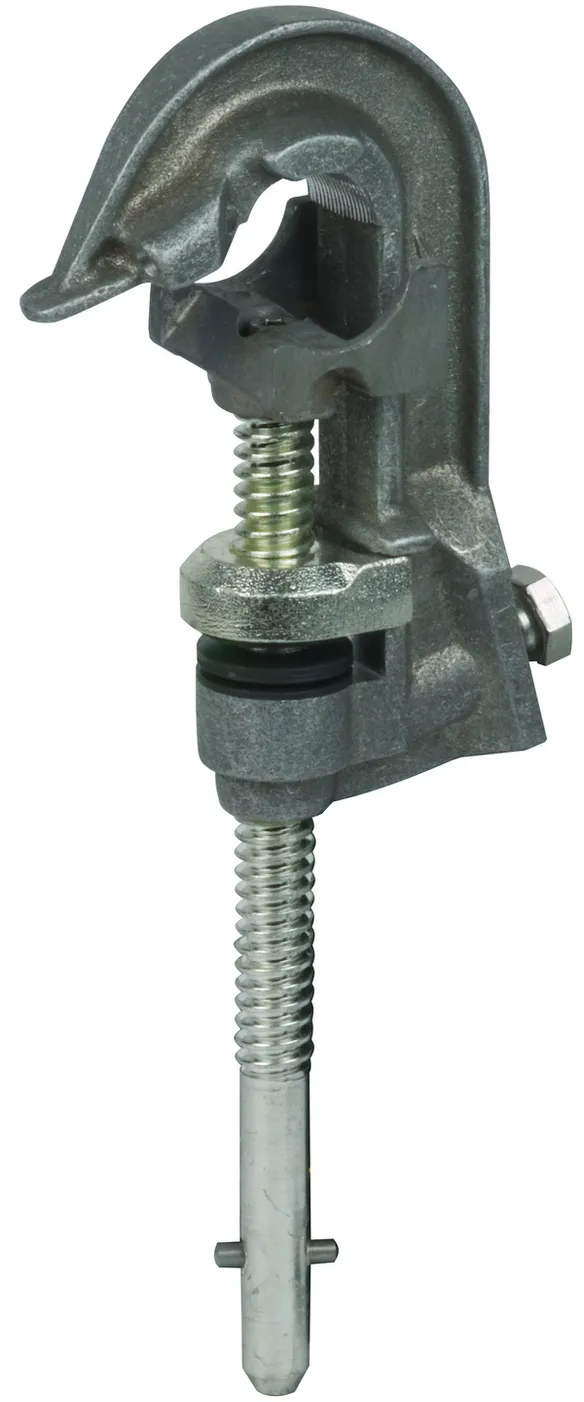

Standard Phase Screw Clamp

Short-circuit-proof, even if the conductor cables are corroded due to weathering.

2 ??store.products_de??

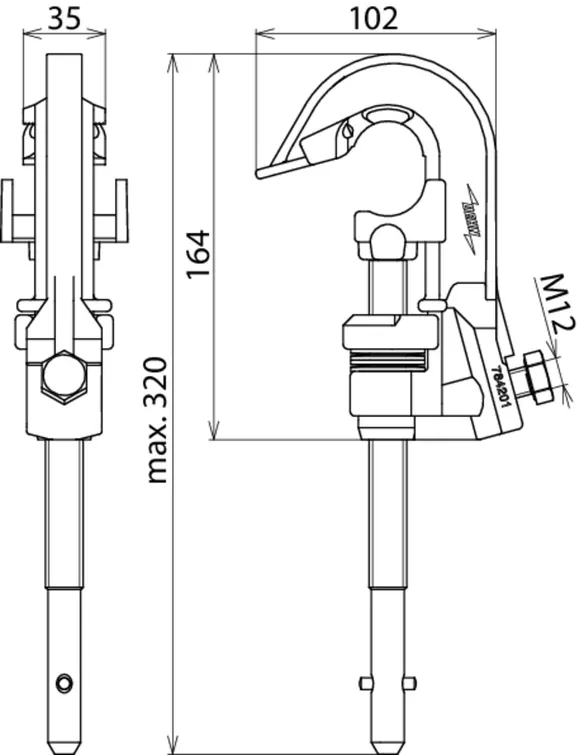

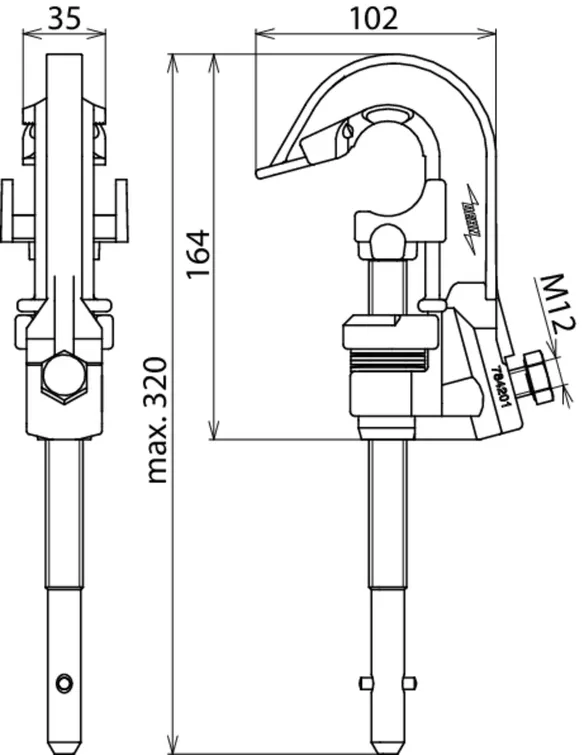

??store.product.number.short_de?? 784201 PSK 4 30 SQL

??store.product.gtin_de?? 4013364006591, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 880.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 4 ... 30 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

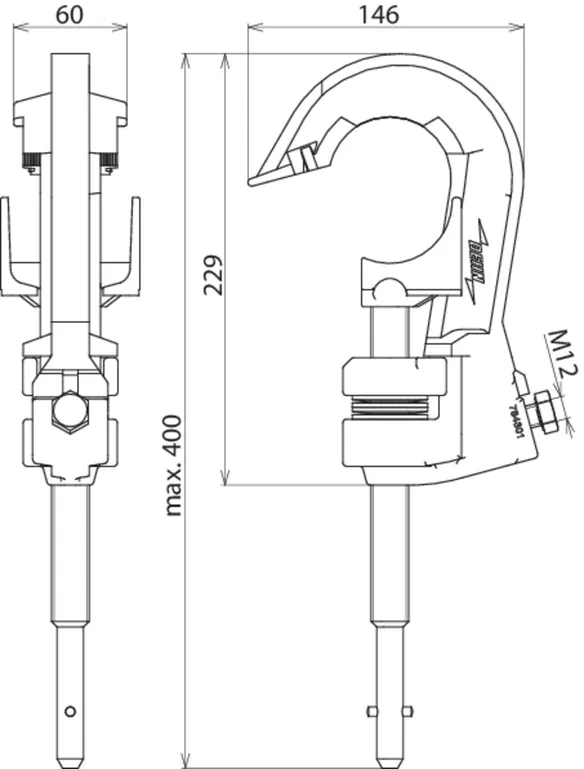

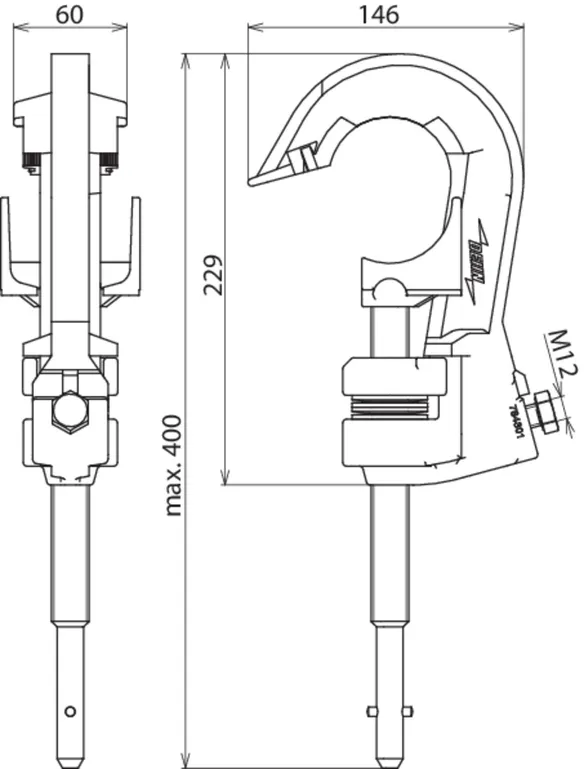

??store.product.number.short_de?? 784301 PSK 10 65 SQL

??store.product.gtin_de?? 4013364006553, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.70 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 10 ... 65 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

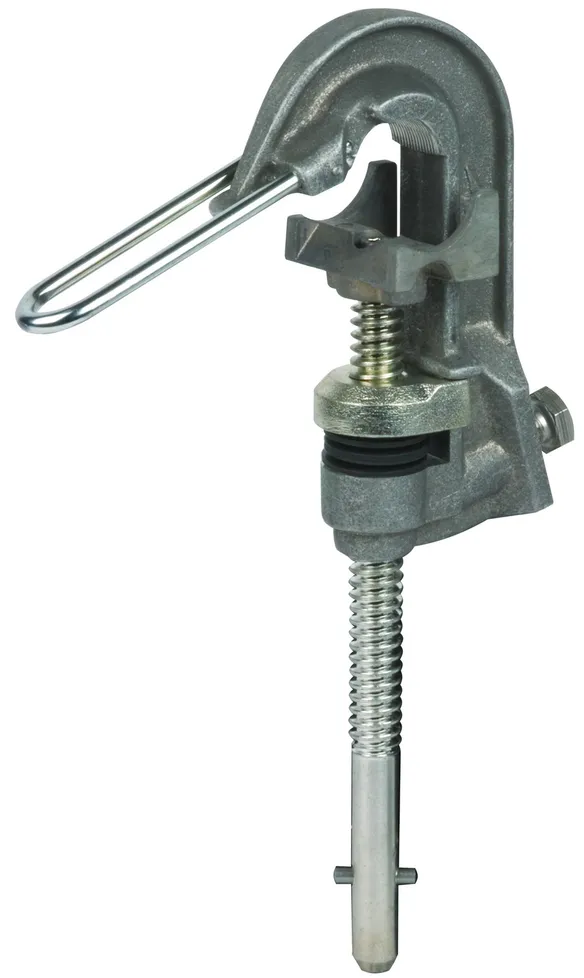

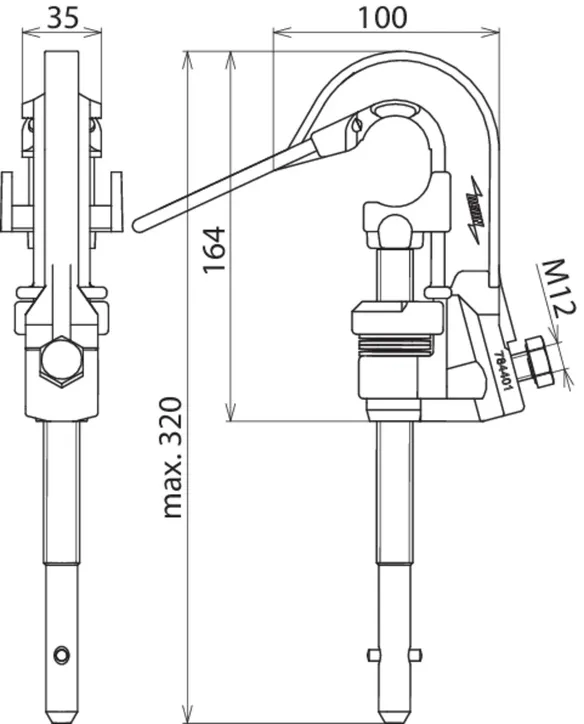

Phase Screw Clamp with Coupling Aid

Short-circuit-proof, even if the conductor cables are corroded due to weathering.

2 ??store.products_de??

??store.product.number.short_de?? 784401 PSK 4 30 SQL EH

??store.product.gtin_de?? 4013364006614, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 4 ... 30 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

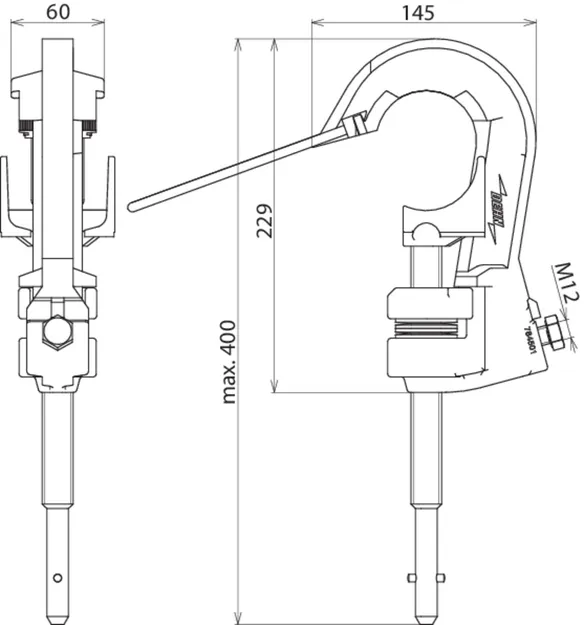

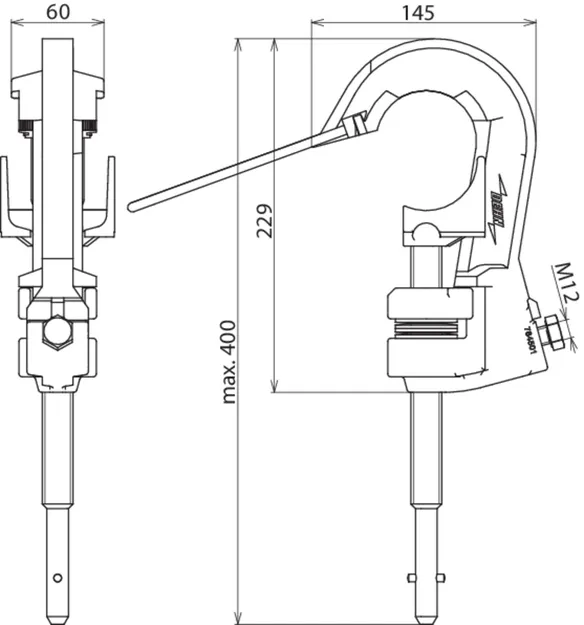

??store.product.number.short_de?? 784501 PSK 10 65 SQL EH

??store.product.gtin_de?? 4013364006560, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.12 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 10 ... 65 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

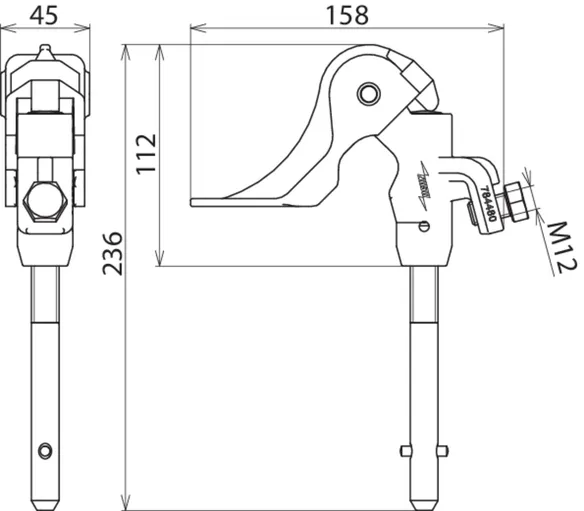

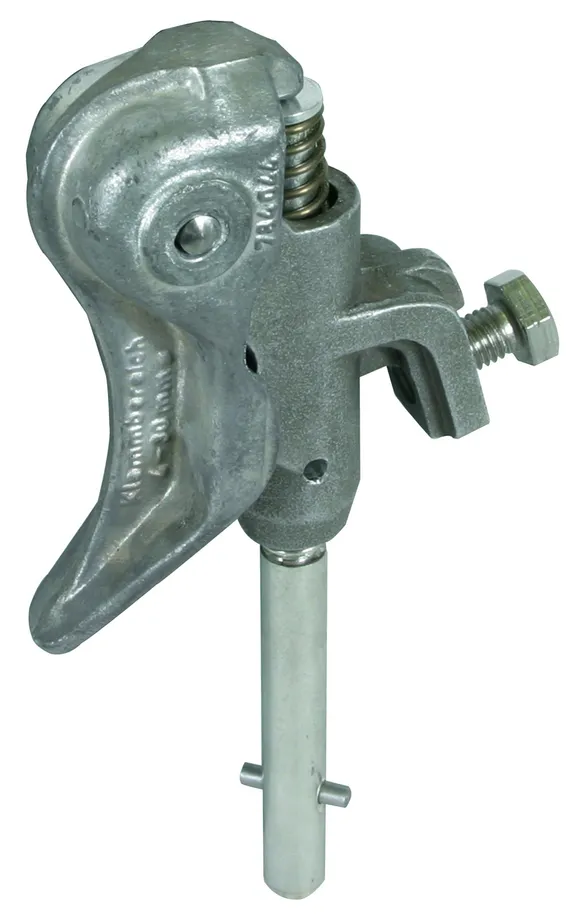

Spring-loaded Phase Screw Clamp

Easy coupling due to spring-loaded clamp.

1 ??store.product_de??

??store.product.number.short_de?? 784480 PSK FV 4 30 SQL

??store.product.gtin_de?? 4013364054479, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 600.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 4 ... 30 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

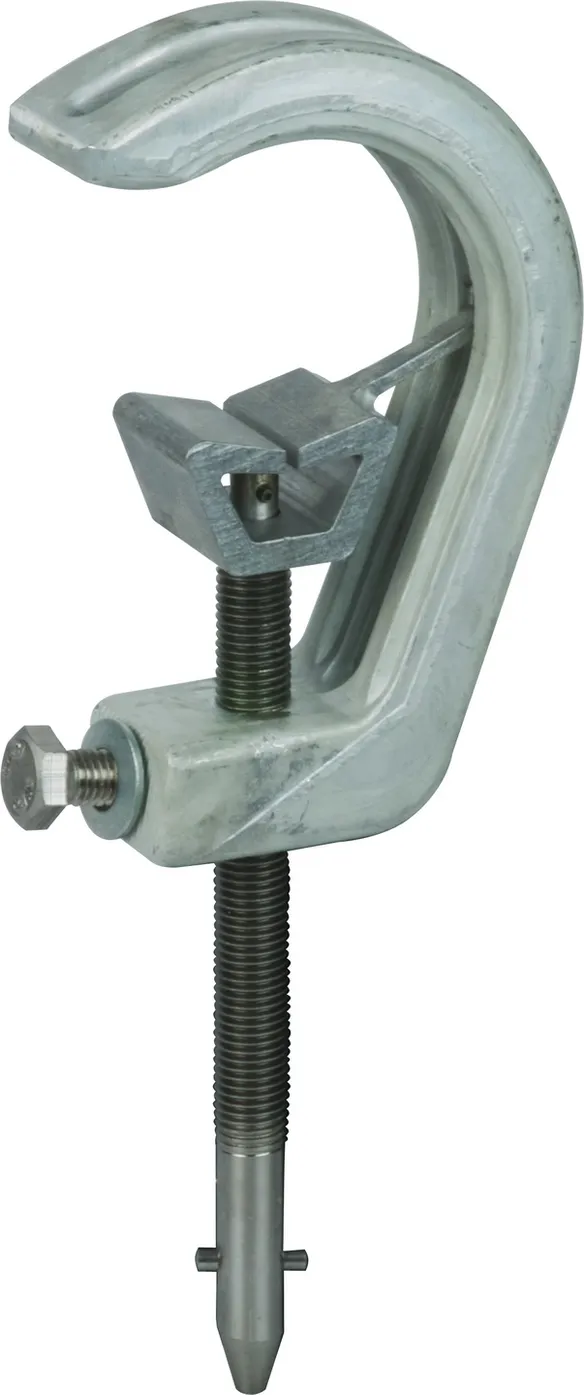

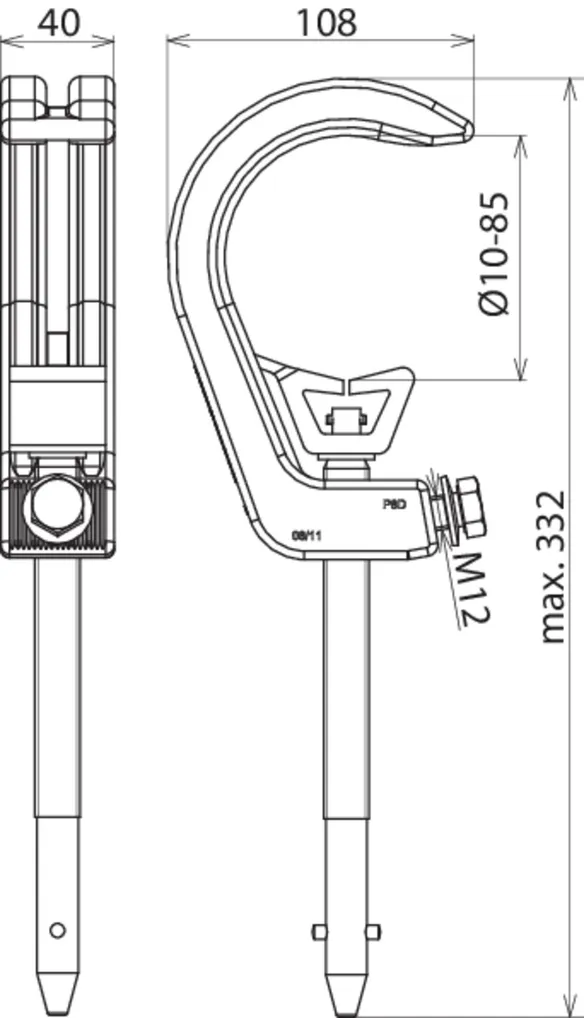

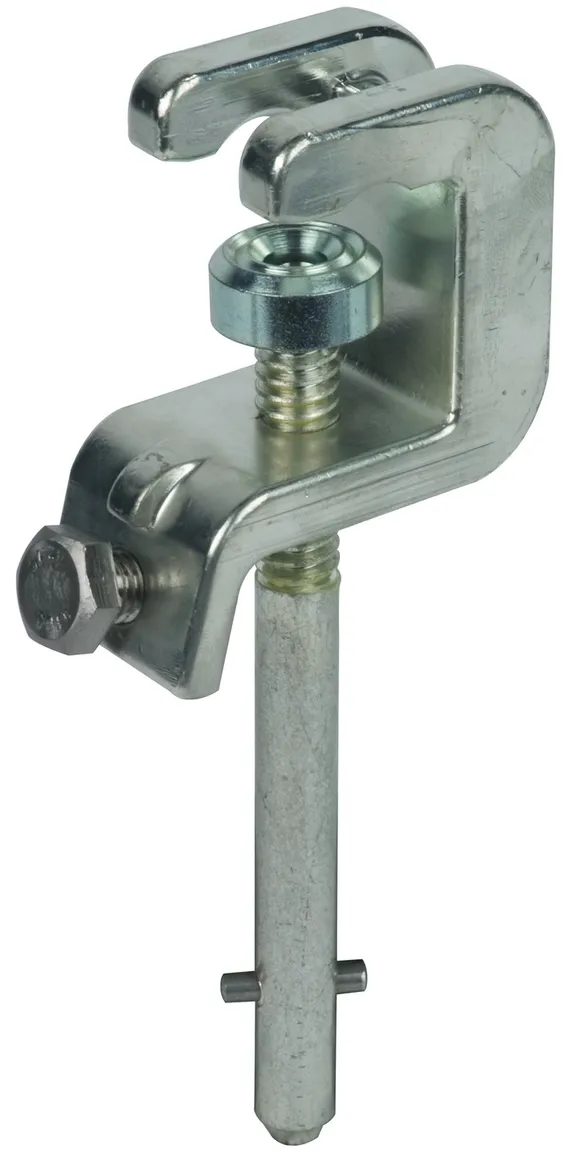

Phase Screw Clamp with Wide Clamping Range

Ideally suited for use with Al and Al/St conductor cables, pipes and fixed phase points.

1 ??store.product_de??

??store.product.number.short_de?? 784085 PSK 10 85 SQL

??store.product.gtin_de?? 4013364018686, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 872.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 10 ... 85 mm
Anti-rotation protection PK2
For cable cross-section Cu 16 ... 150 mm2
Max. short-circuit current Ik 0.5 s 29.6 kA
Max. short-circuit current Ik 1 s 29.6 kA

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

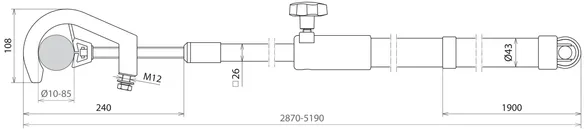

Phase Screw Clamp with Wide Clamping Range and Telescopic Earthing Stick

Ideally suited for use with Al and Al/St conductor cables, pipes and fixed phase points.

1 ??store.product_de??

??store.product.number.short_de?? 769511 ESTC PSK 5000 SN7249

??store.product.gtin_de?? 4013364135055, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 5.71 kg, ??store.product.packaging_de??: 1.00 pc(s)
