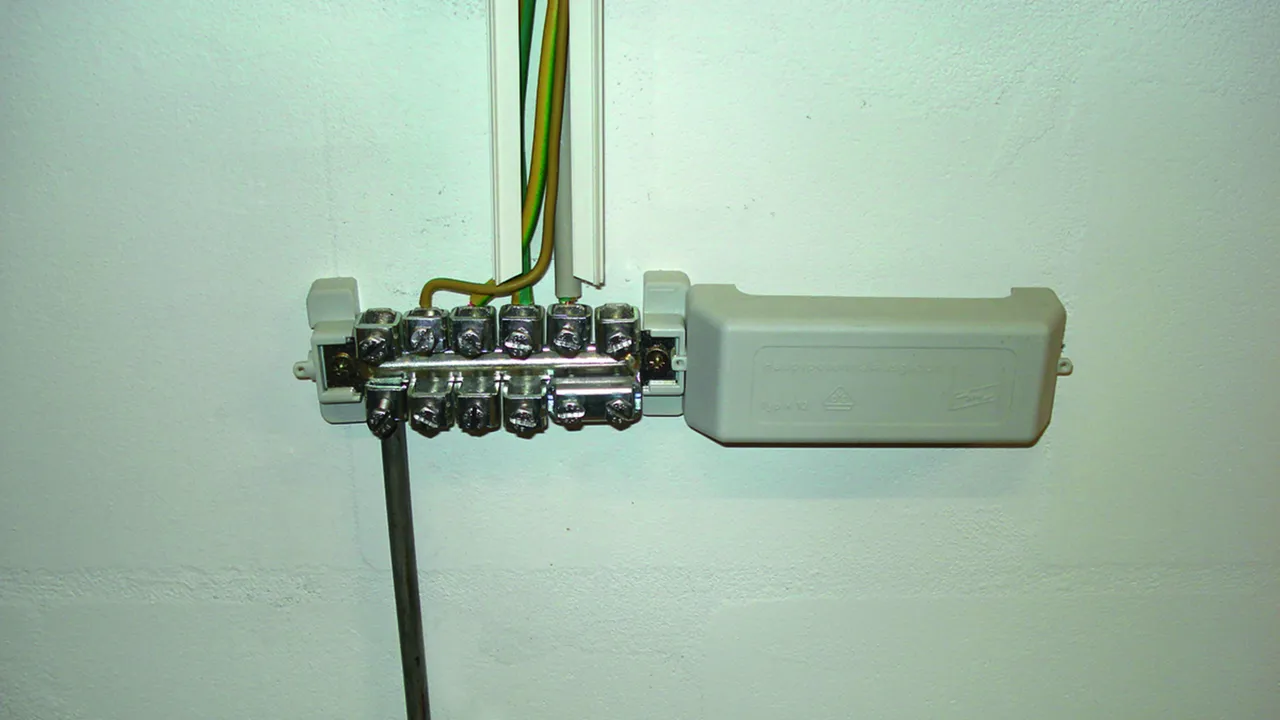

Equipotential Bonding Busbars K12 with Snap-on Terminals

Equipotential bonding busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.

– Tested according to DIN VDE 0618-1
– VDE sign
– CE sign
– Fixing frames and plastic cover, grey or black (halogen-free)
– Sealable / labelable cover
– Snap-on terminals, St/gal Zn
– With 12 contact studs

Assignment:
For Rd one contact stud each
For Fl two contact studs each

Standard design

Terminals for:
10 conductors 2.5-95 mm² (solid / stranded) or Rd Ø10 mm
1 conductor Fl up to 30 x 4 mm.

1 ??store.product_de??

??store.product.number.short_de?? 563200 PAS 11AK

??store.product.gtin_de?? 4013364056558, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 410.00 g, ??store.product.packaging_de??: 1.00 pc(s)
