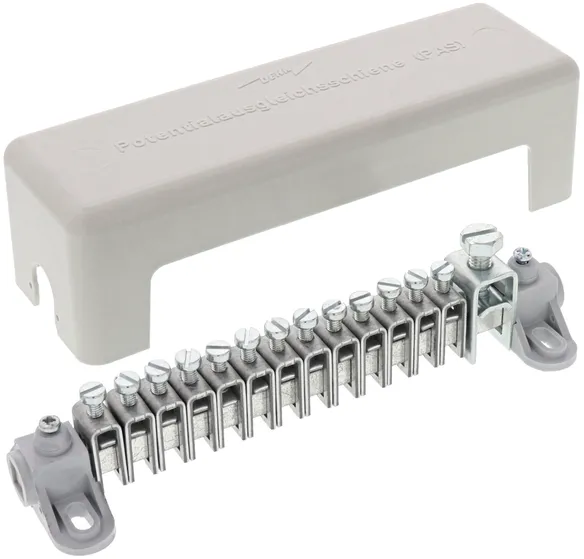

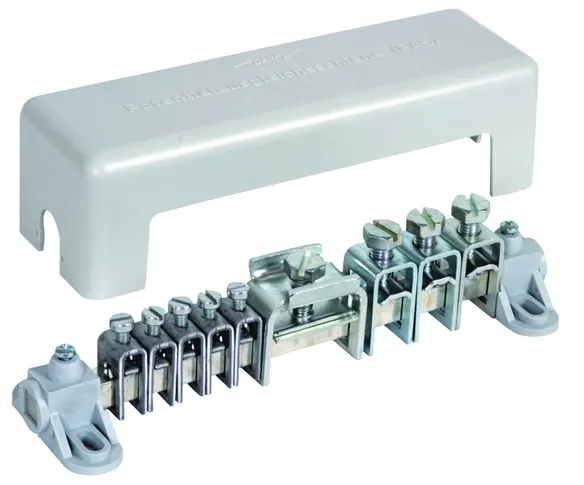

Equipotential Bonding Busbars R15 with Terminal Block System / Kit

Equipotential bonding busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3
  • Tested according to DIN VDE 0609
  • 15 modules
  • Grey plastic bar frames and cover (halogen-free)
  • Sealable / labelable cover
  • Terminal block, St/gal Zn

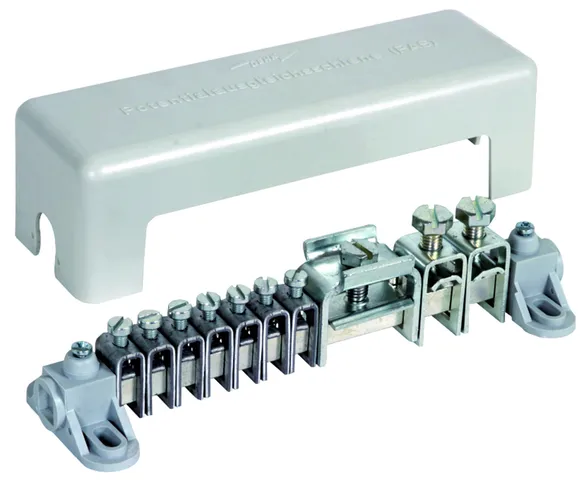

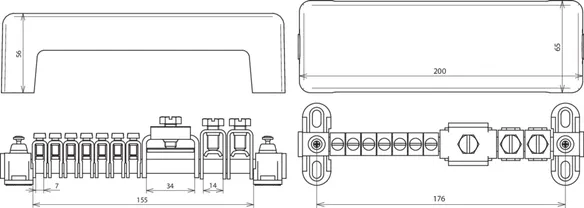

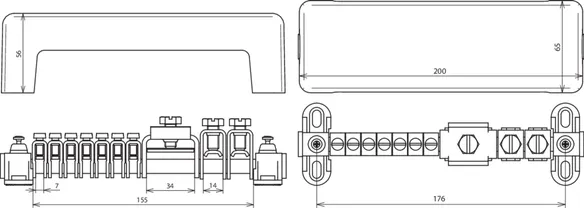

Type A

Terminals for:
7 conductors 2.5-25 mm² (solid / stranded).
2 conductors 16-95 mm² (solid / stranded) or Rd Ø8-10 mm.
1 conductor Fl up to 30 x 4 mm.

1 ??store.product_de??

??store.product.number.short_de?? 563010 PAS AH RK 7X25 2X8.10 1XFL30

??store.product.gtin_de?? 4013364027800, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 469.10 g, ??store.product.packaging_de??: 1.00 pc(s)
