Earthing Tongs

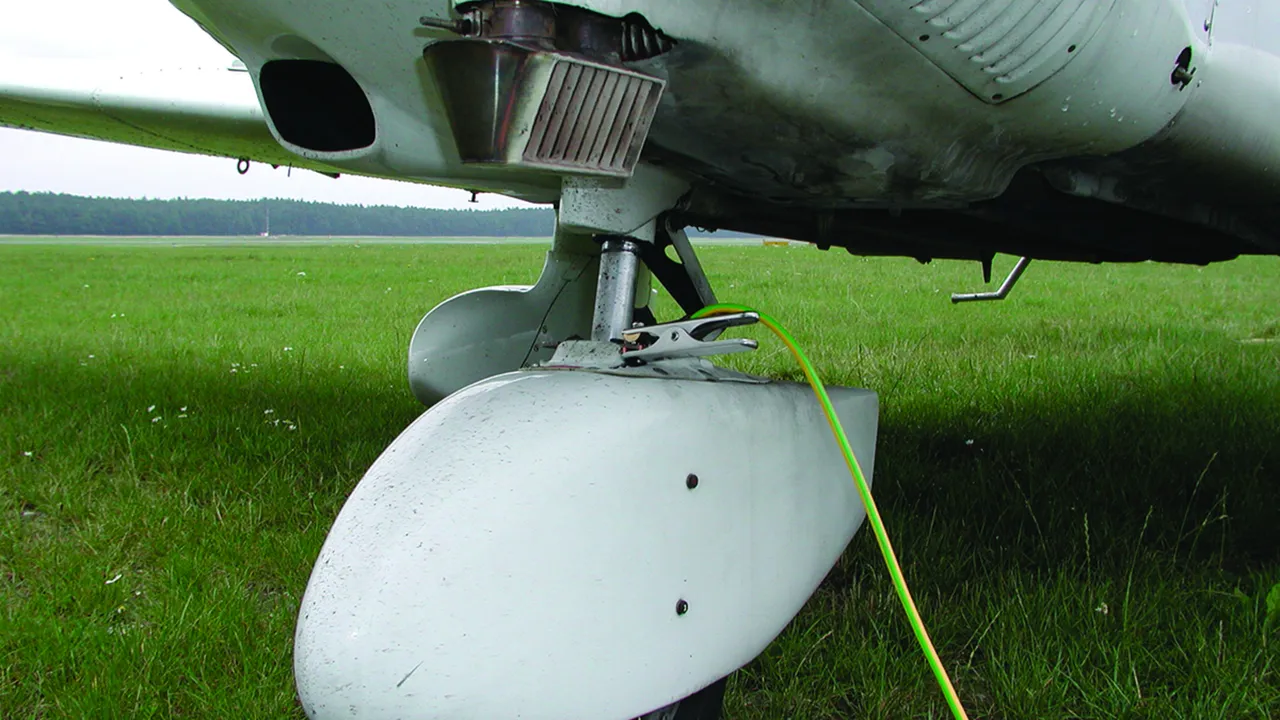

Earthing tongs for controlled earthing and discharging of static charge of tank vehicles, aircrafts, containers, tanks, etc.
Also for use in hazardous areas.

Small design

Brass jaw with steel tips (Material No. 1.4104) and copper contact clip.
Connection: Flat head screw with slot or with enclosed crimped cable lug 25 mm²– M6 (Cu/gal Sn).

Part No. 546 002 may also be combined with earthing conductor. See Safety Equipment catalogue Part No. 758 216.

2 ??store.products_de??

??store.product.number.short_de?? 546025 EZ 16 FL13 ASM6 STGALZN

??store.product.gtin_de?? 4013364004023, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 177.60 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

Open PDF

??store.product.additional_de??

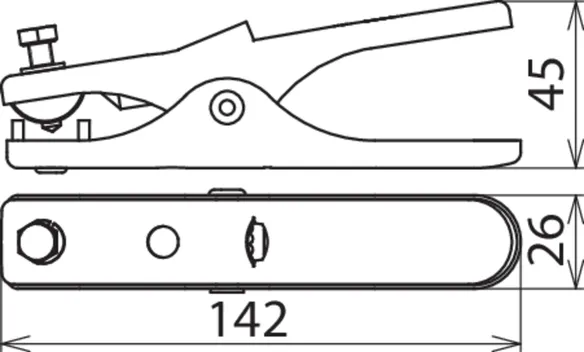

Earthing tongs, small, St/gal Zn, 140 mm long
Earthing tongs for connection to tankers, aircraft
For discharging static charge
Suitable for use in potentially explosive atmospheres
Material of tongs: St/gal Zn
Clamping range Rd / Fl: up to Ø16 / up to 13 mm
Length: 140 mm
Terminal screw: M6 x 12 mm

Brand: DEHN
Type: EZ 16 FL13 ASM6 STGALZN
Part No.: 546025
or equivalent.

??store.product.certs_de??

??store.product.data_de??

Material of tongs	St/gal Zn
Clamping range Rd / Fl	up to Ø16 / up to 13 mm
Length	140 mm
Terminal screw	M6 x 12 mm

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

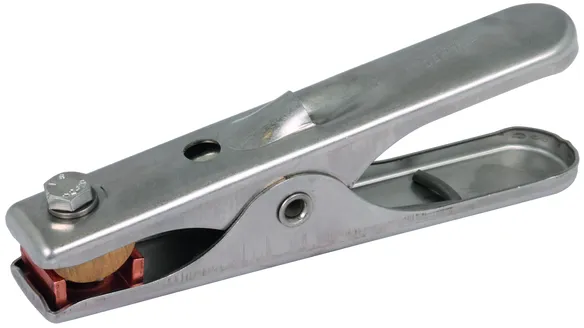

??store.product.number.short_de?? 546002 EZ 16 FL13 ASM6 V2A

??store.product.gtin_de?? 4013364004016, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 177.00 g, ??store.product.packaging_de??: 1.00 pc(s)
