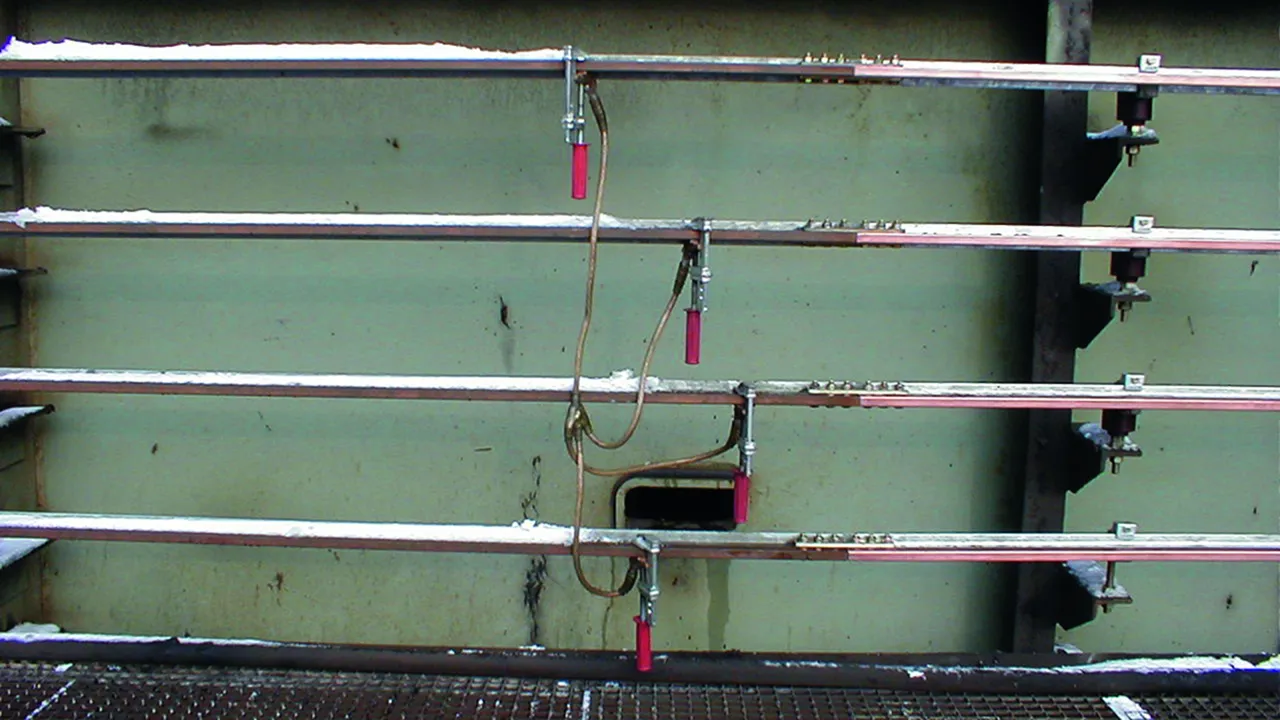

Earthing and Short-Circuiting Devices for Crane Conductor Bars

  • For insulated or bare conductor bars of cranes and lifting equipment
  • Allows to lock the clamping range of the clamps in several positions
  • Waterproof, plastic-sheathed cable entries and node unit, with additional ant-kink protection
  • Other cable lengths can be selected online via the earthing and short-circuiting configurator

Details

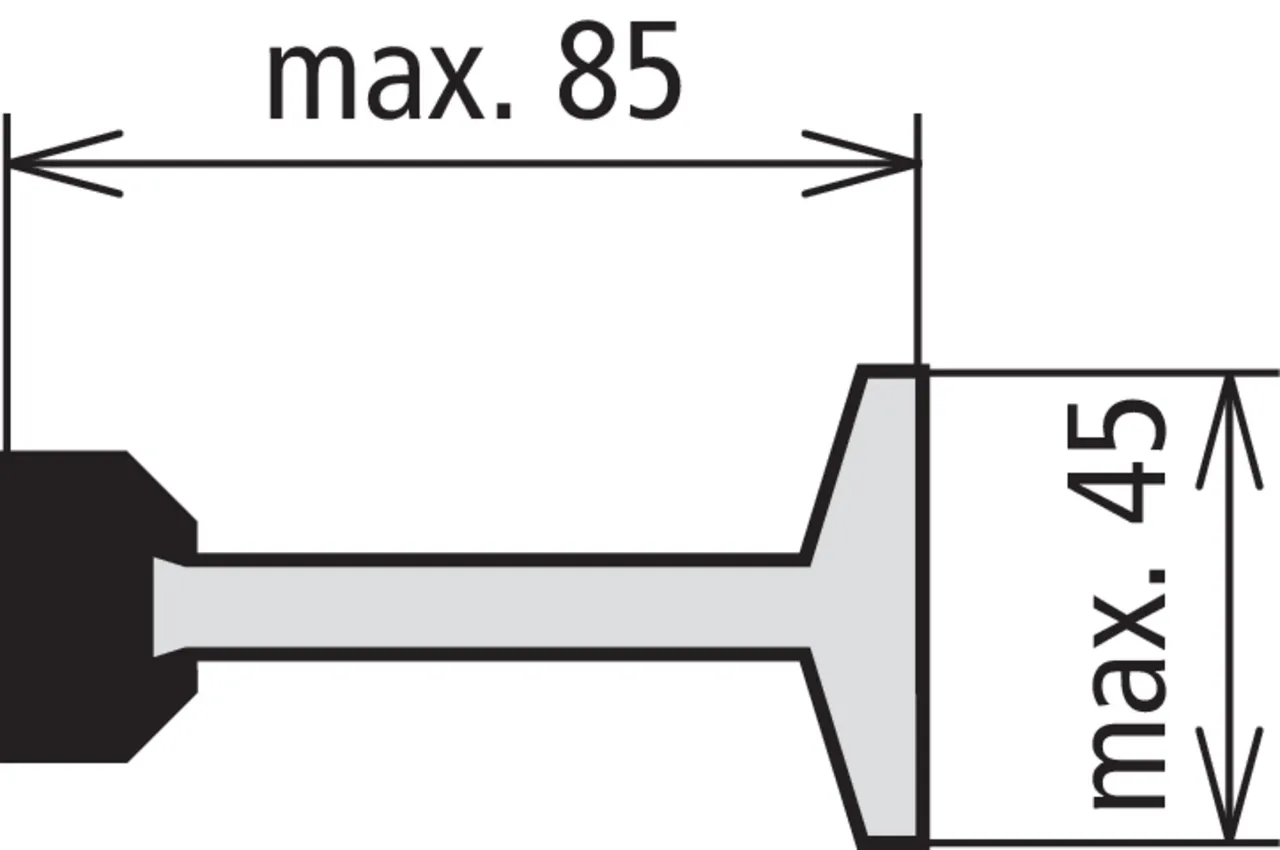

Bare conductor bar
lorem ipsum

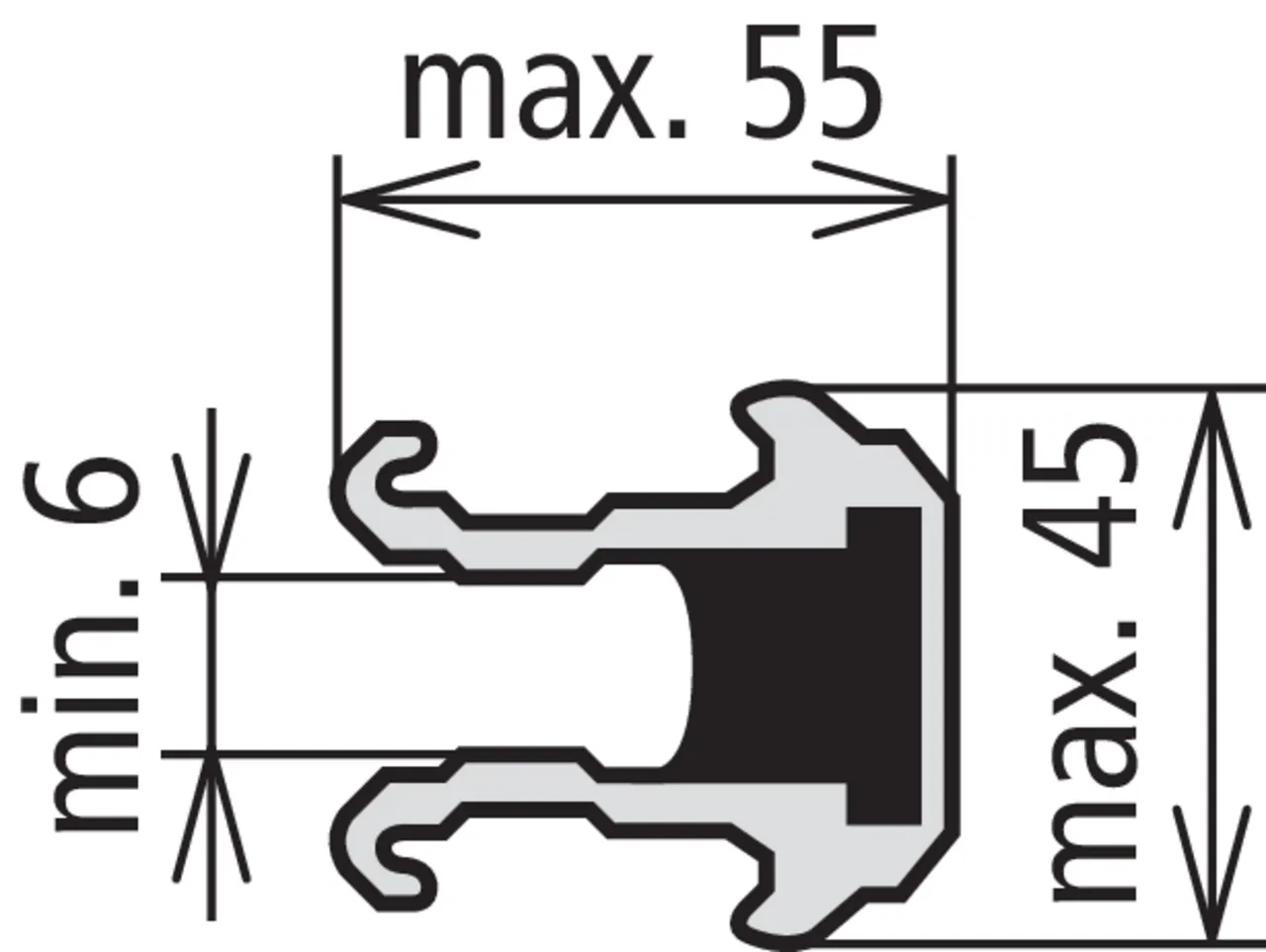

Insulated conductor bar
lorem ipsum

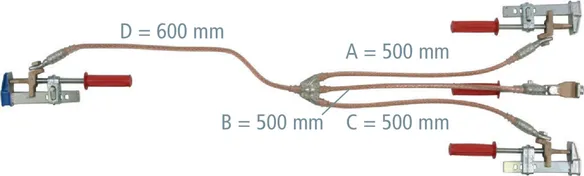

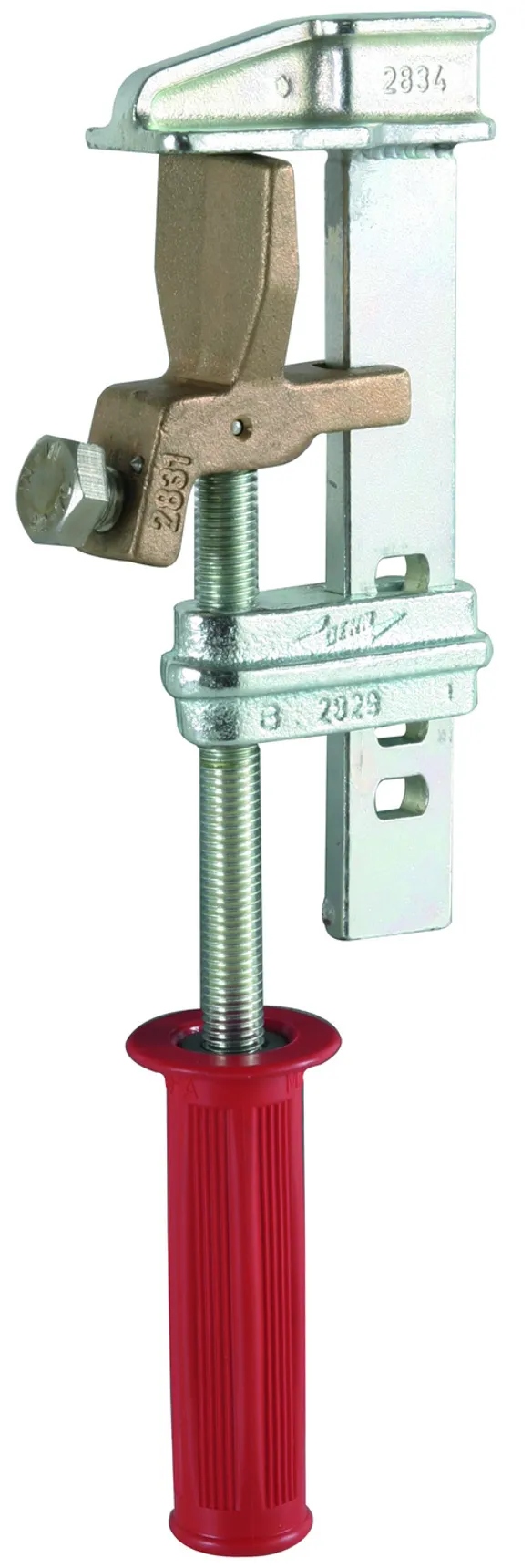

With Screw Clamps for insulated Conductor Bars

3 ??store.products_de??

??store.product.number.short_de?? VH8QTCZ EKV3 25IS ZK VH8QTCZ

??store.product.gtin_de?? 4013364163775, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.59 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VKB2Q6J EKV3 35IS ZK VKB2Q6J

??store.product.gtin_de?? 4013364163829, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.75 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VP6YV4T EKV3 50IS ZK VP6YV4T

??store.product.gtin_de?? 4013364162686, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.30 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

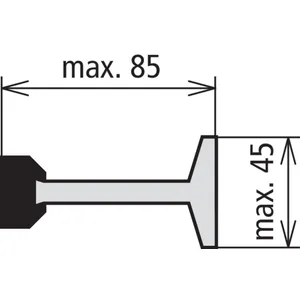

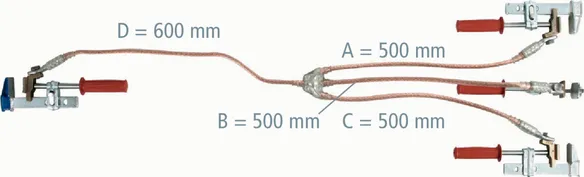

With Screw Clamps for bare Conductor Bars

2 ??store.products_de??

??store.product.number.short_de?? VQKTK4T EKV3 25BS ZK VQKTK4T

??store.product.gtin_de?? 4013364163768, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.40 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range 85 mm
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VN63A91 EKV3 35BS ZK VN63A91

??store.product.gtin_de?? 4013364163812, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.56 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range 85 mm
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
