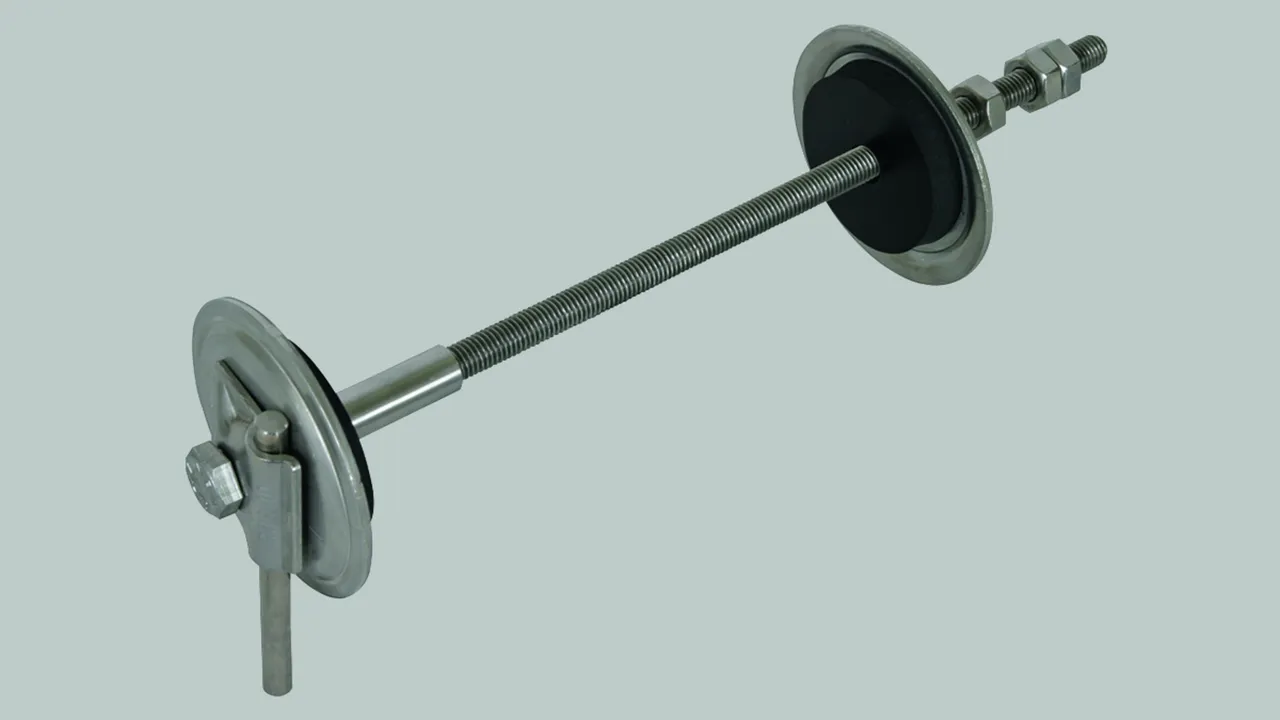

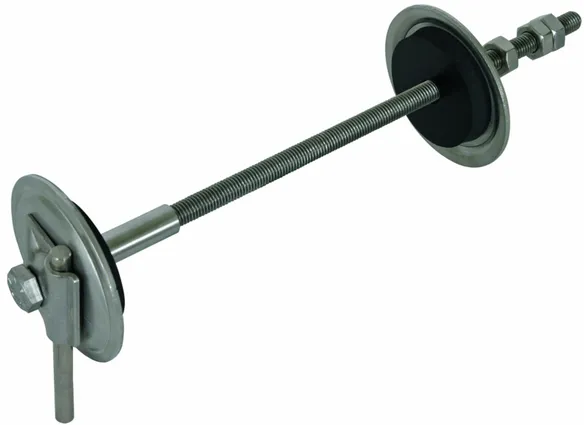

Wall Bushings

With MV clamp made of StSt (V4A) for round conductors 8-10 mm.
Water-pressure-tight wall bushing for leading earthing conductors / equipotential bonding conductors through brickwork or walls; with M10 threaded rod made of StSt.

For subsequent installation through borehole (Ø14 mm) or through spacer in the formwork.
Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water.

The bushing is connected via MV clamp. All components on the ground-facing side are made of StSt (V4A).
Sealing is achieved by the pressing the neoprene plates against the brickwork/wall (fixed and loose flange).
The wall bushing is installed from the inside by an installer. The threaded rod can be held by the lock nuts (inner wall) when tightening the screws.

3 ??store.products_de??

??store.product.number.short_de?? 478410 EWD MVK8.10 M10 L100 300 V4A

??store.product.gtin_de?? 4013364136335, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 580.00 g, ??store.product.packaging_de??: 5.00 pc(s)
