PHE Voltage Detector Kit

Easy and safe testing

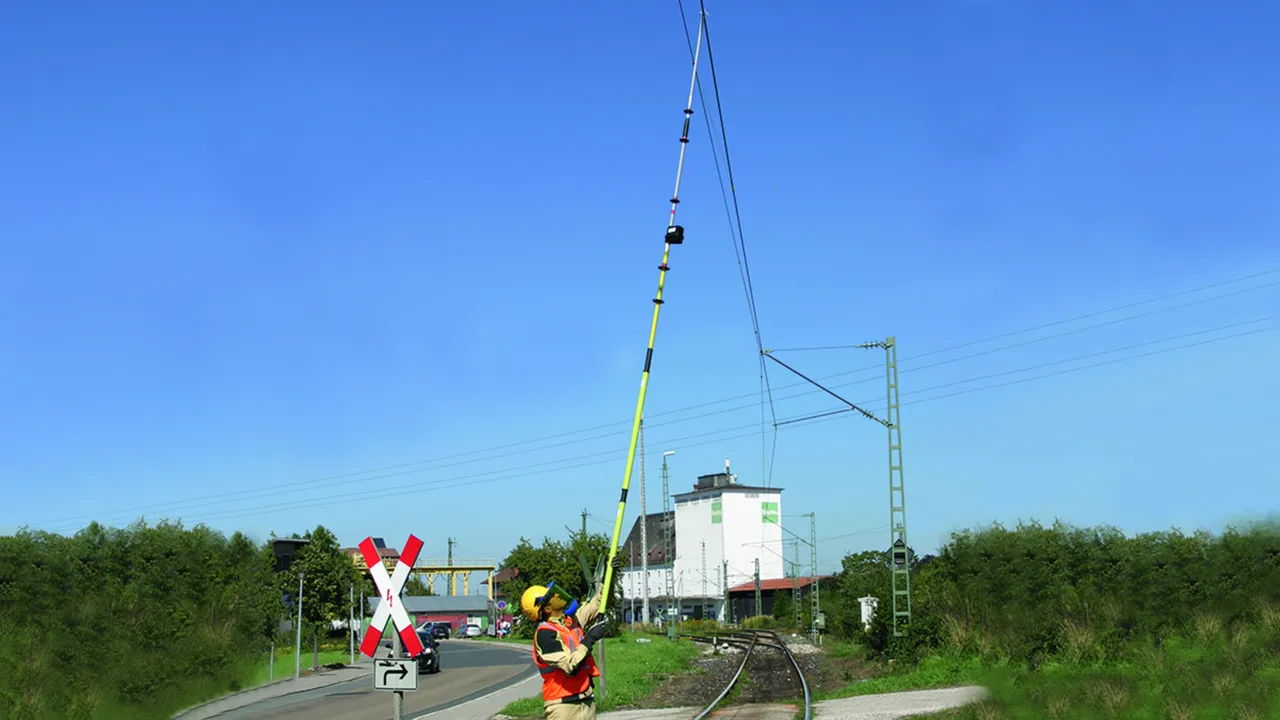

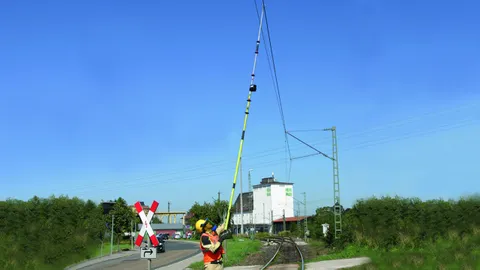

  • For overhead contact lines of electric railways
  • Cost-effective / space-saving transport
  • Easy to use due to simple plug-in system

Details

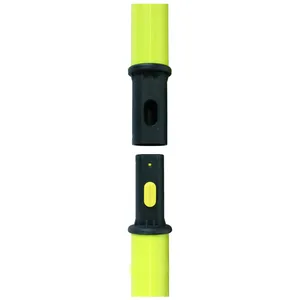

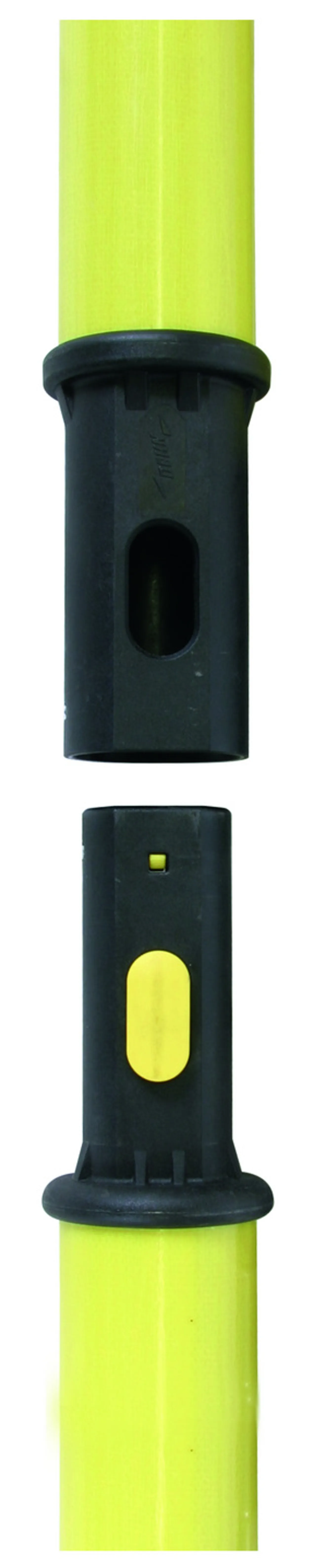

Insulating stick with anti-rotation plug-in coupling
lorem ipsum

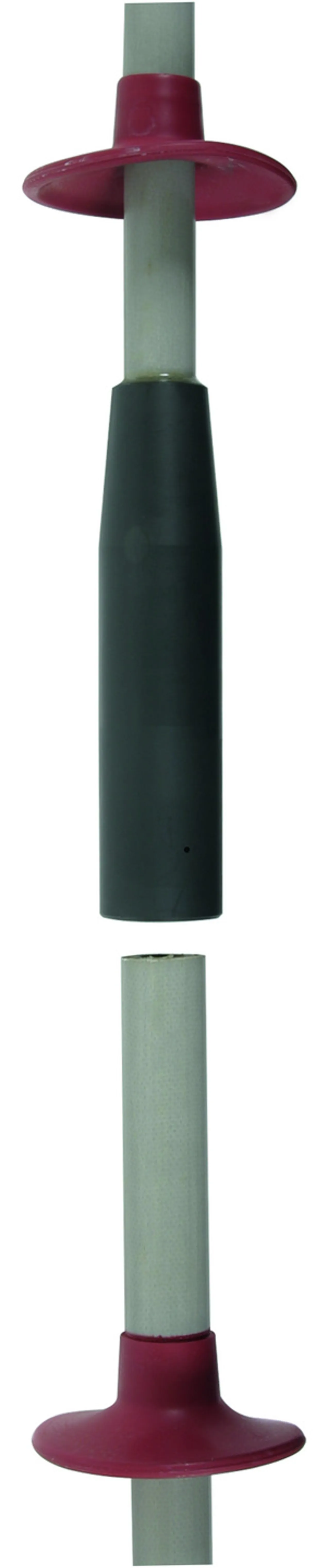

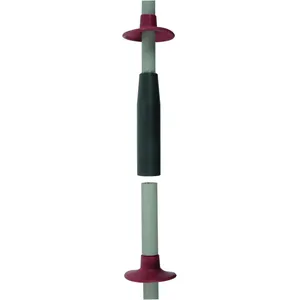

Two-part test prod with robust threaded coupling (six-part kit for transport in motor vehicles).
lorem ipsum

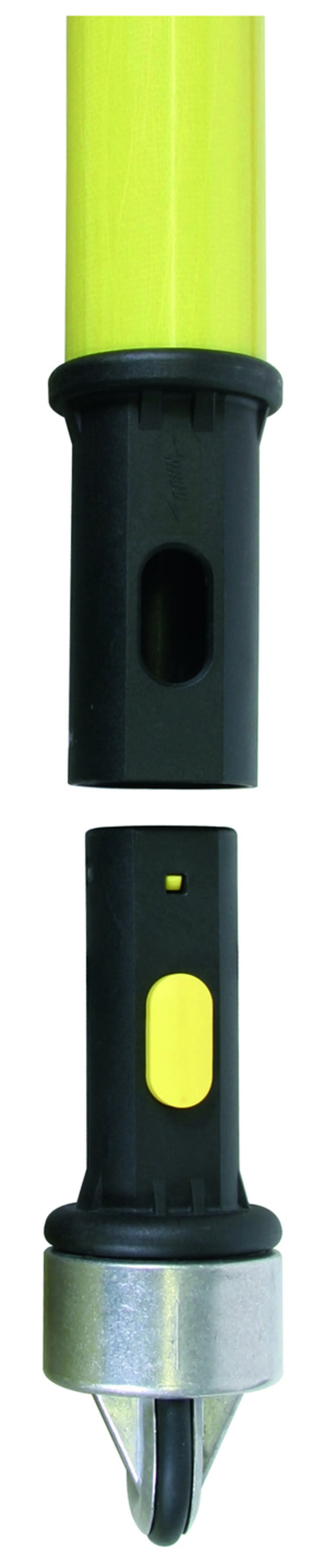

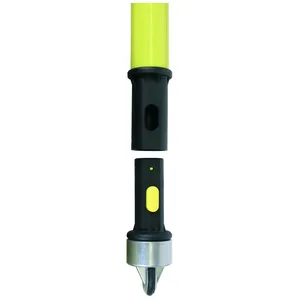

End fitting with plug-in coupling and non-slip eye
lorem ipsum
lorem ipsum

Nominal Voltage 15 kV / 16.7 Hz

Detachable (four elements).

1 ??store.product_de??

??store.product.number.short_de?? 766616 PHE 15 16.7 4T TA

??store.product.gtin_de?? 4013364126091, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 5.09 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 15 kV
Frequency 16.7 Hz
Total length (lG ) 4890 mm
Insertion depth (IO ) 1675 mm
DB drawing No. 3 Ebgw 02.51
DB material No. 237 129

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage 15 kV / 16.7 Hz (for Transport in Motor Vehicles)

Detachable (six elements).

1 ??store.product_de??

??store.product.number.short_de?? 766617 PHE 15 16.7 6T TA

??store.product.gtin_de?? 4013364101760, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 4.95 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage (UN ) 15 kV
Frequency 16.7 Hz
Total length (lG ) 4900 mm
Insertion depth (IO ) 1675 mm
DB drawing No. 3 Ebgw 02.53
DB material No. 652 975

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
