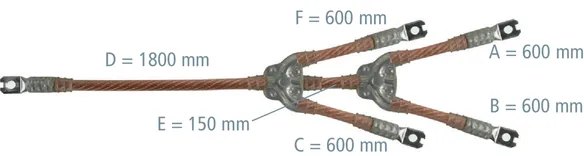

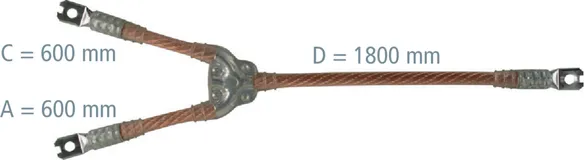

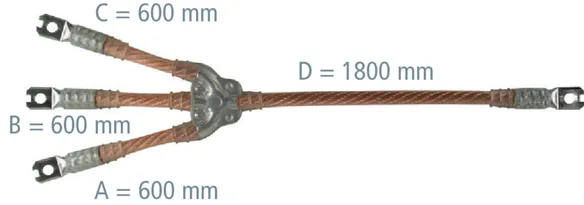

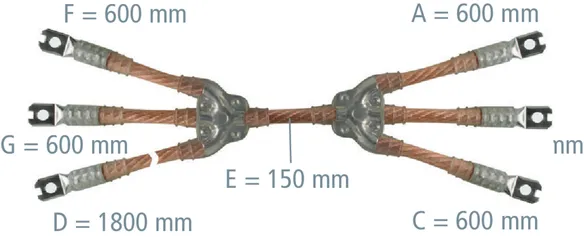

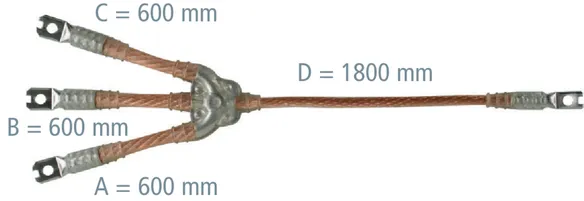

Earthing and Short-Circuiting Cables, unequipped

  • To be equipped with connecting components
  • Transparent sheath
  • Waterproof and plastic-sheathed cable entries and node unit, additional anti-kink protection

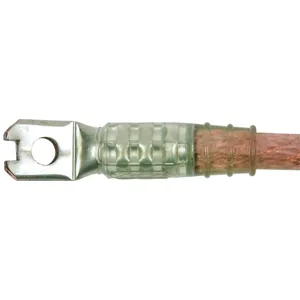

  • Standard anti-rotation crimped cable lugs (type PK1)
  • Other cable lengths and crimped cable lugs can be selected online via the earthing and short-circuiting configurator
  • Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Details

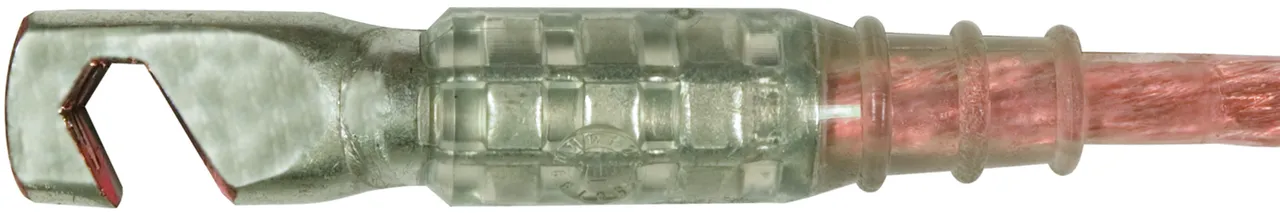

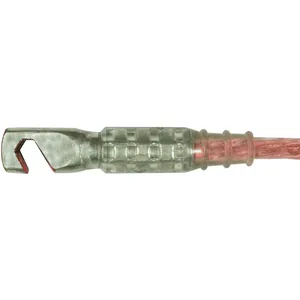

Crimped cable lugs, type PK3:
Hook-type cable lugs up to cable cross-sections of 35 mm2 are available on request.
lorem ipsum

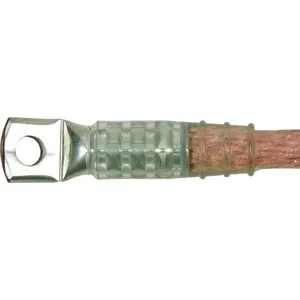

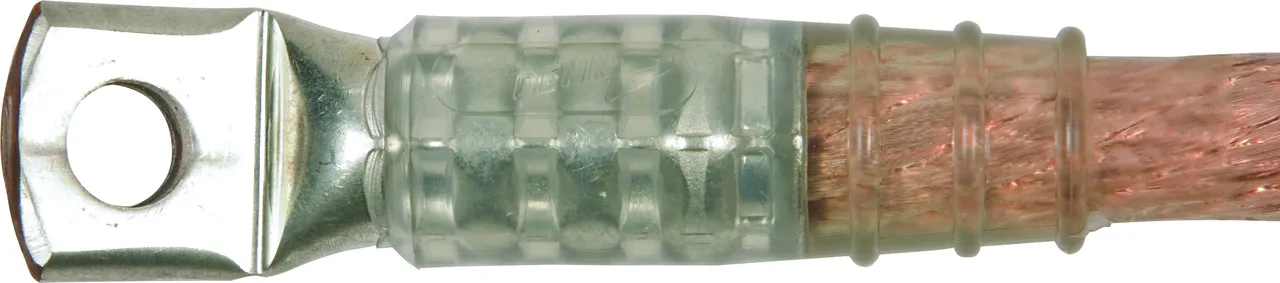

Crimped cable lugs, type PK2:
Cable lugs without cut-out for connecting parts from other manufacturers are available on request.
lorem ipsum

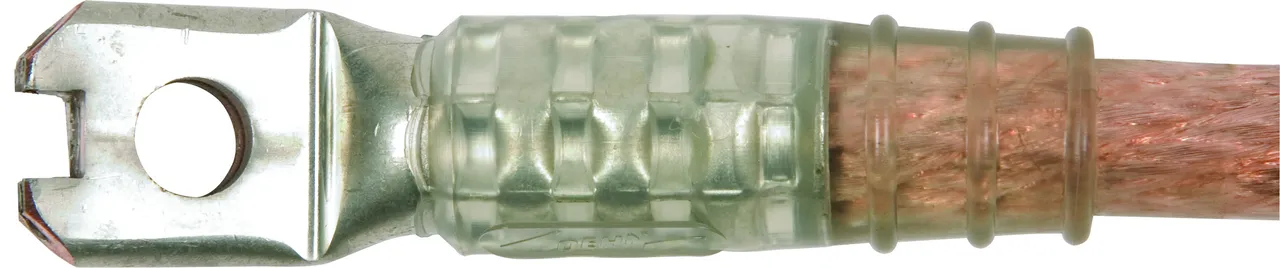

Crimped cable lugs, type PK1:
Standard anti-rotation cable lug with cut-out.
lorem ipsum

Earthing Cable Cu in accordance with IEC 61138

The cable is delivered without crimped cable lugs and can be ordered by the metre.

8 ??store.products_de??

??store.product.number.short_de?? 716001 ES YM2 16

??store.product.gtin_de?? 4013364010406, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 184.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 16 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 725001 ES YM2 25

??store.product.gtin_de?? 4013364011793, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 207.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 25 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 735001 ES YM2 35

??store.product.gtin_de?? 4013364011847, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 1.00 m/Stk, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 35 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 750001 ES YM2 50

??store.product.gtin_de?? 4013364011809, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 535.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 770001 ES YM2 70

??store.product.gtin_de?? 4013364011762, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 753.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 70 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 795001 ES YM2 95

??store.product.gtin_de?? 4013364011816, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 1.00 kg/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 95 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 712001 ES YM2 120

??store.product.gtin_de?? 4013364011823, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 1230.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 120 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 715001 ES YM2 150

??store.product.gtin_de?? 4013364011830, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 1520.00 g/m, ??store.product.packaging_de??: 1.00 m

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 150 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Single-pole Earthing and Short-circuiting Cables, aluminium version

2 ??store.products_de??

??store.product.number.short_de?? VGHVBP5 EKV1+0 35 VGHVBP5

??store.product.gtin_de?? 4013364360389, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.17 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 6.5 kA
Max. short-circuit current Ik 1 s 4.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VKVBG8W EKV1+0 50 VKVBG8W

??store.product.gtin_de?? 4013364360136, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.55 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 9.3 kA
Max. short-circuit current Ik 1 s 6.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Single-pole Earthing and Short-Circuiting Cables, copper version

8 ??store.products_de??

??store.product.number.short_de?? V4YPRGE EKV1+0 16 V4YPRGE

??store.product.gtin_de?? 4013364165243, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.26 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VSY71K4 EKV1+0 25 VSY71K4

??store.product.gtin_de?? 4013364163287, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.15 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V9JF26K EKV1+0 35 V9JF26K

??store.product.gtin_de?? 4013364163294, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.26 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VRJG23Y EKV1+0 50 VRJG23Y

??store.product.gtin_de?? 4013364163300, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.10 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VPZBBSL EKV1+0 70 VPZBBSL

??store.product.gtin_de?? 4013364163317, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.50 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VZC3FST EKV1+0 95 VZC3FST

??store.product.gtin_de?? 4013364163324, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.64 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V797FE6 EKV1+0 120 V797FE6

??store.product.gtin_de?? 4013364163188, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.03 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VB53TC9 EKV1+0 150 VB53TC9

??store.product.gtin_de?? 4013364163270, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.72 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Two-pole Earthing and Short-Circuiting Cables, copper version

8 ??store.products_de??

??store.product.number.short_de?? V7265NS EKV2+0 16 G V7265NS

??store.product.gtin_de?? 4013364163355, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.16 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VZL6TGH EKV2+0 25 G VZL6TGH

??store.product.gtin_de?? 4013364163362, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.47 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VPHPZV2 EKV2+0 35 G VPHPZV2

??store.product.gtin_de?? 4013364163379, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.67 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VJ13VWW EKV2+0 50 G VJ13VWW

??store.product.gtin_de?? 4013364162136, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.43 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VTJKEZU EKV2+0 70 G VTJKEZU

??store.product.gtin_de?? 4013364165250, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.46 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VAM7M6H EKV2+0 95 G VAM7M6H

??store.product.gtin_de?? 4013364165267, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.63 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VFV1Z7K EKV2+0 120 G VFV1Z7K

??store.product.gtin_de?? 4013364163331, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.54 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VLL6JWS EKV2+0 150 G VLL6JWS

??store.product.gtin_de?? 4013364163348, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.46 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

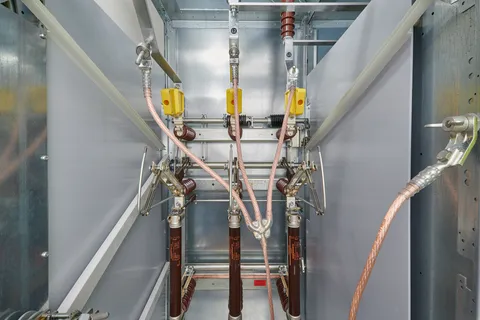

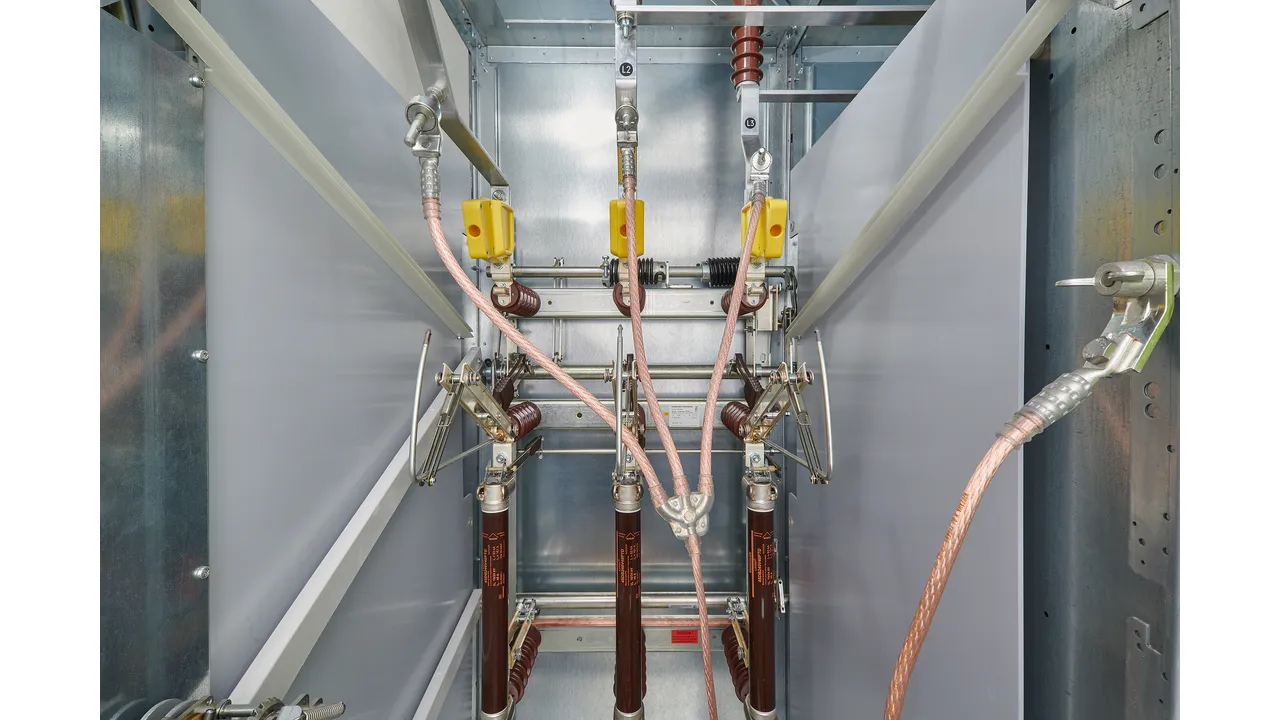

Three-pole Earthing and Short-Circuiting Cables, copper version, same cable cross-section

8 ??store.products_de??

??store.product.number.short_de?? VE5MT89 EKV3+0 16 G VE5MT89

??store.product.gtin_de?? 4013364163522, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.36 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VNC1S9W EKV3+0 25 G VNC1S9W

??store.product.gtin_de?? 4013364163539, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.73 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V18JQHQ EKV3+0 35 G V18JQHQ

??store.product.gtin_de?? 4013364163546, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.08 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VJ7VGZD EKV3+0 50 G VJ7VGZD

??store.product.gtin_de?? 4013364163553, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.83 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VH95BZZ EKV3+0 70 G VH95BZZ

??store.product.gtin_de?? 4013364165274, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.70 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VM2J7S3 EKV3+0 95 G VM2J7S3

??store.product.gtin_de?? 4013364165281, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.43 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V8D4AQ2 EKV3+0 120 G V8D4AQ2

??store.product.gtin_de?? 4013364163485, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.42 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VG3V6T2 EKV3+0 150 G VG3V6T2

??store.product.gtin_de?? 4013364165298, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.70 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Three-pole Earthing and Short-Circuiting Cables, copper version, reduced cable cross-section

5 ??store.products_de??

??store.product.number.short_de?? VN35H5D EKV3+0 50 R VN35H5D

??store.product.gtin_de?? 4013364163560, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.35 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50/25 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VTCS2XV EKV3+0 70 R VTCS2XV

??store.product.gtin_de?? 4013364163584, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 70/35 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VLB2F3G EKV3+0 95 R VLB2F3G

??store.product.gtin_de?? 4013364163607, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.21 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 95/35 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V8115WA EKV3+0 120 R V8115WA

??store.product.gtin_de?? 4013364163508, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 120/50 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V11E77B EKV3+0 150 R V11E77B

??store.product.gtin_de?? 4013364163515, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 5.68 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 150/50 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Four-pole Earthing and Short-Circuiting Cables, copper version

8 ??store.products_de??

??store.product.number.short_de?? VGUVRRG EKV4u0 16 G VGUVRRG

??store.product.gtin_de?? 4013364164000, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.84 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VGM214B EKV4u0 25 G VGM214B

??store.product.gtin_de?? 4013364164017, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.17 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V93UVAP EKV4u0 35 G V93UVAP

??store.product.gtin_de?? 4013364164024, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.57 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V3NCSHX EKV4u0 50 G V3NCSHX

??store.product.gtin_de?? 4013364164031, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 3.92 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V7GN8WU EKV4u0 70 G V7GN8WU

??store.product.gtin_de?? 4013364162389, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 4.78 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VABRSSE EKV4u0 95 G VABRSSE

??store.product.gtin_de?? 4013364164048, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 7.12 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V27E2GP EKV4u0 120 G V27E2GP

??store.product.gtin_de?? 4013364163980, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 8.38 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V291ZZT EKV4u0 150 G V291ZZT

??store.product.gtin_de?? 4013364163997, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 9.86 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Five-pole Earthing and Short-Circuiting Cables, copper version

8 ??store.products_de??

??store.product.number.short_de?? VQ7PF5A EKV5+0 16 G VQ7PF5A

??store.product.gtin_de?? 4013364164154, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.98 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VZKQZB5 EKV5+0 25 G VZKQZB5

??store.product.gtin_de?? 4013364164161, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 2.40 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V76D5TH EKV5+0 35 G V76D5TH

??store.product.gtin_de?? 4013364164178, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V6VE249 EKV5+0 50 G V6VE249

??store.product.gtin_de?? 4013364164185, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VDXTBGF EKV5+0 70 G VDXTBGF

??store.product.gtin_de?? 4013364164192, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VGCMAA5 EKV5+0 95 G VGCMAA5

??store.product.gtin_de?? 4013364162518, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VVL7AKP EKV5+0 120 G VVL7AKP

??store.product.gtin_de?? 4013364164130, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VHV1NKR EKV5+0 150 G VHV1NKR

??store.product.gtin_de?? 4013364164147, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
back to top
