Telescopic air-termination rods

For fixing on to, for example, walls or other structures

The air-termination rods are dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)

Part no. 105 342 is used for fixing on to, e.g., walls; part no. 105 354 for fixing on to pipes.

The maximum free length refers to the distance between the rod tip and the upper holder (fixing point).
For reasons of stability, the centre holder (3 fixing points) should be mounted directly below the upper holder if possible. The distance must not be more than 15 cm. The lower holder (fixing point) has to be installed within a range of ≤ 15 cm at the end of the air-termination rod.

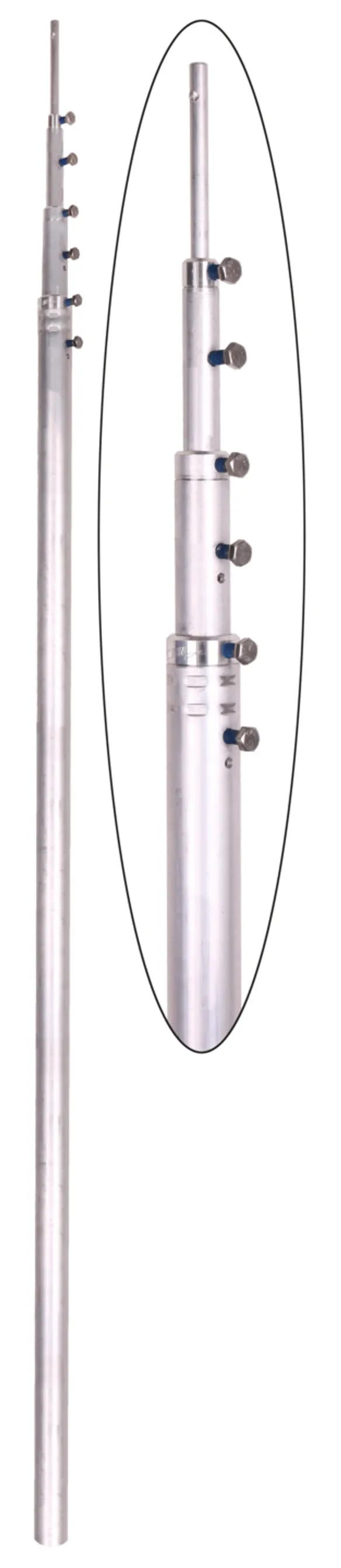

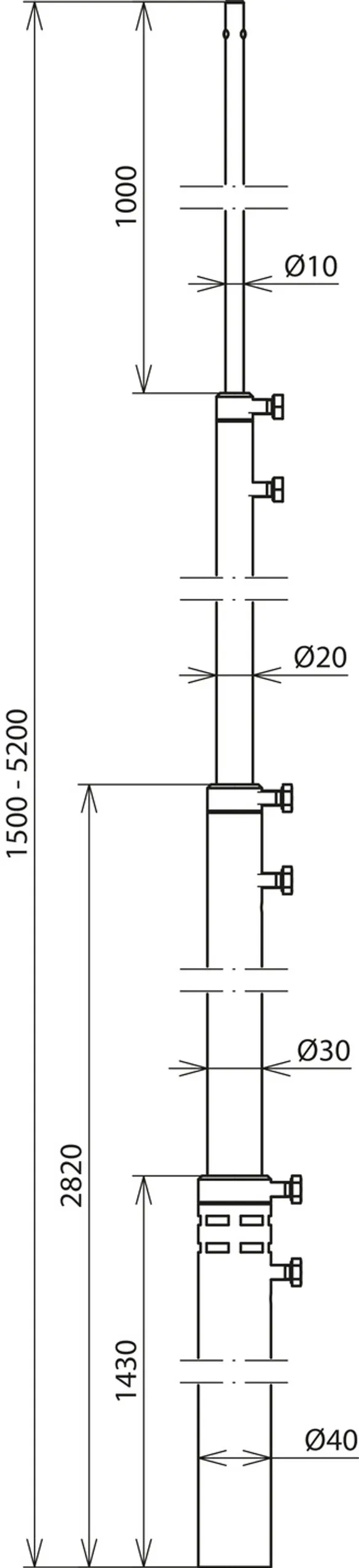

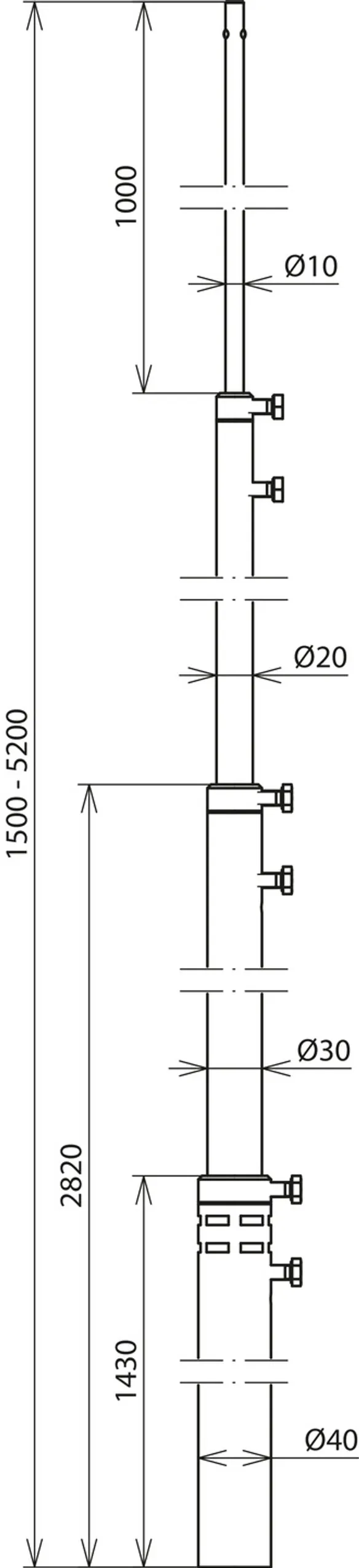

Height 1.5-5.2 m

1 ??store.product_de??

??store.product.number.short_de?? 105185 FS T D40 1500 5200 AL

??store.product.gtin_de?? 4013364481411, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 4.40 kg, ??store.product.packaging_de??: 1.00 pc(s)
