HSA 194 High-Voltage Indicator

Easy and safe testing
  • For contactlessly verifying that switchgear and high-voltage overhead lines or centre-earthed monophase traction power lines are dead
  • Cost-effective / space-saving transport

Details

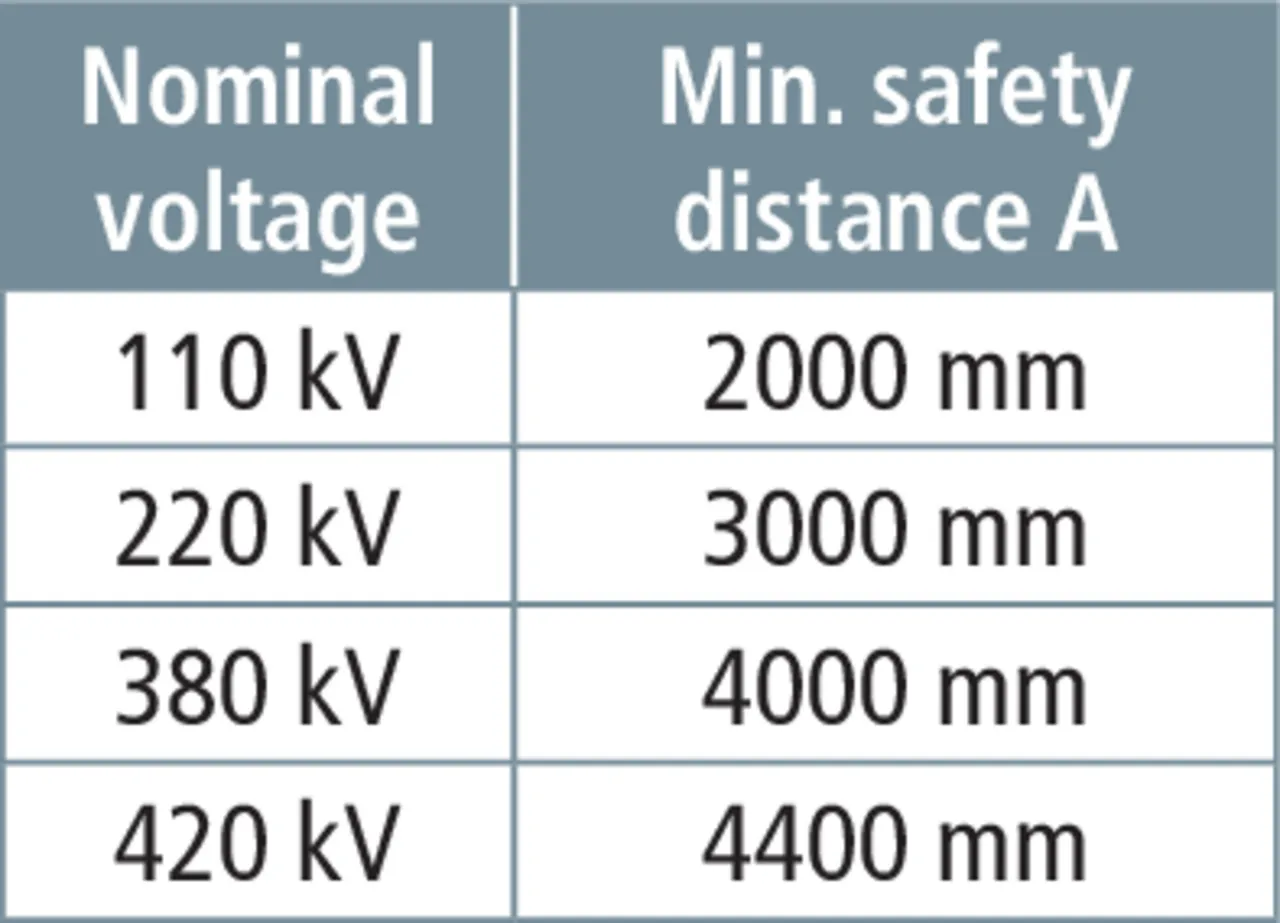

Table
lorem ipsum

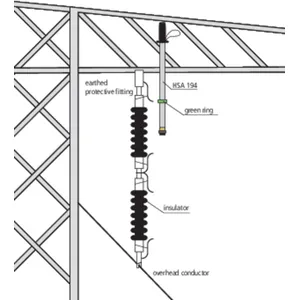

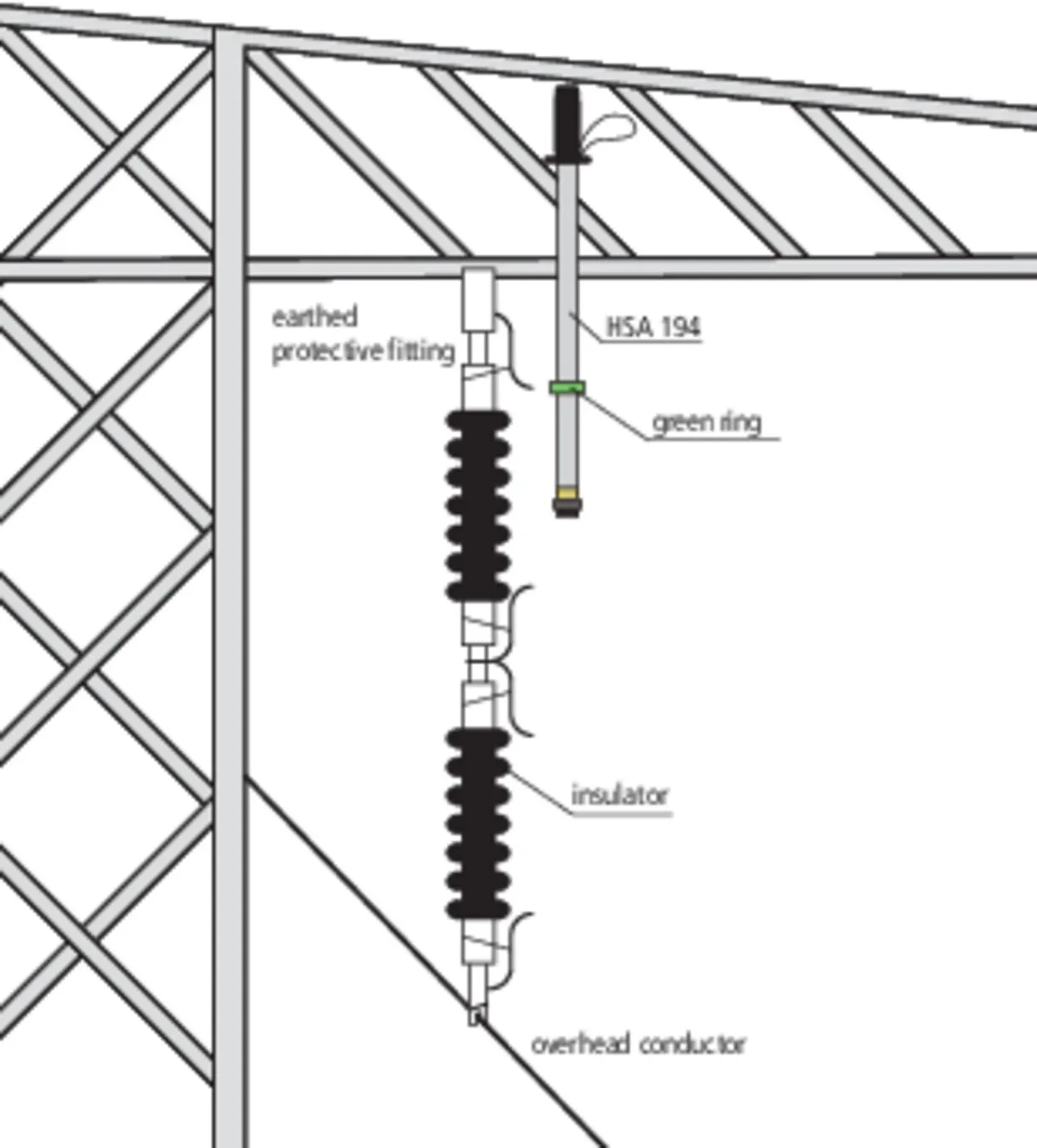

Figure 2: Example of application on the tower cross arm with switch position "110 ... 420 kV“
lorem ipsum

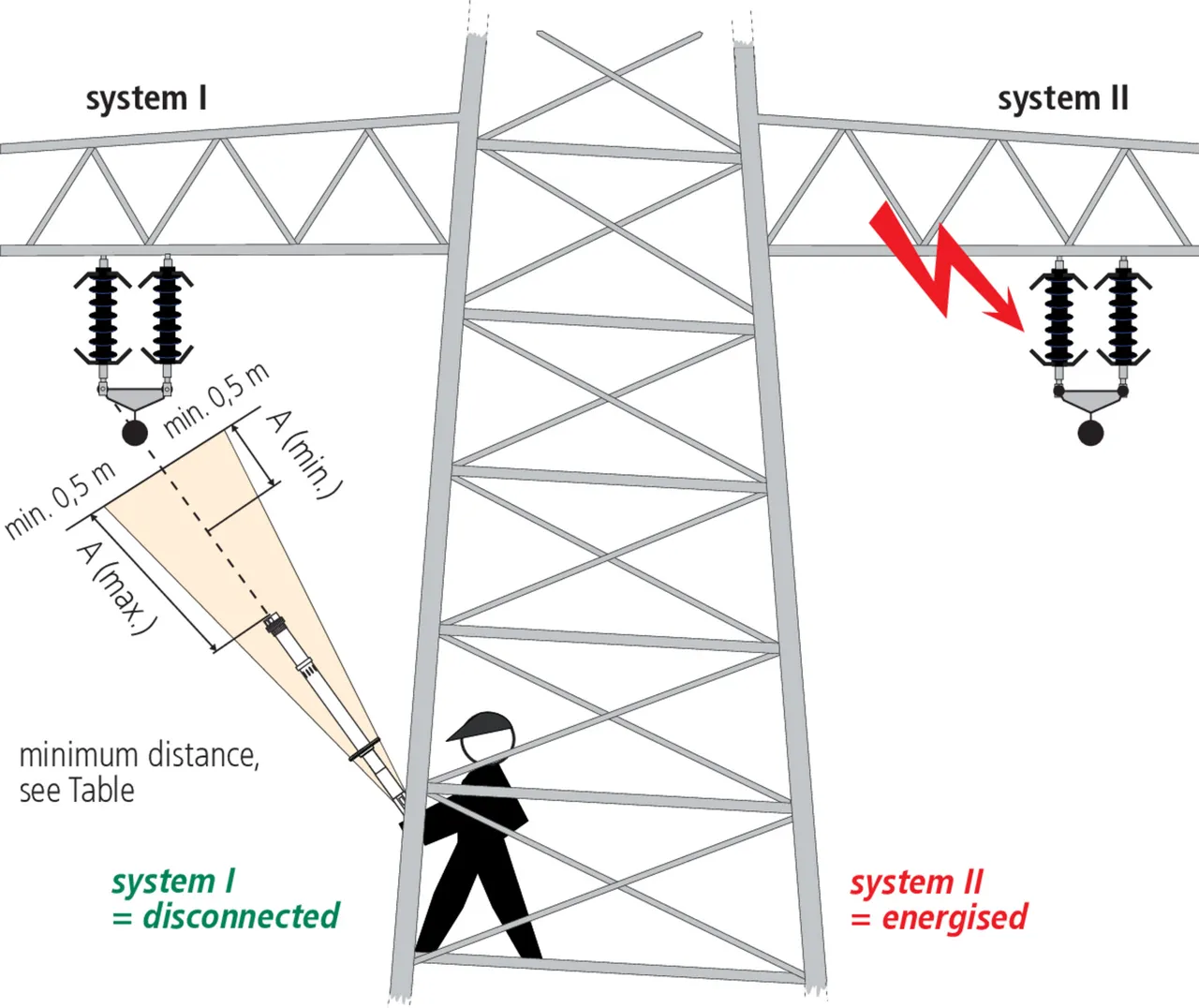

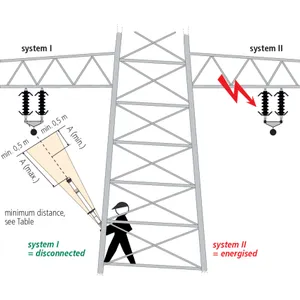

Figure 1: Example of application on the corner leg of a lattice tower with switch position "climbing check“ (only HSA 194 110 420 SN7737)
lorem ipsum

Nominal Voltage Range 110 ... 420 kV

With plug-in coupling as end fitting for extending the handle.

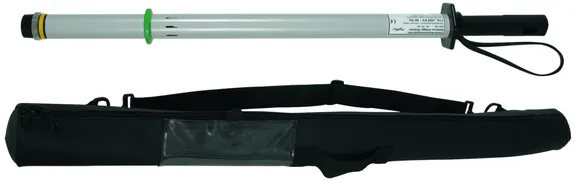

Storage bag included in delivery.

2 ??store.products_de??

??store.product.number.short_de?? 767541 HSA194 110 420 STK

??store.product.gtin_de?? 4013364115712, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.70 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 50 Hz

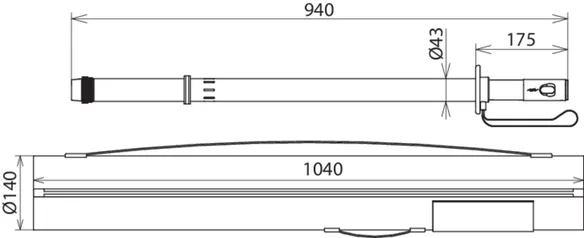

Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
Verification while climbing the tower No

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 767542 HSA194 110 420 16.7

??store.product.gtin_de?? 4013364086616, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 5.85 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.predecessor_de??

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 16.7 Hz
Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
DB drawing No. 3 Ekgw 02.54
Verification while climbing the tower No

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal Voltage Range 110 ... 420 kV, with verification while climbing the tower

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

1 ??store.product_de??

??store.product.number.short_de?? 767539 HSA 194 110 420 SN7737

??store.product.gtin_de?? 4013364306769, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 1.82 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 50 Hz
Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
Verification while climbing the tower Yes

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
