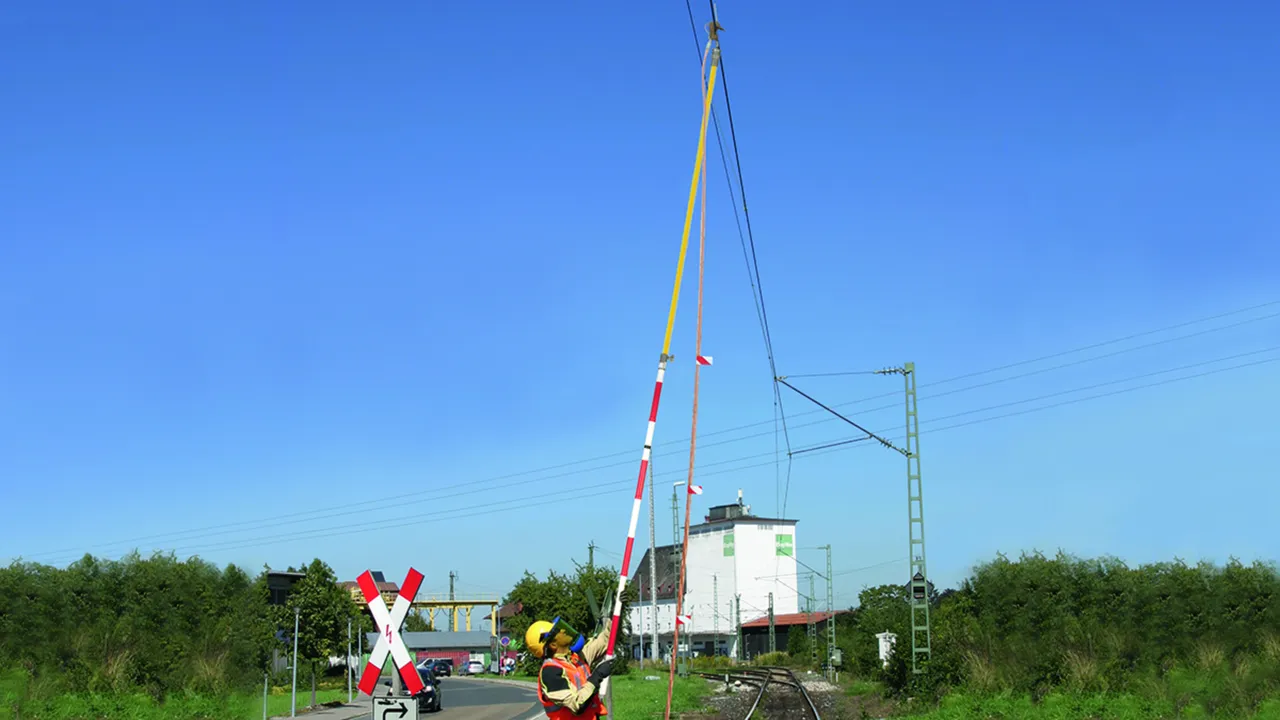

Earthing Sticks for Railway Applications

  • For outdoor use

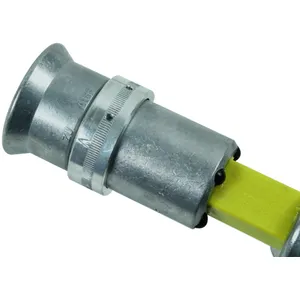

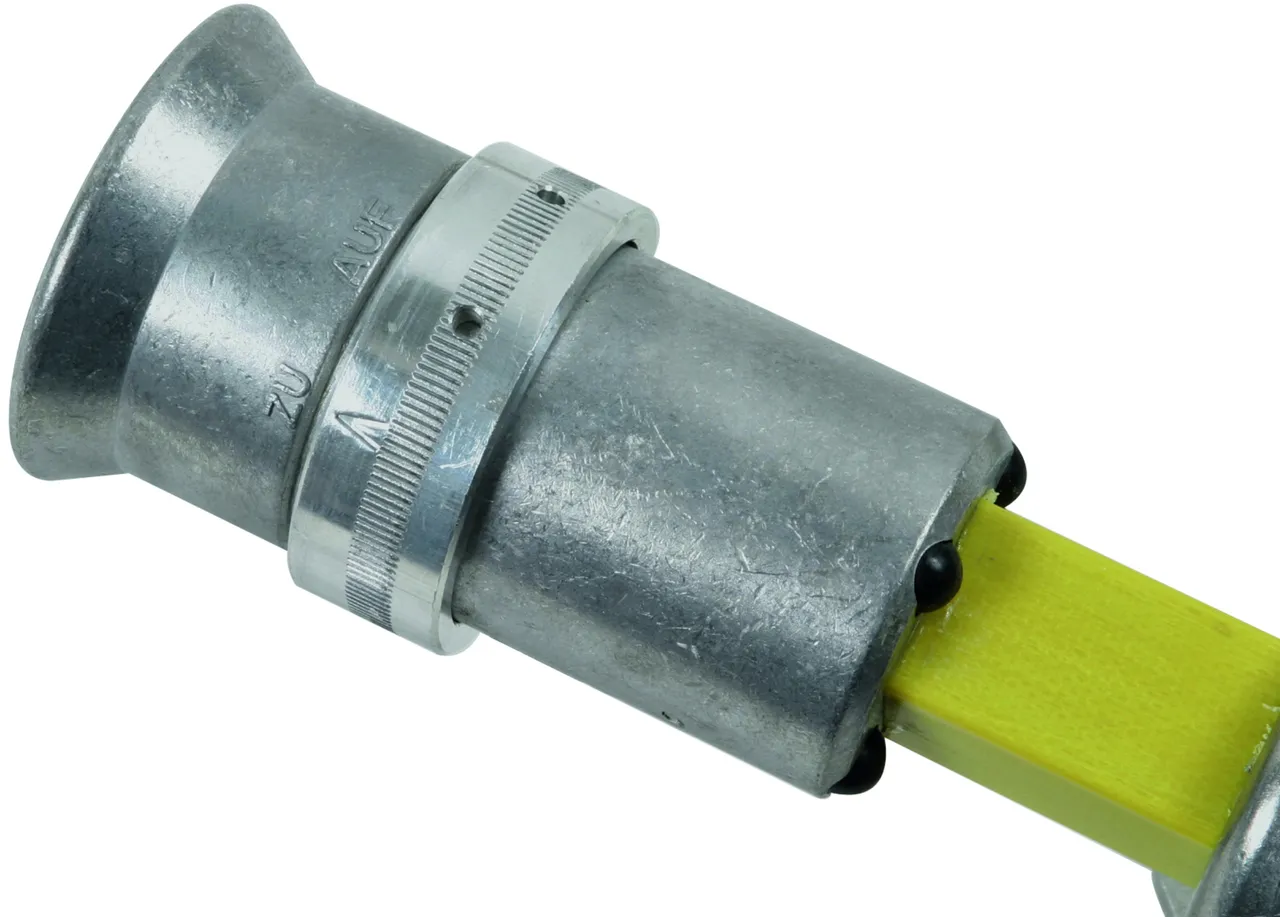

  • Robust aluminium cone coupling
  • Telescopic stick, length continuously adjustable by star knob
  • Only suitable for phase screw clamps and clamps with long T pin shaft

Details

lorem ipsum

Telescopic, with T pin shaft

For threaded T pin shaft (bayonet locking mechanism).

2 ??store.products_de??

??store.product.number.short_de?? 769352 ESTC SQL RW 3500

??store.product.gtin_de?? 4013364007345, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 4.60 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Total length (lG max / IG min ) 3515 / 1935 mm
DB drawing No. 3 Ebgw 01.58
DB material No. 157 534

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 769502 ESTC SQL RW 5000

??store.product.gtin_de?? 4013364004542, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 5.30 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Total length (lG max / IG min ) 5015 / 2685 mm
DB drawing No. 3 Ebgw 01.52
DB material No. 157 533

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Telescopic with T pin shaft and cable guide

For threaded T pin shaft (bayonet locking mechanism).
The coupling is additionally fitted with a cable entry and a hook for securing the earthing cable and earthing stick at the tower (without adjusting ring).

1 ??store.product_de??

??store.product.number.short_de?? 769508 ESTC SQL H RW 5000

??store.product.gtin_de?? 4013364052383, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 5.30 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Total length (lG max / IG min ) 5015 / 2685 mm
DB drawing No. 3 Ebgw 01.55
DB material No. 612 142

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

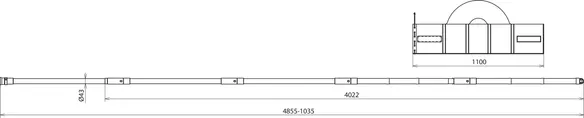

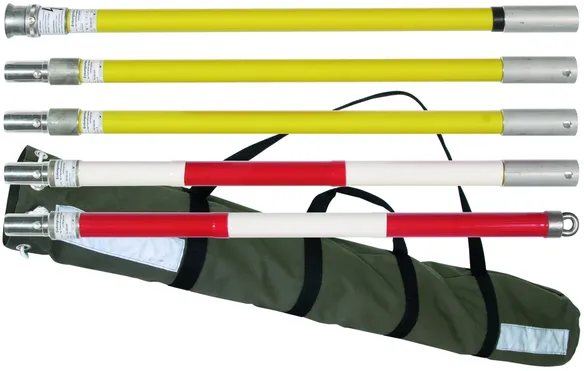

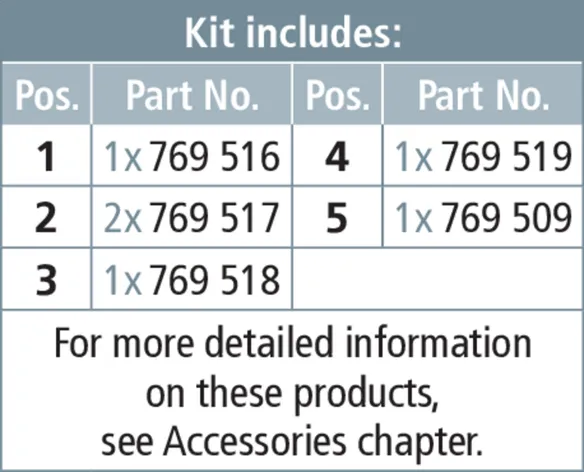

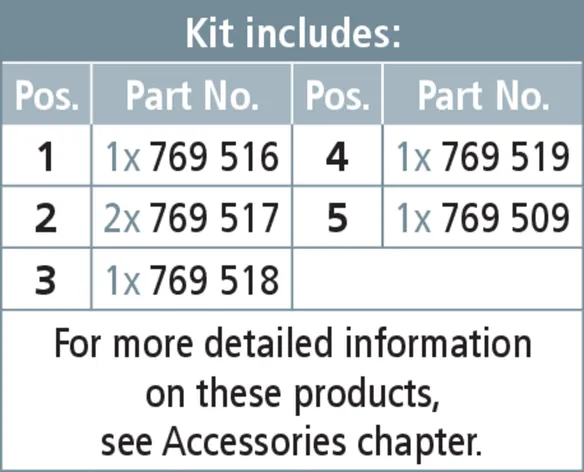

Six-part, with T pin shaft and aluminium coupling

For threaded T pin shafts (bayonet locking mechanism)

1 ??store.product_de??

??store.product.number.short_de?? 769515 EST SQL RW 4855 TA

??store.product.gtin_de?? 4013364157361, ??store.product.customsTariffNumber_de??: 82055980, ??store.product.grossWeight_de??: 6.69 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Total length (lG max / IG min ) 4855 / 1035 mm
DB drawing No. 3 Ebgw 01.68-1

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
