Phase Connecting Elements for Railway Applications

Safe positive-locking earth clamps for railway applications

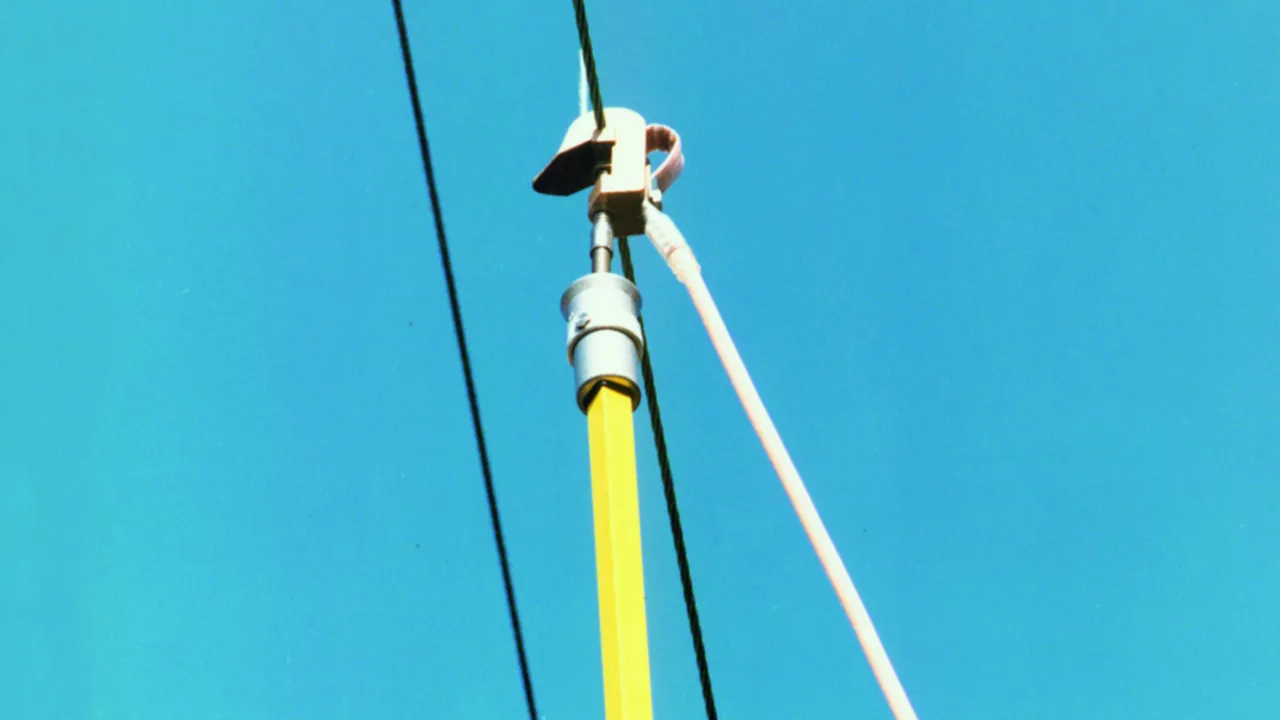

Earth Clamp for Overhead Contact Lines

With contact electrode and flexible threaded T pin shaft according to DIN 48087.
For AC 80 to AC 120 overhead contact lines.

2 ??store.products_de??

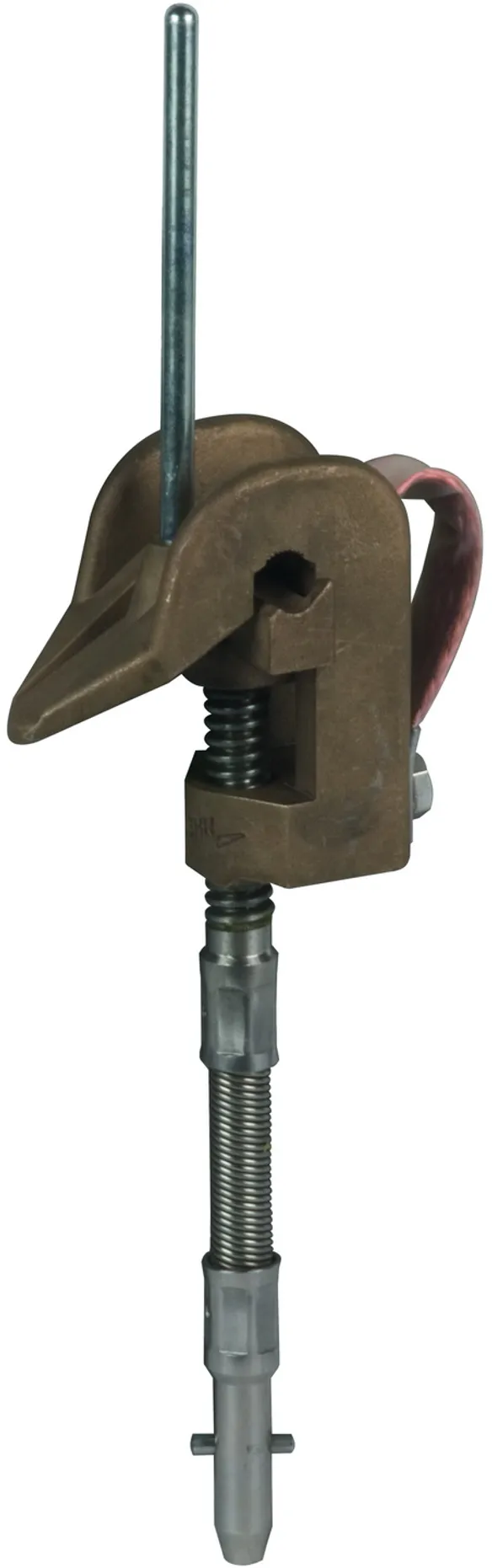

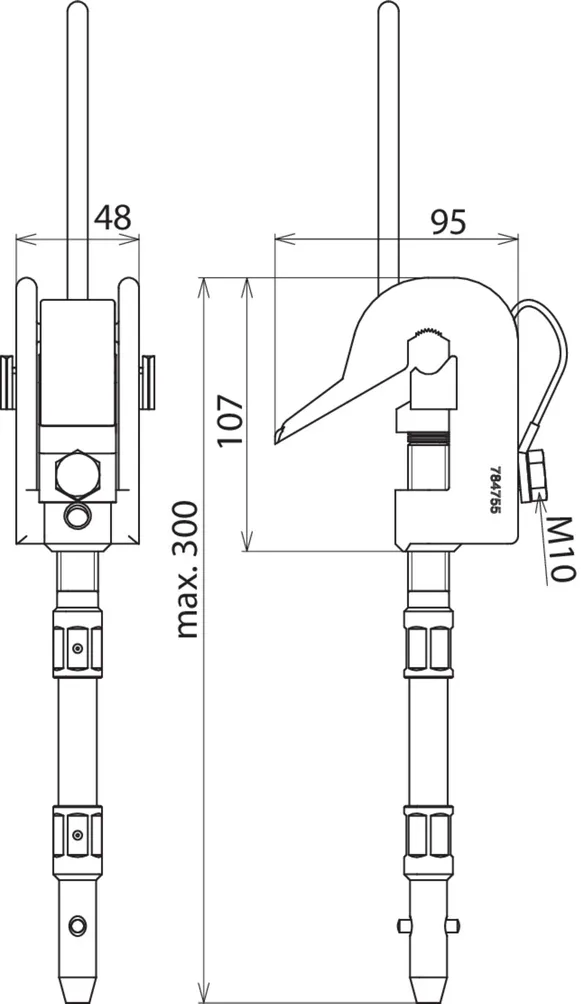

??store.product.number.short_de?? 784755 FEK 4 15 TS FSQL

??store.product.gtin_de?? 4013364054202, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.71 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 4 ... 15 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable material Cu
For cable cross-section 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.54
DB material No. 157 536

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? 784756 FEK4 15 TS FSQL AB29

??store.product.gtin_de?? 4013364230118, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.82 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 4 ... 15 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable material Al
For cable cross-section 70 mm2
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. Ebgw 01.85

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Line Clamp

With contact electrode and threaded T pin shaft according to DIN 48087.
For supply and traction power lines.

1 ??store.product_de??

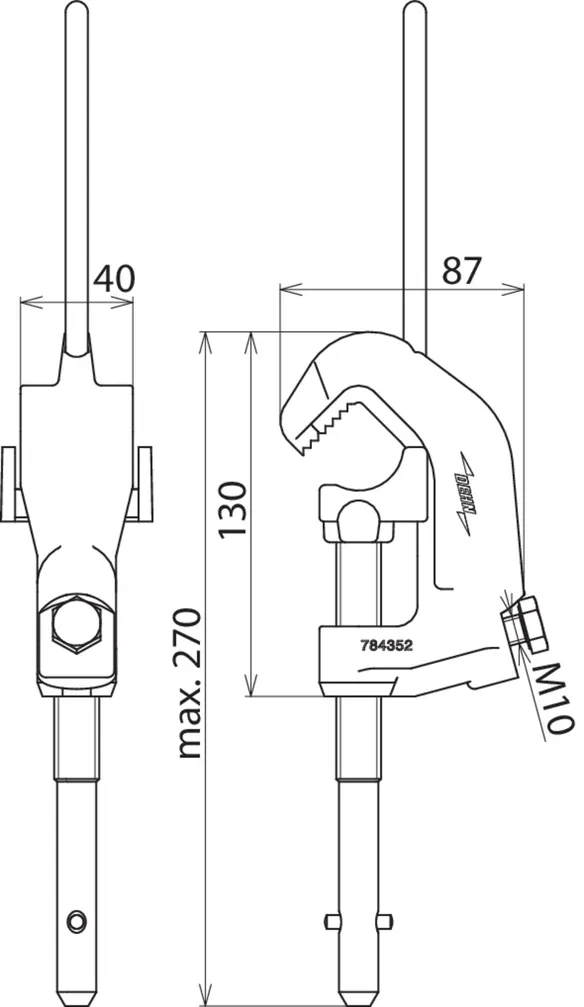

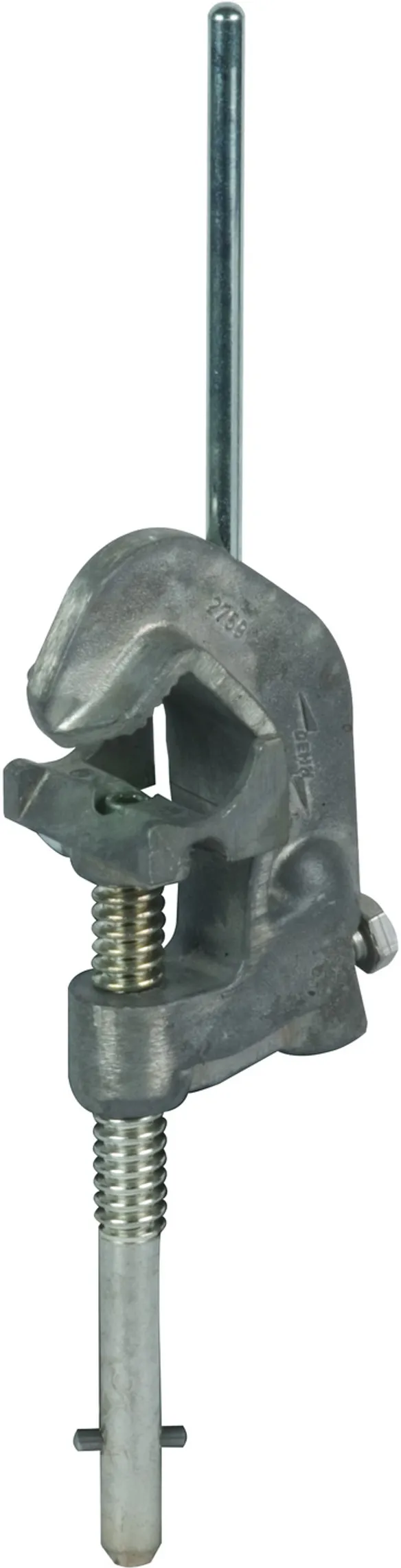

??store.product.number.short_de?? 784352 LK 4 40 TS SQL

??store.product.gtin_de?? 4013364006072, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 971.00 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Clamping range Ø 4 ... 40 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
DB drawing No. 3 Ebgw 01.65
DB material No. 157 539

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??
