Short-Circuiting Bar

Simply compile the right short circuit bar online
Individual configuration
Permanent plausibility check in the background
With longitudinal slot for reliable contact
High short-circuit current strength up to max. 130 kA / 0.5 s for low-voltage systems (LV) and 80 kA / 0.5 s for medium-voltage systems (MV)

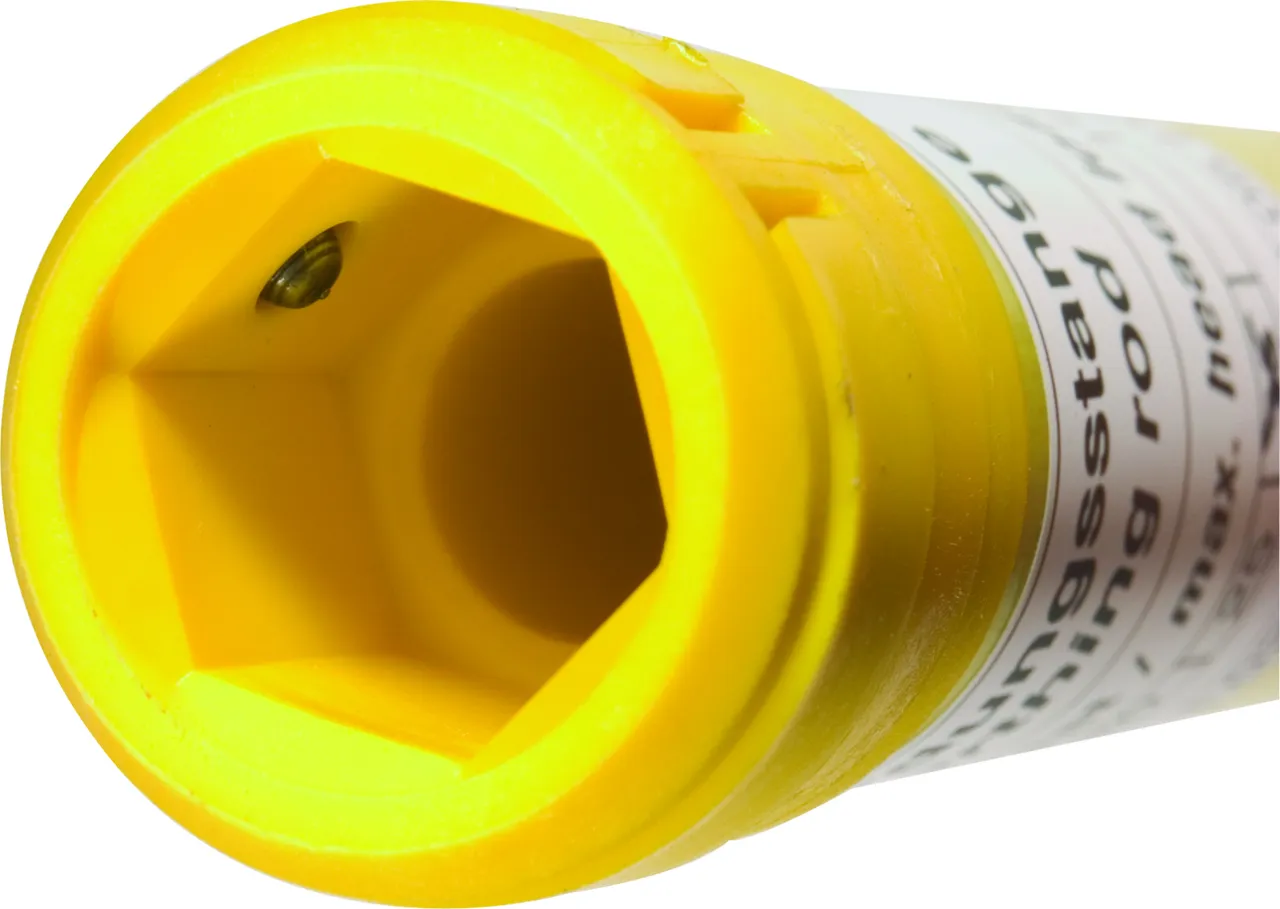

For use with earthing sticks for hexagon or T pin shafts
Short-circuiting bar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator

Details

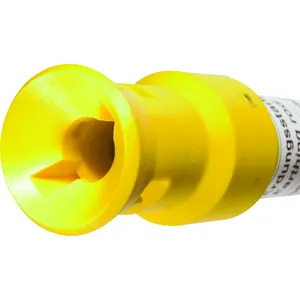

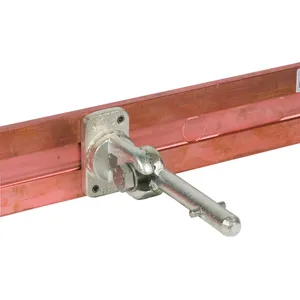

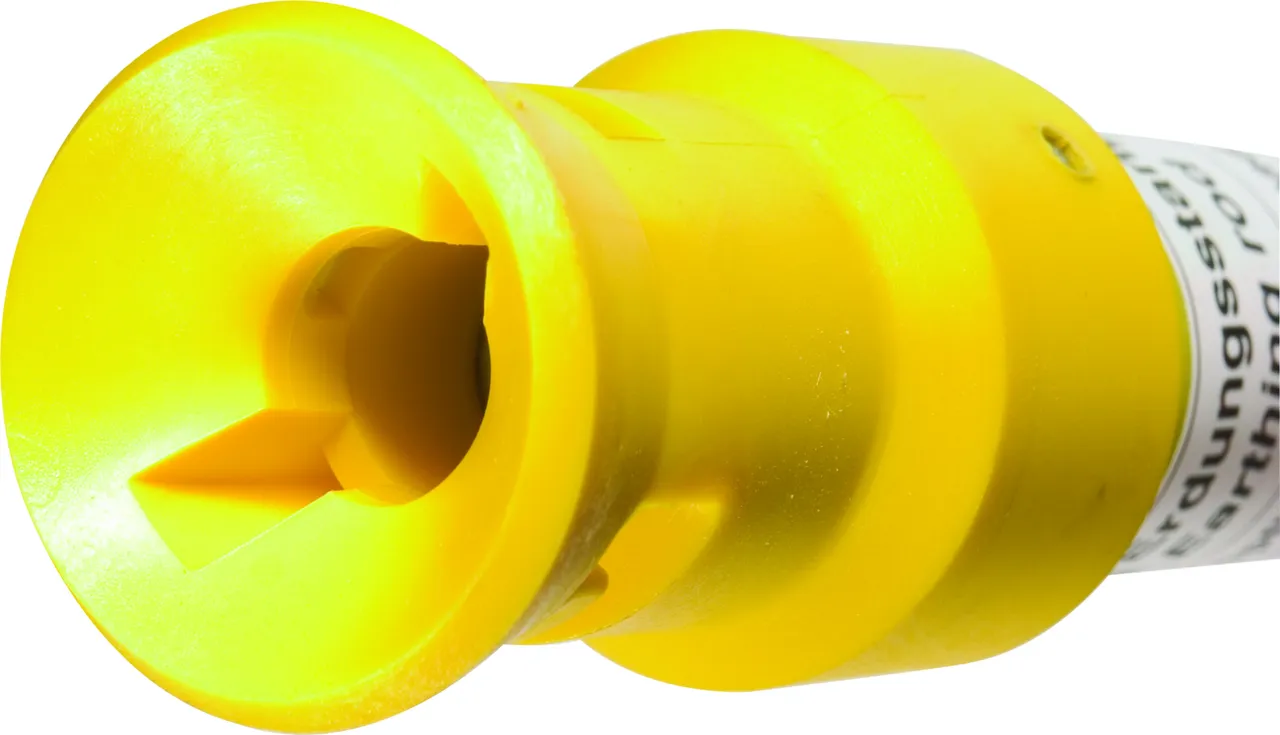

**SQ:** T pin shaft (bayonet locking mechanism).

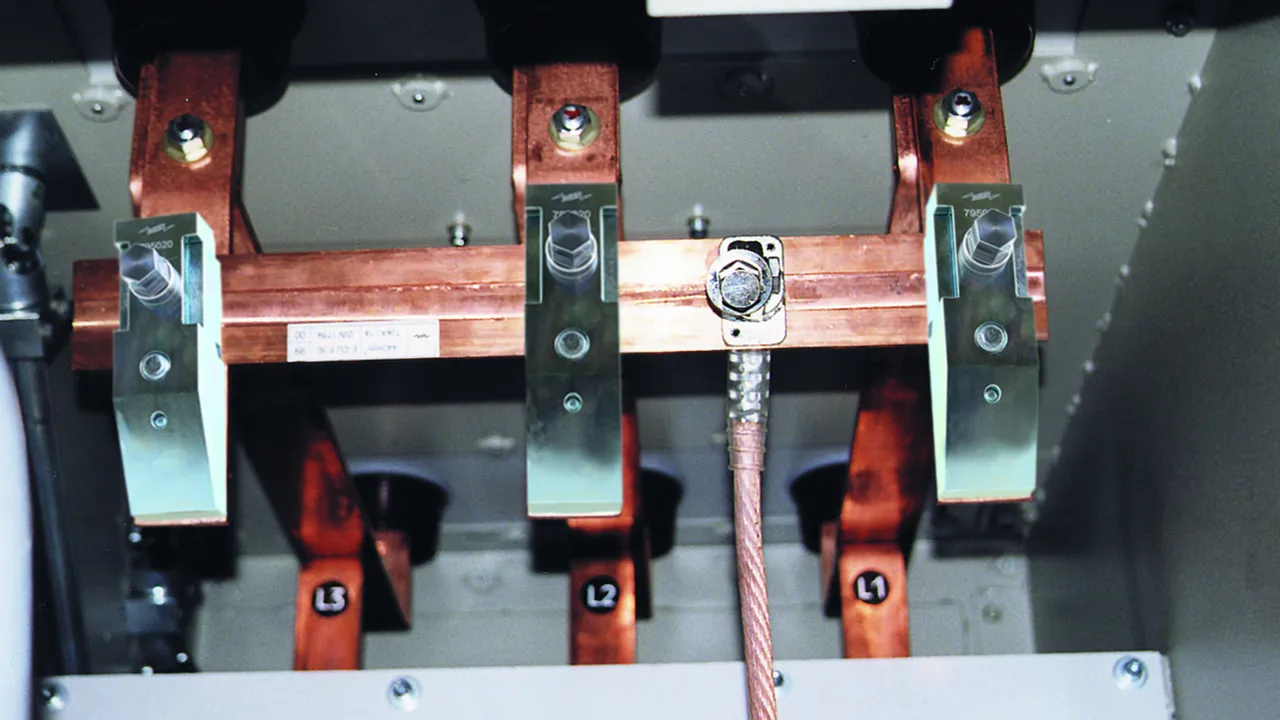

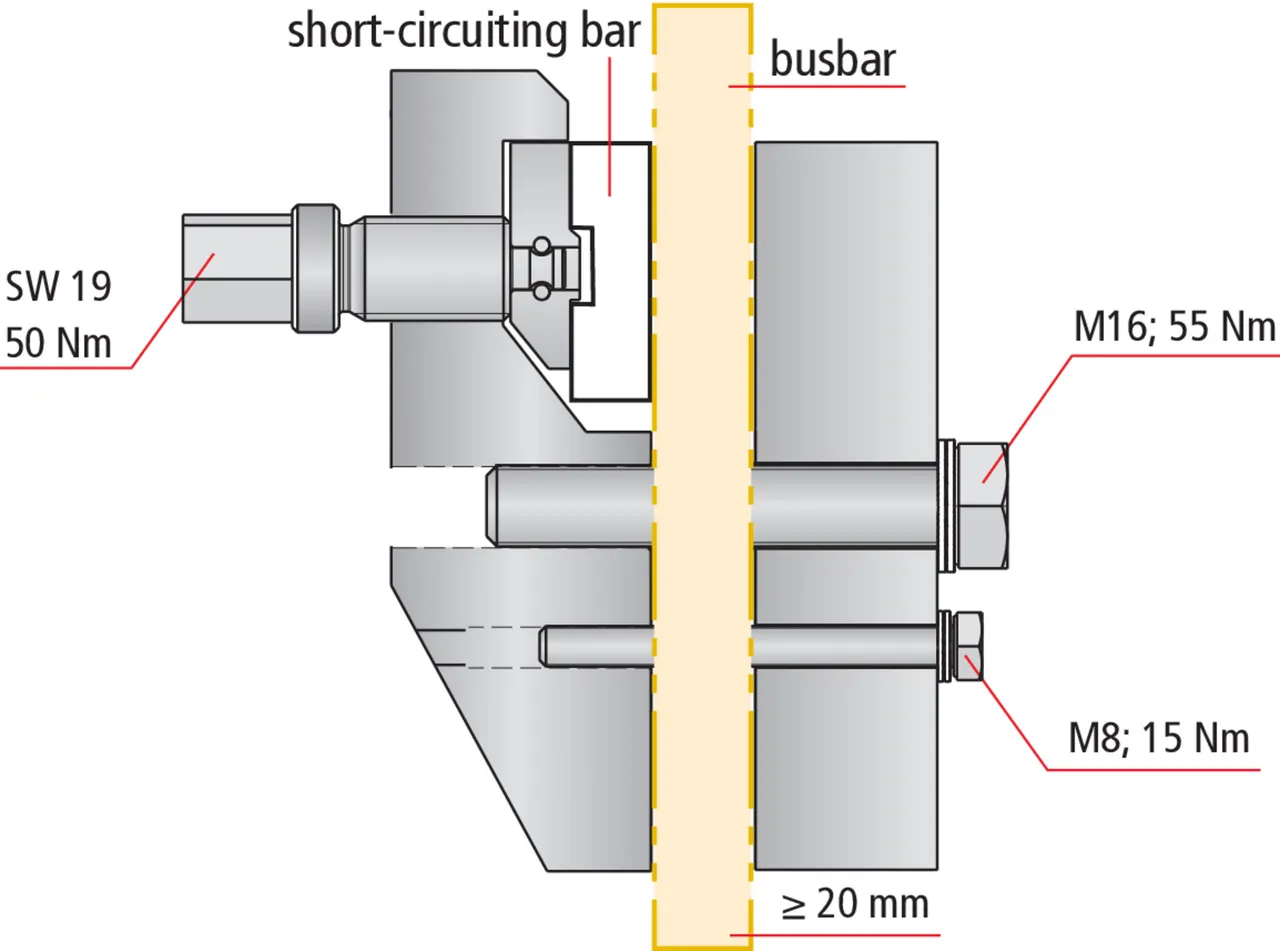

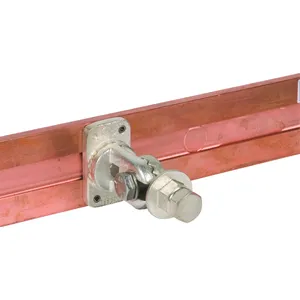

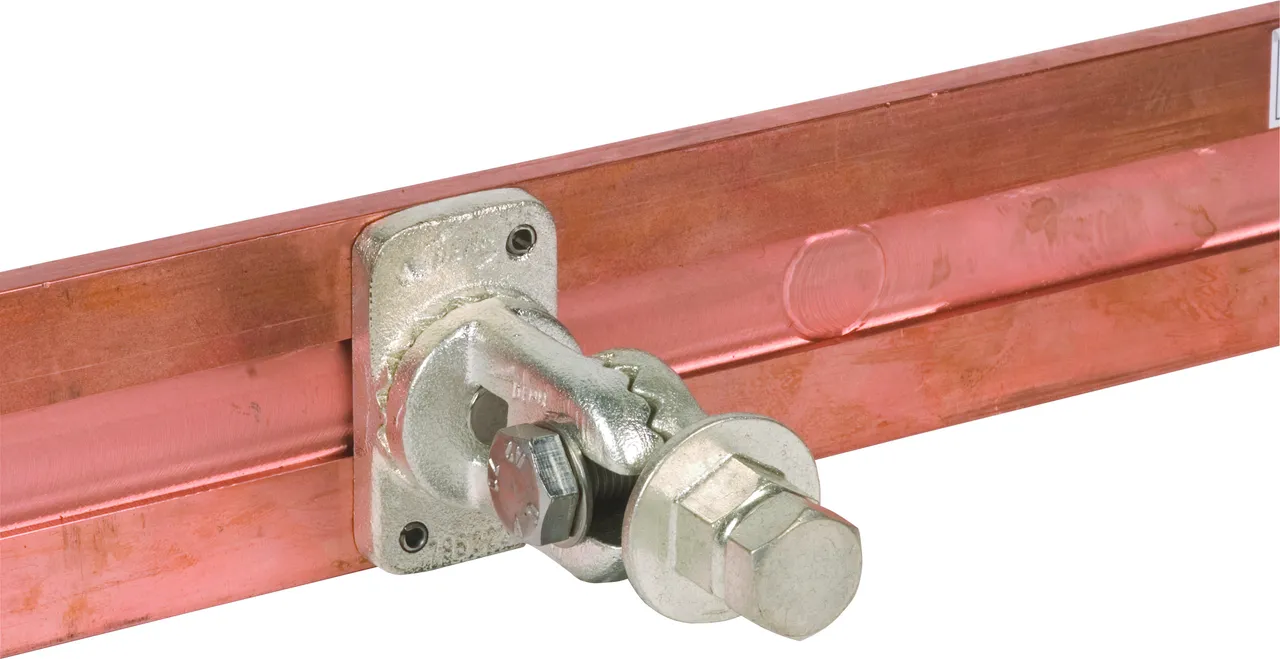

Fixed clamping point mounted on busbar and inserted short-circuiting bar

Short-Circuiting Bar made of Copper

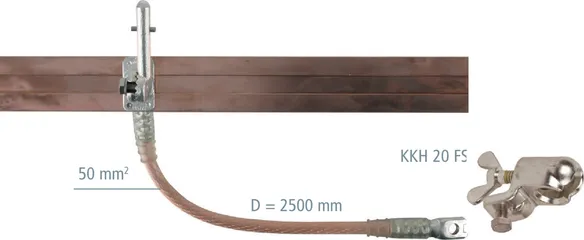

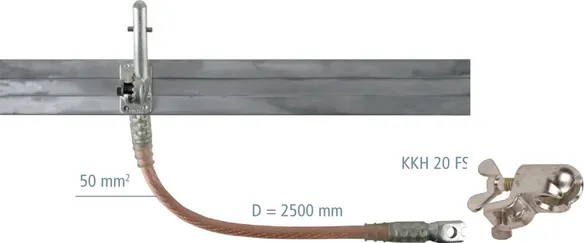

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 ??store.products_de??

??store.product.number.short_de?? VL2FG28 KS SQ C NS VL2FG28

??store.product.gtin_de?? 4013364450820, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.18 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm

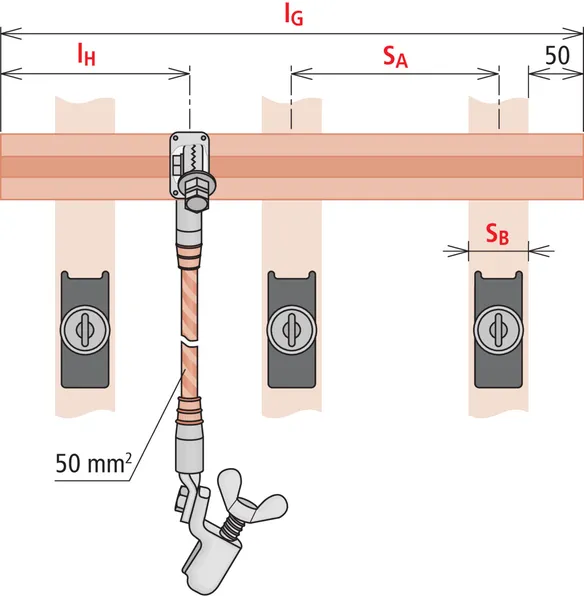

Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
Note: When ordering please specify the relevant Variant No.

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VHNEFQE KS SK C NS VHNEFQE

??store.product.gtin_de?? 4013364450837, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 6.14 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
Note: When ordering please specify the relevant Variant No.

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VV7M6CQ KSX SQ C MS VV7M6CQ

??store.product.gtin_de?? 4013364461963, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	525 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
Note: When ordering please specify the relevant Variant No.

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	525 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? V5DHK24 KSX SK C MS V5DHK24

??store.product.gtin_de?? 4013364461970, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	525 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
Note: When ordering please specify the relevant Variant No.

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	525 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Short-Circuiting Bar made of Aluminium

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 ??store.products_de??

??store.product.number.short_de?? VNRLBXU KS SQ A NS VNRLBXU

??store.product.gtin_de?? 4013364450868, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm

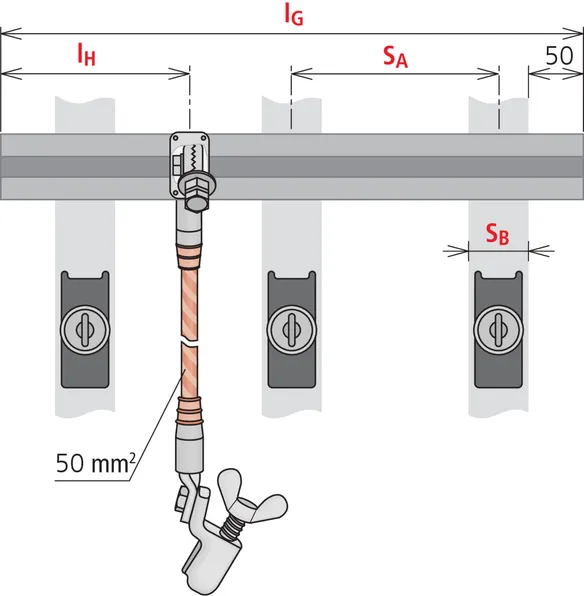

Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VP33XYL KS SK A NS VP33XYL

??store.product.gtin_de?? 4013364450875, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VSJ3Y6N KSX SQ A MS VSJ3Y6N

??store.product.gtin_de?? 4013364461994, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	675 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	675 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

??store.product.number.short_de?? VANH53Y KSX SK A MS VANH53Y

??store.product.gtin_de?? 4013364461987, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 10.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.data_de??

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	675 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	675 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Results for products (0)

Results for content (0)

Short-Circuiting Bar

Details

Short-Circuiting Bar made of Copper

??store.product.number.short_de?? VL2FG28 KS SQ C NS VL2FG28

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VHNEFQE KS SK C NS VHNEFQE

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VV7M6CQ KSX SQ C MS VV7M6CQ

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? V5DHK24 KSX SK C MS V5DHK24

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

Short-Circuiting Bar made of Aluminium

??store.product.number.short_de?? VNRLBXU KS SQ A NS VNRLBXU

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VP33XYL KS SK A NS VP33XYL

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VSJ3Y6N KSX SQ A MS VSJ3Y6N

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??

??store.product.number.short_de?? VANH53Y KSX SK A MS VANH53Y

??store.notepad.add.feedback_de??

??store.webshop.add.feedback_de??
