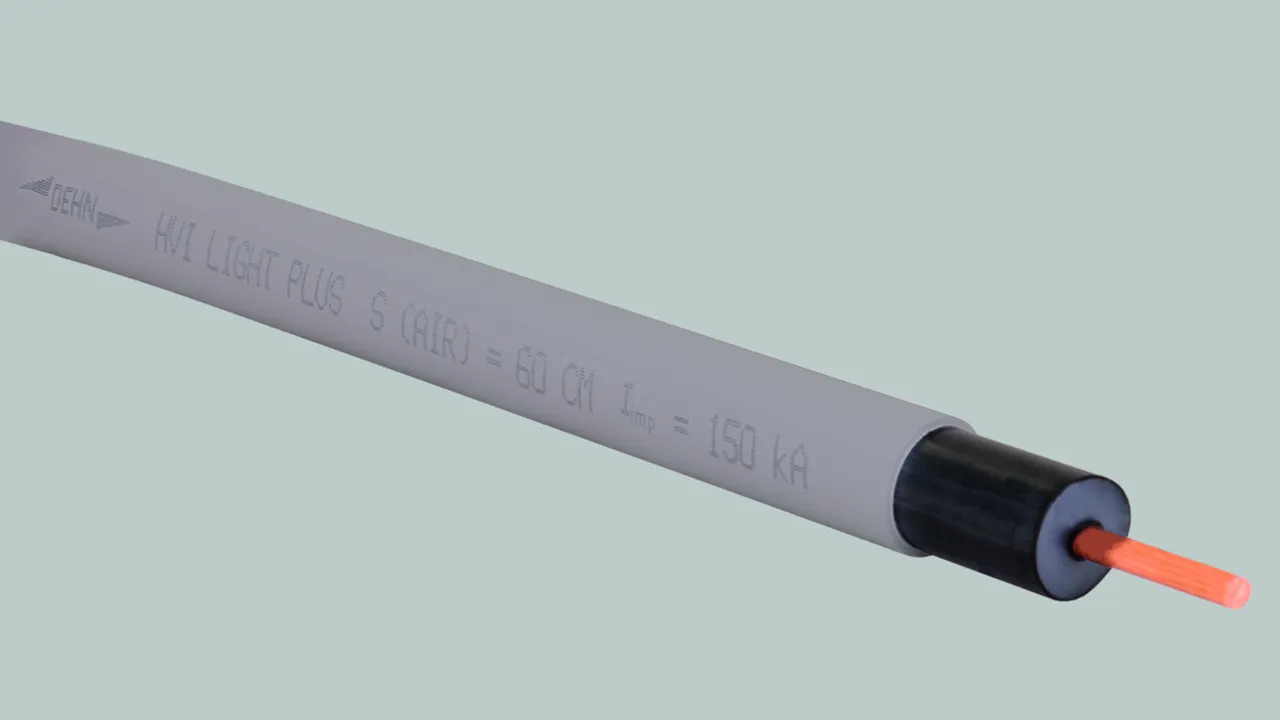

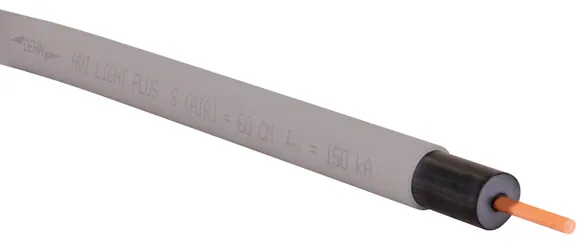

HVI light plus Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to DIN EN 62305-3 (VDE 0185-305-3). For use up to an equivalent separation distance of s ≤ 60 cm (in air) or s ≤ 120 cm (solid building material). The HVI light plus Conductor meets the requirements of DIN IEC/TS 62561-8 (VDE V 0185-561-8) and is system-tested.
An additional connection of the equipotential bonding is not necessary under certain conditions.

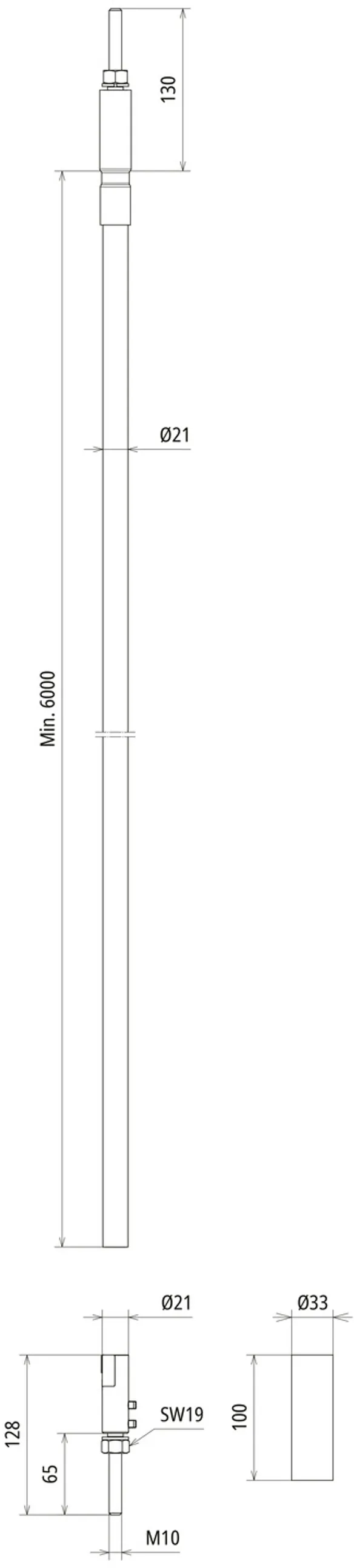

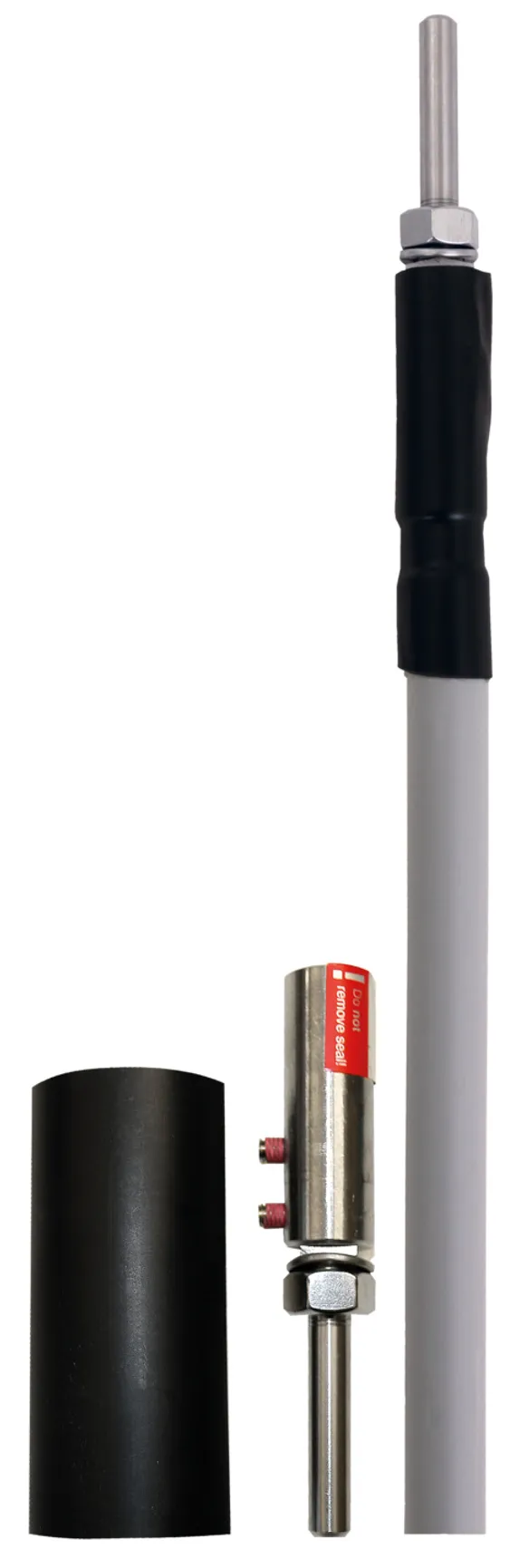

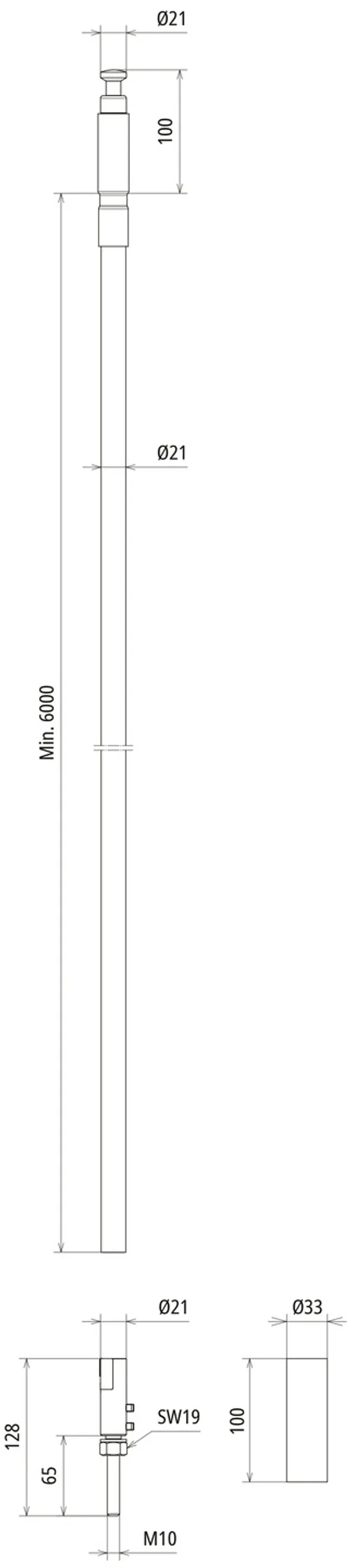

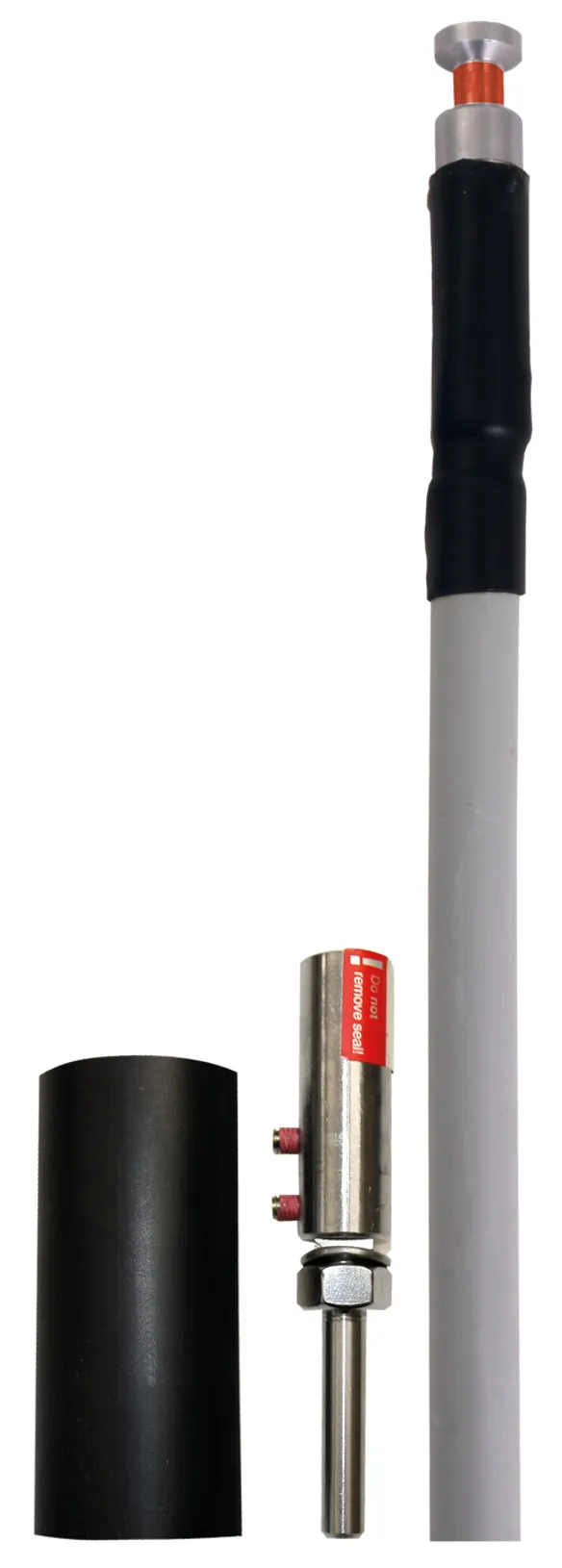

HVI light plus Conductor (pre-assembled, installation inside the supporting tube)

With one head piece for inside installation and one connection element (enclosed loose).
Minimum order length 6 m, conductor length has to be stated when ordering (in 0.5 m steps).

1 ??store.product_de??

??store.product.number.short_de?? 819636 HVI LI PL RIV 60 21 L6M GR

??store.product.gtin_de?? 4013364485815, ??store.product.customsTariffNumber_de??: 85446010, ??store.product.grossWeight_de??: 5.57 kg, ??store.product.packaging_de??: 1.00 pc(s)
