Supporting tube with HVI light plus Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to DIN EN 62305-3 (VDE 0185-305-3). For use up to an equivalent separation distance of s ≤ 60 cm (in air) or s ≤ 120 cm (solid building material).

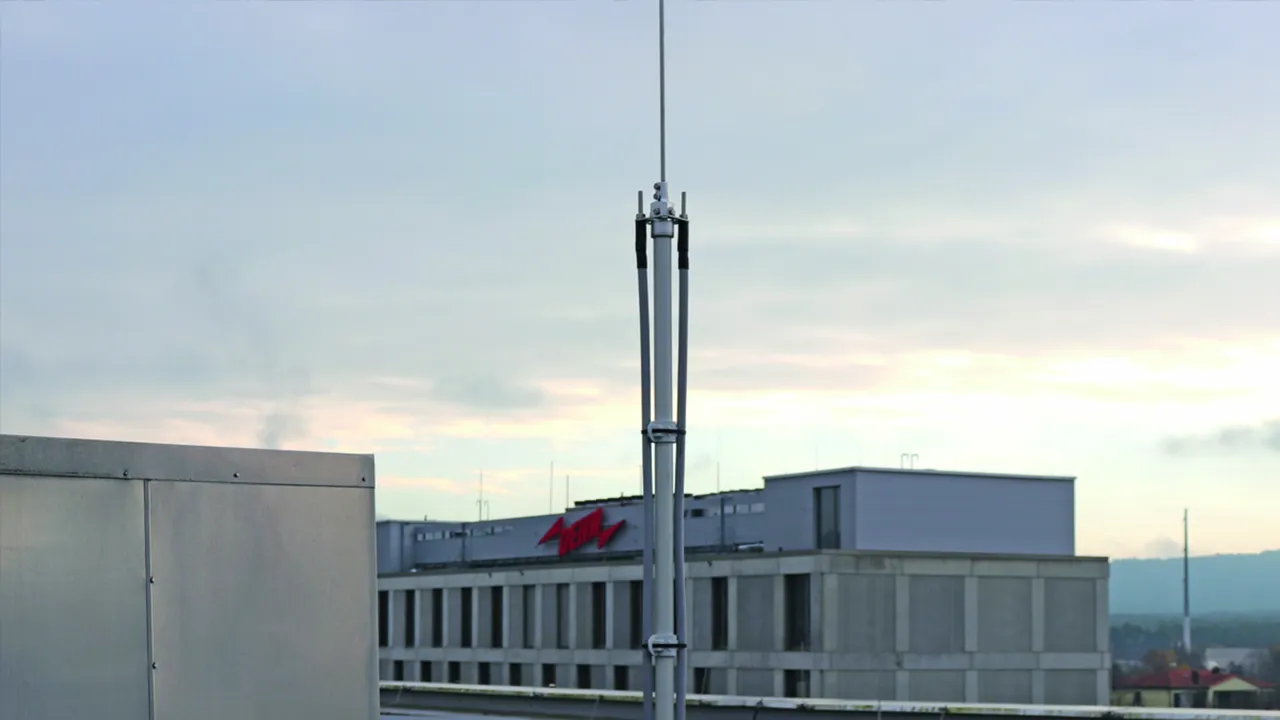

Discreet supporting tube with pre-assembled, internal HVI light plus Conductor with low wind exposed surface.
Wide choice of lengths, from 6 m to 70 m.
The conductor cannot be returned as it is made to order.

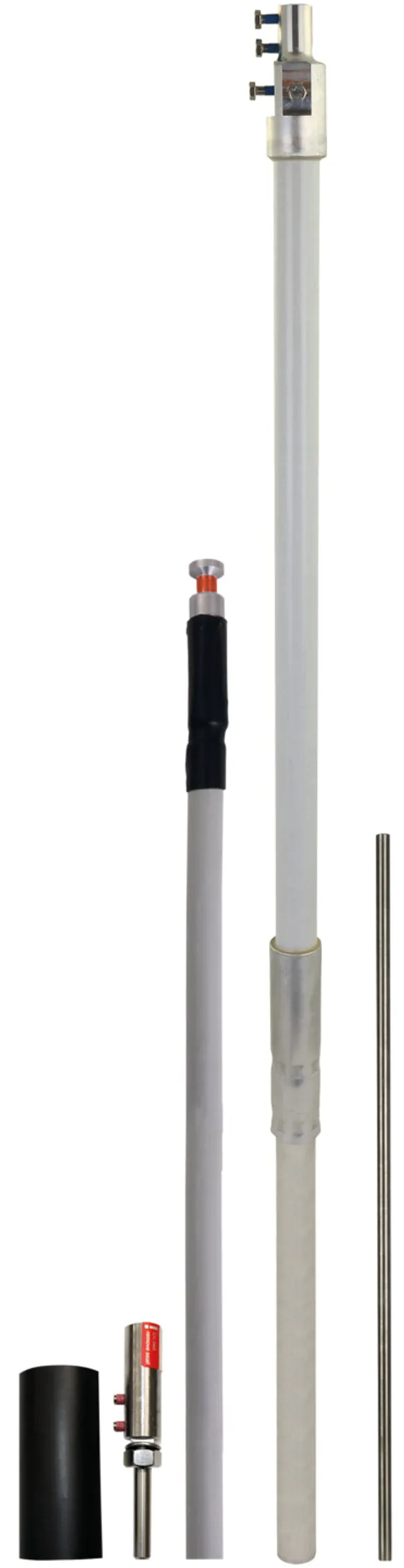

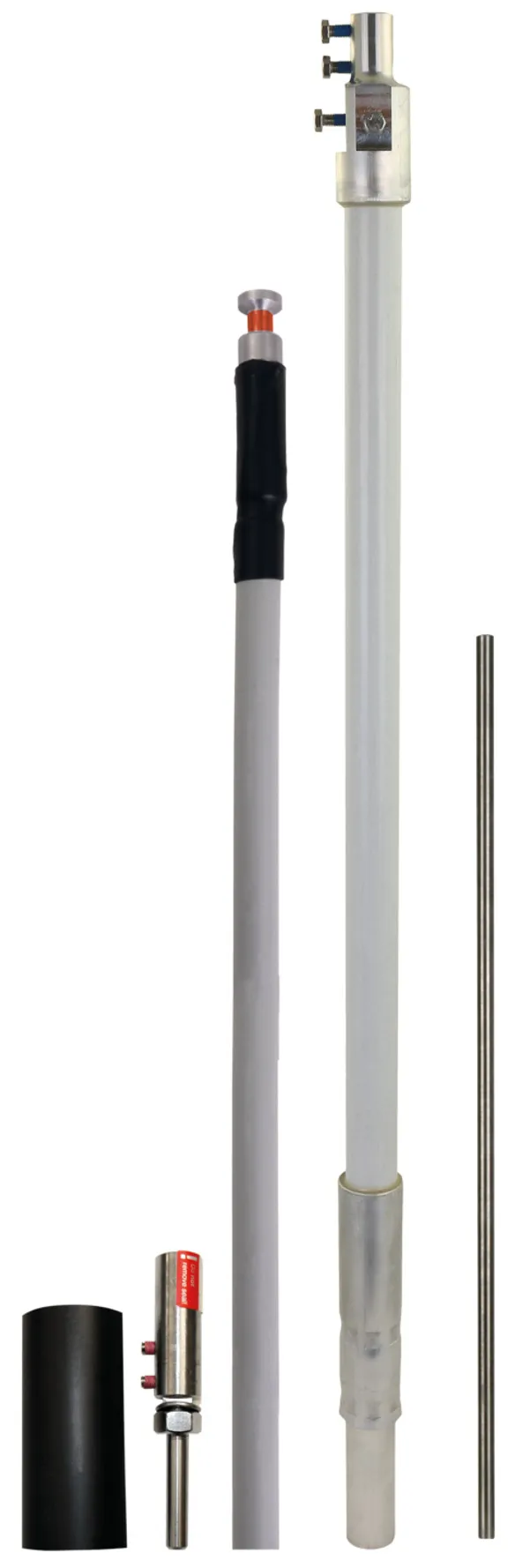

HVI light plus Conductor inside the supporting tube with air-termination tip

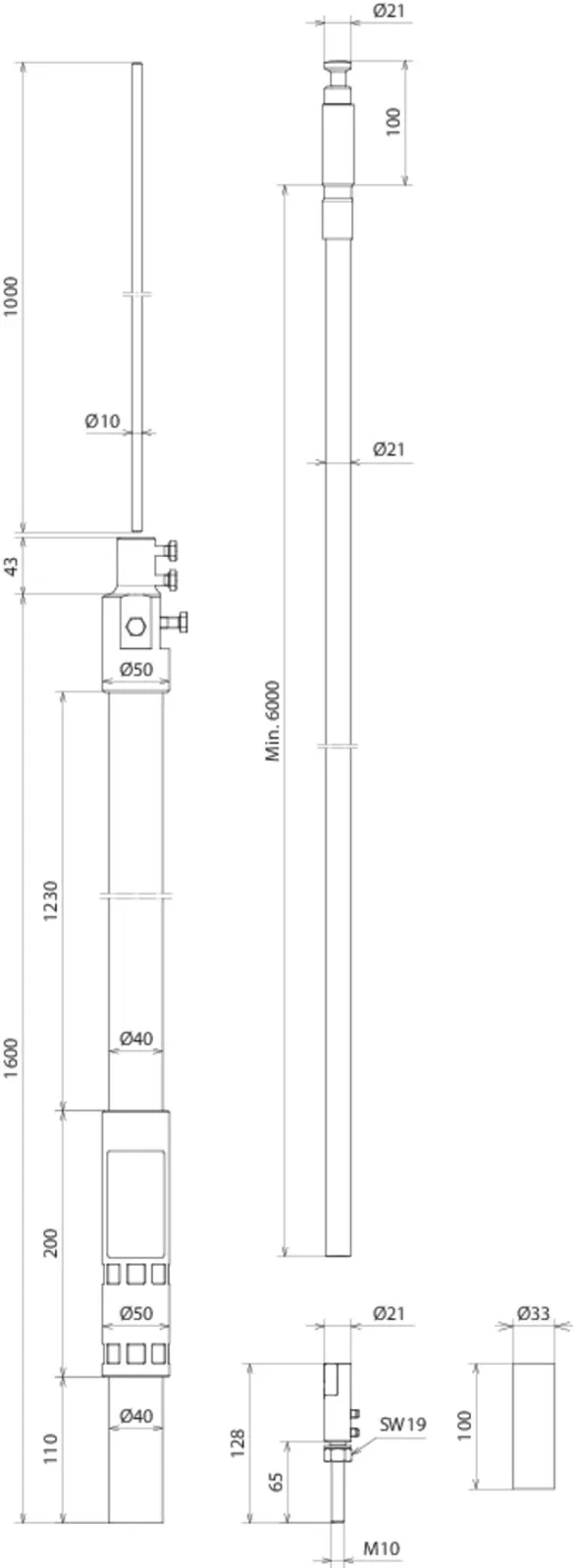

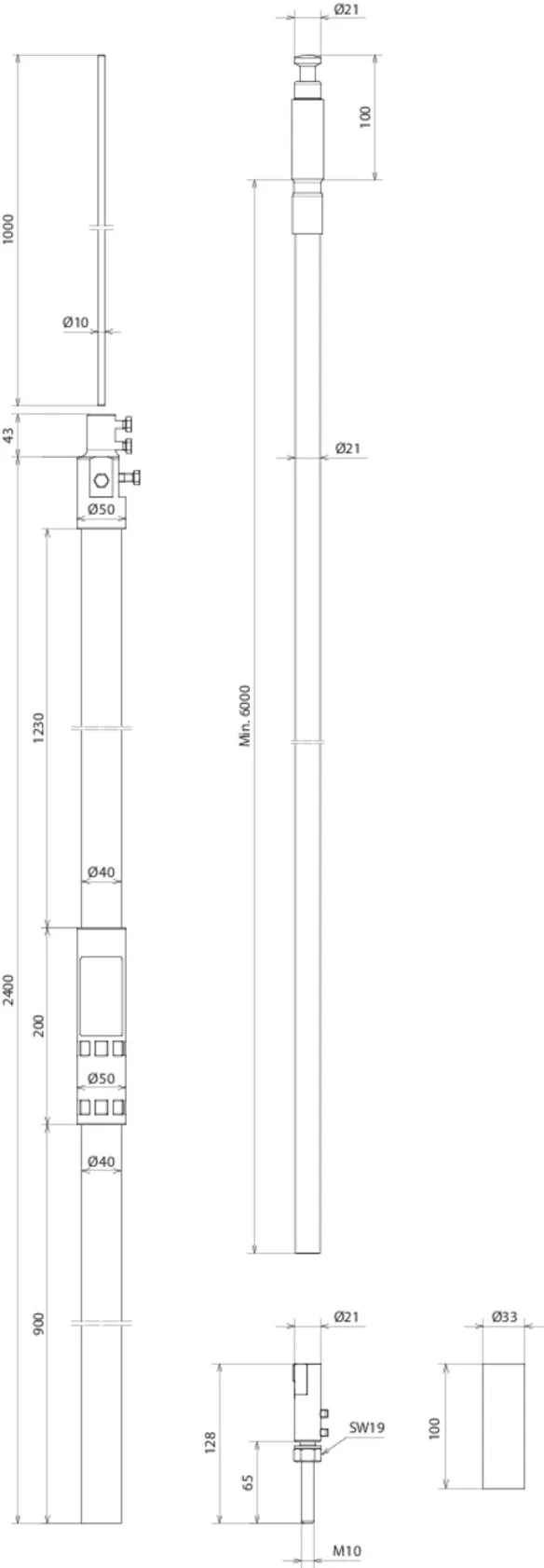

Supporting tube with internal sealing end / EB spring element and air-termination tip, StSt, Ø10 mm, length 500 / 1,000 mm.

4 ??store.products_de??

??store.product.number.short_de?? 819672 HVI LI PL L6M SR1600 FSP500 GFK AL V2A

??store.product.gtin_de?? 4013364494527, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 8.10 kg, ??store.product.packaging_de??: 1.00 pc(s)
