DEHNvario

Variable arrester series

Compact terminals ensure easy and fast installation
Direct plug-in technology allows connection without tools
Fast arrester replacement by simply releasing and removing the terminal unit
Earthing / equipotential bonding via DIN rail
Customised and application-specific surge protection

Details

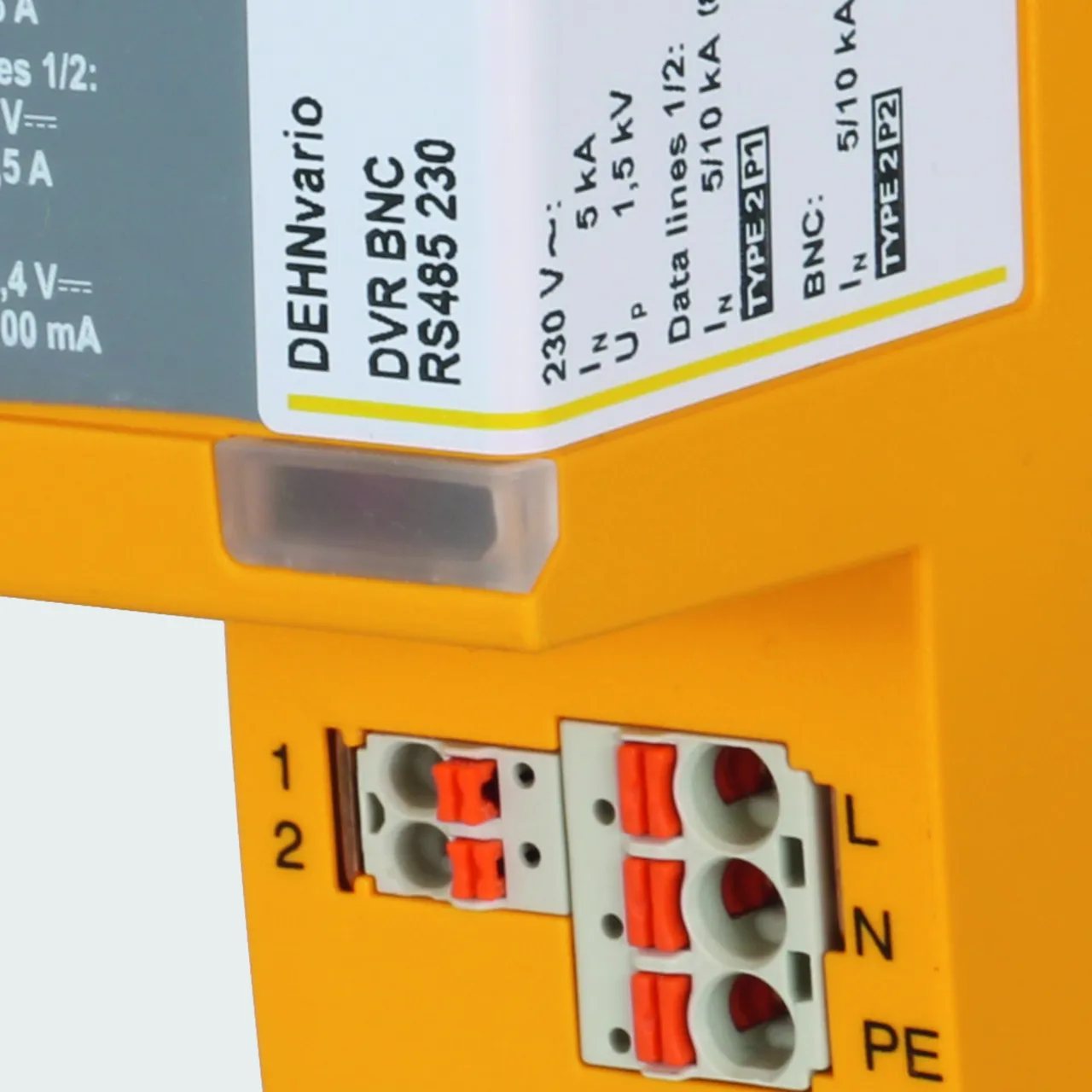

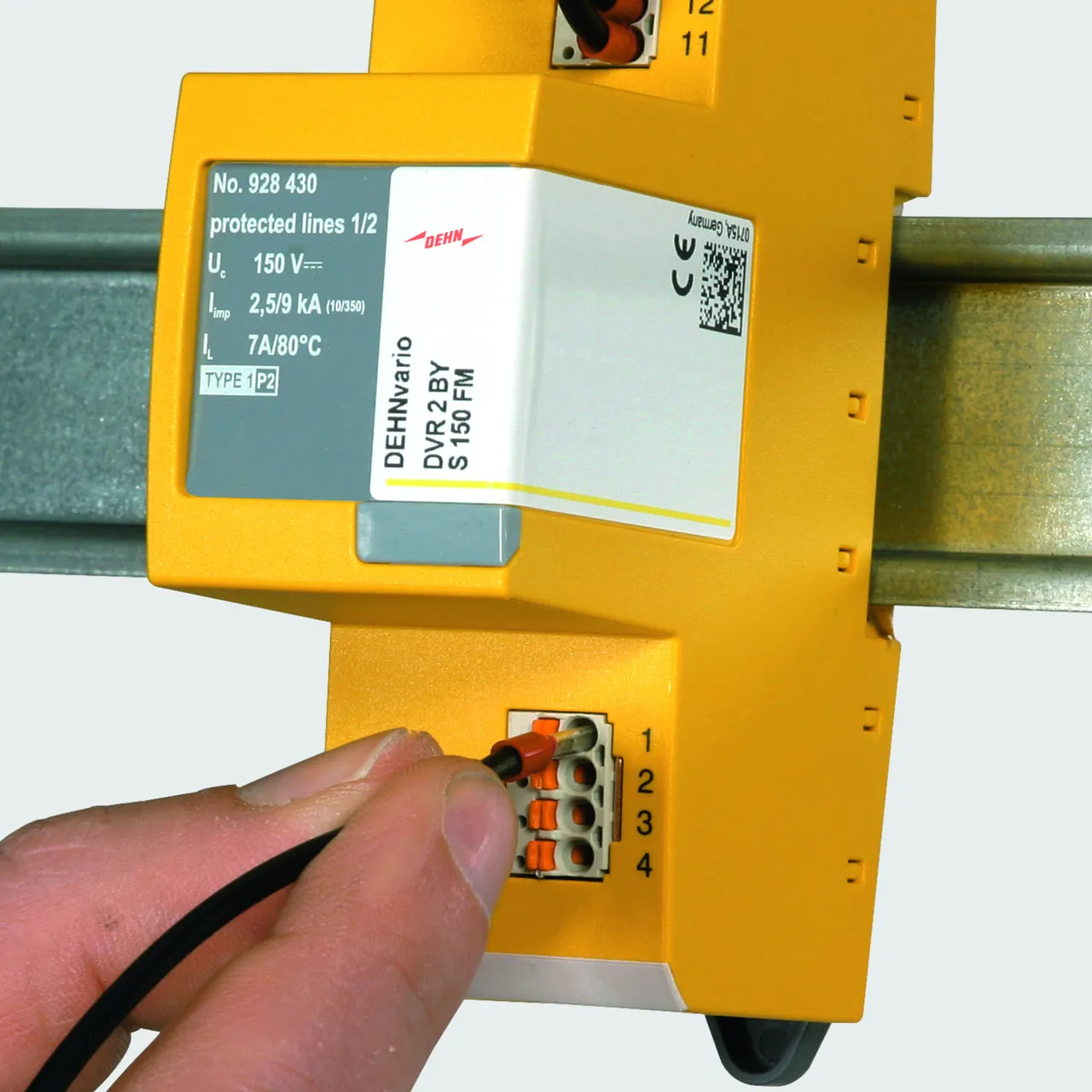

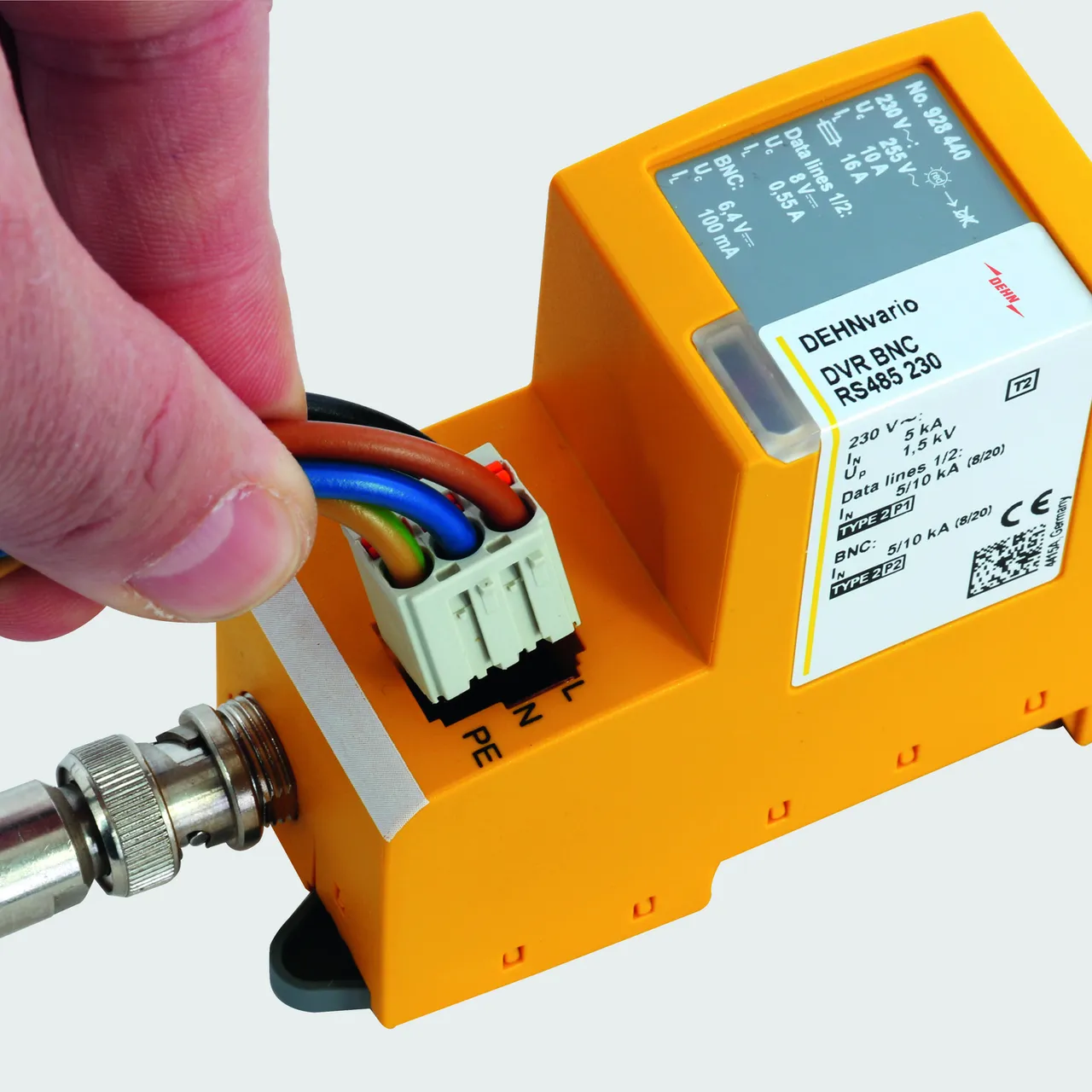

Direct plug-in technology ensures easy conductor connection without tools.

lorem ipsum — Direct plug-in technology ensures easy conductor connection without tools.

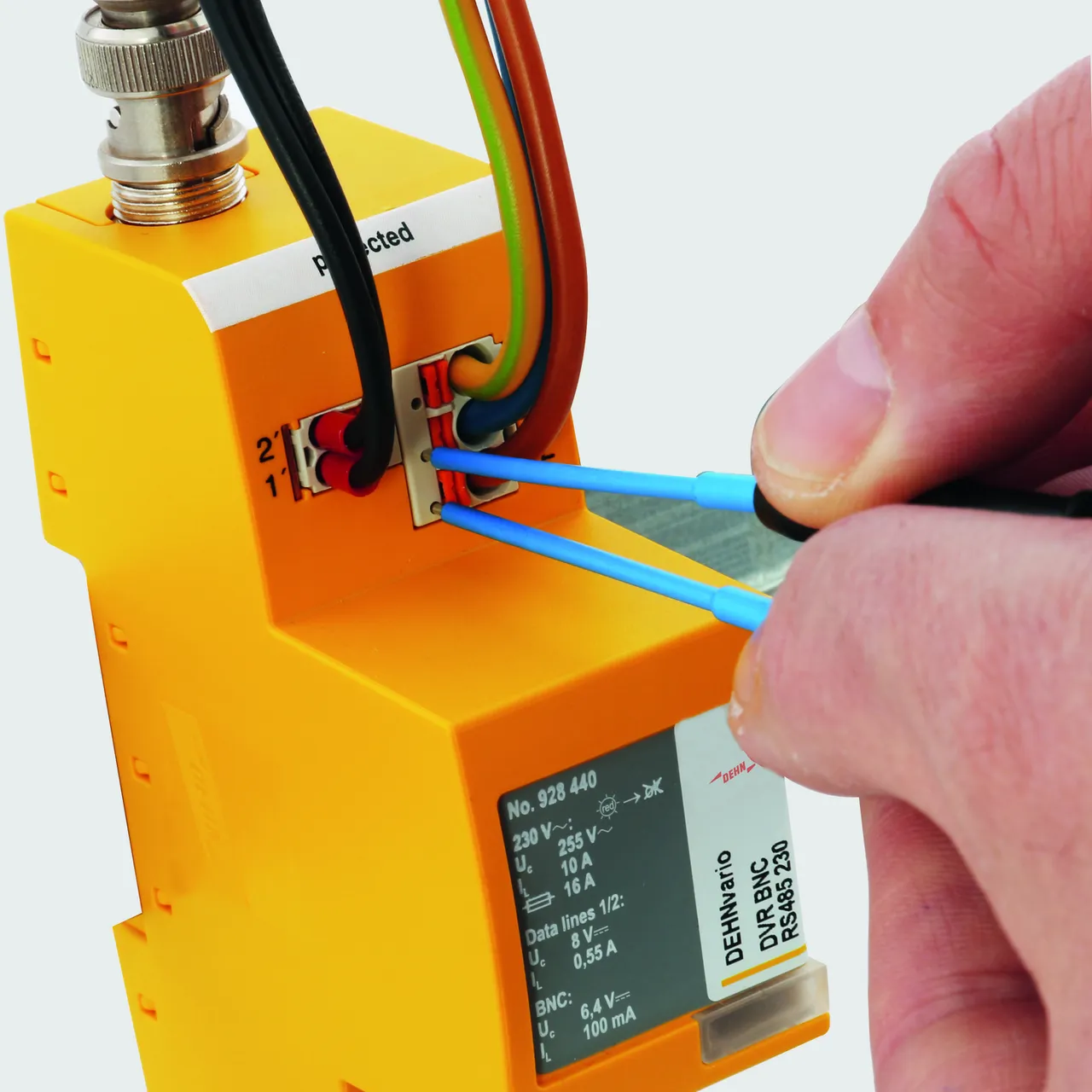

Integrated test ports for testing the signal circuit by means of test pins.

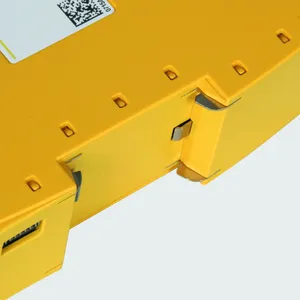

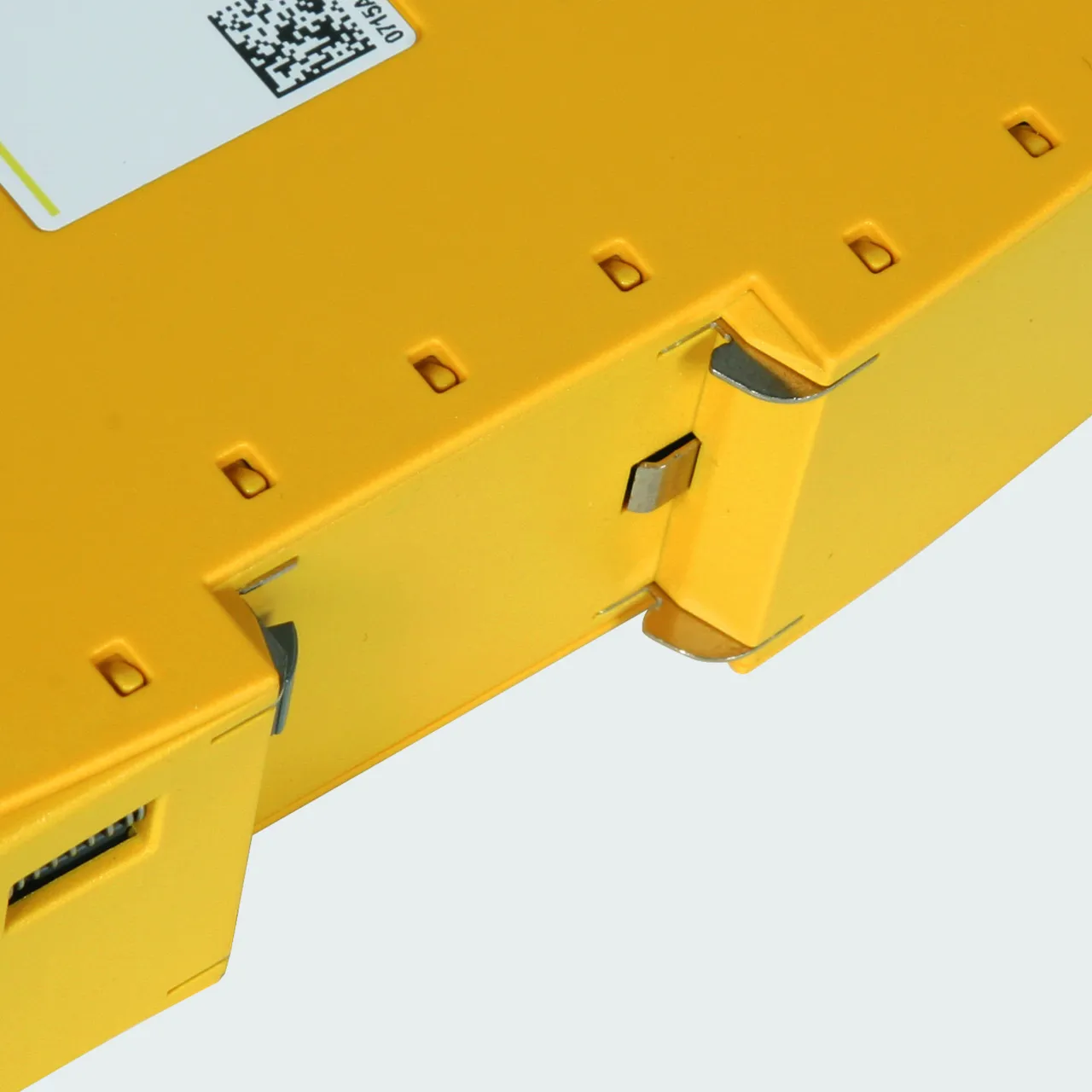

Lightning and impulse current carrying earth contact.

Fast arrester replacement by simply removing the terminal unit.

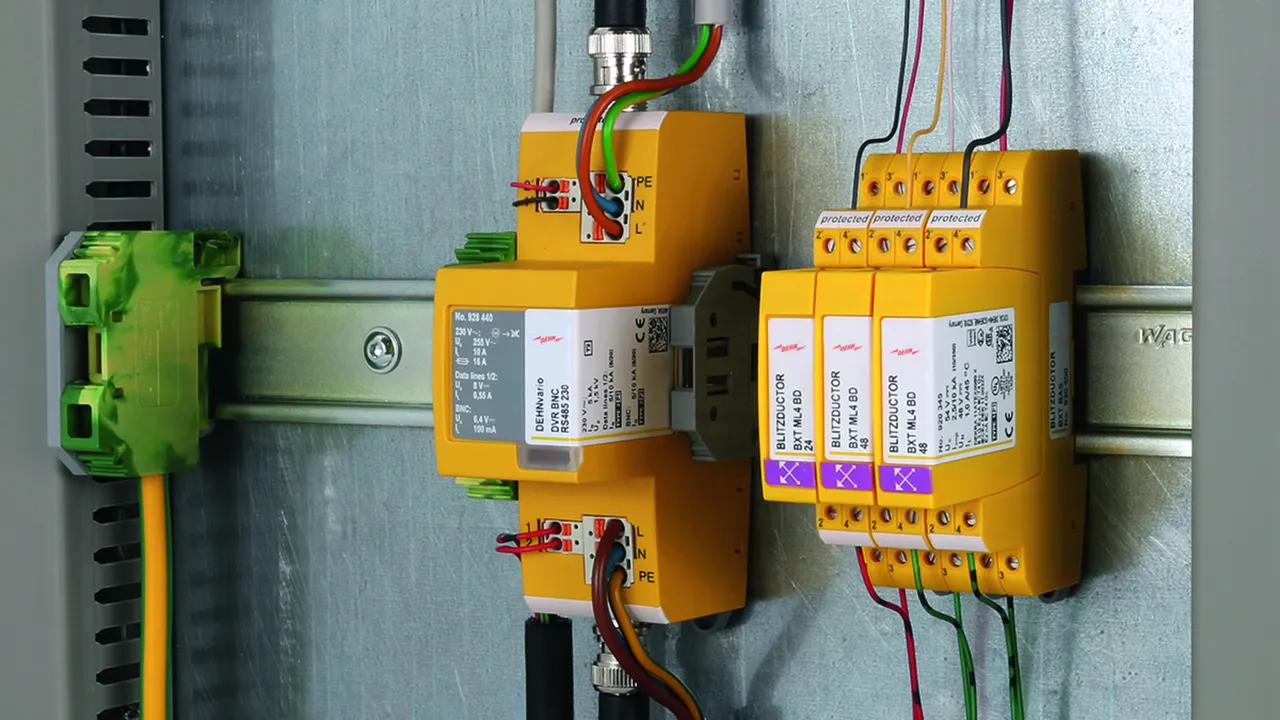

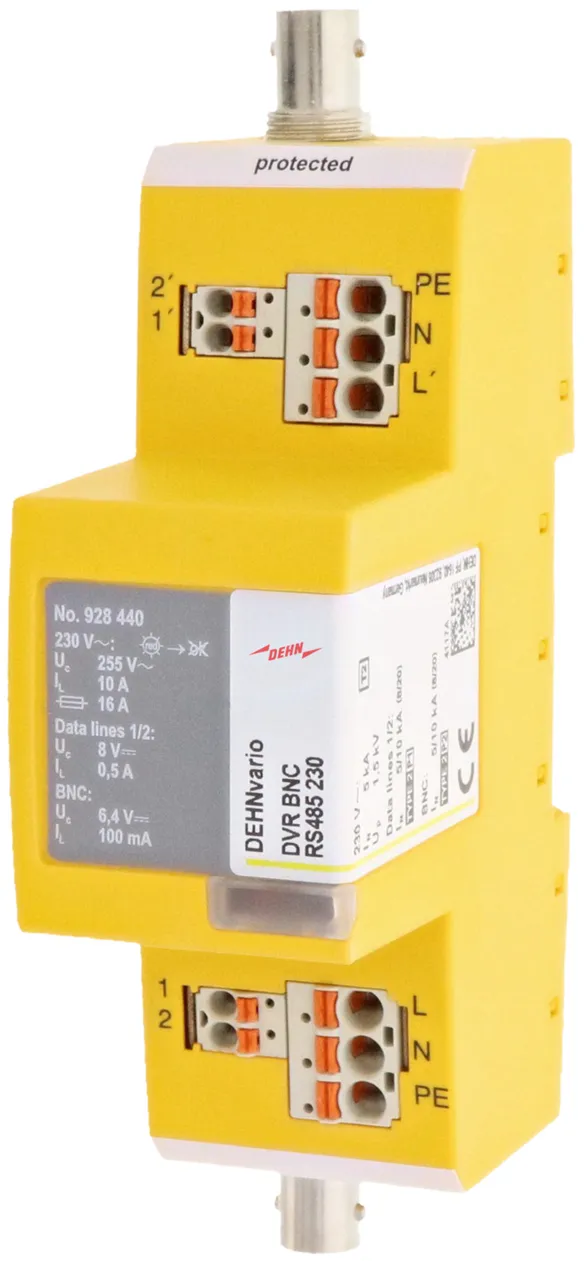

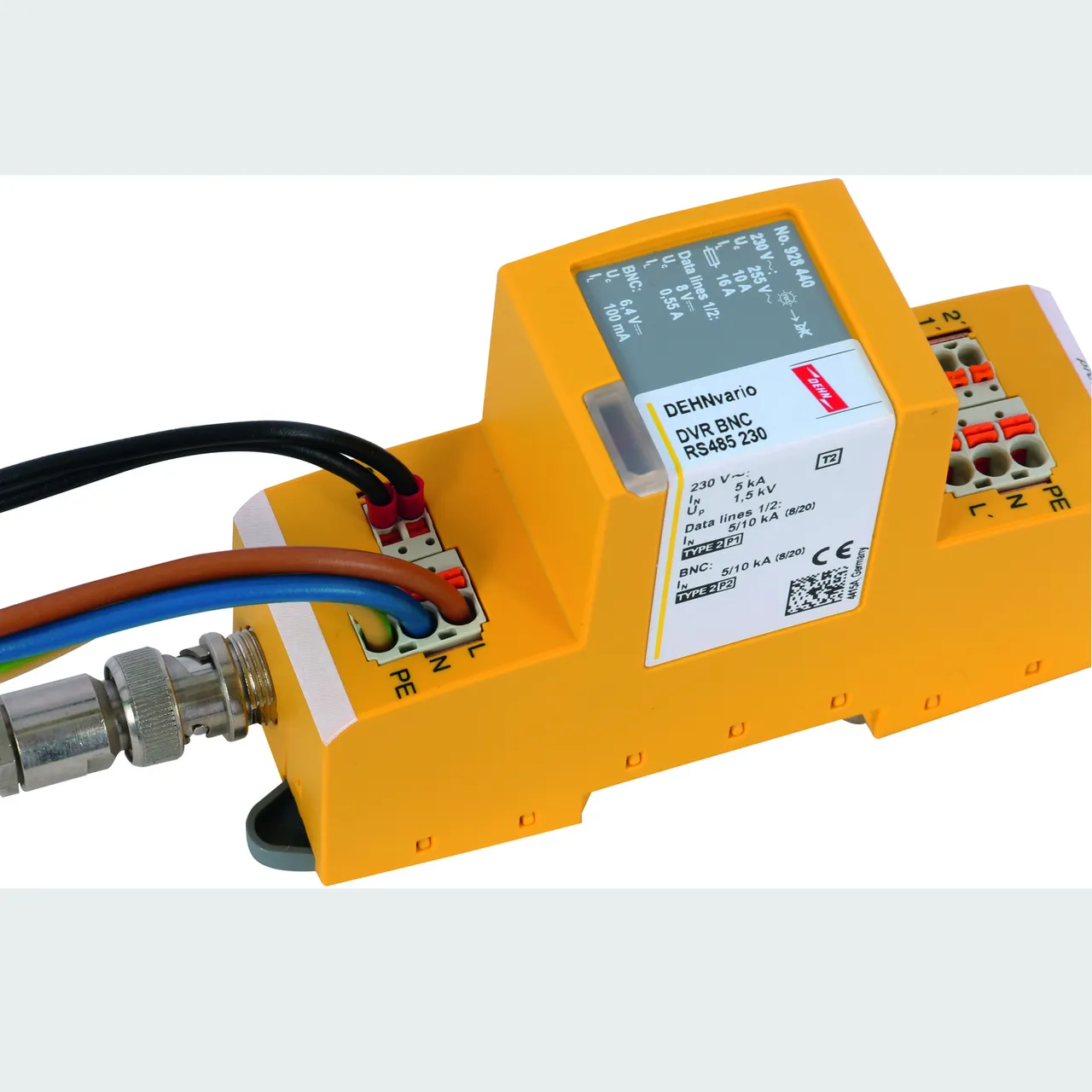

Sample solution: Compact 3-in-1 arrester for protecting 3 interfaces in a single device.

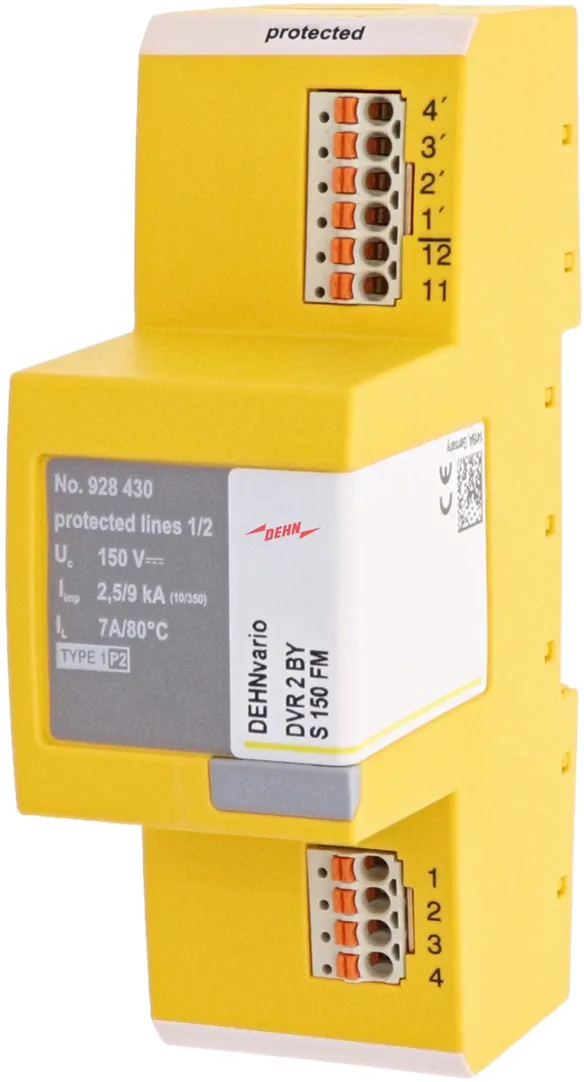

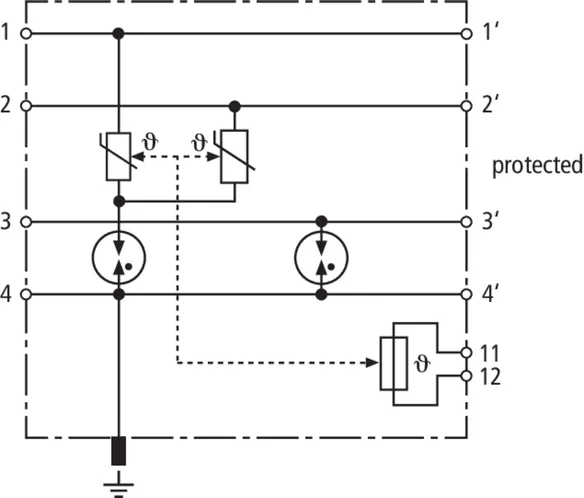

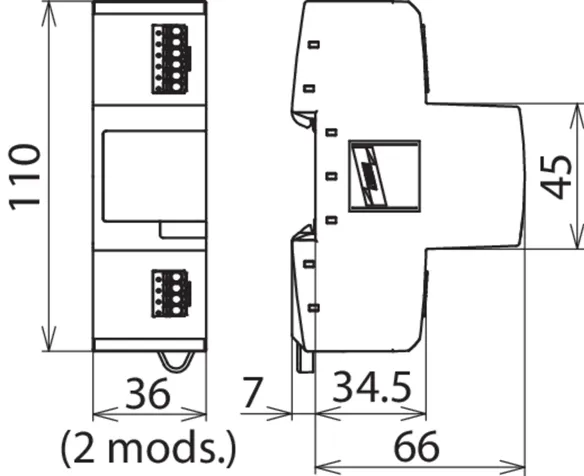

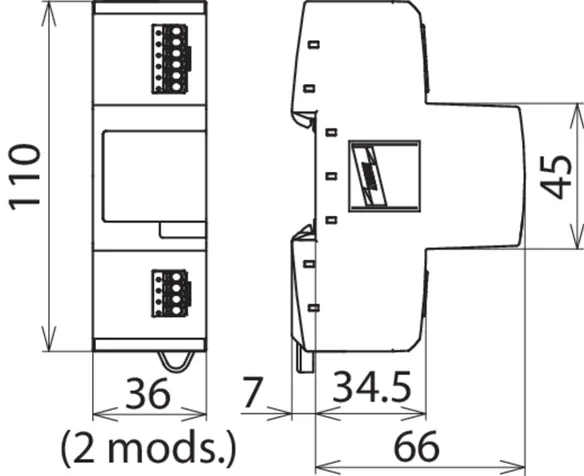

DVR 2 BY S 150 FM

Compact combined arrester for protecting electroacoustic systems (e.g. voice alarm systems, loudspeaker systems). Protection of one galvanically isolated pair; direct or indirect shield earthing. Direct plug-in technology allows fast conductor connection without tools. Easy replacement of the arrester is ensured by the integrated terminal units which can be released and then removed from the enclosure. Integrated remote signalling contact (break contact).

1 ??store.product_de??

??store.product.number.short_de?? 928430 DVR 2 BY S 150 FM

??store.product.gtin_de?? 4013364261389, ??store.product.customsTariffNumber_de??: 85363010, ??store.product.grossWeight_de??: 161.30 g, ??store.product.packaging_de??: 1.00 pc(s)
