Two-pole SPN voltage detector for the electrical trade and industry

  • Direct display system with low stress on the test point
  • Switchable vibration motor

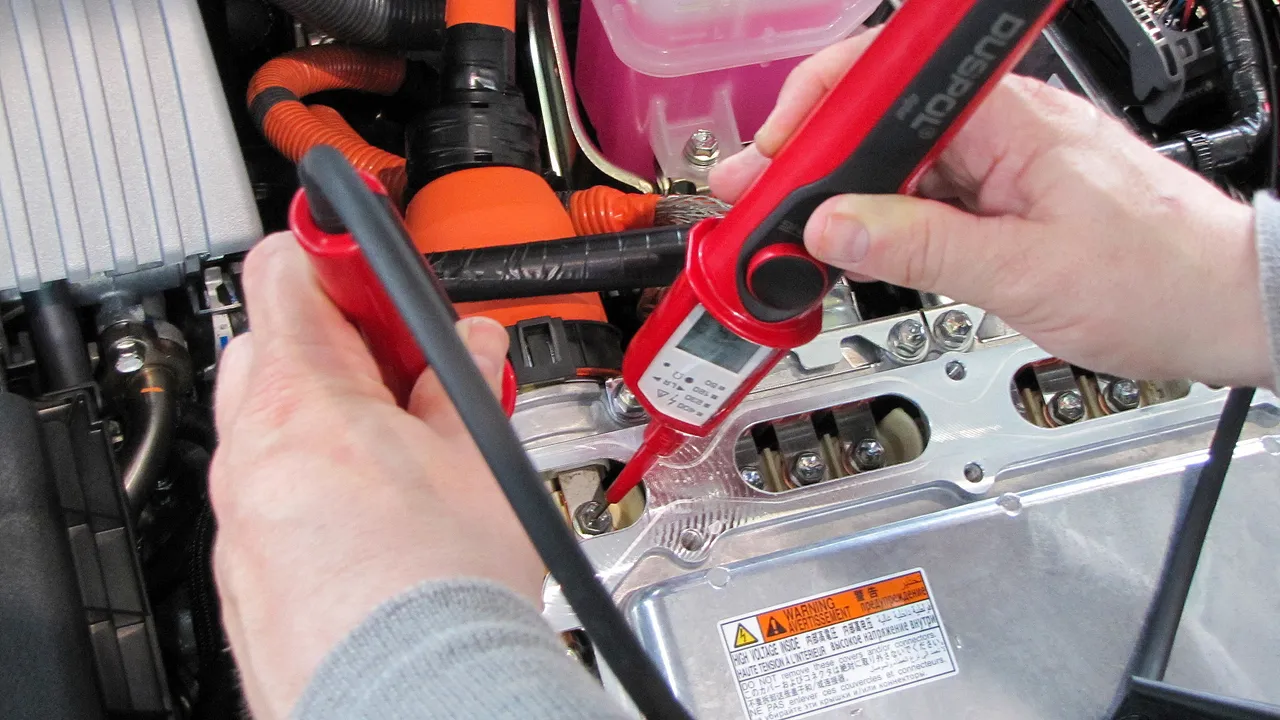

  • Ideal for voltage testing on photovoltaic and wind power plants; on hybrid vehicles; on high system voltages in industry; in service and in trades

Nominal voltage range 12 to 1,000 V AC/DC, analogue

1 ??store.product_de??

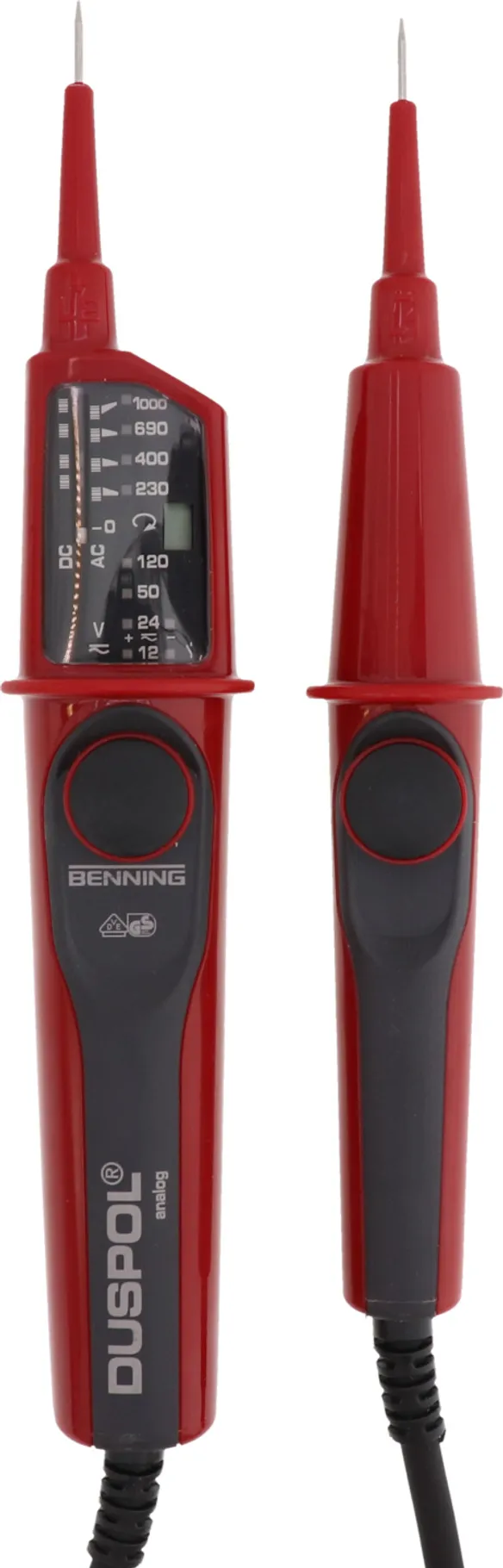

??store.product.number.short_de?? 700100 SPN 1000 A

??store.product.gtin_de?? 4013364500280, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 371.84 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Indicator Plunger coil (illuminated)/LED
Voltage range 12 V – 1000 V AC/DC
Frequency measurement range –
Acoustic and visual continuity test –
Diode test –
Resistance measuring range –
Rotating field test LCD (R icon)
Single-pole line conductor test (phase) LCD (R icon)
Polarity test LED (+/-)
Cable break detector –
Load switching via pushbutton IS = 550 mA (1000 V) 30 mA RCD trip
Vibration alarm yes
Measuring point lighting –

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Nominal voltage range 1 to 1000 V AC / 1200 DC, digital

1 ??store.product_de??

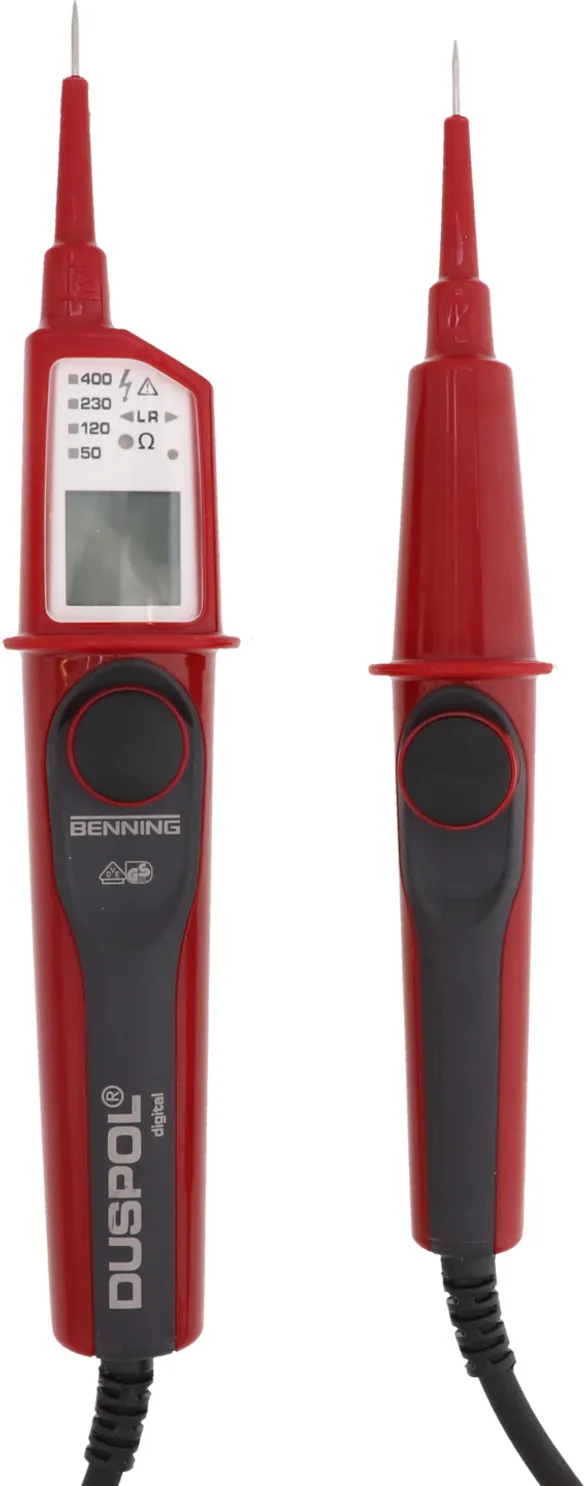

??store.product.number.short_de?? 700102 SPN 1200 D

??store.product.gtin_de?? 4013364500297, ??store.product.customsTariffNumber_de??: 90303370, ??store.product.grossWeight_de??: 400.25 g, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??

??store.product.certs_de??



??store.product.data_de??

Indicator LED/LCD (lights up)
Voltage range 1.0 V – 1000 V AC / 1200 V DC
Frequency measurement range 1 – 1000 Hz
Acoustic and visual continuity test Buzzer + yellow LED 0 – 100 kΩ
Diode test 0.3 – 2.0 V
Resistance measuring range 0.1 kΩ – 300 kΩ
Rotating field test Green LEDs (right/left)
Single-pole line conductor test (phase) Red "flash" LED
Polarity test LCD (+/-)
Cable break detector Yellow LED (flashing)
Load switching via pushbutton IS = 550 mA (1000 V) 30 mA RCD trip
Vibration alarm yes
Measuring point lighting White LED
