Insulating mats with dielectric strength 50 kV

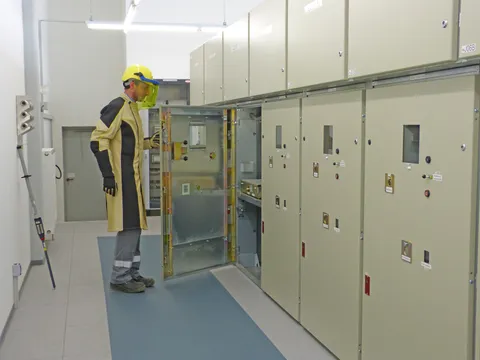

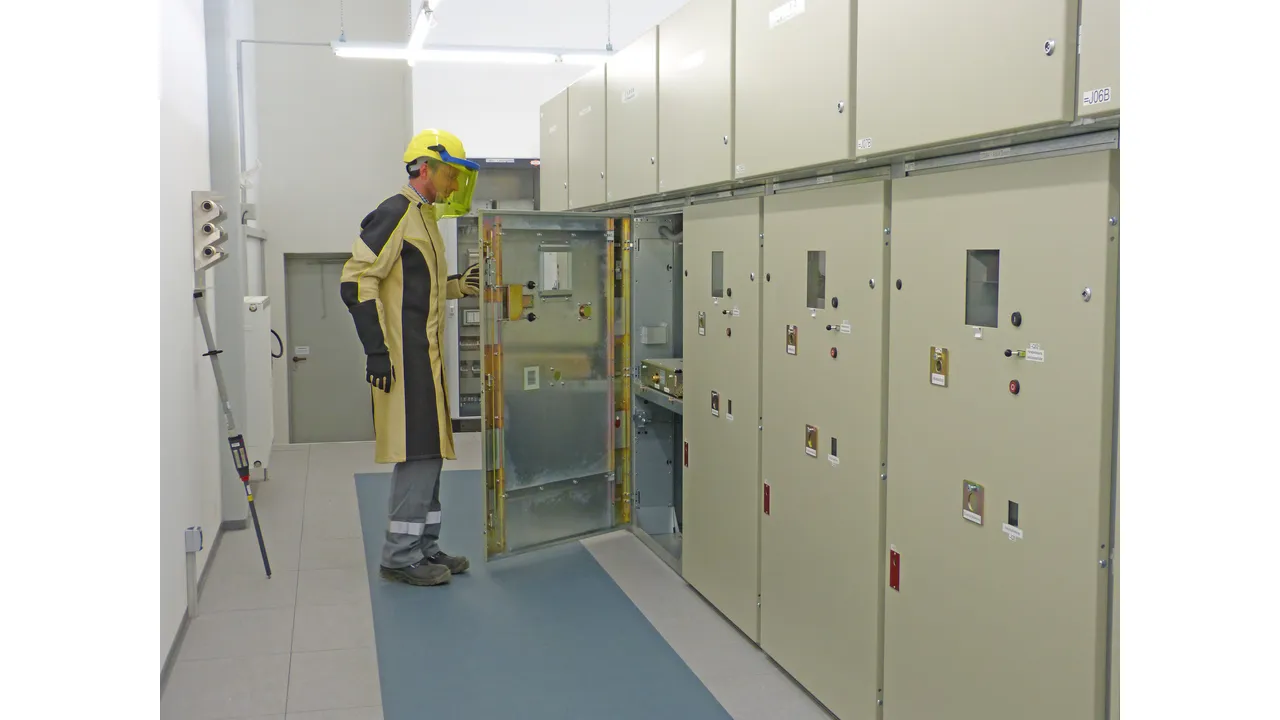

  • For use in electrical switch and test rooms
  • Not permitted as standing surface insulation for live working!
  • Rolled goods or cut to size

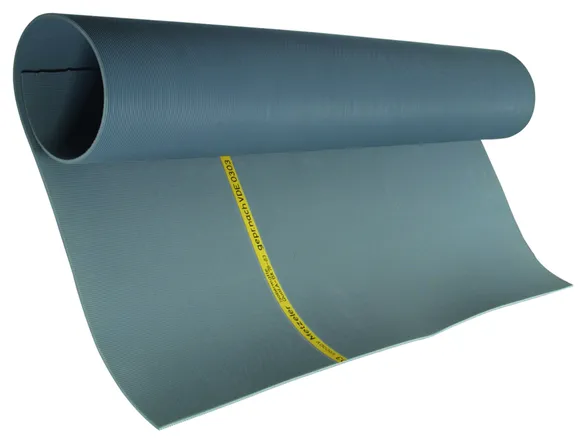

Insulating mat with a dielectric strength of 50 kV, rolled goods

1 ??store.product_de??

??store.product.number.short_de?? 785459 IMG SAN 1M 10M

??store.product.gtin_de?? 4013364115057, ??store.product.customsTariffNumber_de??: 40082190, ??store.product.grossWeight_de??: 56.00 kg, ??store.product.packaging_de??: 1.00 pc(s)

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage up to (UN ) 50 kV
Material Polymer NR/SBR
Temperature resistance -55 °C ... +70 °C
Length 10 m
Width 1000 mm
Thickness 4.5 mm
Colour Grey ●
Standard VDE 0303-21

??store.notepad.add.feedback_de??

??store.notepad.goTo_de??

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Insulating mat with a dielectric strength of 50 kV, cut to size

1 ??store.product_de??

??store.product.number.short_de?? 785458 IMG SAN 1M ..M

??store.product.gtin_de?? 4013364115064, ??store.product.customsTariffNumber_de??: 40082190, ??store.product.grossWeight_de??: 5.80 g/mm, ??store.product.packaging_de??: 500.00 mm

??store.product.slides_de??

??store.product.additional_de??



??store.product.data_de??

Nominal voltage up to (UN ) 50 kV
Material Polymer NR/SBR
Temperature resistance -55 °C ... +70 °C
Length up to 10 m *)
Width 1000 mm
Thickness 4.5 mm
Colour Grey ●
Standard VDE 0303-21
Minimum order length 1000 mm
*) Length to be specified when ordering!
Note: Can only be supplied in 500 mm increments.
