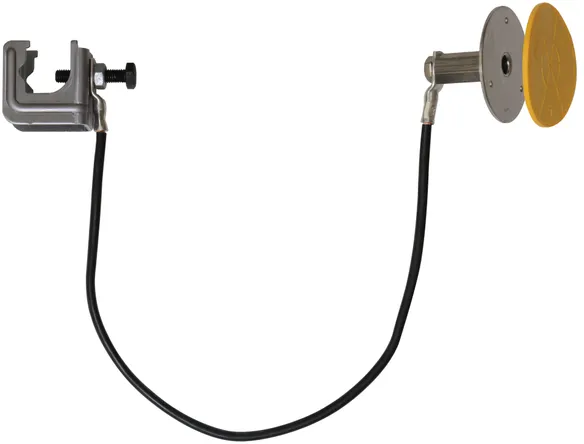

Fixed earthing terminals with flexible connection clamp

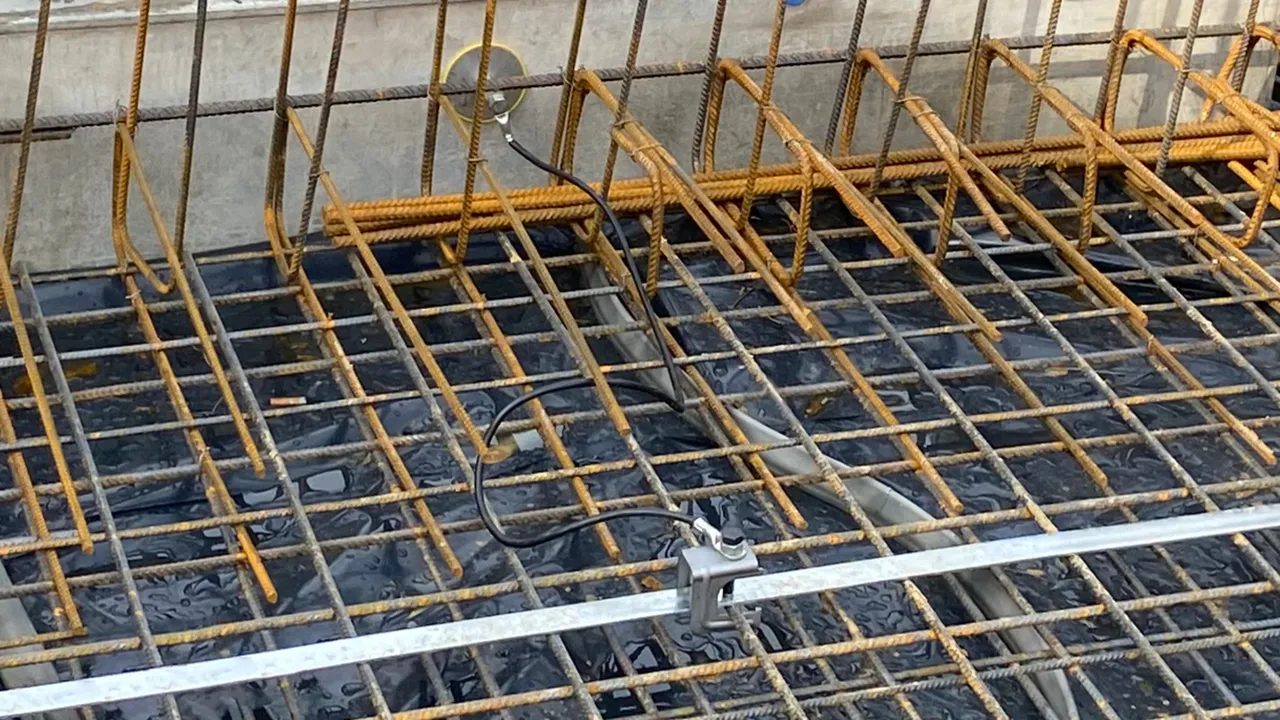

For installation in concrete as a flexible corrosion-free connection to the earth-termination system for protective equipotential bonding and/or functional equipotential bonding of the down conductor, e.g. to the reinforcement of buildings.
Flexible connecting cables up to 1,000 mm in length allow for maximum flexibility between the external connecting point and the internal connection.

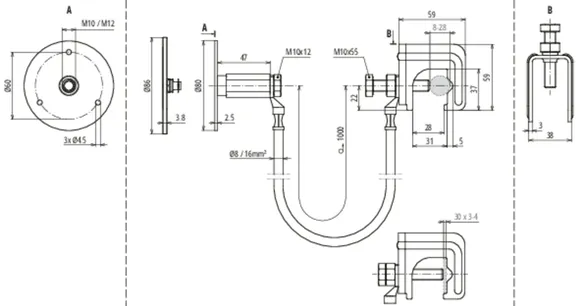

The universal connecting clamp allows for the connection of reinforcing bars and round material of 8-28 mm, as well as flat material with a gauge of 30x3.5 mm or more.
Please observe the following minimum screw lengths for the M10 and M12 double threads:
35 mm for M10 (thread length 40 mm)
15 mm for M12 (thread length 20 mm)

2 ??store.products_de??

??store.product.number.short_de?? 416940 UES 16 L600 VK RD8 28 FL30 EFP

??store.product.gtin_de?? 4013364360280, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 530.00 g, ??store.product.packaging_de??: 25.00 pc(s)
