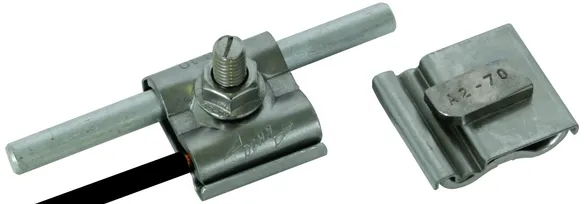

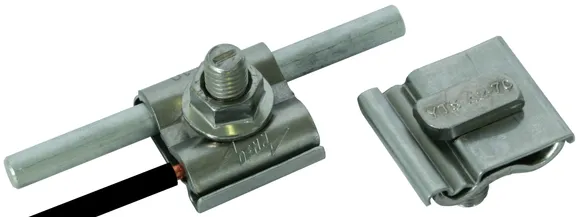

UNI Earthing Clamps

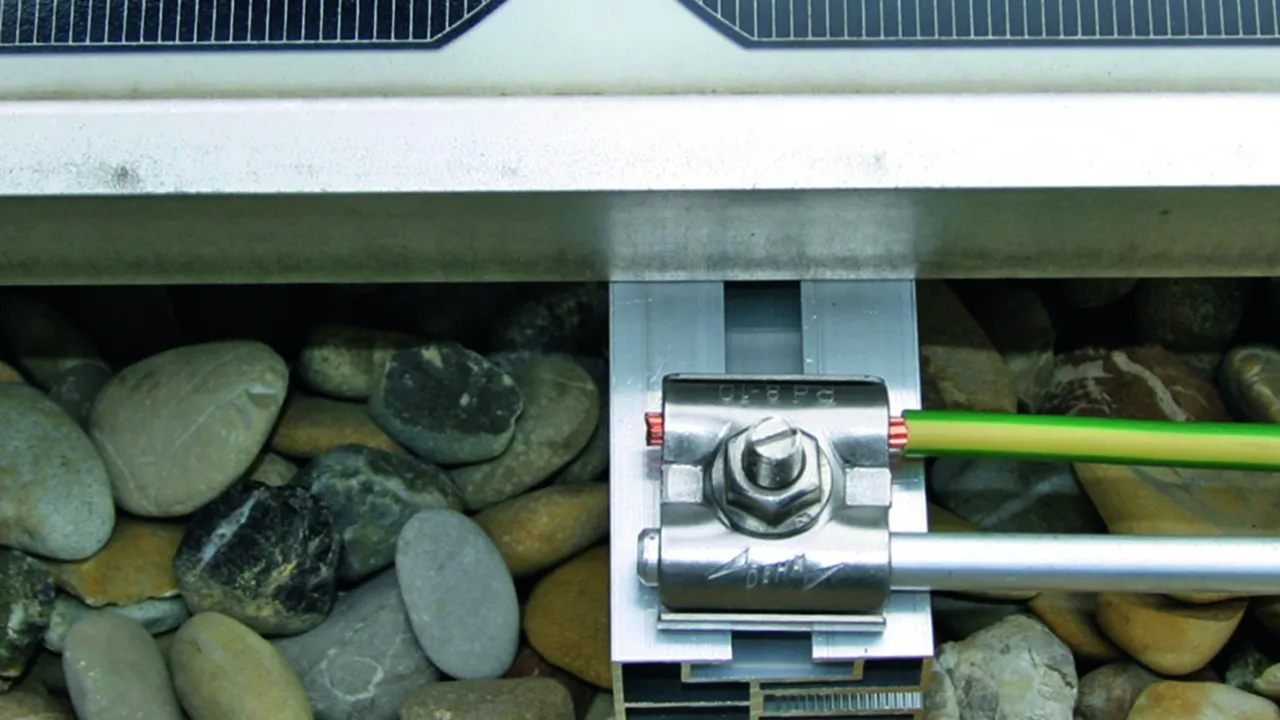

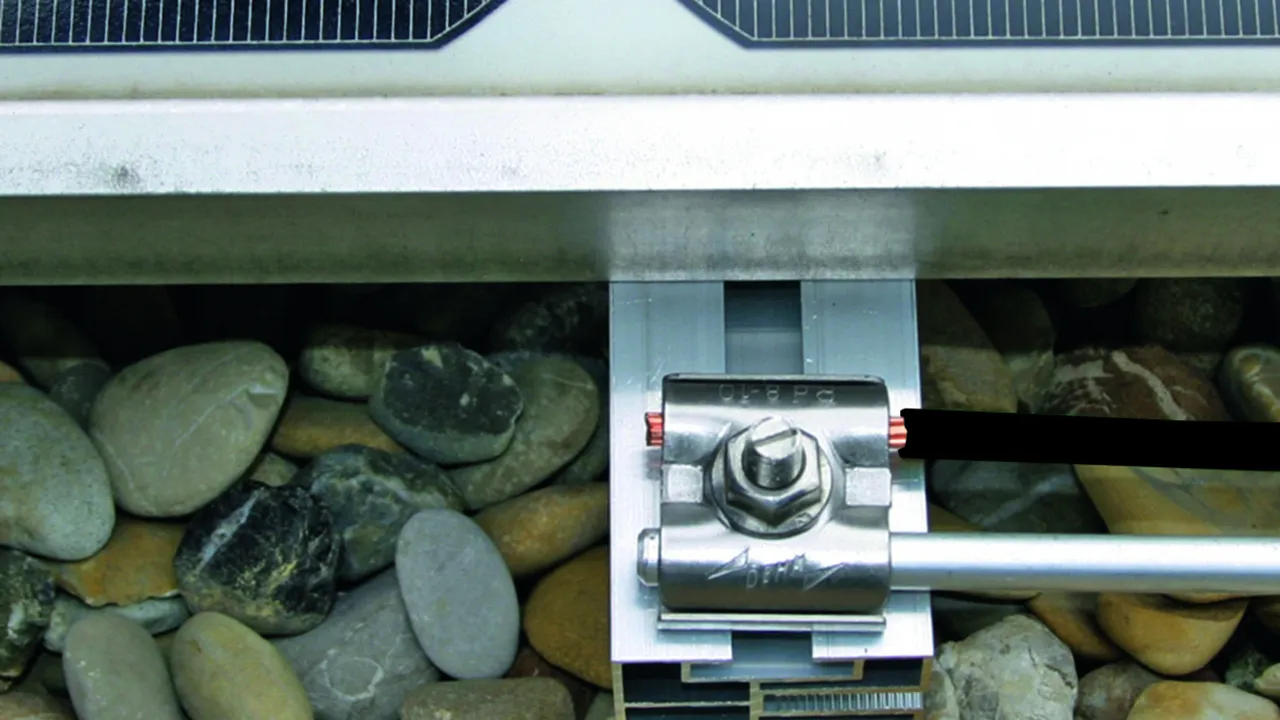

For integrating the mounting systems, e.g. of PV installations into the functional equipotential bonding / functional earthing (possibly black conductor) and lightning equipotential bonding according to IEC/EN 62305-3.

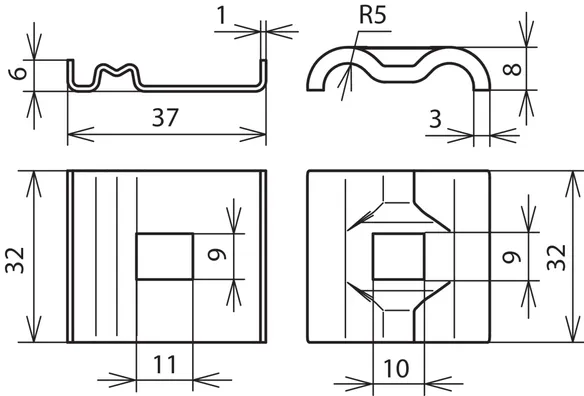

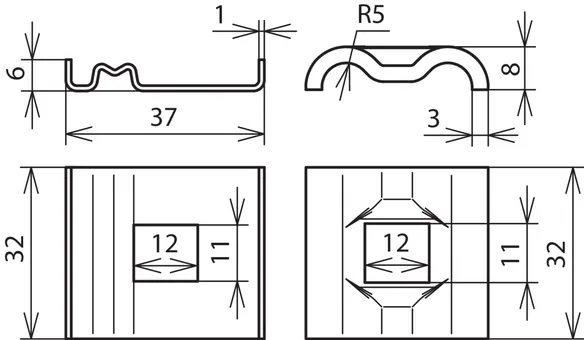

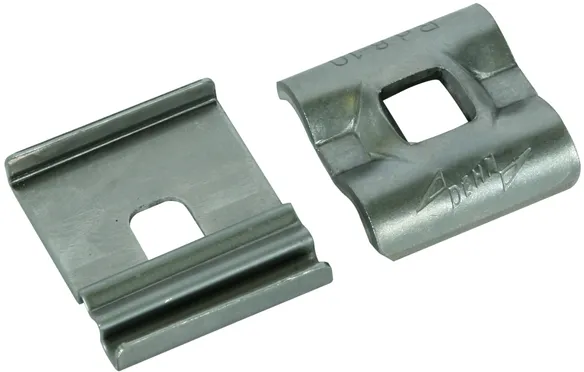

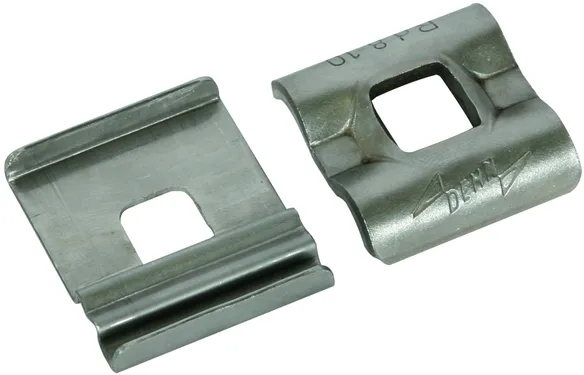

The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.

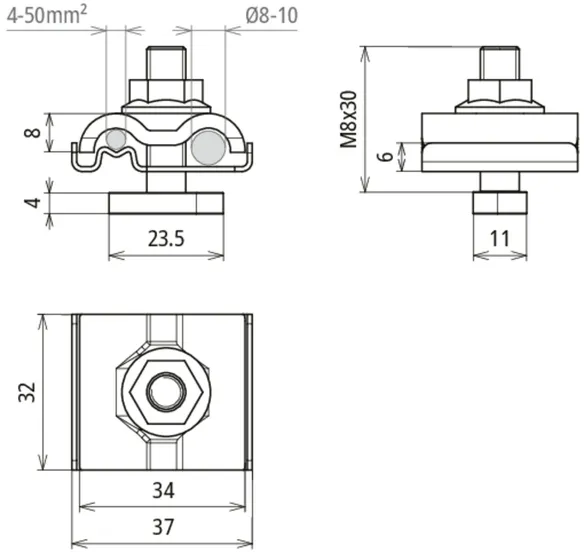

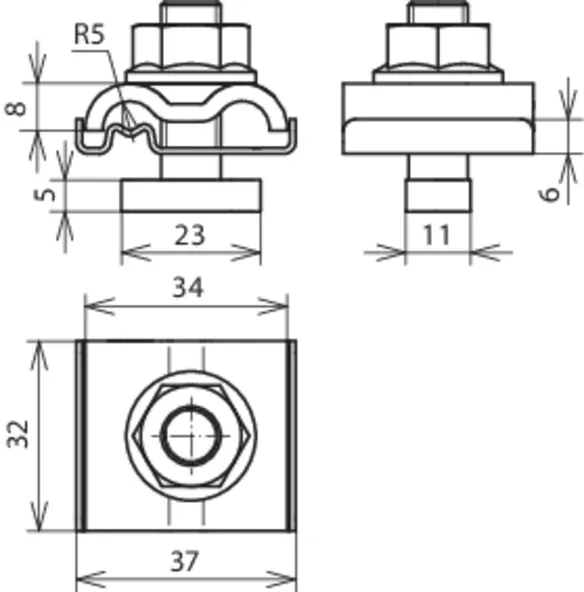

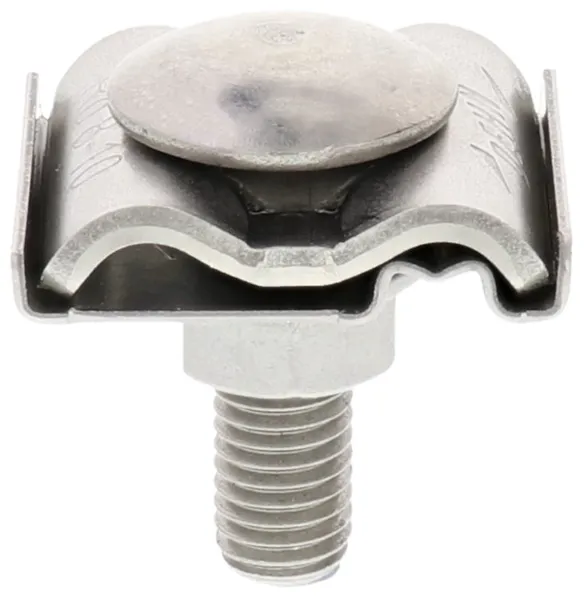

With M8 hammer-head bolt and self-locking nut

2 Products

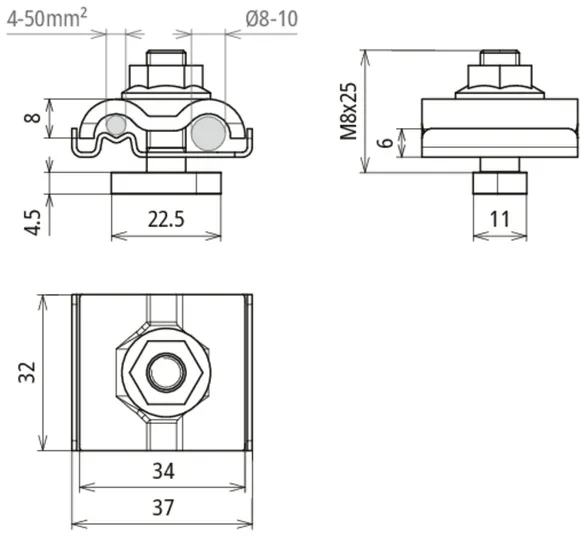

Part No. 540249 UEK 8.10 AQ4 50 HKSM8X25 V2A

GTIN 4013364512320, Customs tariff No. (EU): 85359000, Gross weight: 59.02 g, PU: 50.00 pc(s)
