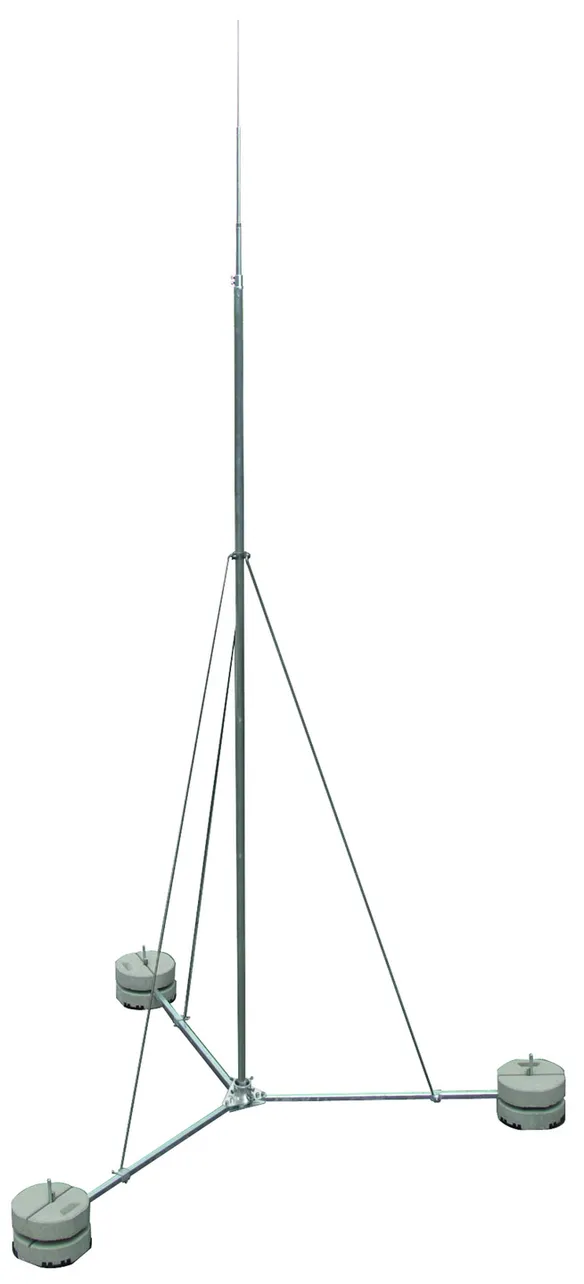

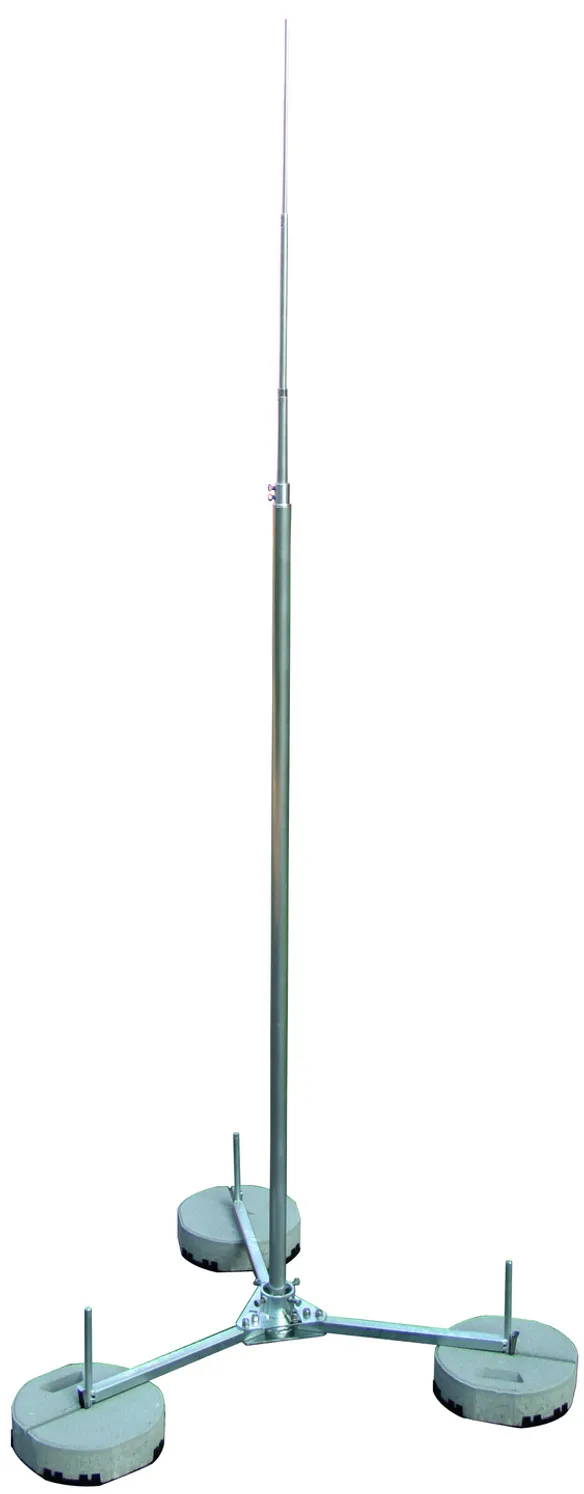

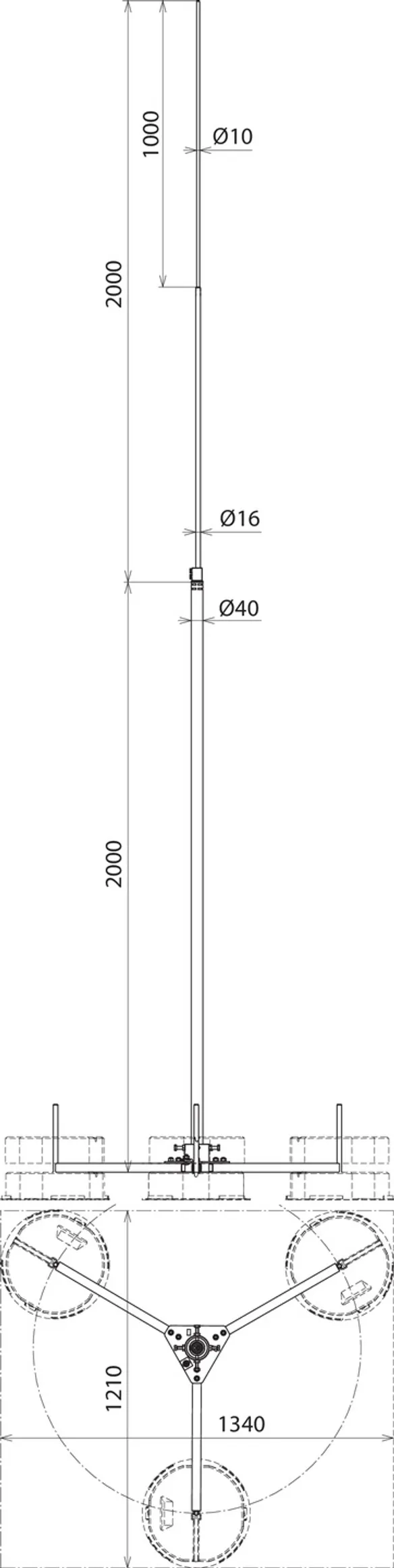

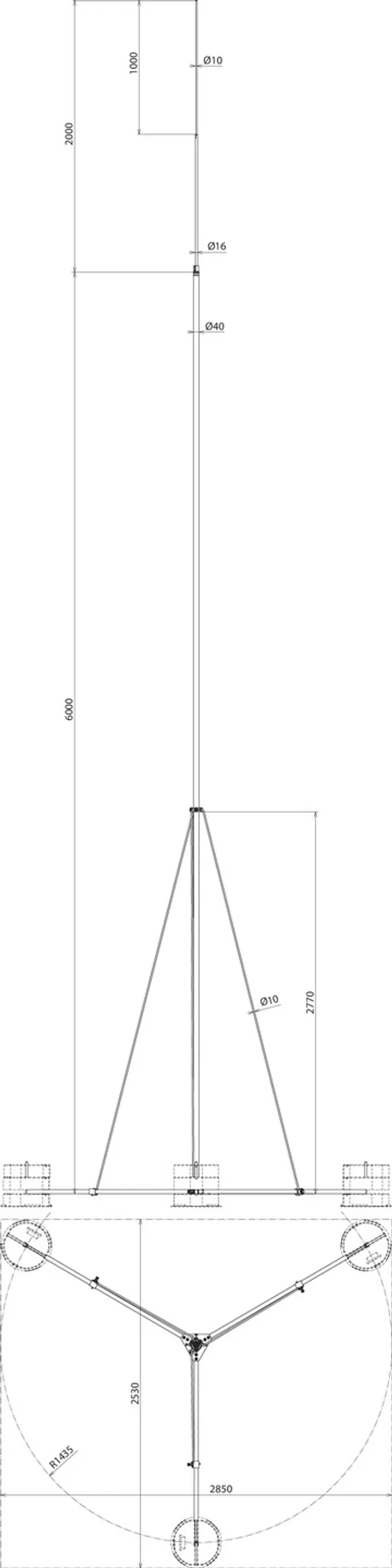

Self-supporting Air-Termination Rods 4 to 9 m

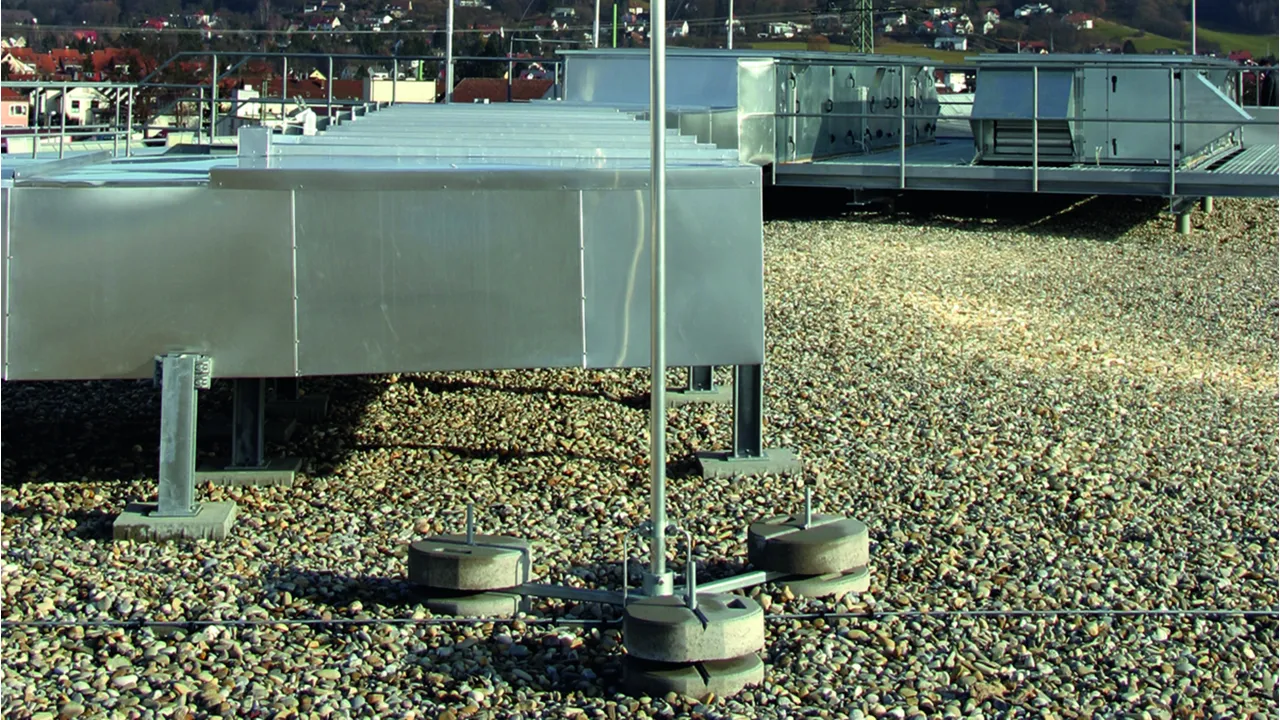

Self-supporting air-termination rods with hinged tripod for protecting larger roof-mounted structures, adjustable to the roof inclination up to max. 10°.

The stackable concrete base (Part No. 102 010) and the base plate (Part No. 102 050) have to be ordered separately.

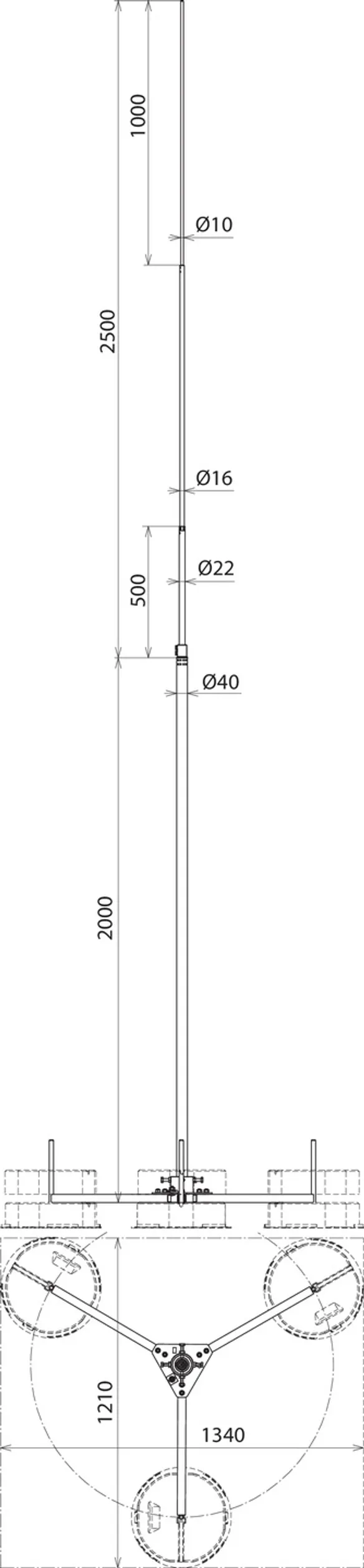

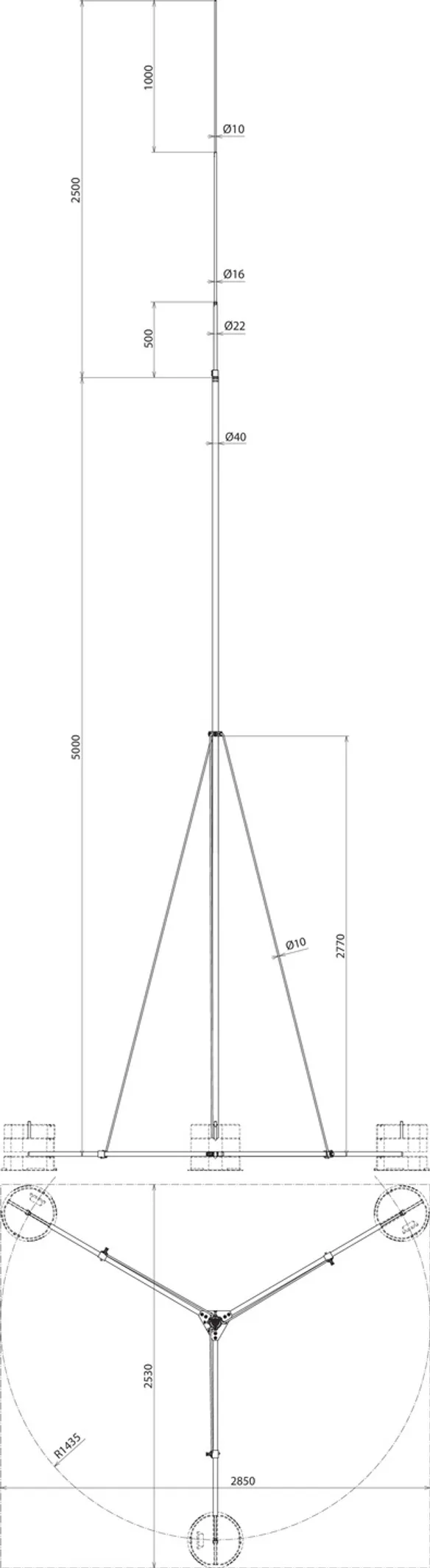

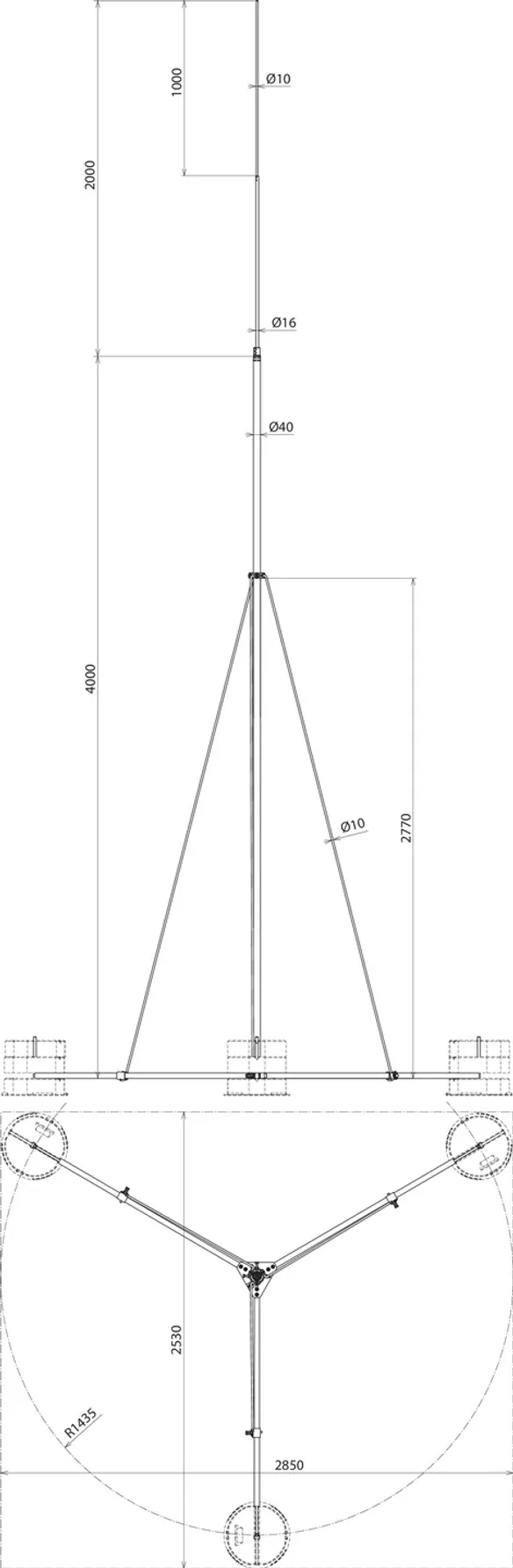

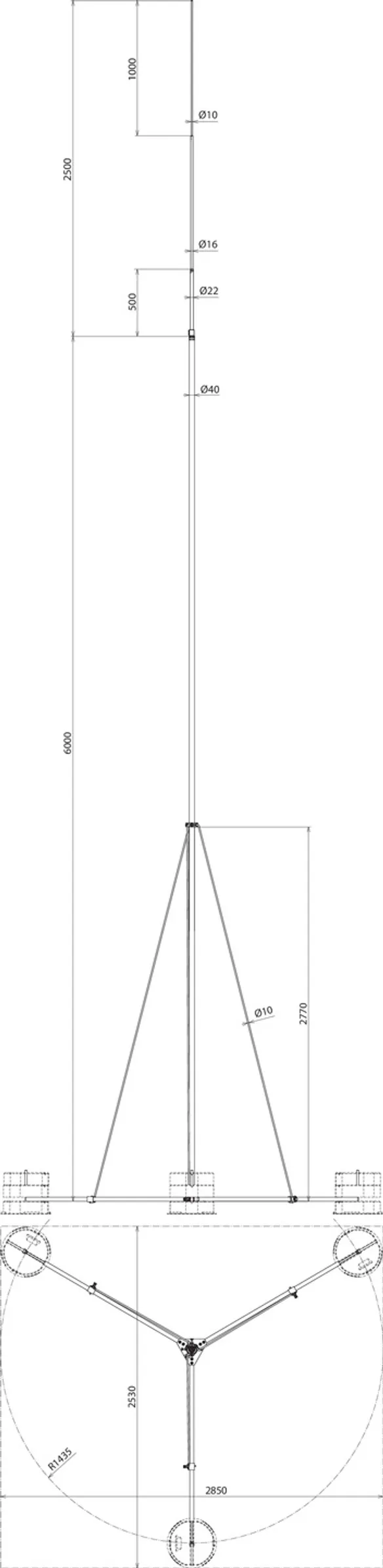

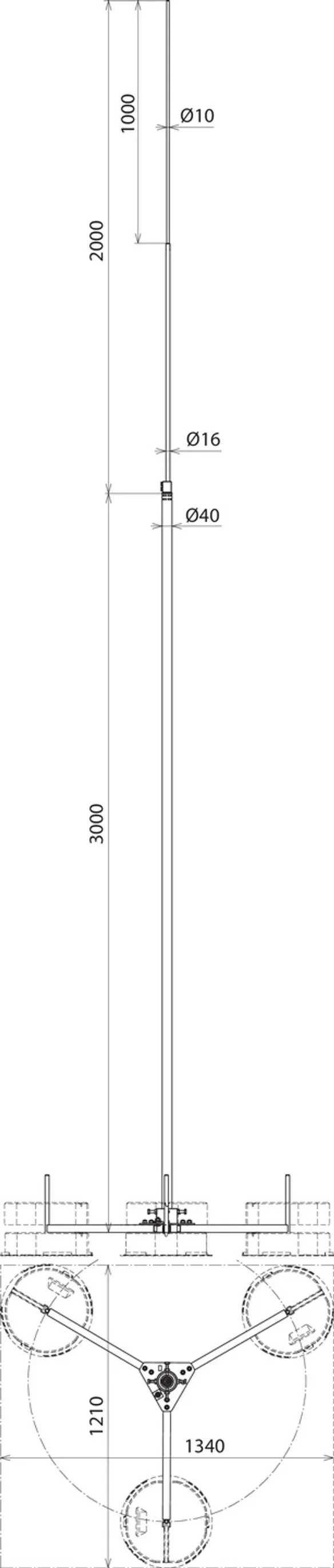

Components:
– Tube Ø40 x 5 mm

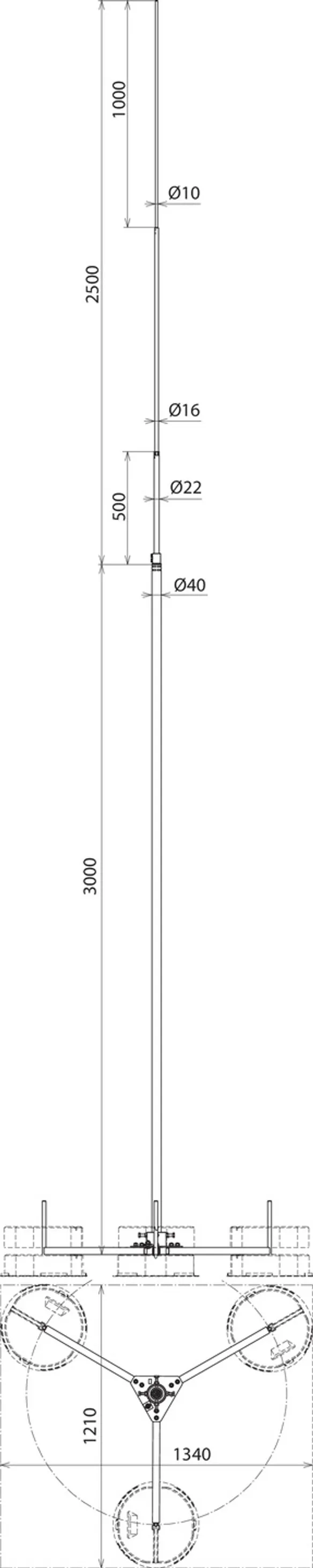

– Tubular air-termination rod tapered Ø16 / 10 mm; optionally Ø22 / 16 / 10 mm
– Double clamp for 2x Rd 8-10 mm
– Tripod for concrete bases with fixing wedge

Note: Permissible roof loads have to be considered and checked with the constructor where required.

Height up to 5.5 m

4 Products

Part No. 105400 FS D40 16 10 4000 AL DBS KB STTZN

GTIN 4013364094383, Customs tariff No. (EU): 85389099, Gross weight: 13.40 kg, PU: 1.00 pc(s)
