Roof Conductor Holders with Adhesive Pad

For installing air-termination systems, e.g. on trapezoidal roofs.
The conductor holder can be used on smooth (unstructured) surfaces such as metal roofs / metal surfaces. The conductor holders are stuck to the roof (remove protective backing).

Clean the surface with the special cleaning liquid (Part No. 297 199) as indicated in the installation instructions.
One litre of the special cleaner is sufficient for approx. 1000 adhesive pads.
The roof conductor holders shall be installed at a temperature of ≥ +15 °C.
Robust, weather-resistant and UV-stabilsed type, halogen-free.

DEHNsnap conductor holder with formable aluminium brace

1 Product

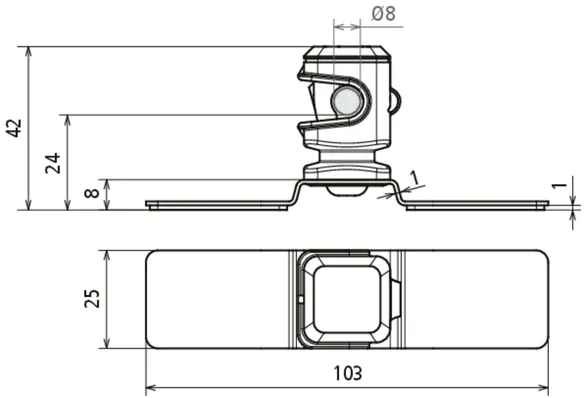

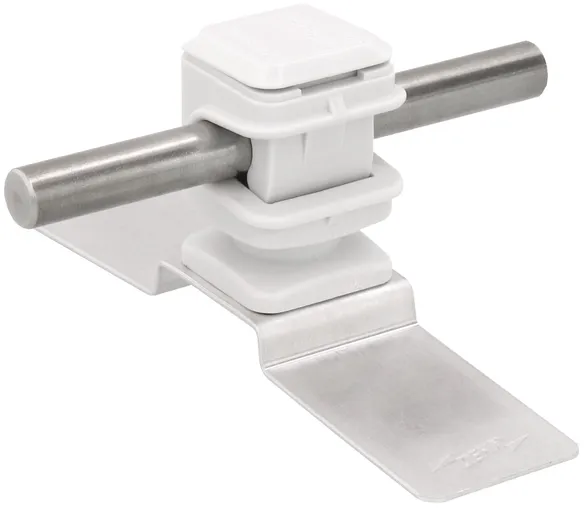

Part No. 297130 DLH DS 8 H16 KP K AL

GTIN 4013364492523, Customs tariff No. (EU): 85389099, Gross weight: 19.84 g, PU: 50.00 pc(s)
