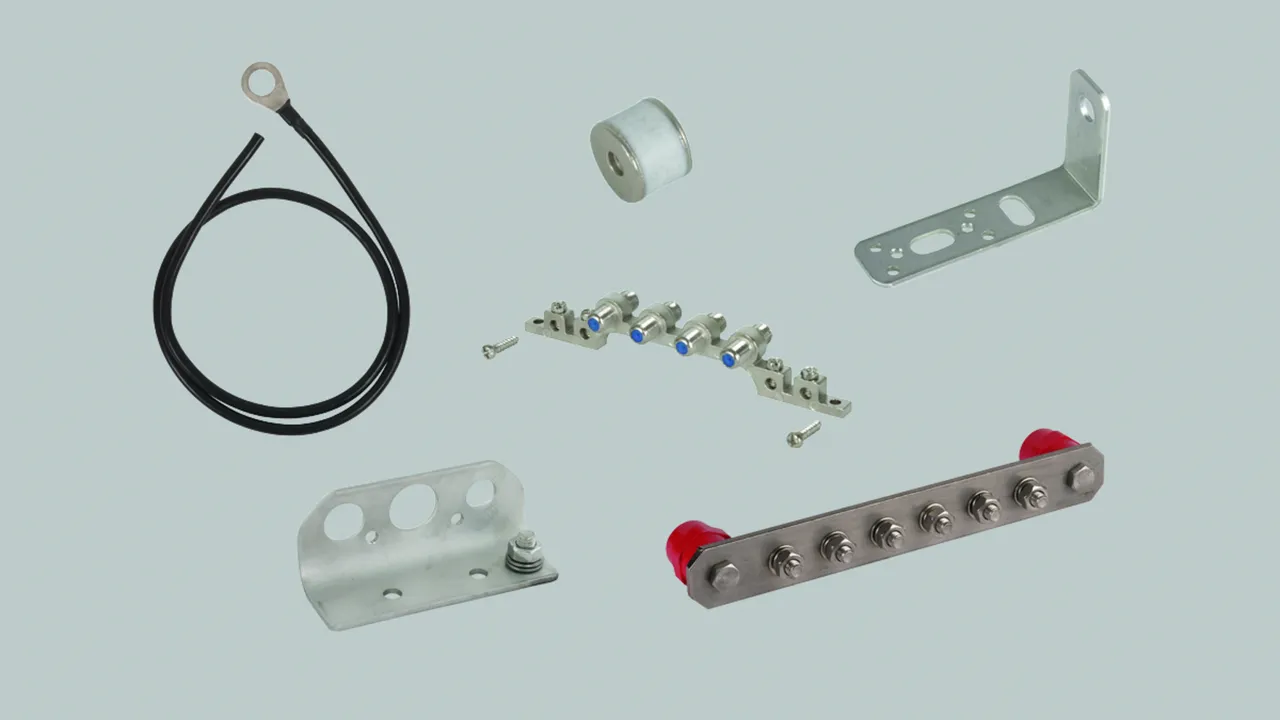

Accessories for DEHNgate

Cable Lug with Earthing Cable

Cable lug with highly flexible black copper earthing cable for earthing DEHNgate arresters (Part No. 929 043, 929 044 or 929 045).

1 Product

Part No. 929096 EL 16 B17

GTIN 4013364107212, Customs tariff No. (EU): 85444991, Gross weight: 202.70 g, PU: 1.00 pc(s)

Images

Additional information

Cable lug with earthing cable for earthing DEHNgate EL 16 B17
Cable lug with hole diameter 17 mm2 and black
highly flexible copper earthing conductor 1 m long
for earthing DEHNgate

Brand: DEHN
Type: EL 16 B17
Part No.: 929096
or equivalent.

Technical data

Colour	black ●
Length	1000 mm

Product 929096 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Earthing Block 4xF

Four-pole earthing block with F sockets for equipotential bonding of satellite cable shields or DGA GF TV lightning current arresters.

1 Product

Part No. 929095 EB 4 F

GTIN 4013364113398, Customs tariff No. (EU): 85389099, Gross weight: 90.00 g, PU: 1.00 pc(s)

Images

Additional information

EB 4 F earthing block 4xF
Four-pole earthing block with F-sockets at the input and output, for equipotential bonding of up to 4 satellite cable shields or DGA GF TV lightning current arresters.
Shielding: class A, 75 ohms
Max. continuous operating voltage (d.c.): 65 V
D1 Lightning impulse current (10/350 µs): 10 kA
Frequency range: 0-2400 MHz

Brand: DEHN
Type: EB 4 F
Part No.: 929095
or equivalent.

Certificates

Technical data

D1 Lightning impulse current (10/350 µs)	10 kA
Colour	bare surface

Max. continuous operating voltage (d.c.)	65 V
Nominal current (I_L )	2 A
D1 Lightning impulse current (10/350 µs)	10 kA
Frequency range	0-2400 MHz
Insertion loss	typically 0.2 dB
Return loss	≥ 20 dB
Shielding 30-2400 MHz (class A)	≥ 90 dB
Characteristic impedance	75 ohms
Operating temperature range (T_U )	-40 °C ... +70 °C
For mounting on	wall
Connection (input/output)	F socket / F socket
Earthing via	4x screw connection for wires up to max. Ø4 mm
Enclosure material	metal
Colour	bare surface

Product 929095 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Fixing bracket for HF Arresters

With three mounting boreholes for three different sizes of DEHNgate arresters, e.g. 1x 929 042 + 1x 929 057 + 1x (929 043, 929 044, 929 045 or 929 059).

1 Product
