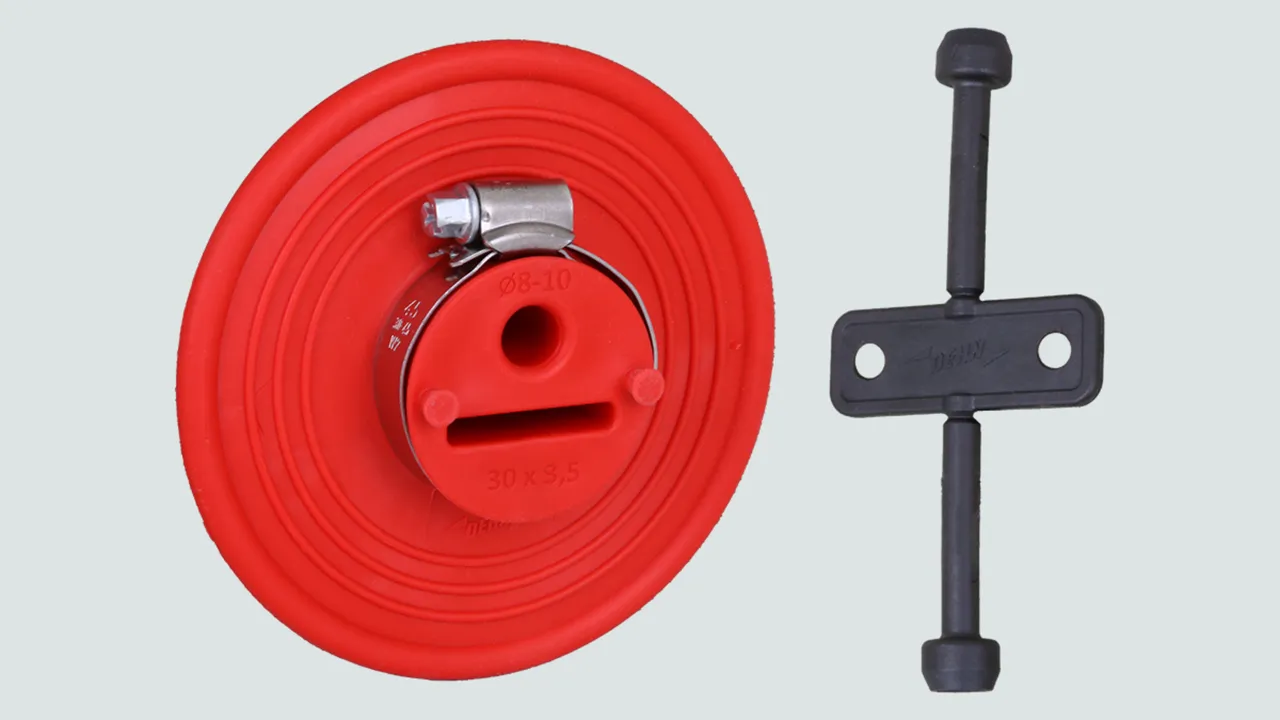

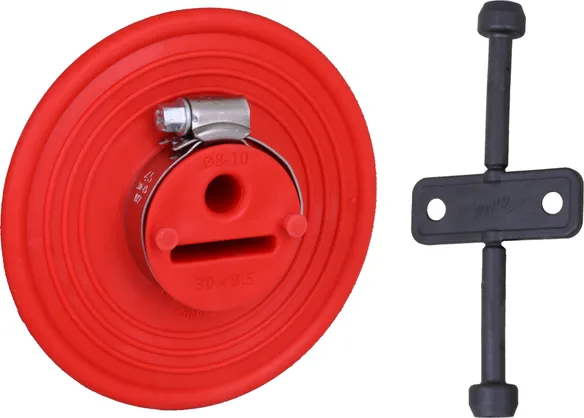

Sealing collar for round and flat conductors

Water-pressure-tight sealing collar for round conductors (Ø8-10 mm) and flat conductors (30 x 3.5 mm) with waterproof foundation slabs / walls (e.g. watertight concrete constructions).

With torque control spanner for easy tightening of the two stainless steel tensioning straps.

MPA-tested to 5.0 bar, methane-resistant, radon-safe (as per FHRK leaflet MB 101).

Waterproof concrete construction guideline: Load class 1 + 2.

For round and flat conductors

1 Product

Part No. 478597 DM RD8.10 FL30X3.5 D114MM TPE

GTIN 4013364523029, Customs tariff No. (EU): 40169300, Gross weight: 182.50 g, PU: 12.00 pc(s)
