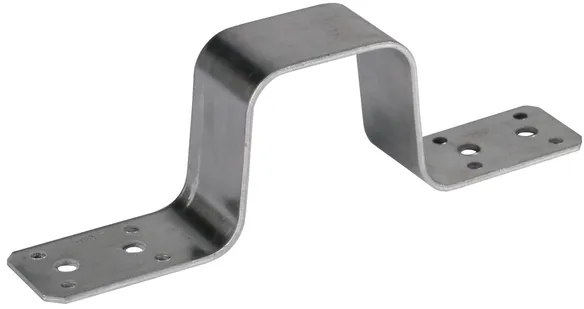

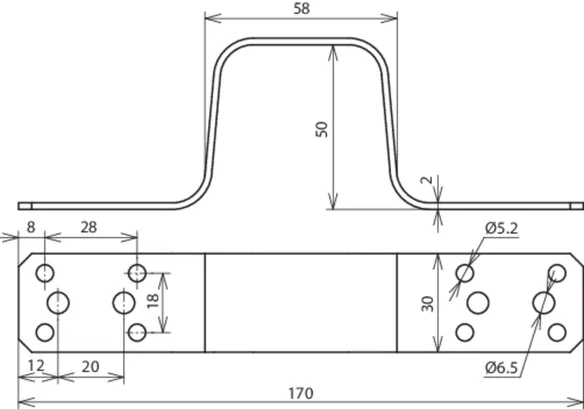

Bridging Brackets

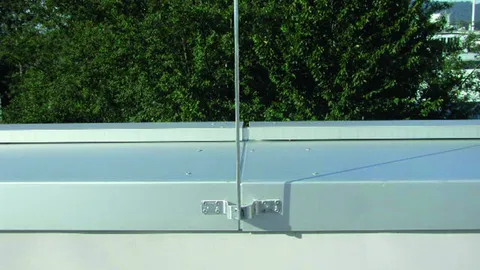

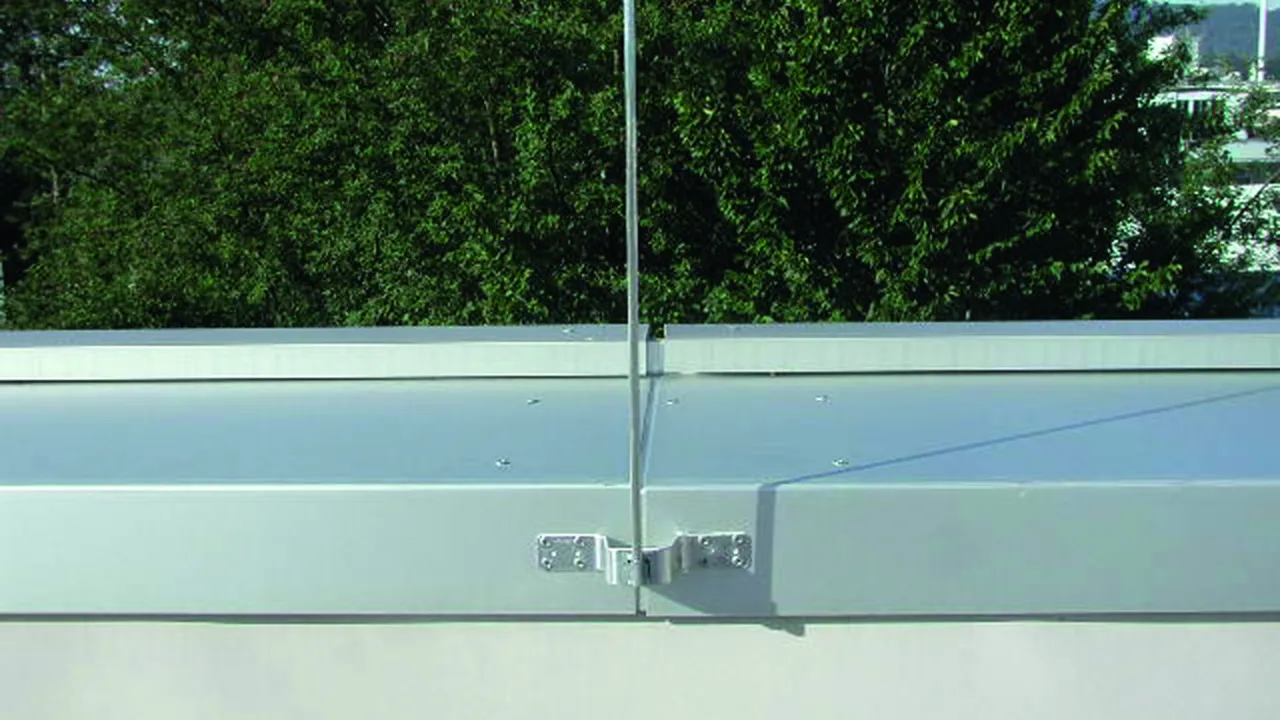

For connection (riveting or screwing) of metal cladding.

Application note:
According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt self-tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.

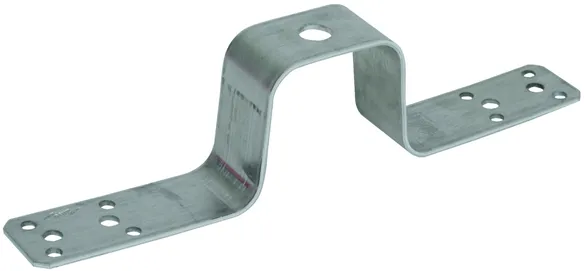

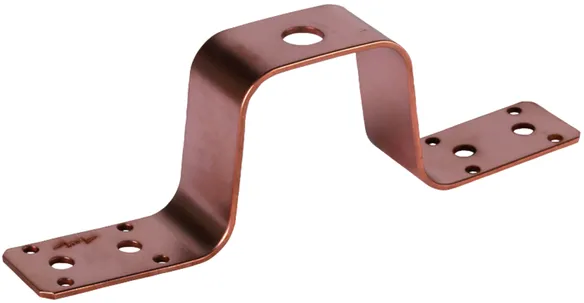

Short design with middle hole

2 Products

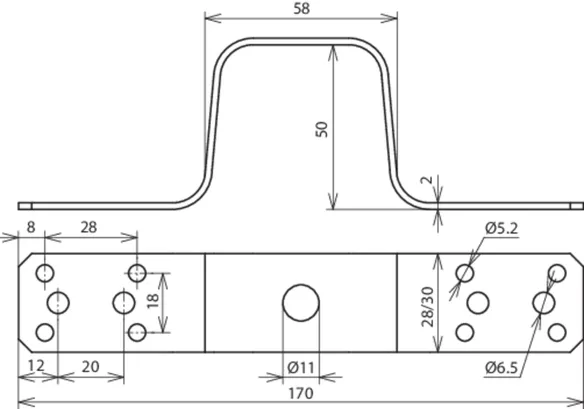

Part No. 377006 UEBL L170 B11 B5.2 6.5 AL

GTIN 4013364024922, Customs tariff No. (EU): 85359000, Gross weight: 39.30 g, PU: 50.00 pc(s)
