LifeCheck condition monitoring system

Two-part monitoring unit in a compact enclosure

Minimal wiring thanks to combined transmitter/receiver unit
Quick and convenient initial operation
Visual reverse unit for terminating a monitoring group
Simple line connection thanks to push-in connection technology

Maximum protection for high availability of plants and systems

Condition monitoring of arresters of the BLITZDUCTORconnect / DEHNpatch product series
Simple visual monitoring principle
Resistant to extraneous light
Integrated group display and remote signalling contact (break contact)
Quick and easy commissioning

Details

**Simple maintenance**
Remote signalling of the status of arrester groups (break contact)

lorem ipsum — **Simple maintenance**
Remote signalling of the status of arrester groups (break contact)

**Quick and convenient**
Simple installation / initial operation with combined transmitter/receiver unit

**Quickly checked – at a glance**
Status indication (group display) for simple and quick maintenance

**Maximum system availability**
Approval for use in hazardous areas

DRC IRCM

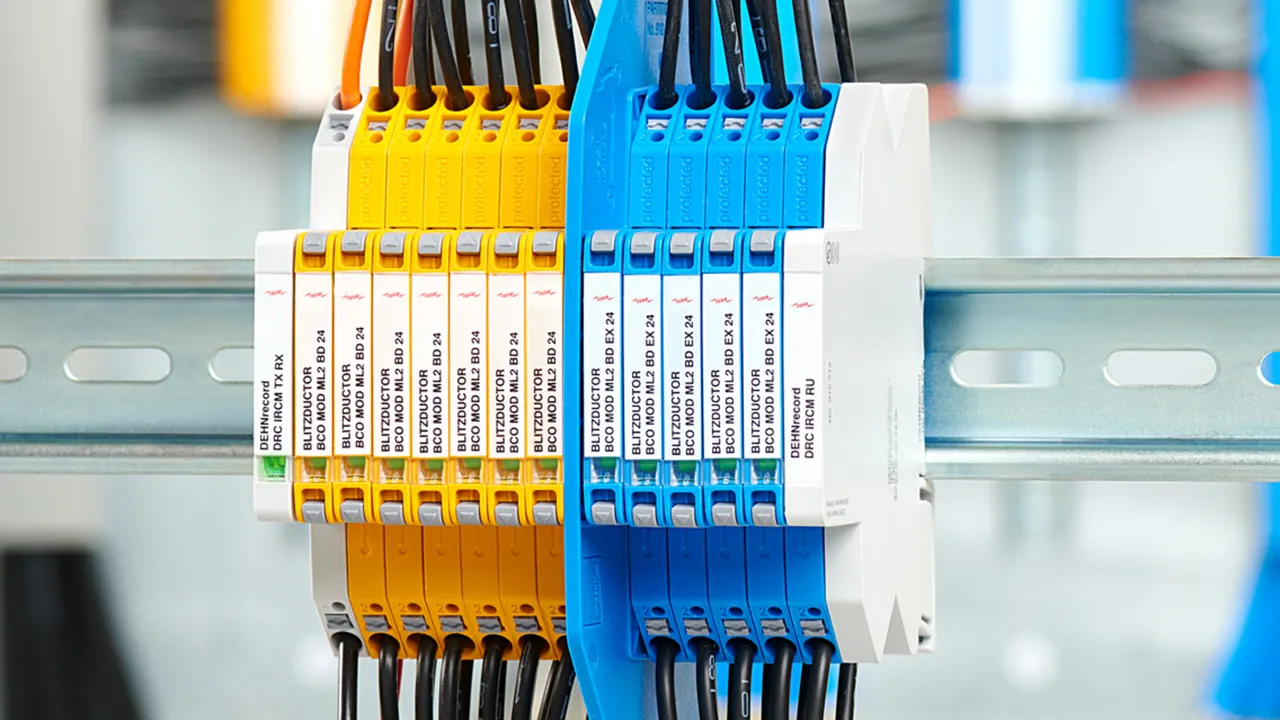

Condition monitoring unit DEHNrecord, set for DIN rail mounted devices with integrated visual transmitter/receiver and visual reverse BLITZDUCTORconnect arresters and DEHNpatch with LifeCheck. Visual arrester status indication via LED group display in combination with remote signalling contact (break contact).

1 Product

Part No. 910710 DRC IRCM

GTIN 4013364424678, Customs tariff No. (EU): 90308900, Gross weight: 68.45 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Set for DIN rail mounted devices DRC IRCM TX RX and DRC IRCM RU
DIN rail mounted device with integrated
visual transmitter/receiver and
visual reverse unit for
condition monitoring
of BLITZDUCTORconnect arresters
and DEHNpatch with LifeCheck.
LED group status indication of the arrester group
combined with remote signalling
(floating break contact).
Input voltage range (d.c.): 6-35 V d.c.
Max. rated current consumption: ≤ 10 mA
Operating temperature range: -30 °C ... +70 °C
Approvals: UL, CSA, ATEX, IECEx, CCC

Brand: DEHN
Type: DRC IRCM
Part No.: 910710
or equivalent.

Certificates

Technical data

Input voltage range (d.c.) (U_IN )	6-35 V d.c.
Max. rated current consumption (I_IN )	≤ 10 mA
Operating temperature range (T_U )	-30 °C ... +70 °C
Approvals	UL, CSA, ATEX, IECEx, CCC

Input voltage range (d.c.) (U_IN )	6-35 V d.c.
Max. rated current consumption (I_IN )	≤ 10 mA
Distance between transmitter / receiver and reverse unit	≤ 305 mm
Message: Replacing of SPD recommended	LED, remote signalling contact (break contact)
Indicator	two-colour LED (green, red)
Type of remote signalling contact	break contact (nc)
Technical data of remote signalling contact	contact resistance < 2.5 ohms; leakage current < 1 µA
Switching capacity (d.c.)	48 V / 500 mA / Pmax 300 mW
Test cycle	continuous
Operating temperature range (T_U )	-30 °C ... +70 °C
Degree of protection	IP 20
For mounting on	35 mm DIN rails acc. to EN 60715
Connection (input / output)	Push-in / Push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Enclosure material	polyamide PA 6.6
Colour	grey
Test standards	EN 61010-1
Approvals	UL, CSA, ATEX, IECEx, CCC
ATEX approvals	TÜV 20 ATEX 8480 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0071X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2023322309005182
Delivery includes	Transmitter-/receiver unit /reverse unit
