Equipotential Bonding Busbars R15 with Terminal Block System / Kit

Equipotential bonding busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3
  • Tested according to DIN VDE 0609
  • 15 modules
  • Grey plastic bar frames and cover (halogen-free)
  • Sealable / labelable cover
  • Terminal block, St/gal Zn

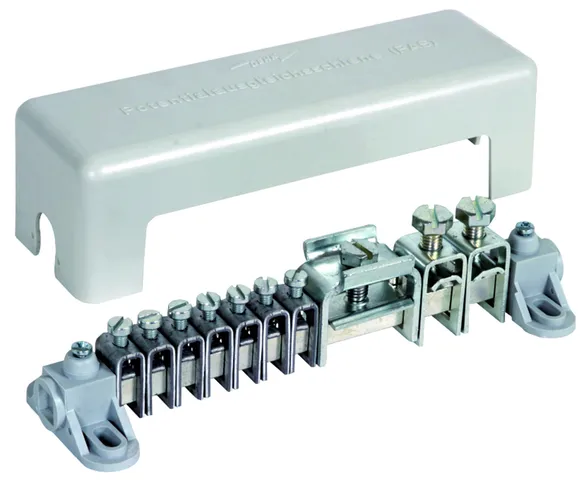

Type A

Terminals for:
7 conductors 2.5-25 mm² (solid / stranded).
2 conductors 16-95 mm² (solid / stranded) or Rd Ø8-10 mm.
1 conductor Fl up to 30 x 4 mm.

1 Product

Part No. 563010 PAS AH RK 7X25 2X8.10 1XFL30

GTIN 4013364027800, Customs tariff No. (EU): 85359000, Gross weight: 469.10 g, PU: 1.00 pc(s)
