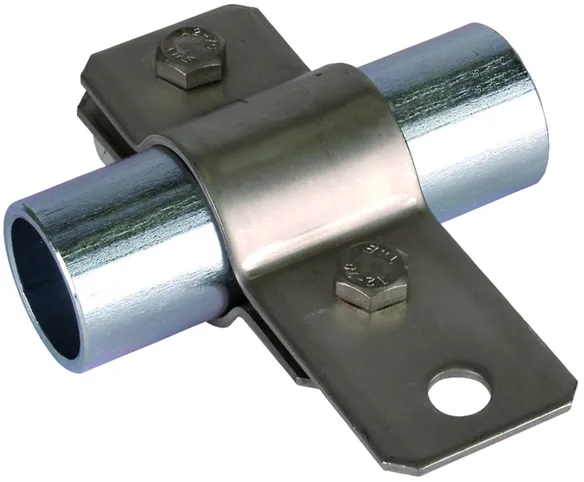

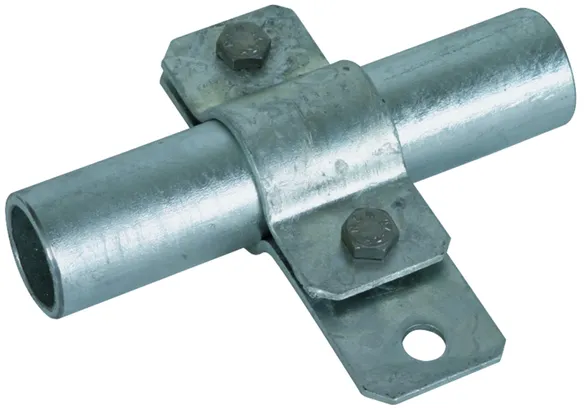

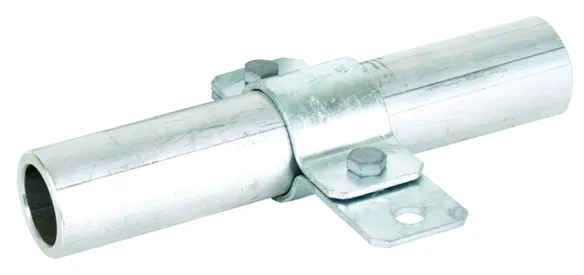

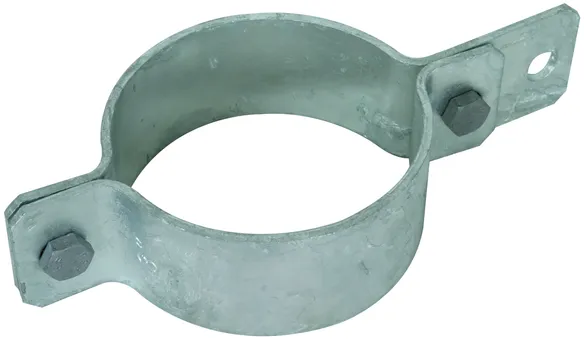

Lightning Protection Earthing Pipe Clamps

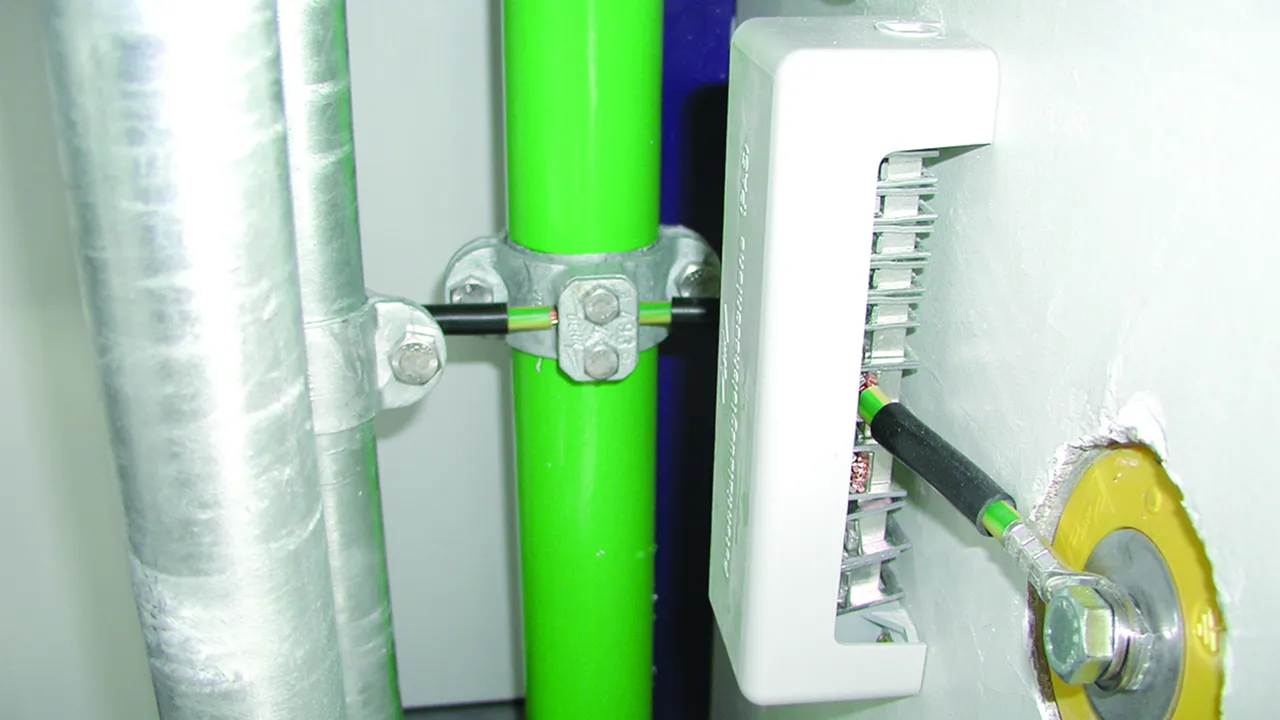

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3.

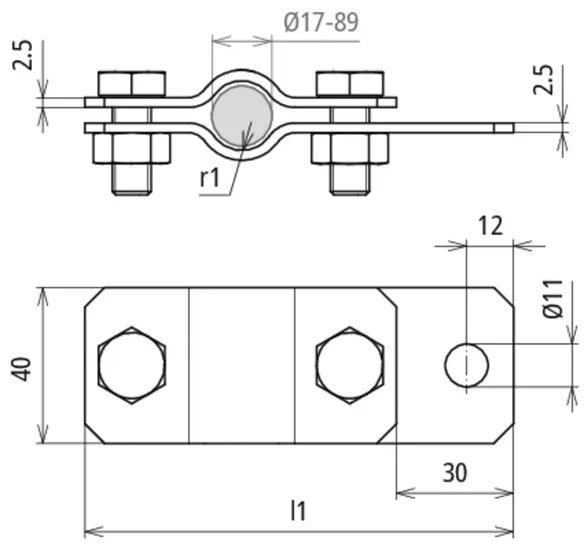

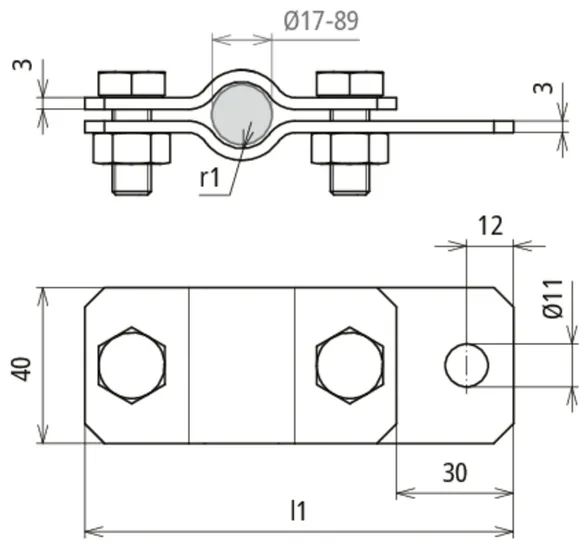

The clamping range (specified in mm) refers to the outer diameter and the clamping range (specified in inch) refers to the inner diameter (nominal width) of the pipes.

With M10 screws

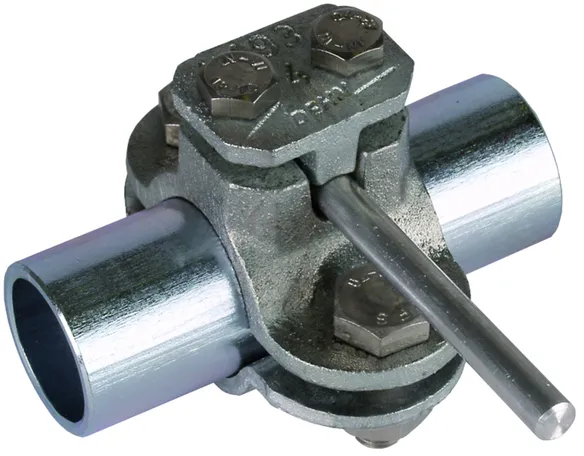

Connection for Rd 4-10 mm or conductor cross-section max. 70 mm2.

6 Products

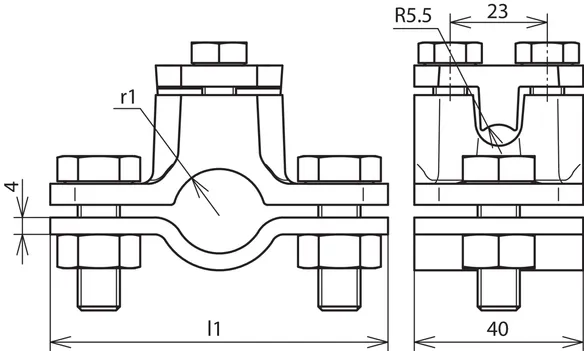

Part No. 407012 ERS 21 AS4.10 TG STTZN

GTIN 4013364026100, Customs tariff No. (EU): 85359000, Gross weight: 442.00 g, PU: 10.00 pc(s)
