Connecting Clamps for Foundation Earth Electrodes and Reinforcements

For connecting round and flat conductors in the concrete foundation or reinforcing steel meshes and reinforcements with round and flat conductors.

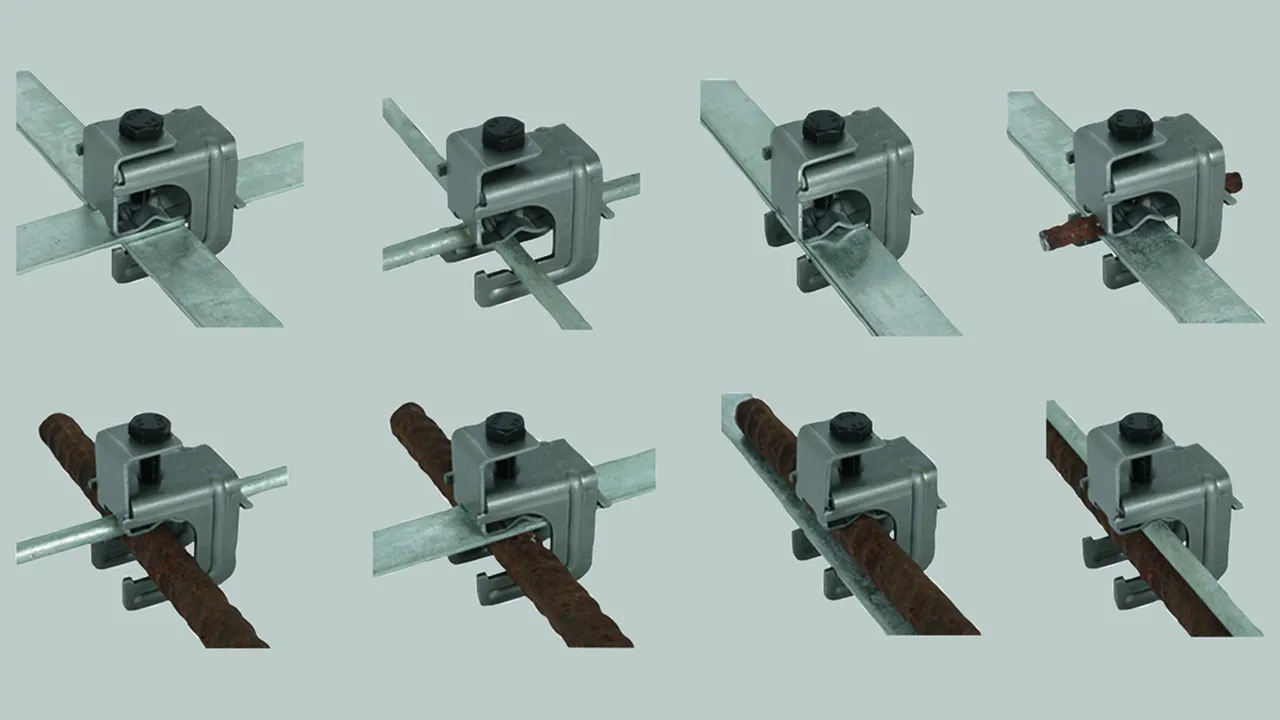

Arrangement:
(II) = parallel
(+) = cross

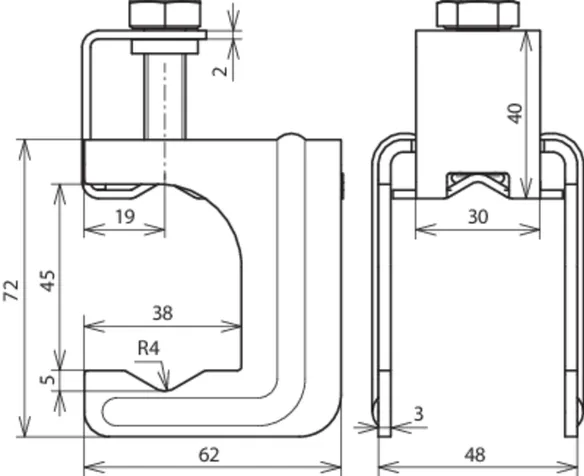

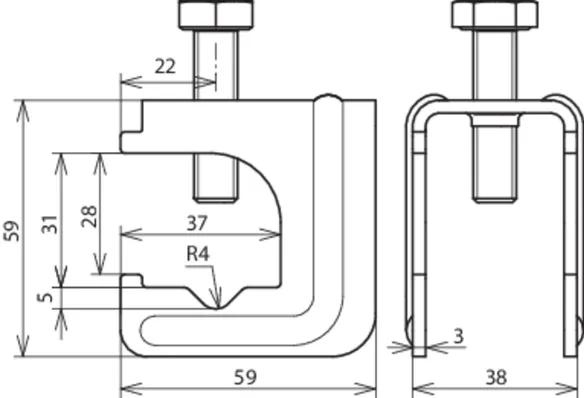

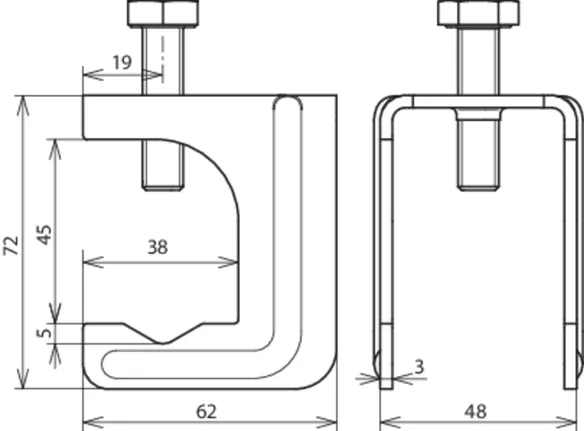

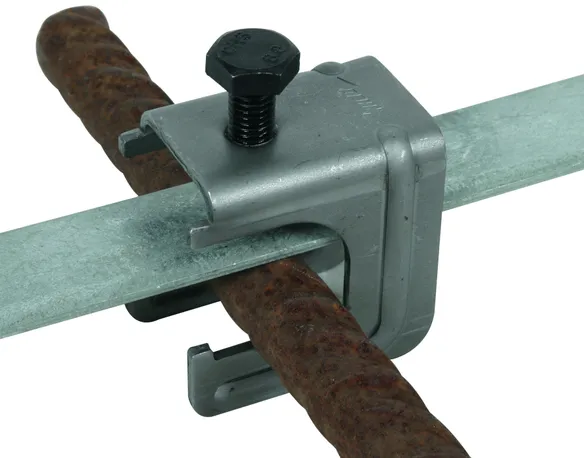

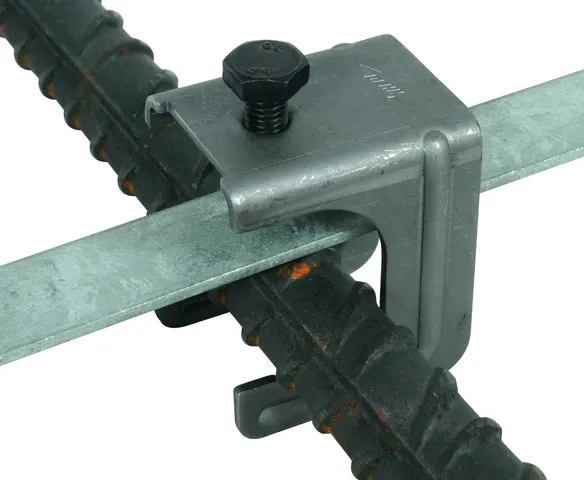

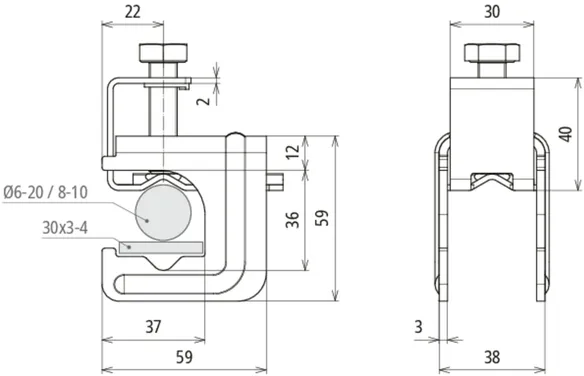

Connecting clamp with thrust bracket

For T, cross and parallel connections.

2 Products

Part No. 308031 VK DB 6.20 8.10 FL30 BSB STBL

GTIN 4013364136571, Customs tariff No. (EU): 85359000, Gross weight: 239.60 g, PU: 25.00 pc(s)

Images

Additional information
