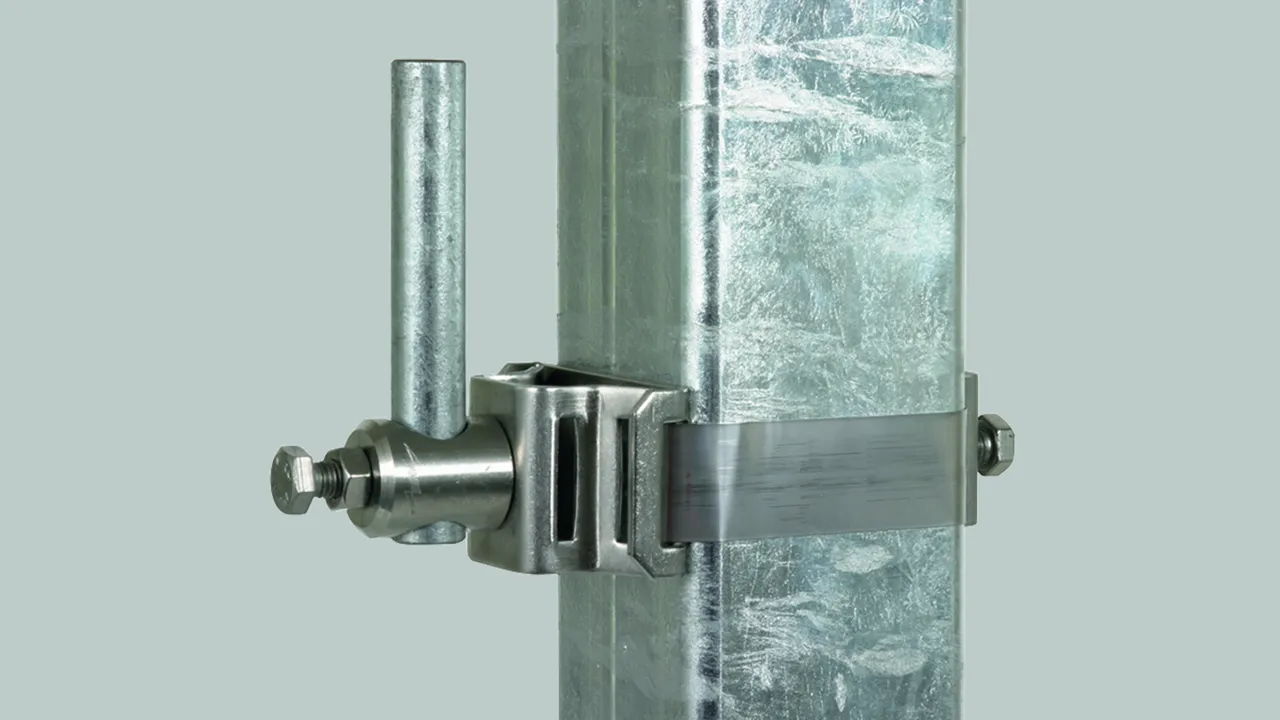

Pipe Clamp for Air-Termination Rods

For fixing as well as lightning current carrying contact of the air-termination rod, e.g. on metal substructures of photovoltaic (PV) installations (square hollow profile); typically installed on steel frame or reinforced concrete structures. When mounted on pipes, the pressure plate (flat plate 2x angled) has to be removed. Two pipe clamps have to be installed on each air-termination rod.
The maximum free length of the respective air-termination rod according to the wind load must be considered for installation.

1 Product

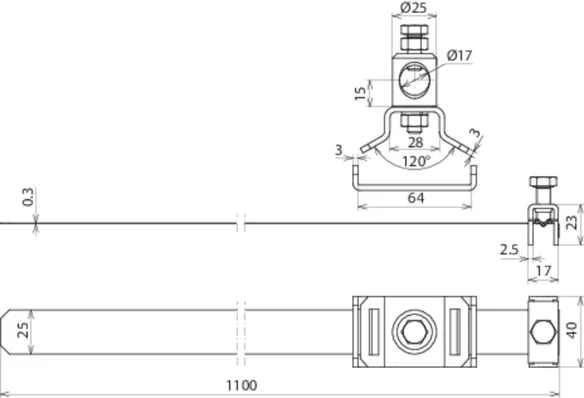

Part No. 540105 BRS 50.300 BB16 8 V2A

GTIN 4013364115880, Customs tariff No. (EU): 85359000, Gross weight: 359.30 g, PU: 1.00 pc(s)
