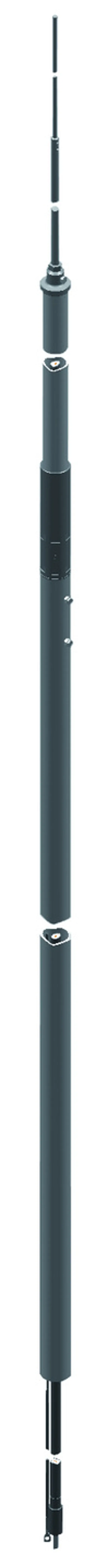

Air-termination mast with HVI light plus Conductor

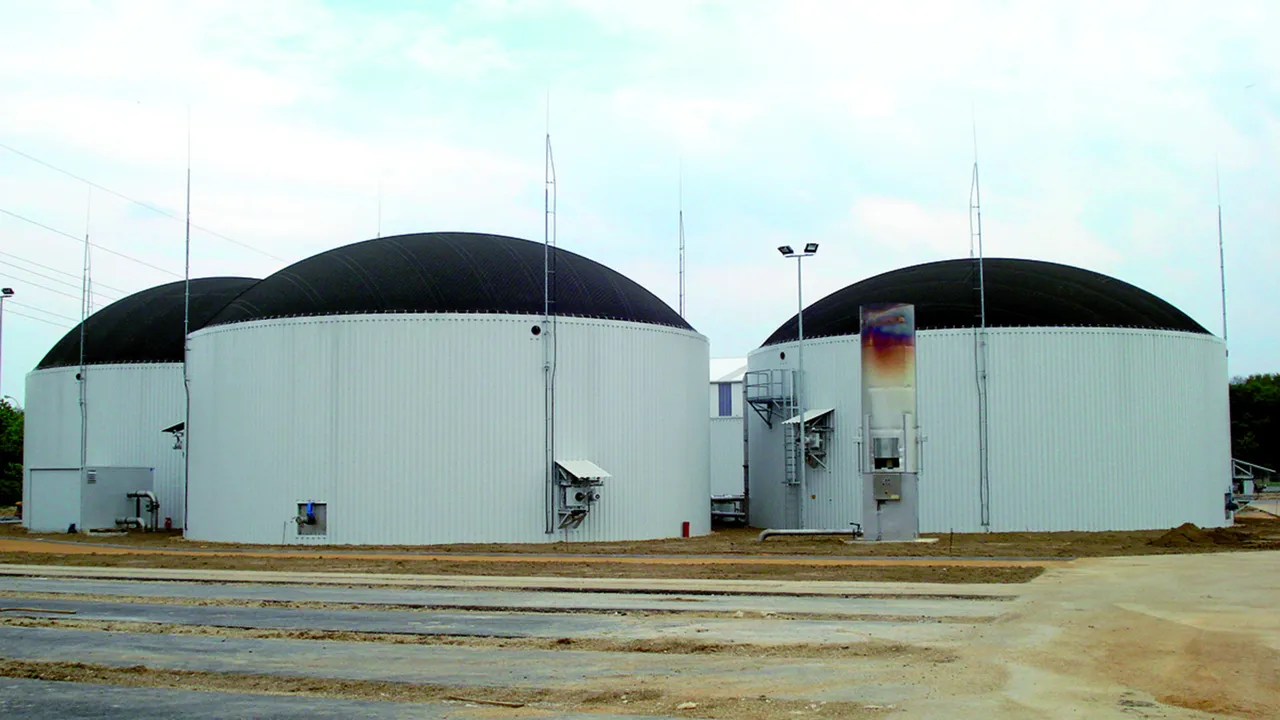

The complete kit of the air-termination mast for extreme heights (for biogas plants, for example).
To be fixed with three variable supports (Part No. 105 345).

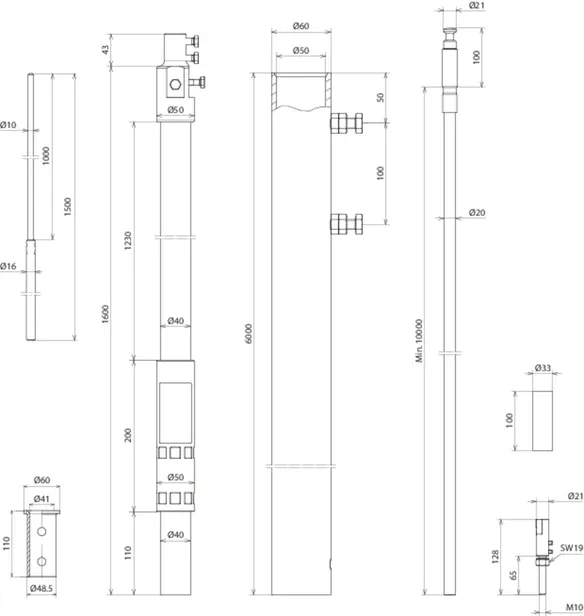

The separable air-termination mast / kit consists of:
– Al air-termination rod, Ø16/10 mm, length 1500 mm
– GRP/Al supporting tube, Ø40/50 mm, length 1600 mm
– HDG steel (St/tZn) adapter, Ø40/50 mm
– HDG steel (St/tZn) mast pipe, Ø60 mm, length 6000 mm (max. transport length)
– HVI light plus Conductor (pre-assembled, installation inside the supporting tube)

1 Product

Part No. 819735 FM 60 L9M IP HVI LI PL GFK AL STTZN

GTIN 4013364499539, Customs tariff No. (EU): 85389099, Gross weight: 52.77 kg, PU: 1.00 pc(s)
