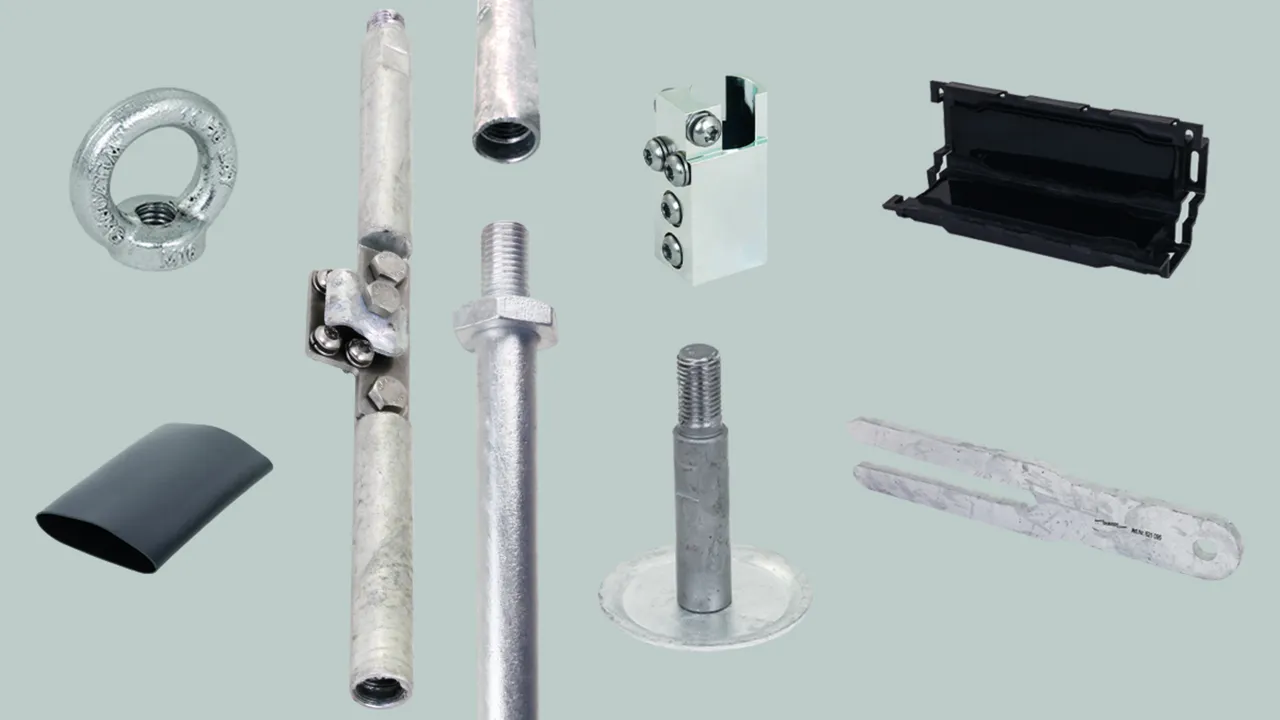

Screwable earth rod

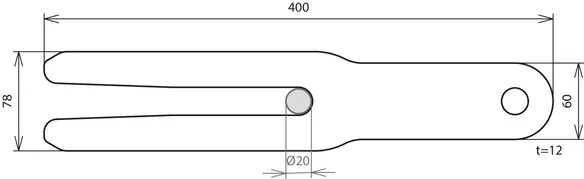

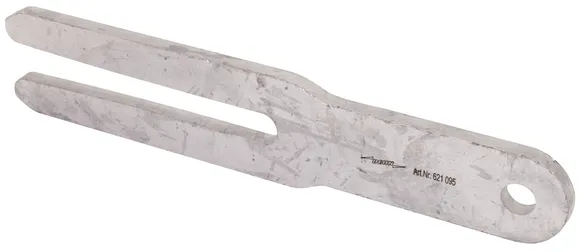

Complete system for the installation of drilled earthing systems up to 99 m by means of core drilling according to the requirements of very low earthing resistances, e.g. 1–2 ohm in pipeline applications or wherever earth rods cannot be driven in. Earth electrode with M16 female and male thread as per the requirement of DIN EN 62561-2. With device for suspension over borehole.
  • Tested system as per DIN EN 62561-2

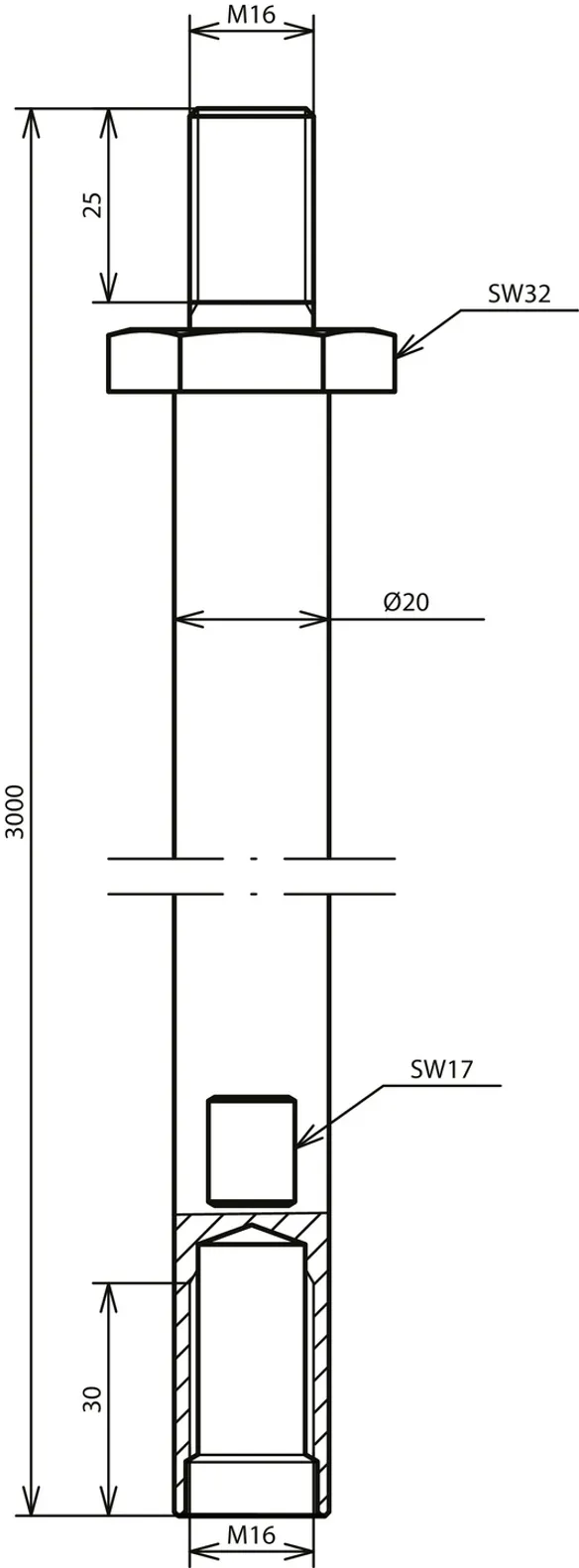

  • Variable earth electrode lengths of 3.0 m / 1.5 m & 0.5 m for optimum installation with drill crane
  • Time savings through quick connection and insertion technology

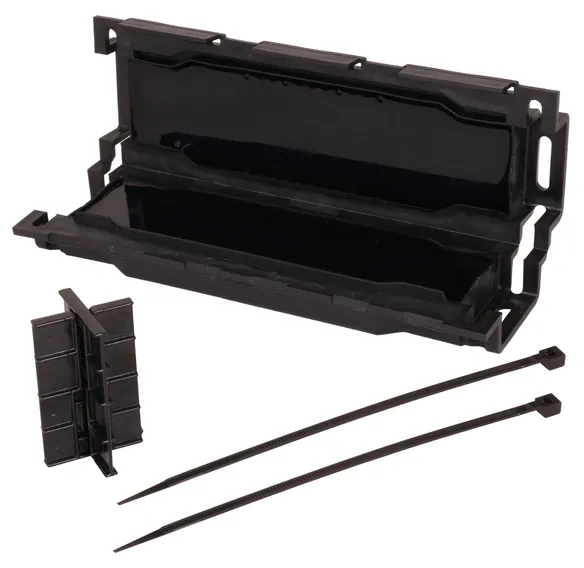

  • Comprehensive accessories for installation, sealing and connections; e.g. to decoupling device

Starter kit

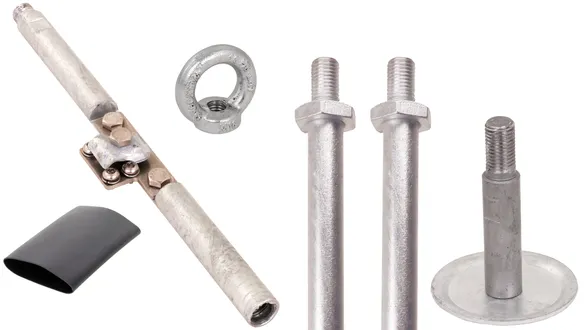

Screwable earth rod starter kit

1x used for each drill hole, consisting of:

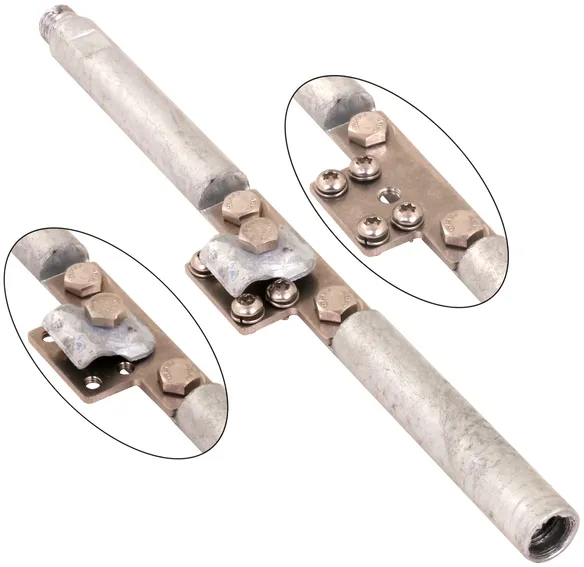

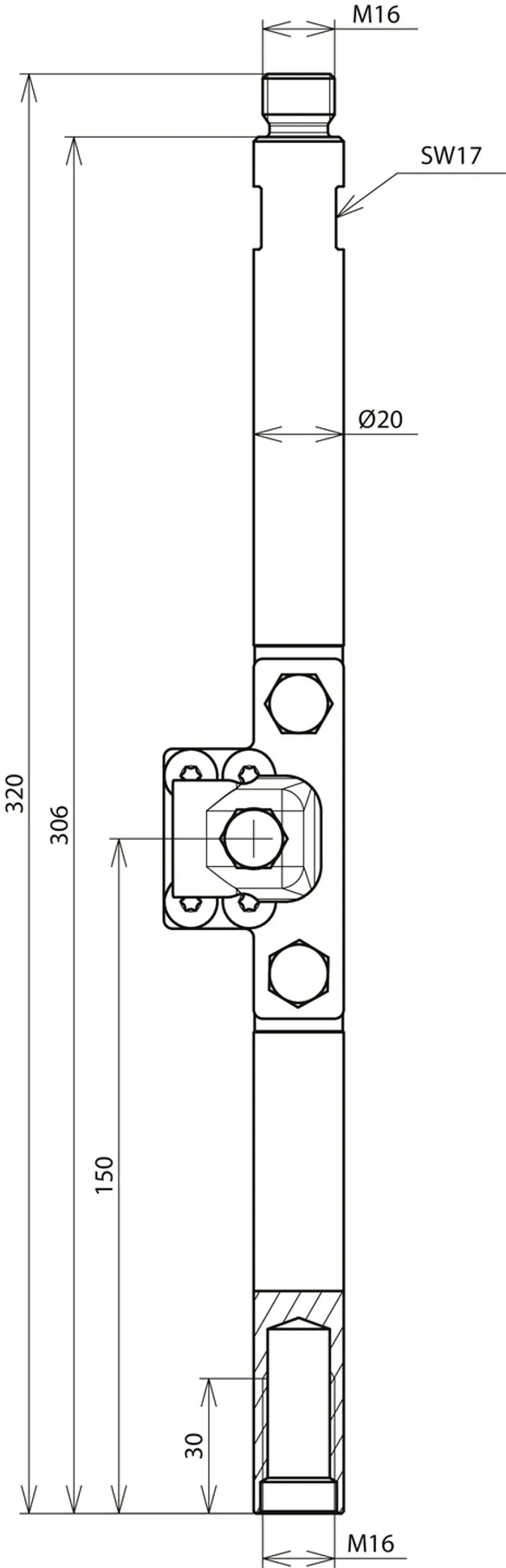

1x connector L 320 mm (part no. 621 092)

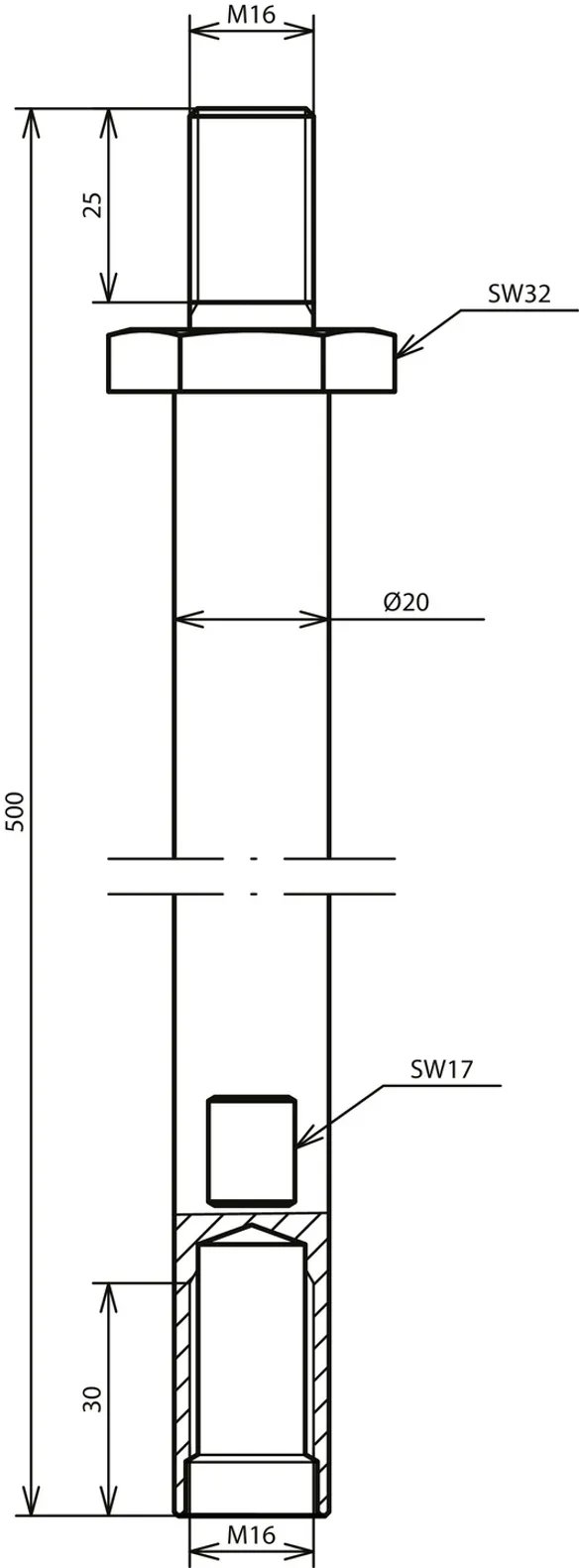

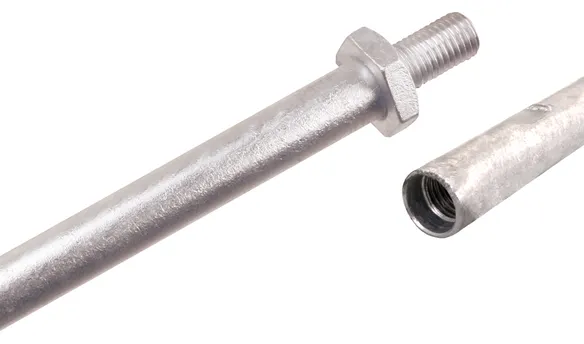

2x screwable earth rod, L 500 mm (part no. 621 050)

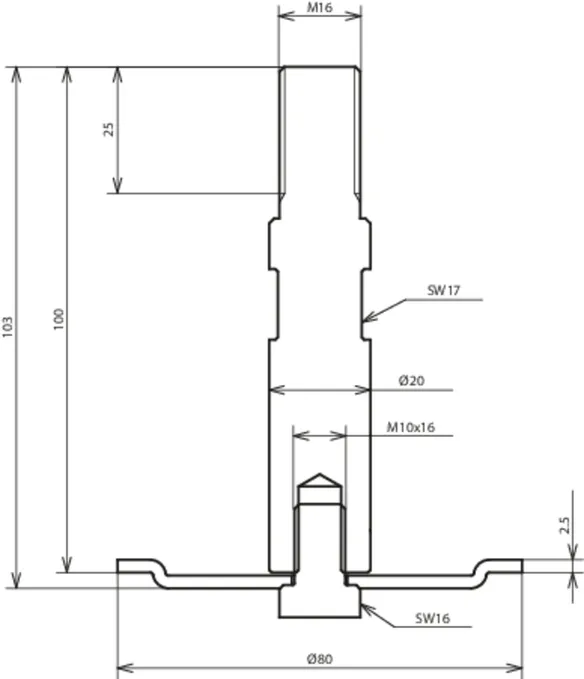

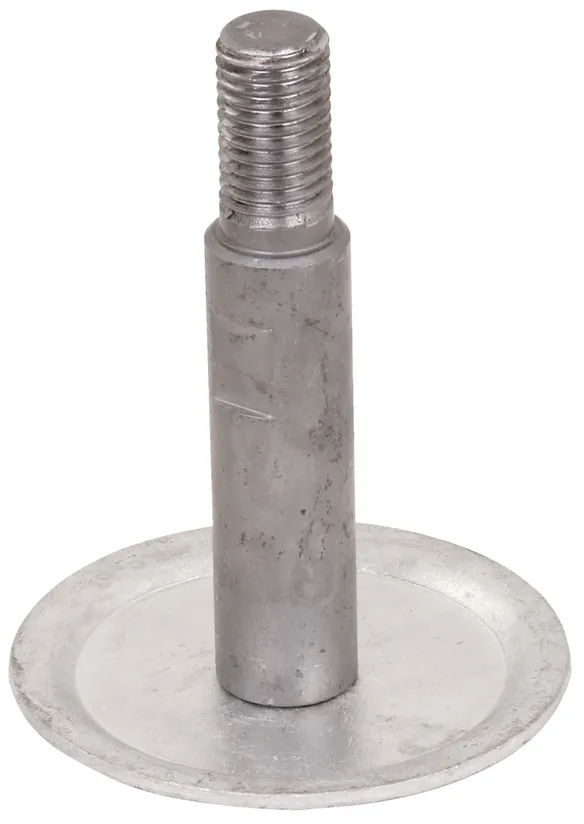

1x foot piece with flange Ø80 mm (part no. 621 091)

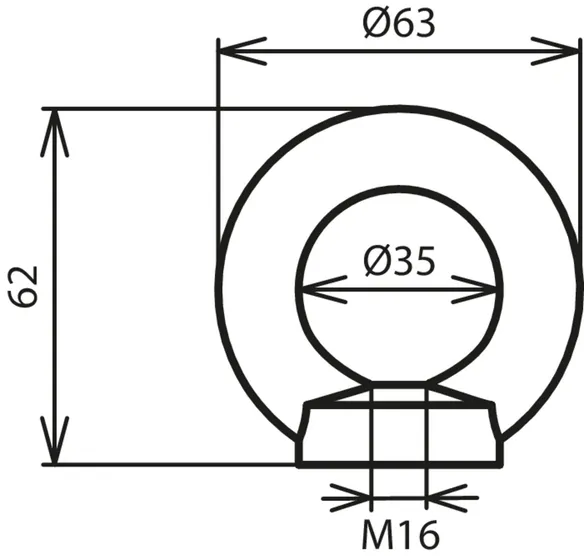

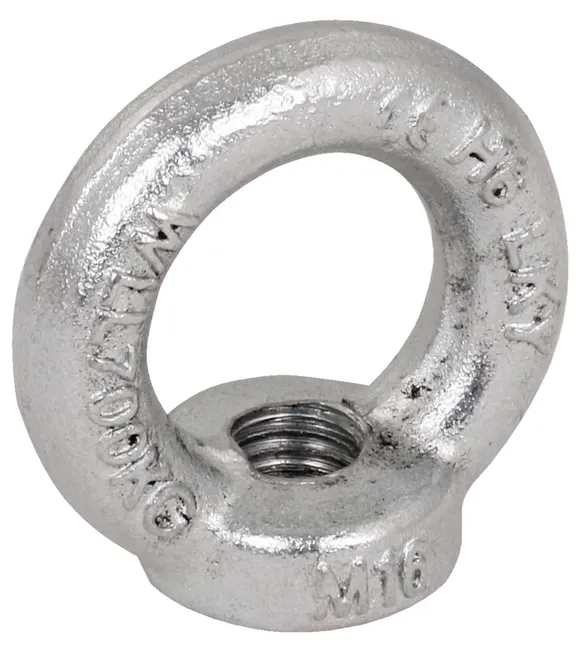

1x M16 ring nut (part no. 621 097)

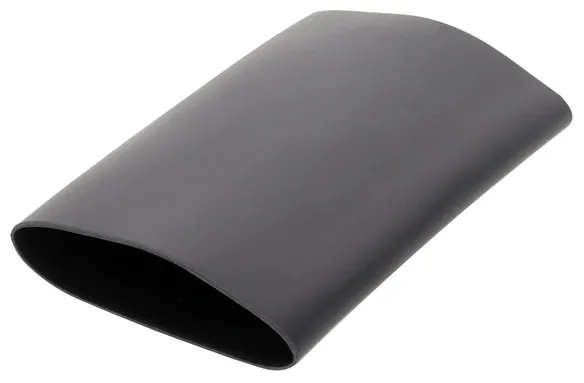

1x heat-shrinkable sleeve L 140 mm (part no. 621 096)

1 Product

Part No. 621090 SET STARTER KIT TE 20 M16 STTZN

GTIN 4013364501133, Customs tariff No. (EU): 85389099, Gross weight: 4.24 kg, PU: 1.00 pc(s)
