Holders for Air-Termination Systems on Ridge and Hip Tiles

For air-termination rods or spacer bars with conductor holder, for protecting solar thermal modules, photovoltaic generators or other roof-mounted structures on steep roofs.

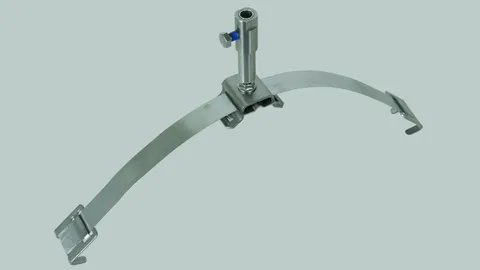

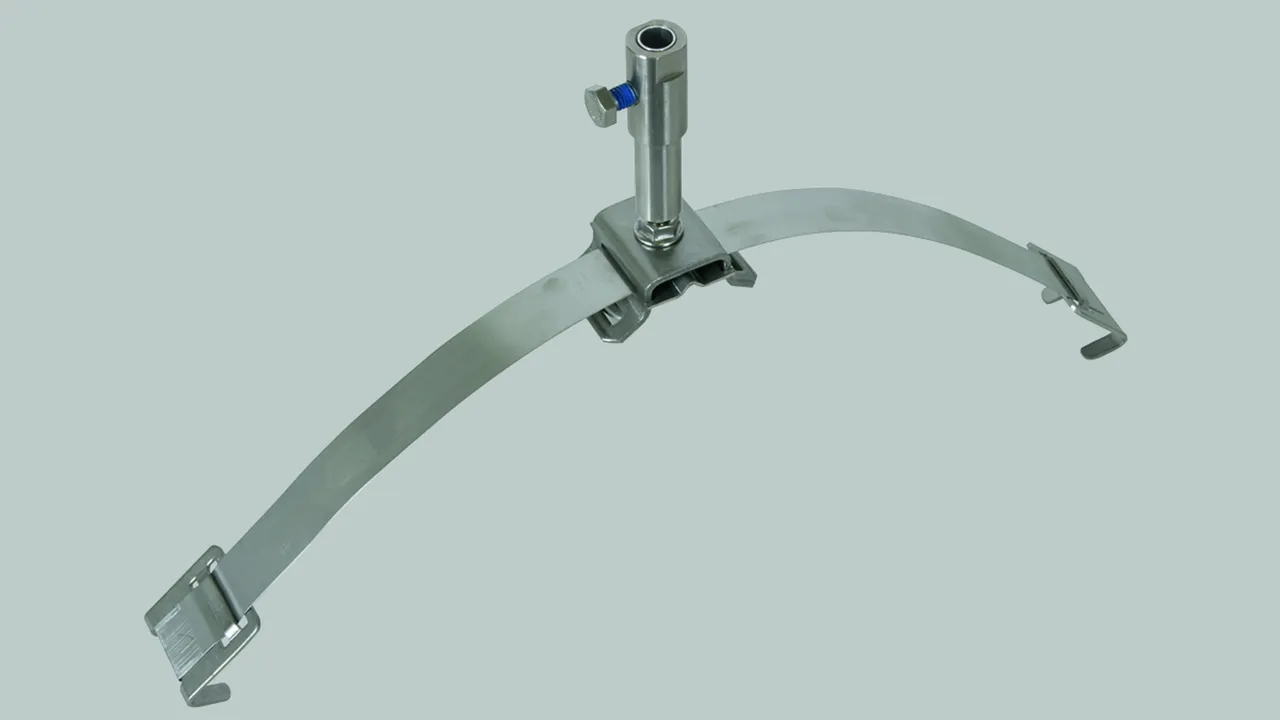

The holder is mounted using a tensioning strap. One clip is permanently fixed to one end of the tensioning strap. The holder can be adjusted to various types of ridge tiles using the adjustable clip at the other end.

Air-termination tips / rods or spacer bars have to be ordered separately.

The holders in combination with the metal air-termination tips / rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).

Single design

For air-termination tips (length 1000 mm) or spacer bars (GRP, Ø10 mm).

1 ??store.product_de??

??store.product.number.short_de?? 123110 HA 10 1F FG120.300 V2A

??store.product.gtin_de?? 4013364147911, ??store.product.customsTariffNumber_de??: 85389099, ??store.product.grossWeight_de??: 321.00 g, ??store.product.packaging_de??: 1.00 pc(s)
