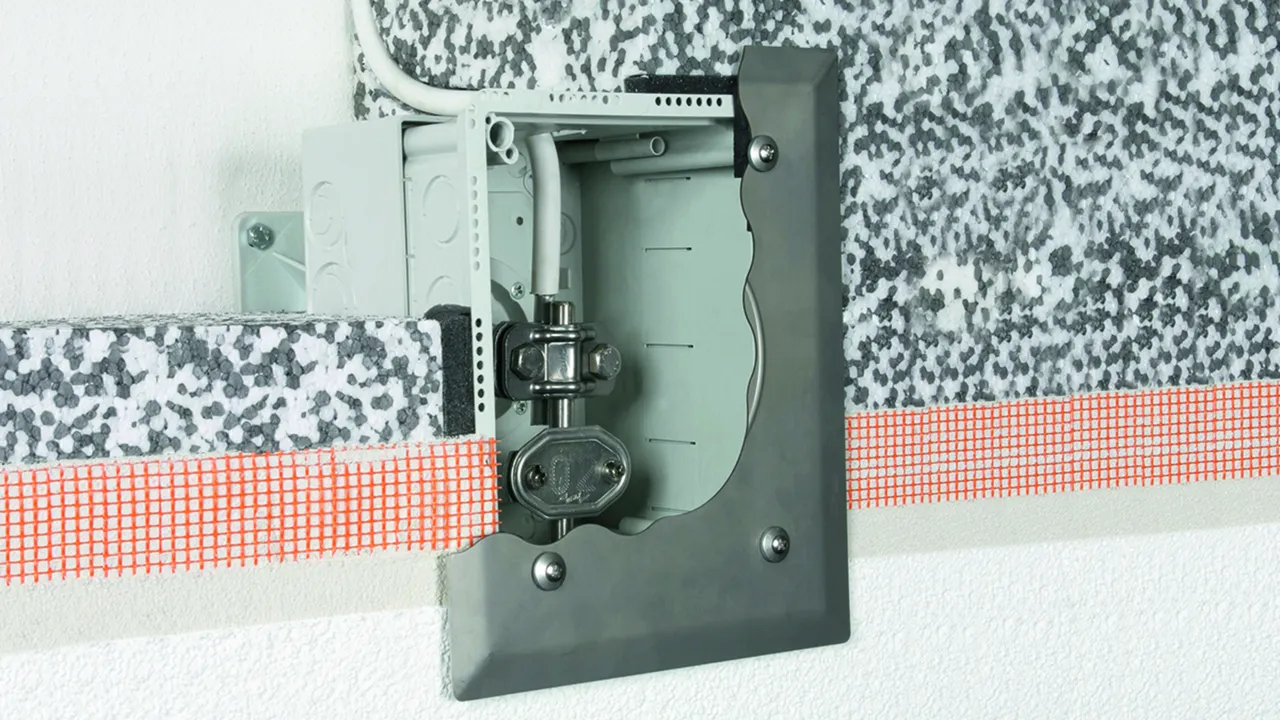

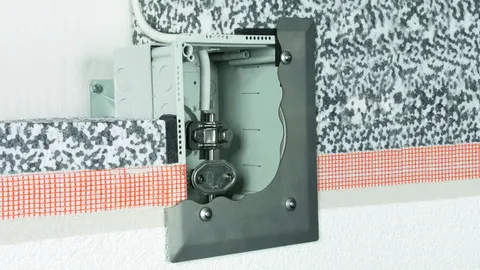

Test Joint Box for External Thermal Insulation Composite Systems

The telescopic test joint box is particularly designed for external thermal insulation composite systems (full thermal insulation).
It is continuously adjustable from 90-140 mm. Thanks to the additional spacer, the test joint box can be used for insulation material thicknesses up to 320 mm.
The test joint box is properly sealed thanks to a swellable waterstop tape and a specially edged StSt cover with seal.

Delivery includes all fixing elements (screws and plugs) as well as a styrofoam cover (protection against soiling during plastering).

Suitable for insertion of (perforations):
– Round wire Ø8-10 mm
– Round wire with plastic sheath Ø13 mm
– HVI Conductors Ø20-27 mm
– Flat strip 30x3.5 mm

The required disconnecting clamp and the number plate have to be ordered separately.

Details

Test joint box with spacer

For insualtion material thicknesses between 140 mm and 320 mm.

1 ??store.product_de??

??store.product.number.short_de?? 476055 TSKS WDVS 185X140X88 AH50.200 K V2A

??store.product.gtin_de?? 4013364219755, ??store.product.customsTariffNumber_de??: 85359000, ??store.product.grossWeight_de??: 1.02 kg, ??store.product.packaging_de??: 1.00 pc(s)
