Solutions Railway Point heaters

Protection of point heaters

Point heaters are indispensable for smooth railway operations, especially in regions with cold winters. Blocked or frozen points can significantly disrupt railway traffic or even bring it to a standstill. Thanks to the targeted heating, the points remain manoeuvrable and controllable even in extreme weather conditions.
With protection solutions from DEHN, you can implement lightning protection, earthing and surge protection for point heaters in a holistic and efficient manner.

1: Power supply 2: Data technology protection 3: Earthing system 1: Power supply 2: Data technology protection 3: Earthing system

Solutions for point heaters

Sophisticated heating systems prevent icy and snow-covered points. Lightning strikes, surges and electromagnetic interference can jeopardise the complex point heating system. With a customised lightning protection zone concept from DEHN, you can protect your system comprehensively and effectively.

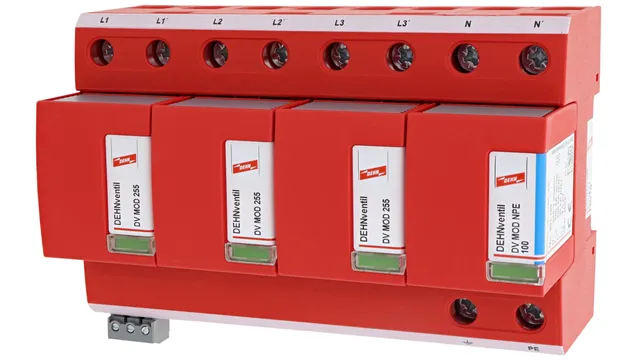

951315

DEHNventil M

Multipole DEHNventil modular type 1 and type 2 according to EN 61643-11 spark-gap-based combined lightning current and surge arrester consisting of a base part and pluggable protection modules.

Add  Details

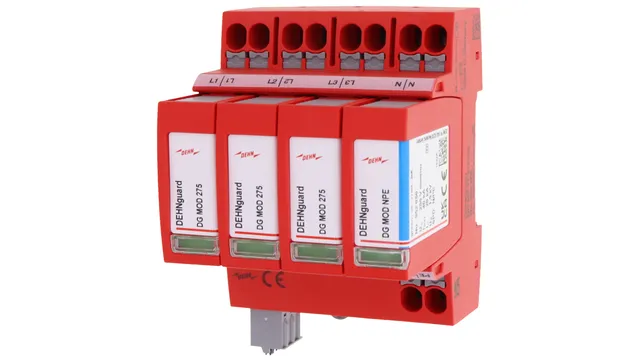

942315

DEHNguard MP TT 275 FM

Multipole type-2 + type-3 DEHNguard MP surge arrester, according to EN 61643-11, consisting of a base part and plug-in protection modules and double-push-in connection clamp suitable for stub wiring and feed-through wiring.

Add  Details

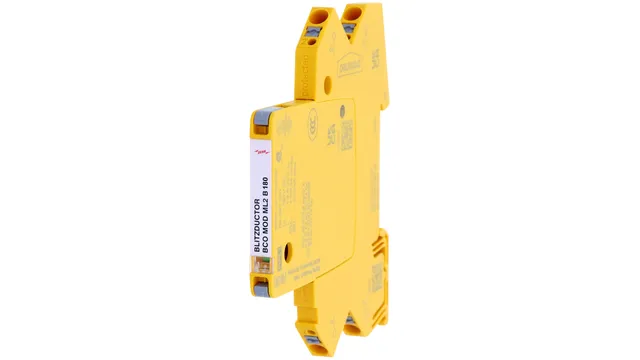

927210

BLITZDUCTORconnect ML2 B 180

Space-saving, modular lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables.

Add  Details

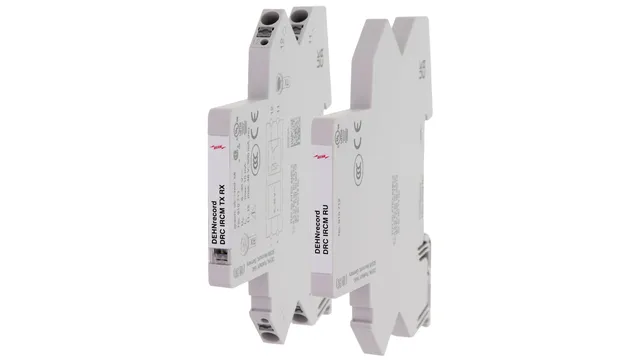

910710

DEHNrecord IRCM

Condition monitoring unit DEHNrecord, set for DIN rail mounted devices with integrated visual transmitter/receiver and visual reverse BLITZDUCTORconnect arresters and DEHNpatch with LifeCheck.

Add  Details

929161

DEHNpatch Class EA

Universal, space-saving combined arrester of 19 mm in width and RJ45 connection system with status indication for simple maintenance.

Add  Details

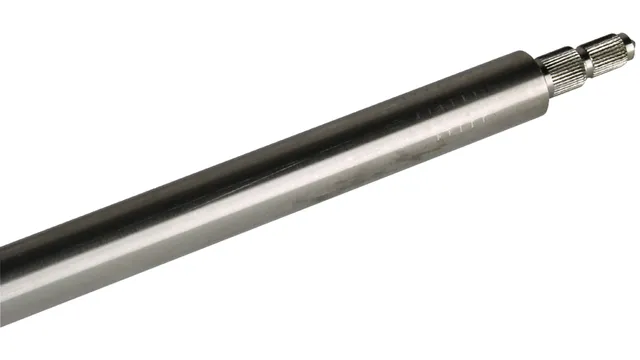

620903

Earth rod

Earth rod according to EN 62561-2, to implement earth-termination systems for down conductors or transformer stations. With self-closing coupling, no cross-section thickening at the coupling point.

Add  Details

Compliance with the relevant directives

All products and solutions from DEHN are standard-compliant. Learn more about the rail-specific requirements and how you can meet them with our solutions.

Rail-specific standards at a glance

Optimally protected point heaters

E-learning

Learn about products and concepts for surge protection and earthing of point heaters.

More information

Downloads

Brochure Railway infrastructure DEHN protects the railway infrastructure .pdf 5.3 MB

Any questions about protection solutions for railway infrastructure?

Contact our experts at itss@dehn.de.

Or find your contact person here – worldwide.
